Carmex Carbide Thread Mills - MT Drill ISO (MTD)
From
£103.31
View Products
£103.31

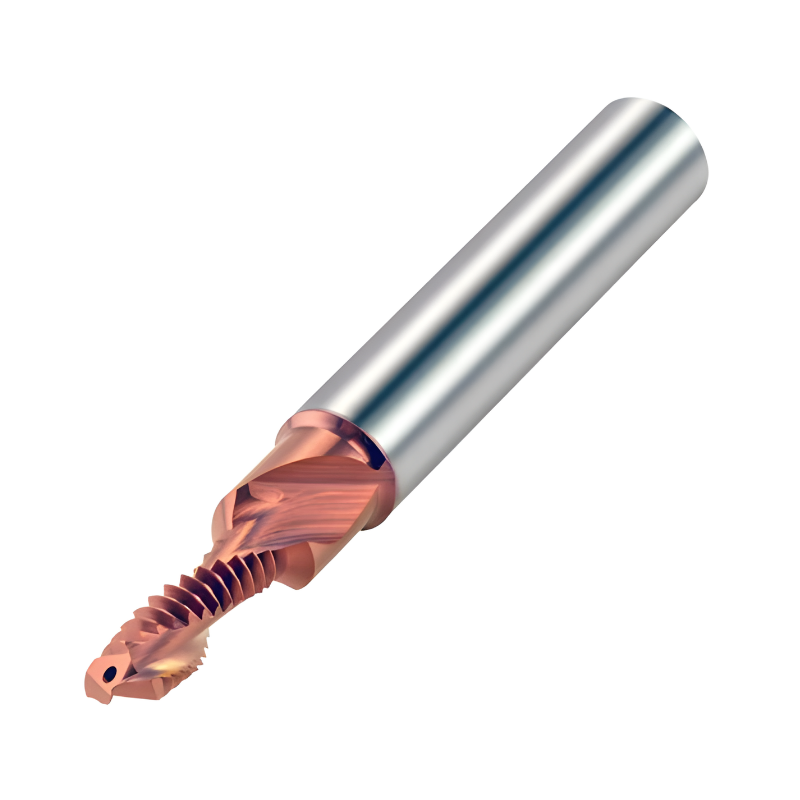

The MTD Thread Mill is designed to drill, chamfer and thread mill the hole in a single operation. Two-fluted drill/thread milling cutter, with 45˚ chamfering making it Ideal for mass production applications. Reduces cycle times by combining operations and eliminating tool changes. Fits both right and left hand internal threads. Same tool can be used for blind and through holes. High thread surface quality. Internal coolant bore. Optimised MT7 Sub-Micron carbide grade combines high hardness and toughness, with PVD triple coating for smooth cutting and high performance.
| Product SKU | Size | Pitch | Flute Length | Reach | Shank Diameter | Overall Length | Price | Stock | |
|---|---|---|---|---|---|---|---|---|---|
| MTD06032B70.7ISOK20 | M4 | 0.7 | 9.8 | 9.8 | 6 | 54 | £103.31 |
5 days |
View product |
| MTD06032B70.7ISOMT7 | M4 | 0.7 | 9.8 | 9.8 | 6 | 54 | £113.53 |
5 days |
View product |
| MTD0604B90.8ISOK20 | M5 | 0.8 | 11.9 | 11.9 | 6 | 54 | £103.31 |
5 days |
View product |
| MTD0604B90.8ISOMT7 | M5 | 0.8 | 11.9 | 11.9 | 6 | 54 | £113.53 |
5 days |
View product |
| MTD08048B121.0ISOK20 | M6 | 1 | 14.8 | 14.8 | 8 | 62 | £122.11 |
5 days |
View product |
| MTD08048B121.0ISOMT7 | M6 | 1 | 14.8 | 14.8 | 8 | 62 | £134.21 |
5 days |
View product |
| MTD10064B151.25ISOK20 | M8 | 1.25 | 18.7 | 18.7 | 10 | 74 | £147.97 |
5 days |
View product |
| MTD10064B151.25ISOMT7 | M8 | 1.25 | 18.7 | 18.7 | 10 | 74 | £162.82 |
5 days |
View product |
| MTD1208B191.5ISOK20 | M10 | 1.5 | 23.8 | 23.8 | 12 | 80 | £187.96 |
5 days |
View product |
| MTD1208B191.5ISOMT7 | M10 | 1.5 | 23.8 | 23.8 | 12 | 80 | £206.72 |
5 days |
View product |
