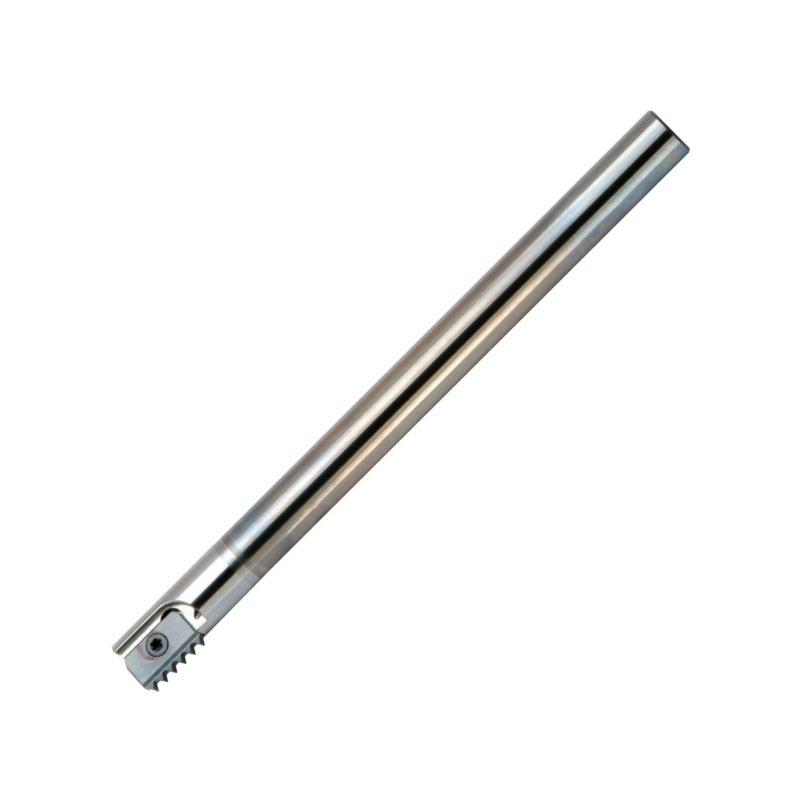

Carmex Single Long Carbide Shank Threading Insert holders - For Carbide External/Internal Threading Inserts - SR0010K12C

Carmex Single Long Carbide Shank Threading Insert holders - For Carbide External/Internal Threading Inserts

From
£130.85
View Products
Need Help?
Contact Sales
01732 887334

Our industry-leading assortment of indexable thread milling tools can be used with a wide range of applications. These tools were created in order to machine threading jobs on CNC milling machines (by using helical interpolation programs). They allow for improved productivity, thanks to the increased cutting speeds, and multi-tooth carbide inserts. Additionally, they can be used to lower tooling costs – as they are considerably cheaper than comparable taps and dies.

  • A line of carbide shank tool holders. These holders were engineered in order to provide an efficient and cost-effective solution for applications that require a long overhang.
  • Features:
  • Internal coolant bore
  • Overall holder length up to 270 mm (metric versions) / 10.5 inch (inch versions)
  • Notes:
  • When machining long overhang jobs, reduce the cutting speed and feed rate between 20-40% (exact value depends on workpiece material, thread pitch, and amount of overhang)
  • SR0390K12C can’t be used with conical inserts: 12-18 NPT / 12-18 NPTF / 12-19 BSPT

    • Product SKU Insert Size Shank Diameter Minimum Bore Diameter Overall Length Insert Screw Torx Key Price Stock
    SR0010K12C 12 8 9.9 125 S12 K12 £207.00
    £155.25

    5 days

    		 View product
    SR0013H14C 14 10 13.2 110 S14 K14 £174.46
    £130.85

    5 days

    		 View product
    SR0013J14C 14 10 13.2 155 S14 K14 £179.86
    £134.90

    In Stock

    		View product
    SR0015K14C 14 12 15.2 175 S14 K14 £224.94
    £168.71

    5 days

    		 View product
    SR0021K21C 21 16 21 130 S21 K21 £316.02
    £237.02

    5 days

    		 View product
    SR0021M21C 21 16 21 200 S21 K21 £325.72
    £244.29

    5 days

    		 View product
    SR0027S30C 30 20 27 270 S30 K30 £556.78
    £417.59

    In Stock

    		View product
