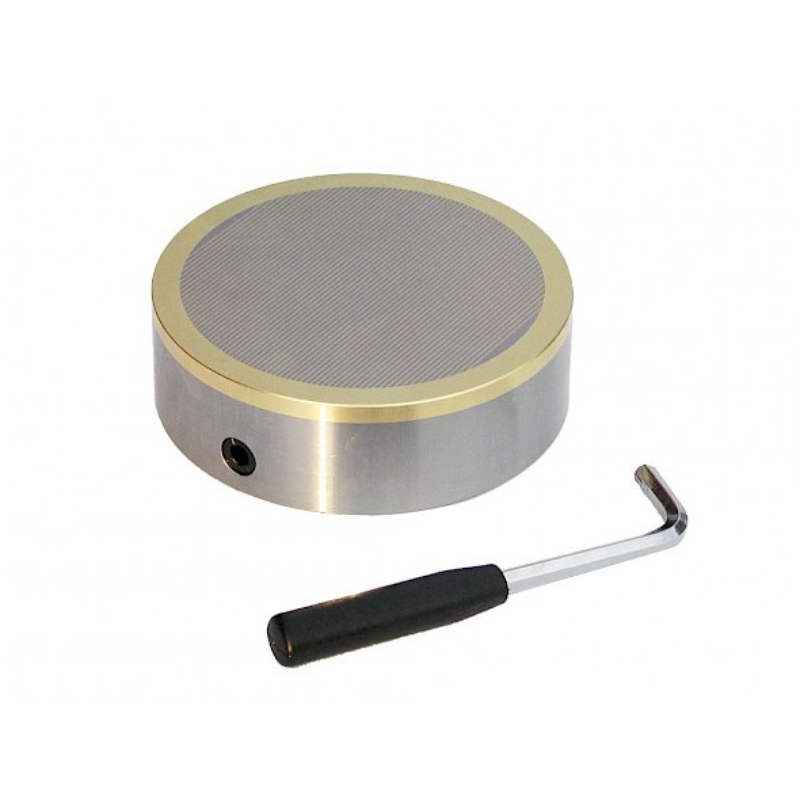

Eclipse Magnets Chuck Standard Circular Fine pole
From
£521.99
View Products
£521.99
Introducing Eclipse Magnets' Standard Range Chucks, delivering exceptional performance at a competitive price point. These chucks boast a robust clamping force of 80N/cm², as tested on a steel ring measuring 52mm in diameter outer, 38mm in diameter inner, and 10mm thick. Featuring brass and steel top plates, they ensure durability and reliability in various applications. Each chuck comes complete with side and end stops, as well as clamps, enhancing versatility and usability. With removable hexagon key handles enabling ease of operation through a 180-degree arc, Eclipse Magnets' Standard Range Chucks offer efficiency and precision, making them the preferred choice for a wide range of workholding needs.
Product SKU | A | B | C | D | E | F | G | Price | Stock | |
---|---|---|---|---|---|---|---|---|---|---|
ECLIPSE-ECFP125 | 125 | 50 | 50.8 | 6.35 | 76.2 | M6 | 101.6 | £521.99 |
In Stock | View product |
