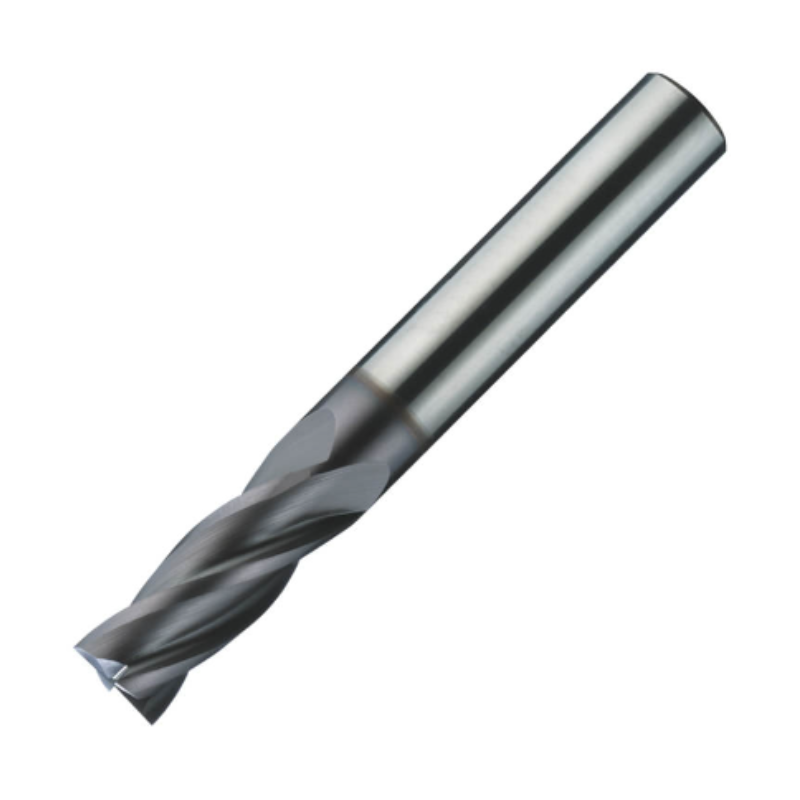

ITC Carbide End Mills Corner Radius 4061
4 Flute 30° Helix With Roll Relief, Radius & Coating - General Purpose
Introducing the Carbide End Mill Corner Radius 4061, meticulously designed for general-purpose machining applications. This advanced tool features a 4-flute design with a 30° helix, roll relief, radius, and a specialized coating, ensuring efficient chip evacuation, reduced cutting forces, and enhanced cutting stability. Ideal for a wide range of machining tasks, engineers rely on its precision and reliability for both roughing and finishing operations across various materials and workpieces.
Browse all 64 products
Click any SKU to view full product details, specifications and datasheets.
| Product SKU | Cutter Diameter | Shank Diameter | Overall Length | Flute Length | Radius | Reach | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|---|
| ITC-4061-3.0C-0.25R | 3 | 6 | 55 | 8 | 0.25 | 11 | £56.22 | 2 days |
|
| ITC-4061-3.0C-0.5R | 3 | 6 | 55 | 8 | 0.5 | 11 | £56.22 | 2 days |
|
| ITC-4061-3.0C-0.75R | 3 | 6 | 55 | 8 | 0.75 | 11 | £56.22 | 2 days |
|
| ITC-4061-3.0C-1.0R | 3 | 6 | 55 | 8 | 1 | 11 | £59.30 | 2 days |
|
| ITC-4061-4.0C-0.25R | 4 | 6 | 55 | 11 | 0.25 | 14 | £56.22 | 2 days |
|
| ITC-4061-4.0C-0.5R | 4 | 6 | 55 | 11 | 0.5 | 14 | £56.22 | 2 days |
|
| ITC-4061-4.0C-0.75R | 4 | 6 | 55 | 11 | 0.75 | 14 | £56.22 | 2 days |
|
| ITC-4061-4.0C-1.0R | 4 | 6 | 55 | 11 | 1 | 14 | £59.30 | 2 days |
|
| ITC-4061-5.0C-0.25R | 5 | 6 | 55 | 13 | 0.25 | 16 | £56.22 | 2 days |
|
| ITC-4061-5.0C-0.5R | 5 | 6 | 55 | 13 | 0.5 | 16 | £56.22 | 2 days |
|
| ITC-4061-5.0C-1.0R | 5 | 6 | 55 | 13 | 1 | 16 | £59.30 | 2 days |
|
| ITC-4061-6.0C-0.25R | 6 | 6 | 58 | 13 | 0.25 | - | £58.72 | 2 days |
|
| ITC-4061-6.0C-0.5R | 6 | 6 | 58 | 13 | 0.5 | - | £58.72 | 2 days |
|
| ITC-4061-6.0C-0.75R | 6 | 6 | 58 | 13 | 0.75 | - | £58.72 | 2 days |
|
| ITC-4061-6.0C-1.0R | 6 | 6 | 58 | 13 | 1 | - | £59.68 | 2 days |
|
| ITC-4061-6.0C-1.25R | 6 | 6 | 58 | 13 | 1.25 | - | £59.68 | 2 days |
|
| ITC-4061-6.0C-1.5R | 6 | 6 | 58 | 13 | 1.5 | - | £60.02 | 2 days |
|
| ITC-4061-6.0C-2.0R | 6 | 6 | 58 | 13 | 2 | - | £60.64 | 2 days |
|
| ITC-4061-8.0C-0.25R | 8 | 8 | 64 | 19 | 0.25 | - | £66.51 | 2 days |
|
| ITC-4061-8.0C-0.5R | 8 | 8 | 64 | 19 | 0.5 | - | £66.51 | 2 days |
|
| ITC-4061-8.0C-0.75R | 8 | 8 | 64 | 19 | 0.75 | - | £66.51 | 2 days |
|
| ITC-4061-8.0C-1.0R | 8 | 8 | 64 | 19 | 1 | - | £66.51 | 2 days |
|
| ITC-4061-8.0C-1.25R | 8 | 8 | 64 | 19 | 1.25 | - | £66.51 | 2 days |
|
| ITC-4061-8.0C-1.5R | 8 | 8 | 64 | 19 | 1.5 | - | £68.64 | 2 days |
|
| ITC-4061-8.0C-2.0R | 8 | 8 | 64 | 19 | 2 | - | £68.64 | 2 days |
|
| ITC-4061-8.0C-2.5R | 8 | 8 | 64 | 19 | 2.5 | - | £68.64 | 2 days |
|
| ITC-4061-8.0C-3.0R | 8 | 8 | 64 | 19 | 3 | - | £69.73 | 2 days |
|
| ITC-4061-10.0C-0.25R | 10 | 10 | 72 | 22 | 0.25 | - | £74.74 | 2 days |
|
| ITC-4061-10.0C-0.5R | 10 | 10 | 72 | 22 | 0.5 | - | £74.74 | 2 days |
|
| ITC-4061-10.0C-0.75R | 10 | 10 | 72 | 22 | 0.75 | - | £74.74 | 2 days |
|
| ITC-4061-10.0C-1.0R | 10 | 10 | 72 | 22 | 1 | - | £74.74 | 2 days |
|
| ITC-4061-10.0C-1.25R | 10 | 10 | 72 | 22 | 1.25 | - | £74.74 | 2 days |
|
| ITC-4061-10.0C-1.5R | 10 | 10 | 72 | 22 | 1.5 | - | £74.74 | 2 days |
|
| ITC-4061-10.0C-2.0R | 10 | 10 | 72 | 22 | 2 | - | £77.18 | 2 days |
|
| ITC-4061-10.0C-2.5R | 10 | 10 | 72 | 22 | 2.5 | - | £77.18 | 2 days |
|
| ITC-4061-10.0C-3.0R | 10 | 10 | 72 | 22 | 3 | - | £79.58 | 2 days |
|
| ITC-4061-12.0C-0.25R | 12 | 12 | 84 | 26 | 0.25 | - | £94.90 | 2 days |
|
| ITC-4061-12.0C-0.5R | 12 | 12 | 84 | 26 | 0.5 | - | £94.90 | 2 days |
|
| ITC-4061-12.0C-0.75R | 12 | 12 | 84 | 26 | 0.75 | - | £94.90 | 2 days |
|
| ITC-4061-12.0C-1.0R | 12 | 12 | 84 | 26 | 1 | - | £94.90 | 2 days |
|
| ITC-4061-12.0C-1.25R | 12 | 12 | 84 | 26 | 1.25 | - | £94.90 | 2 days |
|
| ITC-4061-12.0C-1.5R | 12 | 12 | 84 | 26 | 1.5 | - | £94.90 | 2 days |
|
| ITC-4061-12.0C-2.0R | 12 | 12 | 84 | 26 | 2 | - | £94.90 | 2 days |
|
| ITC-4061-12.0C-2.5R | 12 | 12 | 84 | 26 | 2.5 | - | £94.90 | 2 days |
|
| ITC-4061-12.0C-3.0R | 12 | 12 | 84 | 26 | 3 | - | £97.31 | 2 days |
|
| ITC-4061-16.0C-0.25R | 16 | 16 | 92 | 32 | 0.25 | - | £126.26 | 2 days |
|
| ITC-4061-16.0C-0.5R | 16 | 16 | 92 | 32 | 0.5 | - | £126.26 | 2 days |
|
| ITC-4061-16.0C-0.75R | 16 | 16 | 92 | 32 | 0.75 | - | £126.26 | 2 days |
|
| ITC-4061-16.0C-1.0R | 16 | 16 | 92 | 32 | 1 | - | £126.26 | 2 days |
|
| ITC-4061-16.0C-1.25R | 16 | 16 | 92 | 32 | 1.25 | - | £126.26 | 2 days |
|
| ITC-4061-16.0C-1.5R | 16 | 16 | 92 | 32 | 1.5 | - | £126.26 | 2 days |
|
| ITC-4061-16.0C-2.0R | 16 | 16 | 92 | 32 | 2 | - | £126.26 | 2 days |
|
| ITC-4061-16.0C-2.5R | 16 | 16 | 92 | 32 | 2.5 | - | £126.26 | 2 days |
|
| ITC-4061-16.0C-3.0R | 16 | 16 | 92 | 32 | 3 | - | £128.67 | 2 days |
|
| ITC-4061-16.0C-4.0R | 16 | 16 | 92 | 32 | 4 | - | £131.82 | 2 days |
|
| ITC-4061-20.0C-0.25R | 20 | 20 | 105 | 38 | 0.25 | - | £232.32 | 2 days |
|
| ITC-4061-20.0C-0.5R | 20 | 20 | 105 | 38 | 0.5 | - | £232.32 | 2 days |
|
| ITC-4061-20.0C-0.75R | 20 | 20 | 105 | 38 | 0.75 | - | £232.32 | 2 days |
|
| ITC-4061-20.0C-1.0R | 20 | 20 | 105 | 38 | 1 | - | £232.32 | 2 days |
|
| ITC-4061-20.0C-1.5R | 20 | 20 | 105 | 38 | 1.5 | - | £232.32 | 2 days |
|
| ITC-4061-20.0C-2.0R | 20 | 20 | 105 | 38 | 2 | - | £232.32 | 2 days |
|
| ITC-4061-20.0C-2.5R | 20 | 20 | 105 | 38 | 2.5 | - | £232.32 | 2 days |
|
| ITC-4061-20.0C-3.0R | 20 | 20 | 105 | 38 | 3 | - | £234.75 | 2 days |
|
| ITC-4061-20.0C-4.0R | 20 | 20 | 105 | 38 | 4 | - | £237.87 | 2 days |
|
