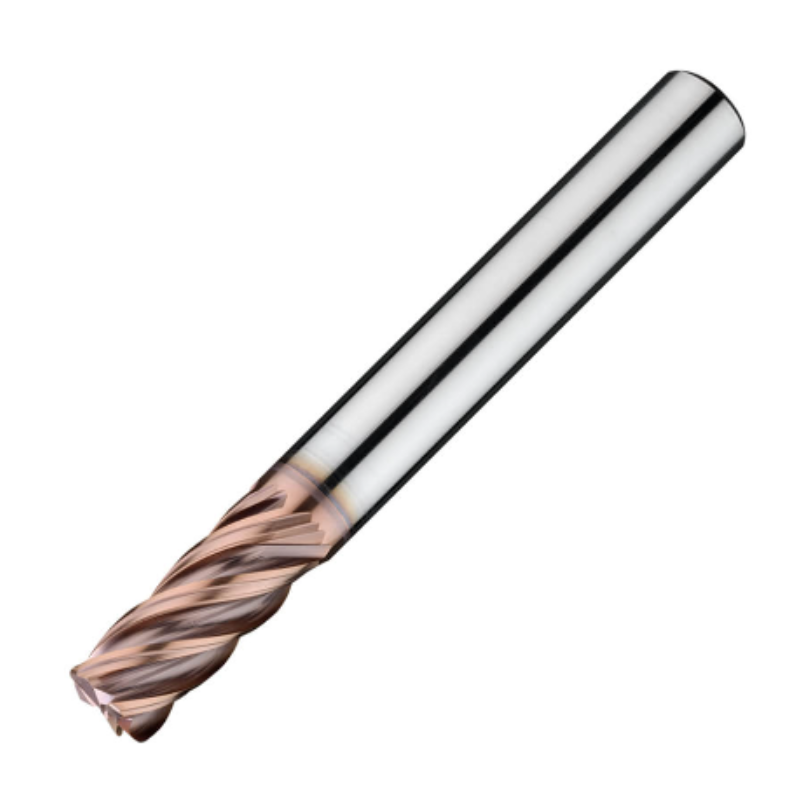

ITC Carbide End Mills Corner Radius 5021
5 Flute Variable Helix With Roll Relief, Harmonic Fluting, Radius & Coating - Steels & Exotics
Introducing the Carbide End Mill Corner Radius 5021, meticulously engineered for high-performance machining in steels and exotic materials. This advanced tool features a 5-flute design with variable helix, roll relief, harmonic fluting, a radius, and a specialized coating. These elements ensure efficient chip evacuation, reduced cutting forces, enhanced cutting stability, and extended tool life. Ideal for professionals who prioritize precision and reliability in machining operations involving challenging materials and complex contours.
Browse all 53 products
Click any SKU to view full product details, specifications and datasheets.
| Product SKU | Cutter Diameter | Shank Diameter | Overall Length | Flute Length | Radius | Reach | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|---|
| ITC-5021-3F-0.25R | 3 | 6 | 58 | 9 | 0.25 | 12 | £63.63 | 2 days |
|
| ITC-5021-3F-0.5R | 3 | 6 | 58 | 9 | 0.5 | 12 | £63.63 | 2 days |
|
| ITC-5021-4F-0.25R | 4 | 6 | 58 | 12 | 0.25 | 15 | £64.24 | 2 days |
|
| ITC-5021-4F-0.5R | 4 | 6 | 58 | 12 | 0.5 | 15 | £64.24 | 2 days |
|
| ITC-5021-5F-0.25R | 5 | 6 | 58 | 14 | 0.25 | 17 | £65.31 | 2 days |
|
| ITC-5021-5F-0.5R | 5 | 6 | 58 | 14 | 0.5 | 17 | £65.31 | 2 days |
|
| ITC-5021-6F-0.25R | 6 | 6 | 75 | 15 | 0.25 | - | £67.71 | 2 days |
|
| ITC-5021-6F-0.5R | 6 | 6 | 75 | 15 | 0.5 | - | £67.71 | 2 days |
|
| ITC-5021-6F-0.75R | 6 | 6 | 75 | 15 | 0.75 | - | £67.71 | 2 days |
|
| ITC-5021-6F-1.0R | 6 | 6 | 75 | 15 | 1 | - | £67.71 | 2 days |
|
| ITC-5021-8F-0.25R | 8 | 8 | 75 | 22 | 0.25 | - | £85.44 | 2 days |
|
| ITC-5021-8F-0.5R | 8 | 8 | 75 | 22 | 0.5 | - | £85.44 | 2 days |
|
| ITC-5021-8F-0.75R | 8 | 8 | 75 | 22 | 0.75 | - | £85.44 | 2 days |
|
| ITC-5021-8F-1.0R | 8 | 8 | 75 | 22 | 1 | - | £85.44 | 2 days |
|
| ITC-5021-8F-1.25R | 8 | 8 | 75 | 22 | 1.25 | - | £85.44 | 2 days |
|
| ITC-5021-8F-1.5R | 8 | 8 | 75 | 22 | 1.5 | - | £85.44 | 2 days |
|
| ITC-5021-8F-2.0R | 8 | 8 | 75 | 22 | 2 | - | £85.44 | 2 days |
|
| ITC-5021-8F-2.5R | 8 | 8 | 75 | 22 | 2.5 | - | £85.44 | 2 days |
|
| ITC-5021-8F-3.0R | 8 | 8 | 75 | 22 | 3 | - | £85.44 | 2 days |
|
| ITC-5021-10F-0.25R | 10 | 10 | 100 | 25 | 0.25 | - | £115.90 | 2 days |
|
| ITC-5021-10F-0.5R | 10 | 10 | 100 | 25 | 0.5 | - | £115.90 | 2 days |
|
| ITC-5021-10F-0.75R | 10 | 10 | 100 | 25 | 0.75 | - | £115.90 | 2 days |
|
| ITC-5021-10F-1.0R | 10 | 10 | 100 | 25 | 1 | - | £115.90 | 2 days |
|
| ITC-5021-10F-1.25R | 10 | 10 | 100 | 25 | 1.25 | - | £115.90 | 2 days |
|
| ITC-5021-10F-1.5R | 10 | 10 | 100 | 25 | 1.5 | - | £115.90 | 2 days |
|
| ITC-5021-10F-2.5R | 10 | 10 | 100 | 25 | 2.5 | - | £115.90 | 2 days |
|
| ITC-5021-10F-3.0R | 10 | 10 | 100 | 25 | 3 | - | £115.90 | 2 days |
|
| ITC-5021-12F-0.25R | 12 | 12 | 100 | 25 | 0.25 | - | £145.44 | 2 days |
|
| ITC-5021-12F-0.75R | 12 | 12 | 100 | 25 | 0.75 | - | £145.44 | 2 days |
|
| ITC-5021-12F-1.0R | 12 | 12 | 100 | 25 | 1 | - | £145.44 | 2 days |
|
| ITC-5021-12F-1.25R | 12 | 12 | 100 | 25 | 1.25 | - | £145.44 | 2 days |
|
| ITC-5021-12F-1.5R | 12 | 12 | 100 | 25 | 1.5 | - | £145.44 | 2 days |
|
| ITC-5021-12F-2.0R | 12 | 12 | 100 | 25 | 2 | - | £145.44 | 2 days |
|
| ITC-5021-12F-2.5R | 12 | 12 | 100 | 25 | 2.5 | - | £145.44 | 2 days |
|
| ITC-5021-12F-3.0R | 12 | 12 | 100 | 25 | 3 | - | £145.44 | 2 days |
|
| ITC-5021-16F-0.25R | 16 | 16 | 125 | 35 | 0.25 | - | £223.15 | 2 days |
|
| ITC-5021-16F-0.5R | 16 | 16 | 125 | 35 | 0.5 | - | £223.15 | 2 days |
|
| ITC-5021-16F-0.75R | 16 | 16 | 125 | 35 | 0.75 | - | £223.15 | 2 days |
|
| ITC-5021-16F-1.25R | 16 | 16 | 125 | 35 | 1.25 | - | £223.15 | 2 days |
|
| ITC-5021-16F-1.5R | 16 | 16 | 125 | 35 | 1.5 | - | £223.15 | 2 days |
|
| ITC-5021-16F-2.0R | 16 | 16 | 125 | 35 | 2 | - | £223.15 | 2 days |
|
| ITC-5021-16F-2.5R | 16 | 16 | 125 | 35 | 2.5 | - | £223.15 | 2 days |
|
| ITC-5021-16F-3.0R | 16 | 16 | 125 | 35 | 3 | - | £223.15 | 2 days |
|
| ITC-5021-16F-4.0R | 16 | 16 | 125 | 35 | 4 | - | £223.15 | 2 days |
|
| ITC-5021-20F-0.25R | 20 | 20 | 150 | 40 | 0.25 | - | £270.34 | 2 days |
|
| ITC-5021-20F-0.5R | 20 | 20 | 150 | 40 | 0.5 | - | £270.34 | 2 days |
|
| ITC-5021-20F-0.75R | 20 | 20 | 150 | 40 | 0.75 | - | £270.34 | 2 days |
|
| ITC-5021-20F-1.0R | 20 | 20 | 150 | 40 | 1 | - | £270.34 | 2 days |
|
| ITC-5021-20F-1.25R | 20 | 20 | 150 | 40 | 1.25 | - | £270.34 | 2 days |
|
| ITC-5021-20F-1.5R | 20 | 20 | 150 | 40 | 1.5 | - | £270.34 | 2 days |
|
| ITC-5021-20F-2.0R | 20 | 20 | 150 | 40 | 2 | - | £270.34 | 2 days |
|
| ITC-5021-20F-2.5R | 20 | 20 | 150 | 40 | 2.5 | - | £270.34 | 2 days |
|
| ITC-5021-20F-3.0R | 20 | 20 | 150 | 40 | 3 | - | £270.34 | 2 days |
|
