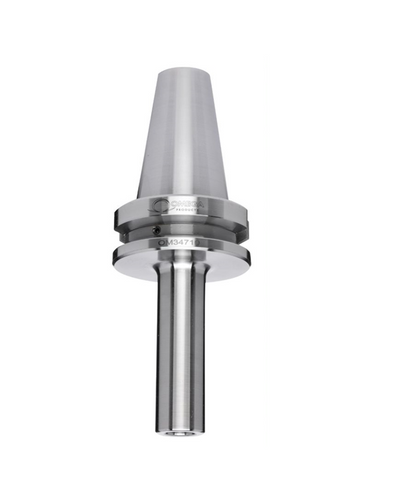

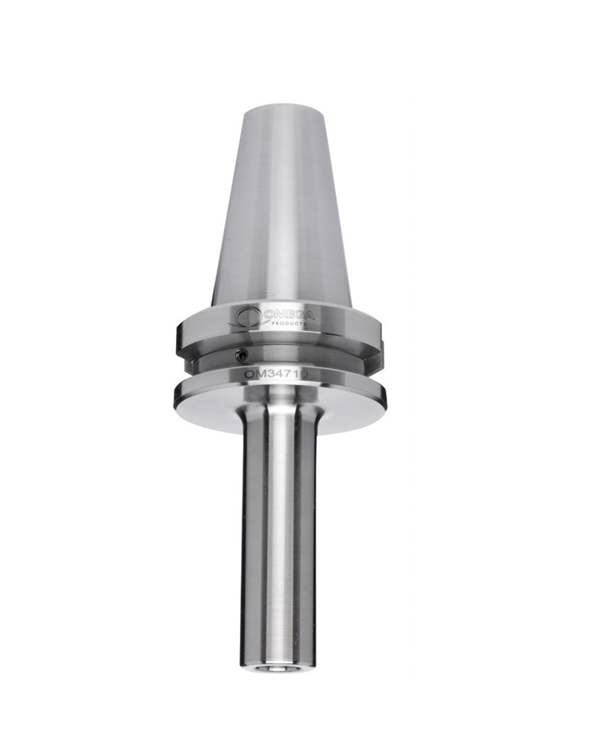

Omega Products BT40 Parallel Milling Cutter Arbor - MCAP08 - 25,000RPM - G2.5 - M8 - 50mm Gauge Length

Omega Products BT40 Parallel Milling Cutter Arbors - M8 - M16 - 25,000RPM - G2.5


From
£86.25
View Products
Need Help?
Contact Sales

BT40 Parallel Milling Cutter Arbors provide a reliable and precise solution for holding parallel milling cutters in BT40 spindle machines. With a maximum speed rating of 25,000 RPM and a G2.5 precision rating, these arbors deliver exceptional rotational stability and accuracy during high-speed machining operations. They are designed to accommodate parallel milling cutters with diameters ranging from M8 to M16, offering versatility for a wide range of milling applications.


Product SKU Taper d D1 D2 Thread Reach Balance Price Stock
OM34702 BT40 8.5 13.8 13.8 M8 50 G2.5@25000RPM £86.25 7
OM34705 BT40 10.5 18 18 M10 50 G2.5@25000RPM £86.25 13
OM34706 BT40 10.5 18 18 M10 75 G2.5@25000RPM £93.89 8
OM34707 BT40 10.5 18 18 M10 100 G2.5@25000RPM £107.00 11
OM34709 BT40 12.5 21 21 M12 50 G2.5@25000RPM £86.25 14
OM34710 BT40 12.5 21 21 M12 75 G2.5@25000RPM £93.89 15
OM34711 BT40 12.5 21 21 M12 100 G2.5@25000RPM £107.00 16
OM34713 BT40 17 29 29 M16 50 G2.5@25000RPM £86.25 11
OM34714 BT40 17 29 29 M16 75 G2.5@25000RPM £93.89 11
OM34715 BT40 17 29 29 M16 100 G2.5@25000RPM £107.00 9
