Vortex Carbide Turning Inserts

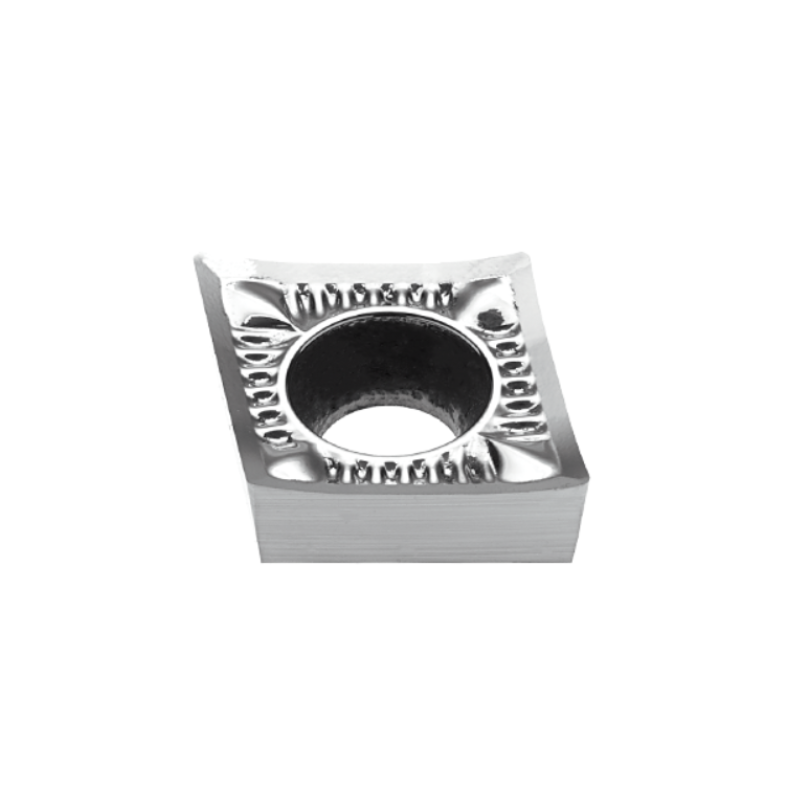

General Machining - For Aluminium & Non Ferrous Materials (CCGT)

This series are specially designed for machining aluminium and non-ferrous materials. These inserts are crafted from high-quality carbide material, known for its excellent hardness, wear resistance, and thermal conductivity. The CCGT inserts feature a unique geometry and cutting edge preparation that ensures optimal chip control and efficient material removal during turning operations. The inserts' sharp cutting edges and low cutting forces result in smooth surface finishes and precise dimensions on the machined components. With their specialized coating, the CCGT inserts provide enhanced heat resistance and reduced friction, leading to extended tool life and improved productivity.

Starting from
£2.62
inc. VAT
In this range
9
products
In stock now
8
ready to dispatch
Browse all 9 products

Click any SKU to view full product details, specifications and datasheets.

Product SKU ISO Code Substrate Style Size Rad Application Material Price Stock Order
PRO1800093 CCGT060202 ALU SMU10 Carbide CCGT 0602-- 0.2 General Machining Aluminium & Non Ferrous £2.62 In Stock
PRO1800094 CCGT060204 ALU SMU10 Carbide CCGT 0602-- 0.4 General Machining Aluminium & Non Ferrous £2.62 4-6 weeks
PRO1800095 CCGT060208 ALU SMU10 Carbide CCGT 0602-- 0.8 General Machining Aluminium & Non Ferrous £2.62 In Stock
PRO1800096 CCGT09T302 ALU SMU10 Carbide CCGT 09T3-- 0.2 General Machining Aluminium & Non Ferrous £4.38 In Stock
PRO1800097 CCGT09T304 ALU SMU10 Carbide CCGT 09T3-- 0.4 General Machining Aluminium & Non Ferrous £4.38 In Stock
PRO1800098 CCGT09T308 ALU SMU10 Carbide CCGT 09T3-- 0.8 General Machining Aluminium & Non Ferrous £4.38 In Stock
PRO1800099 CCGT120402 ALU SMU10 Carbide CCGT 1204-- 0.2 General Machining Aluminium & Non Ferrous £6.73 In Stock
PRO1800100 CCGT120404 ALU SMU10 Carbide CCGT 1204-- 0.4 General Machining Aluminium & Non Ferrous £6.73 In Stock
PRO1800101 CCGT120408 ALU SMU10 Carbide CCGT 1204-- 0.8 General Machining Aluminium & Non Ferrous £6.73 In Stock
