Vortex
|
Authorised UK Distributor

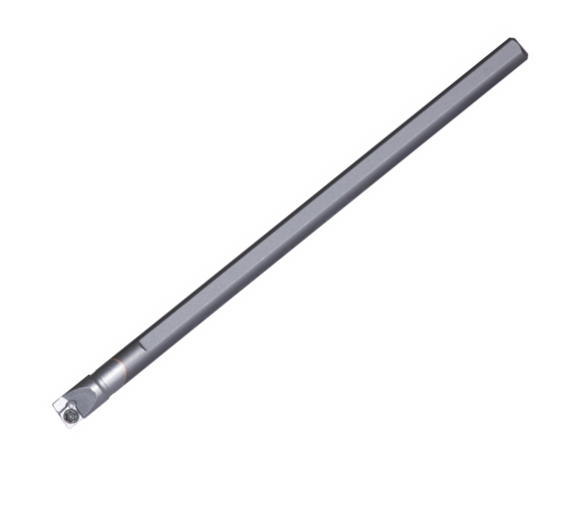

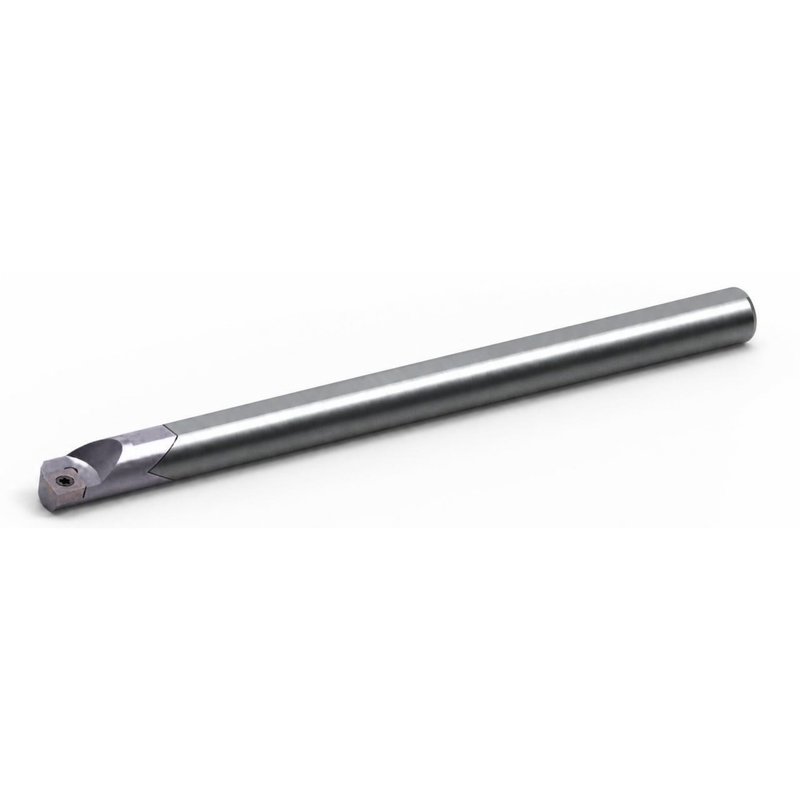

Vortex Mini Boring Bars
Carbide Shank 95 Deg - For CCGT Mini Inserts (SCLCR/L)
Vortex Mini Boring Bars with Carbide Shank and a 95-degree angle are versatile and efficient cutting tools designed for precise and accurate boring operations. These mini boring bars feature a robust carbide shank that provides excellent stability and vibration resistance, ensuring optimal cutting performance and dimensional accuracy. The 95 degree angle promotes efficient chip evacuation and minimizes cutting forces, resulting in improved surface finish and reduced machining time. Specifically designed for CCGT Mini inserts, these boring bars offer a secure and reliable tooling solution for a variety of machining applications.
Browse all 5 products
Click any SKU to view full product details, specifications and datasheets.
| Product SKU | ISO Code | Type | Through Coolant | Shank Diameter | Insert Type | Locking System | Hand | Minimum Bore | Overall Length | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PRO1600215 | C04G SCLCR0305 | Carbide Shank | No | 4 | CCGT 03S1 L | Screw | Right | 5 | 90 | £33.00 | 4-6 weeks |
|
| PRO1600216 | C05H SCLCR0306 | Carbide Shank | No | 5 | CCGT 03S1 L | Screw | Right | 6 | 100 | £37.23 | In Stock |
|
| PRO1600217 | C05H SCLCR0406 | Carbide Shank | No | 5 | CCGT 04T0L | Screw | Right | 6 | 100 | £37.23 | In Stock |
|
| PRO1600218 | C06J SCLCR0407 | Carbide Shank | No | 6 | CCGT 04T0L | Screw | Right | 7 | 110 | £42.31 | 4-6 weeks |
|
| PRO1600219 | C07K SCLCR0408 | Carbide Shank | No | 7 | CCGT 04T0L | Screw | Right | 8 | 125 | £42.00 | 4-6 weeks |
|
No products match your filters.
