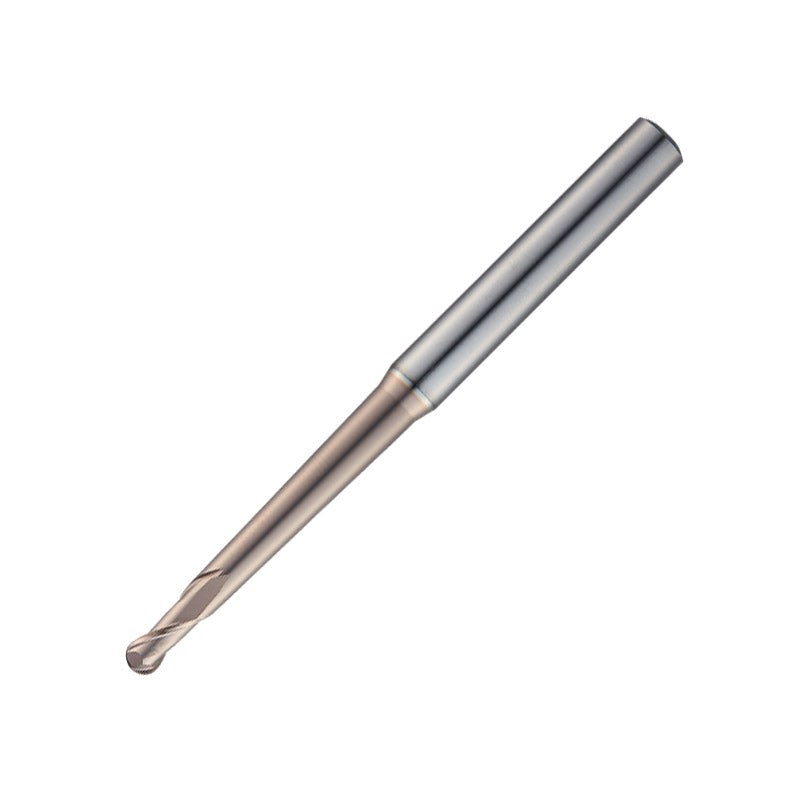

Widin Carbide Corner Radius End Mill For Mold & Die
2 Flute Tapered Neck Type (WR542)
The Widin Carbide Corner Radius End Mill for Mold & Die is specifically designed to meet the demands of precision machining applications. With its 2-flute configuration and tapered neck type, this end mill offers reduced high strength and chattering, resulting in smoother and more precise cutting operations. The tapered effective length enhances stability and rigidity, allowing for improved performance in deep groove machining. Additionally, this end mill comes in various specifications, providing flexibility for different machining needs and effectively addressing the requirements of deep groove applications.
Click any SKU to view full product details, specifications and datasheets.
| Product SKU | Cutter Diameter | Number of Flutes | Flute Length | Overall Length | Shank Diameter | Reach | Corner Radius | Taper Angle | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|---|---|---|
| UR542020020250 | 2 | 2 | 2 | 100 | 6 | 50 | 0.2 | 2° | £60.88 | 5 days |
|
| UR542020020260 | 2 | 2 | 2 | 100 | 6 | 60 | 0.2 | 2° | £63.90 | 5 days |
|
| UR542020020280 | 2 | 2 | 2 | 140 | 8 | 80 | 0.2 | 2° | £85.23 | 5 days |
|
| UR542020030120 | 2 | 2 | 2 | 50 | 4 | 20 | 0.3 | 1° | £31.87 | 5 days |
|
| UR542020030130 | 2 | 2 | 2 | 70 | 4 | 30 | 0.3 | 1° | £37.10 | 5 days |
|
| UR542020030112 | 2 | 2 | 2 | 50 | 4 | 12 | 0.3 | 1° | £31.87 | 5 days |
|
| UR542020030116 | 2 | 2 | 2 | 50 | 4 | 16 | 0.3 | 1° | £31.87 | 5 days |
|
| UR542020030125 | 2 | 2 | 2 | 60 | 4 | 25 | 0.3 | 1° | £33.08 | 5 days |
|
| UR542020030210 | 2 | 2 | 2 | 50 | 4 | 10 | 0.3 | 2° | £31.87 | 5 days |
|
| UR542020030250 | 2 | 2 | 2 | 100 | 6 | 50 | 0.3 | 2° | £60.88 | 5 days |
|
| UR542020030140 | 2 | 2 | 2 | 80 | 6 | 40 | 0.3 | 1° | £50.82 | 5 days |
|
| UR542020030216 | 2 | 2 | 2 | 50 | 4 | 16 | 0.3 | 2° | £31.87 | 5 days |
|
| UR542020030160 | 2 | 2 | 2 | 100 | 6 | 60 | 0.3 | 1° | £63.90 | 5 days |
|
| UR542020030220 | 2 | 2 | 2 | 50 | 4 | 20 | 0.3 | 2° | £31.87 | 5 days |
|
| UR542020030150 | 2 | 2 | 2 | 100 | 6 | 50 | 0.3 | 1° | £60.88 | 5 days |
|
| UR542020030230 | 2 | 2 | 2 | 70 | 4 | 30 | 0.3 | 2° | £37.10 | 5 days |
|
| UR542020030180 | 2 | 2 | 2 | 140 | 6 | 80 | 0.3 | 1° | £74.23 | 5 days |
|
| UR542020030240 | 2 | 2 | 2 | 80 | 6 | 40 | 0.3 | 2° | £50.82 | 5 days |
|
| UR542020050125 | 2 | 2 | 2 | 60 | 4 | 25 | 0.5 | 1° | £33.08 | 5 days |
|
| UR542020030225 | 2 | 2 | 2 | 60 | 4 | 25 | 0.3 | 2° | £33.08 | 5 days |
|
| UR542020050140 | 2 | 2 | 2 | 80 | 6 | 40 | 0.5 | 1° | £50.82 | 5 days |
|
| UR542020030212 | 2 | 2 | 2 | 50 | 4 | 12 | 0.3 | 2° | £31.87 | 5 days |
|
| UR542020030260 | 2 | 2 | 2 | 100 | 6 | 60 | 0.3 | 2° | £63.90 | 5 days |
|
| UR542020050116 | 2 | 2 | 2 | 50 | 4 | 16 | 0.5 | 1° | £31.87 | 5 days |
|
| UR542020050112 | 2 | 2 | 2 | 50 | 4 | 12 | 0.5 | 1° | £31.87 | 5 days |
|
| UR542020050120 | 2 | 2 | 2 | 50 | 4 | 20 | 0.5 | 1° | £31.87 | 5 days |
|
| UR542020030280 | 2 | 2 | 2 | 140 | 8 | 80 | 0.3 | 2° | £85.23 | 5 days |
|
| UR542020050130 | 2 | 2 | 2 | 70 | 4 | 30 | 0.5 | 1° | £37.10 | 5 days |
|
| UR542020050110 | 2 | 2 | 2 | 50 | 4 | 10 | 0.5 | 1° | £31.87 | 5 days |
|
| UR542030020116 | 3 | 2 | 4.5 | 60 | 6 | 16 | 0.2 | 1° | £38.29 | 5 days |
|
| UR542020050150 | 2 | 2 | 2 | 100 | 6 | 50 | 0.5 | 1° | £60.88 | 5 days |
|
| UR542020050160 | 2 | 2 | 2 | 100 | 6 | 60 | 0.5 | 1° | £63.90 | 5 days |
|
| UR542020050212 | 2 | 2 | 2 | 50 | 4 | 12 | 0.5 | 2° | £31.87 | 5 days |
|
| UR542020050210 | 2 | 2 | 2 | 50 | 4 | 10 | 0.5 | 2° | £31.87 | 5 days |
|
| UR542020050216 | 2 | 2 | 2 | 50 | 4 | 16 | 0.5 | 2° | £31.87 | 5 days |
|
| UR542020050250 | 2 | 2 | 2 | 100 | 6 | 50 | 0.5 | 2° | £60.88 | 5 days |
|
| UR542020050180 | 2 | 2 | 2 | 140 | 6 | 80 | 0.5 | 1° | £74.23 | 5 days |
|
| UR542020050260 | 2 | 2 | 2 | 100 | 6 | 60 | 0.5 | 2° | £63.90 | 5 days |
|
| UR542030020220 | 3 | 2 | 4.5 | 65 | 6 | 20 | 0.2 | 2° | £38.85 | 5 days |
|
| UR542030020130 | 3 | 2 | 4.5 | 70 | 6 | 30 | 0.2 | 1° | £45.45 | 5 days |
|
| UR542030020140 | 3 | 2 | 4.5 | 80 | 6 | 40 | 0.2 | 1° | £50.82 | 5 days |
|
| UR542030020150 | 3 | 2 | 4.5 | 90 | 6 | 50 | 0.2 | 1° | £55.10 | 5 days |
|
| UR542030020160 | 3 | 2 | 4.5 | 100 | 6 | 60 | 0.2 | 1° | £63.90 | 5 days |
|
| UR542020050280 | 2 | 2 | 2 | 140 | 8 | 80 | 0.5 | 2° | £85.23 | 5 days |
|
| UR542020050220 | 2 | 2 | 2 | 50 | 4 | 20 | 0.5 | 2° | £31.87 | 5 days |
|
| UR542020050225 | 2 | 2 | 2 | 60 | 4 | 25 | 0.5 | 2° | £33.08 | 5 days |
|
| UR542030020120 | 3 | 2 | 4.5 | 65 | 6 | 20 | 0.2 | 1° | £38.29 | 5 days |
|
| UR542030020230 | 3 | 2 | 4.5 | 70 | 6 | 30 | 0.2 | 2° | £45.45 | 5 days |
|
| UR542030020240 | 3 | 2 | 4.5 | 80 | 6 | 40 | 0.2 | 2° | £50.82 | 5 days |
|
| UR542030020260 | 3 | 2 | 4.5 | 100 | 8 | 60 | 0.2 | 2° | £69.81 | 5 days |
|
| UR542030020216 | 3 | 2 | 4.5 | 60 | 6 | 16 | 0.2 | 2° | £38.29 | 5 days |
|
| UR542030030120 | 3 | 2 | 4.5 | 65 | 6 | 20 | 0.3 | 1° | £38.85 | 5 days |
|
| UR542030030116 | 3 | 2 | 4.5 | 60 | 6 | 16 | 0.3 | 1° | £38.29 | 5 days |
|
| UR542030030130 | 3 | 2 | 4.5 | 70 | 6 | 30 | 0.3 | 1° | £45.45 | 5 days |
|
| UR542030020270 | 3 | 2 | 4.5 | 120 | 8 | 70 | 0.2 | 2° | £75.49 | 5 days |
|
| UR542030020250 | 3 | 2 | 4.5 | 90 | 8 | 50 | 0.2 | 2° | £67.05 | 5 days |
|
| UR542030030140 | 3 | 2 | 4.5 | 80 | 6 | 40 | 0.3 | 1° | £50.82 | 5 days |
|
| UR542030030230 | 3 | 2 | 4.5 | 70 | 6 | 30 | 0.3 | 2° | £45.45 | 5 days |
|
| UR542030030150 | 3 | 2 | 4.5 | 90 | 6 | 50 | 0.3 | 1° | £55.10 | 5 days |
|
| UR542030030260 | 3 | 2 | 4.5 | 100 | 8 | 60 | 0.3 | 2° | £69.81 | 5 days |
|
| UR542030030220 | 3 | 2 | 4.5 | 65 | 6 | 20 | 0.3 | 2° | £38.85 | 5 days |
|
| UR542020050240 | 2 | 2 | 2 | 80 | 6 | 40 | 0.5 | 2° | £50.82 | 5 days |
|
| UR542030050140 | 3 | 2 | 4.5 | 80 | 6 | 40 | 0.5 | 1° | £50.82 | In Stock |
|
| UR542030030216 | 3 | 2 | 4.5 | 60 | 6 | 16 | 0.3 | 2° | £38.29 | 5 days |
|
| UR542030030160 | 3 | 2 | 4.5 | 100 | 6 | 60 | 0.3 | 1° | £63.90 | 5 days |
|
| UR542030030240 | 3 | 2 | 4.5 | 80 | 6 | 40 | 0.3 | 2° | £50.82 | 5 days |
|
| UR542030030270 | 3 | 2 | 4.5 | 120 | 8 | 70 | 0.3 | 2° | £75.49 | 5 days |
|
| UR542030050130 | 3 | 2 | 4.5 | 70 | 6 | 30 | 0.5 | 1° | £45.45 | 5 days |
|
| UR542030050120 | 3 | 2 | 4.5 | 65 | 6 | 20 | 0.5 | 1° | £38.85 | 5 days |
|
| UR542030030250 | 3 | 2 | 4.5 | 90 | 8 | 50 | 0.3 | 2° | £67.05 | 5 days |
|
| UR542030050216 | 3 | 2 | 4.5 | 60 | 6 | 16 | 0.5 | 2° | £38.29 | 5 days |
|
| UR542030050160 | 3 | 2 | 4.5 | 100 | 6 | 60 | 0.5 | 1° | £63.90 | 5 days |
|
| UR542030050116 | 3 | 2 | 4.5 | 60 | 6 | 16 | 0.5 | 1° | £38.29 | 5 days |
|
| UR542030050220 | 3 | 2 | 4.5 | 65 | 6 | 20 | 0.5 | 2° | £38.85 | 5 days |
|
| UR542030050150 | 3 | 2 | 4.5 | 90 | 6 | 50 | 0.5 | 1° | £55.10 | 5 days |
|
| UR542030050230 | 3 | 2 | 4.5 | 70 | 6 | 30 | 0.5 | 2° | £45.45 | 5 days |
|
| UR542030050260 | 3 | 2 | 4.5 | 100 | 8 | 60 | 0.5 | 2° | £69.81 | 5 days |
|
| UR542030050240 | 3 | 2 | 4.5 | 80 | 6 | 40 | 0.5 | 2° | £50.82 | 5 days |
|
| UR542040020140 | 4 | 2 | 6 | 90 | 6 | 40 | 0.2 | 1° | £55.10 | 5 days |
|
| UR542040020170 | 4 | 2 | 6 | 120 | 8 | 70 | 0.2 | 1° | £75.49 | 5 days |
|
| UR542030050270 | 3 | 2 | 4.5 | 120 | 8 | 70 | 0.5 | 2° | £75.49 | 5 days |
|
| UR542040020160 | 4 | 2 | 6 | 110 | 6 | 60 | 0.2 | 1° | £66.53 | 5 days |
|
| UR542030050250 | 3 | 2 | 4.5 | 90 | 8 | 50 | 0.5 | 2° | £67.05 | 5 days |
|
| UR542040020240 | 4 | 2 | 6 | 90 | 8 | 40 | 0.2 | 2° | £67.05 | 5 days |
|
| UR542040020260 | 4 | 2 | 6 | 110 | 8 | 60 | 0.2 | 2° | £72.58 | 5 days |
|
| UR542040030150 | 4 | 2 | 6 | 100 | 6 | 50 | 0.3 | 1° | £60.88 | 5 days |
|
| UR542040020150 | 4 | 2 | 6 | 100 | 6 | 50 | 0.2 | 1° | £60.88 | 5 days |
|
| UR542040020270 | 4 | 2 | 6 | 120 | 10 | 70 | 0.2 | 2° | £98.56 | 5 days |
|
| UR542040020250 | 4 | 2 | 6 | 100 | 8 | 50 | 0.2 | 2° | £69.81 | 5 days |
|
| UR542040030140 | 4 | 2 | 6 | 90 | 6 | 40 | 0.3 | 1° | £55.10 | 5 days |
|
| UR542040050150 | 4 | 2 | 6 | 100 | 6 | 50 | 0.5 | 1° | £60.88 | 5 days |
|
| UR542040050140 | 4 | 2 | 6 | 90 | 6 | 40 | 0.5 | 1° | £55.10 | In Stock |
|
| UR542040030170 | 4 | 2 | 6 | 120 | 8 | 70 | 0.3 | 1° | £75.49 | 5 days |
|
| UR542040030160 | 4 | 2 | 6 | 110 | 6 | 60 | 0.3 | 1° | £66.53 | 5 days |
|
| UR542040030240 | 4 | 2 | 6 | 90 | 8 | 40 | 0.3 | 2° | £67.05 | 5 days |
|
| UR542040030250 | 4 | 2 | 6 | 100 | 8 | 50 | 0.3 | 2° | £69.81 | 5 days |
|
| UR542040030260 | 4 | 2 | 6 | 110 | 8 | 60 | 0.3 | 2° | £72.58 | 5 days |
|
| UR542040030270 | 4 | 2 | 6 | 120 | 10 | 70 | 0.3 | 2° | £98.56 | 5 days |
|
| UR542040050170 | 4 | 2 | 6 | 120 | 8 | 70 | 0.5 | 1° | £75.49 | 5 days |
|
| UR542040050160 | 4 | 2 | 6 | 110 | 6 | 60 | 0.5 | 1° | £66.53 | 5 days |
|
| UR542040050240 | 4 | 2 | 6 | 90 | 8 | 40 | 0.5 | 2° | £67.05 | 5 days |
|
| UR542040050260 | 4 | 2 | 6 | 110 | 8 | 60 | 0.5 | 2° | £72.58 | 5 days |
|
| UR542040050250 | 4 | 2 | 6 | 100 | 8 | 50 | 0.5 | 2° | £69.81 | 5 days |
|
| UR542040050270 | 4 | 2 | 6 | 120 | 10 | 70 | 0.5 | 2° | £98.56 | 5 days |
|
