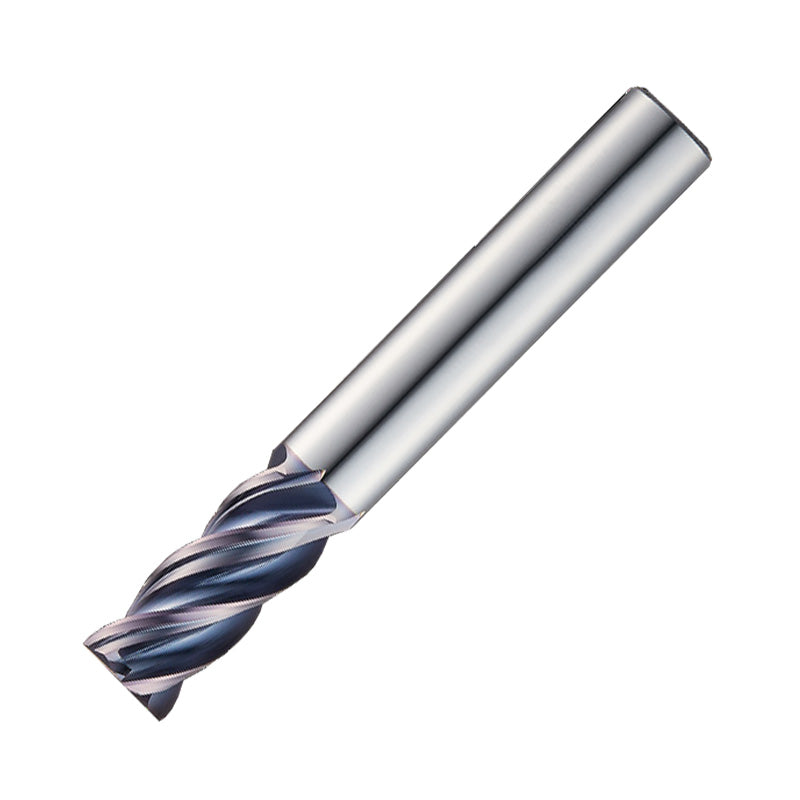

Widin Carbide Corner Radius End Mill For Stainless & Exotics
4 Flute Variable Helix (XR504)
With its 4-flute design and variable helix, this end mill provides superior chip evacuation and reduces cutting forces, resulting in improved surface finish and extended tool life. The corner radius feature enables smooth and precise contouring, while the carbide construction ensures high wear resistance and durability.
Click any SKU to view full product details, specifications and datasheets.
| Product SKU | Cutter Diameter | Number of Flutes | Flute Length | Overall Length | Shank Diameter | Corner Radius | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|---|
| XR504020 | 2 | 4 | 5 | 45 | 4 | 0.1 | £24.60 | In Stock |
|
| XR504030 | 3 | 4 | 8 | 50 | 6 | 0.1 | £20.24 | In Stock |
|
| XR504040 | 4 | 4 | 11 | 50 | 6 | 0.2 |
£12.51 |
In Stock |
|
| XR504050 | 5 | 4 | 13 | 50 | 6 | 0.2 |
£12.51 |
In Stock |
|
| XR504060 | 6 | 4 | 13 | 50 | 6 | 0.2 | £20.24 | 5 days |
|
| XR504070 | 7 | 4 | 16 | 60 | 8 | 0.2 | £29.60 | In Stock |
|
| XR504080 | 8 | 4 | 19 | 60 | 8 | 0.2 | £29.60 | In Stock |
|
| XR504090 | 9 | 4 | 19 | 70 | 10 | 0.2 |
£25.76 |
In Stock |
|
| XR504100 | 10 | 4 | 22 | 70 | 10 | 0.3 | £41.68 | 5 days |
|
| XR504110 | 11 | 4 | 22 | 75 | 12 | 0.3 | £60.58 | 5 days |
|
| XR504120 | 12 | 4 | 26 | 75 | 12 | 0.3 | £60.58 | In Stock |
|
| XR504130 | 13 | 4 | 26 | 80 | 12 | 0.3 | £69.66 | 5 days |
|
| XR504140 | 14 | 4 | 26 | 80 | 14 | 0.3 | £120.63 | 5 days |
|
| XR504160 | 16 | 4 | 32 | 90 | 16 | 0.3 |
£106.38 |
In Stock |
|
| XR504180 | 18 | 4 | 32 | 100 | 18 | 0.3 | £264.65 | 5 days |
|
| XR504200 | 20 | 4 | 38 | 100 | 20 | 0.3 |
£183.74 |
In Stock |
|
| XR504250 | 25 | 4 | 45 | 120 | 25 | 0.3 | £513.34 | 5 days |
|
No products match your filters.
