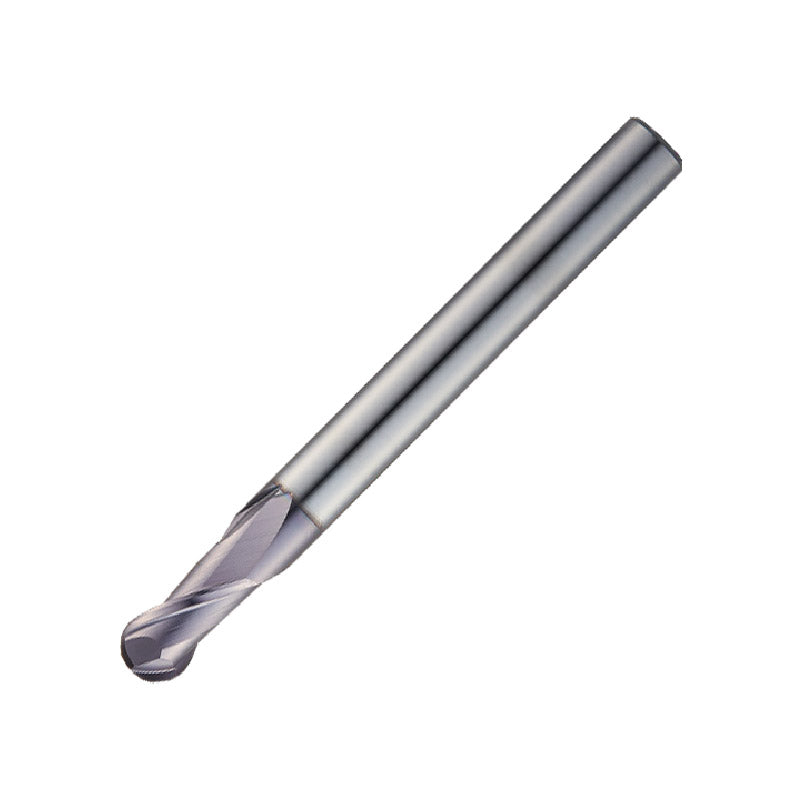

Widin Carbide End Mill - Ball Nose - 2 Flute - 1mm x 4mm Shank Dia

Widin Carbide End Mill - Ball Nose - 2 Flute (DB312)


From
£19.41
View Products
Need Help?
Contact Sales

A versatile cutting tool designed for precision milling operations. With its ball nose shape and 2-flute configuration, this end mill is well-suited for creating smooth contours and intricate details on a variety of materials. The carbide construction ensures excellent durability and heat resistance, allowing for prolonged use and consistent performance. The 2-flute design provides efficient chip evacuation, reducing the risk of chip clogging and improving cutting efficiency.


Product SKU Cutter Diameter Number of Flutes Flute Length Overall Length Shank Diameter Radius Price Stock
DB312010S4 1 2 2.5 50 4 0.5 £19.41 0
DB312010 1 2 2.5 50 6 0.5 £19.80 0
DB312012 1.2 2 3 50 6 0.6 £19.80 0
DB312015 1.5 2 4 50 6 0.75 £19.80 0
DB312020S4 2 2 5 50 4 1 £19.80 0
DB312020 2 2 5 50 6 1 £19.80 0
DB312025 2.5 2 6 60 6 1.25 £19.80 0
DB312030S3 3 2 8 60 3 1.5 £19.41 0
DB312030S4 3 2 8 60 4 1.5 £19.41 0
DB312030 3 2 8 60 6 1.5 £20.78 0
DB312035 3.5 2 8 70 6 1.75 £20.78 0
DB312040S4 4 2 8 70 4 2 £20.37 0
DB312040 4 2 8 70 6 2 £20.78 0
DB312045 4.5 2 8 70 6 2.25 £23.17 0
DB312050 5 2 10 80 6 2.5 £23.17 0
DB312055 5.5 2 10 80 6 2.75 £23.17 0
DB312060S 6 2 12 60 6 3 £22.02 0
DB312060 6 2 12 90 6 3 £23.17 0
DB312065 6.5 2 12 90 8 3.25 £29.91 0
DB312070 7 2 14 90 8 3.5 £29.91 0
DB312080S 8 2 14 60 8 4 £28.43 0
DB312080 8 2 14 100 8 4 £29.91 0
DB312090 9 2 18 100 10 4.5 £40.76 0
DB312100S 10 2 18 60 10 5 £38.72 0
DB312100 10 2 18 100 10 5 £40.76 0
DB312120 12 2 22 110 12 6 £52.83 0
DB312140 14 2 26 110 14 7 £84.39 0
DB312160 16 2 30 140 16 8 £117.83 0
DB312180 18 2 34 140 18 9 £147.76 0
DB312200 20 2 38 160 20 10 £184.15 0
