Widin Carbide End Mill For Mold & Die

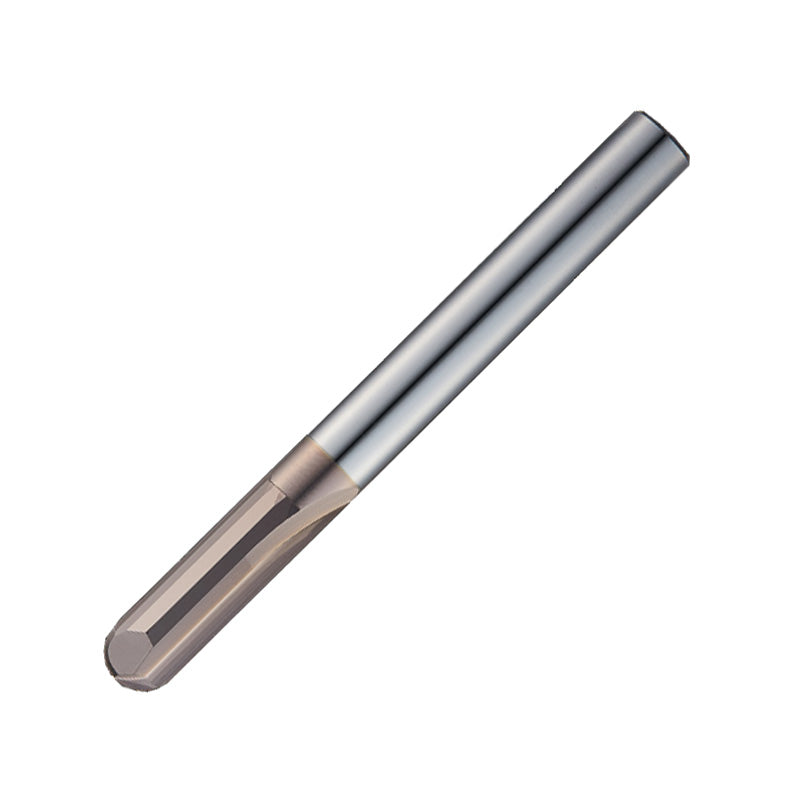

2 Flute Straight Ball (WSB502)
The 2-flute Straight Ball design (WSB502) incorporates several features that enhance its performance and versatility. The cutting edge of this end mill is crafted with a high-precision R tolerance, ensuring exceptional accuracy and delivering high-quality machining results. This feature enables the creation of intricate and precise shapes with superior surface finishes. Additionally, the straight flute shape of the end mill enhances the hardness of the flute, increasing its durability and resistance to wear. This results in extended tool life and improved performance even when working with tough materials.
Click any SKU to view full product details, specifications and datasheets.
| Product SKU | Cutter Diameter | Number of Flutes | Flute Length | Overall Length | Shank Diameter | Radius | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|---|
| USB502050 | 5 | 2 | 18 | 90 | 6 | 2.5 |
£15.63 |
In Stock |
|
| USB502060 | 6 | 2 | 20 | 90 | 6 | 3 | £35.53 | 5 days |
|
| USB502040 | 4 | 2 | 12 | 70 | 6 | 2 | £32.79 | 5 days |
|
| USB502030 | 3 | 2 | 10 | 70 | 6 | 1.5 |
£14.42 |
In Stock |
|
| USB502080 | 8 | 2 | 25 | 100 | 8 | 4 | £60.36 | 5 days |
|
| USB502120 | 12 | 2 | 32 | 110 | 12 | 6 |
£52.49 |
In Stock |
|
| USB502160 | 16 | 2 | 35 | 150 | 16 | 8 | £338.00 | 5 days |
|
| USB502200 | 20 | 2 | 40 | 150 | 20 | 10 | £471.96 | 5 days |
|
| USB502100 | 10 | 2 | 30 | 100 | 10 | 5 | £79.90 | 5 days |
|
No products match your filters.
