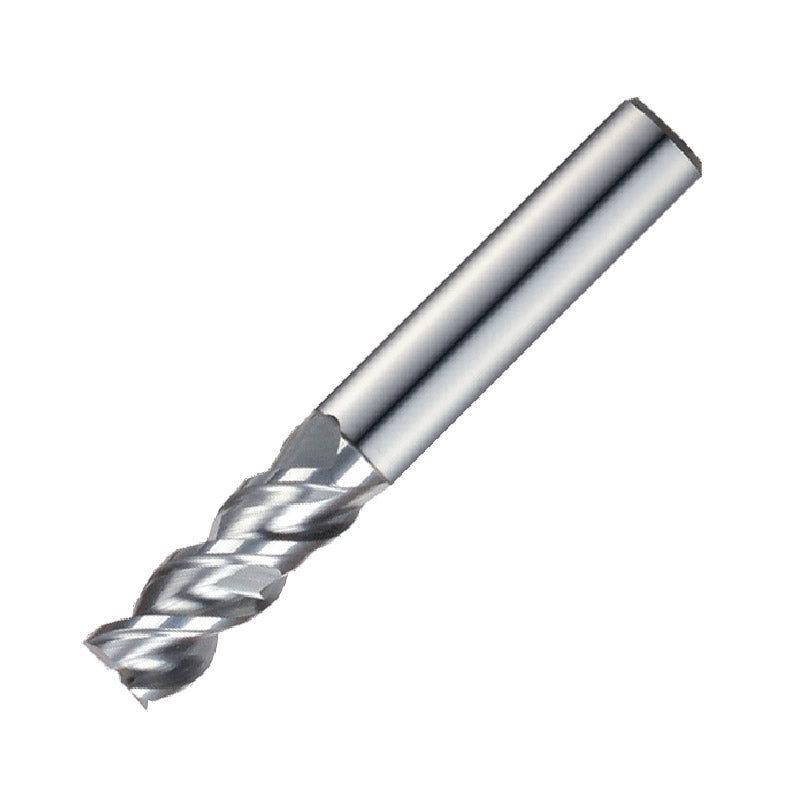

Widin Carbide End Mill For Stainless & Exotics
3 Flute Double Core - Variable Helix - Chamfered Edge (XCC503)
The XCC503 series stands out with its unique features. It boasts a 3-flute design with a double core construction, which enhances stability and rigidity during cutting, resulting in improved chip evacuation and reduced cutting forces. The variable helix design further enhances performance by reducing vibrations and chatter, ensuring smooth and precise cutting operations. Additionally, the end mill features a chamfered edge, enabling it to create clean and precise chamfers on workpiece edges. Crafted from high-quality carbide, this tool offers exceptional durability, wear resistance, and heat resistance, allowing for prolonged use in demanding machining applications.
Click any SKU to view full product details, specifications and datasheets.
| Product SKU | Cutter Diameter | Number of Flutes | Flute Length | Overall Length | Shank Diameter | Chamfer | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|---|
| XCC503020 | 2 | 3 | 6 | 50 | 6 | 0.025 |
£13.07 |
In Stock |
|
| XCC503025 | 2.5 | 3 | 8 | 50 | 6 | 0.025 | £21.14 | 5 days |
|
| XCC503030 | 3 | 3 | 10 | 50 | 6 | 0.035 | £22.19 | 5 days |
|
| XCC503035 | 3.5 | 3 | 10 | 50 | 6 | 0.035 | £22.19 | 5 days |
|
| XCC503040 | 4 | 3 | 12 | 50 | 6 | 0.045 |
£13.72 |
In Stock |
|
| XCC503045 | 4.5 | 3 | 14 | 50 | 6 | 0.045 | £22.19 | 5 days |
|
| XCC503050 | 5 | 3 | 15 | 50 | 6 | 0.055 |
£18.26 |
In Stock |
|
| XCC503055 | 5.5 | 3 | 15 | 50 | 6 | 0.055 | £29.54 | 5 days |
|
| XCC503060 | 6 | 3 | 15 | 50 | 6 | 0.075 |
£18.26 |
In Stock |
|
| XCC503080 | 8 | 3 | 20 | 60 | 8 | 0.1 |
£25.54 |
In Stock |
|
| XCC503100 | 10 | 3 | 25 | 70 | 10 | 0.125 |
£34.40 |
In Stock |
|
| XCC503120 | 12 | 3 | 30 | 75 | 12 | 0.15 |
£44.45 |
In Stock |
|
| XCC503160 | 16 | 3 | 40 | 90 | 16 | 0.2 | £217.59 | 5 days |
|
| XCC503200 | 20 | 3 | 45 | 100 | 20 | 0.25 | £325.10 | 5 days |
|
| XCC503250 | 25 | 3 | 50 | 120 | 25 | 0.3 | £558.98 | 5 days |
|
No products match your filters.
