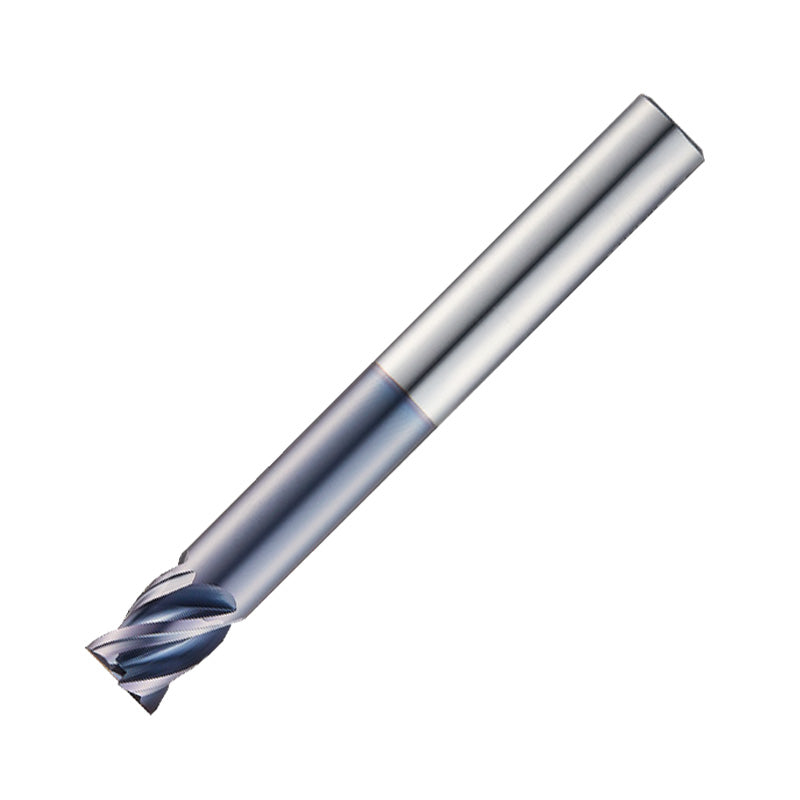

Widin Carbide End Mill For Stainless & Exotics

4 Flute Variable Helix Long Shank - Square Edge (XE524)

A specialized cutting tool designed for high-performance machining of stainless steel and exotic materials. With its four-flute design and variable helix, this end mill offers excellent chip evacuation and reduced cutting forces, resulting in improved tool life and enhanced surface finishes. The long shank design provides extended reach, allowing for deep cavity machining and access to hard-to-reach areas. The square edge configuration ensures precise and clean cutting, making it suitable for applications that require square-edged profiles or slots.

Starting from
£18.30
inc. VAT
In this range
5
products
In stock now
4
ready to dispatch
Browse all 5 products

Click any SKU to view full product details, specifications and datasheets.

Product SKU Cutter Diameter Number of Flutes Flute Length Overall Length Shank Diameter Reach Neck Diameter Price Stock Order
XE524060 6 4 7 70 6 33 5.8 £29.61
£18.30
In Stock
XE524080 8 4 9 80 8 43 7.8 £43.54
£26.91
In Stock
XE524100 10 4 11 84 10 43 9.8 £57.05
£35.26
In Stock
XE524120 12 4 13 97 12 51 11.8 £88.64
£54.78
In Stock
XE524160 16 4 17 115 16 66 15.8 £214.17 5 days
