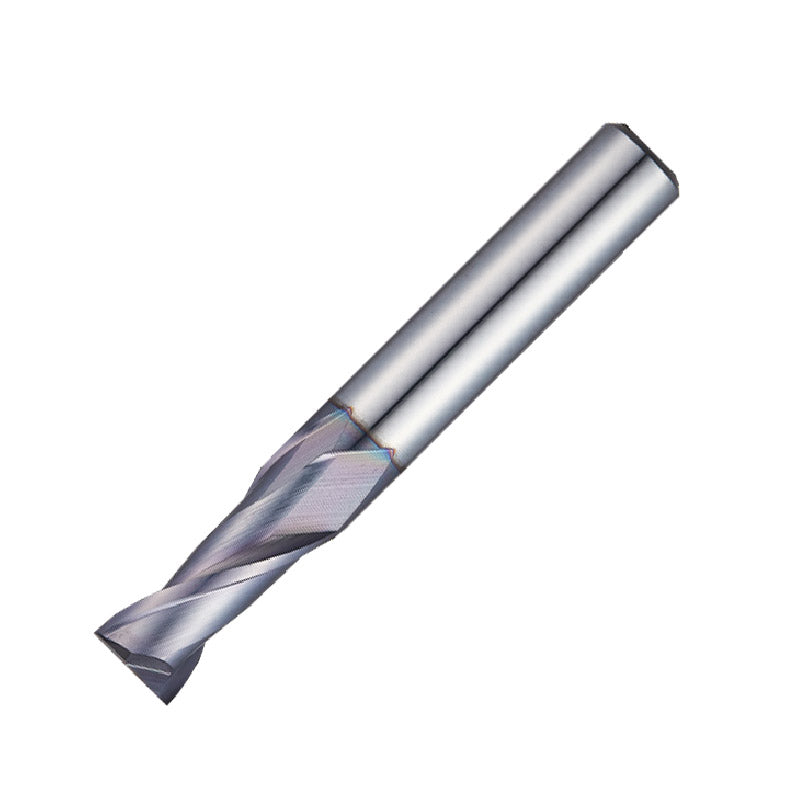

Widin Carbide End Mill - Square Edge - 2 Flute 30 Degree Helix - 1mm

Widin Carbide End Mill - Square Edge - 2 Flute 30 Degree Helix (ZE302P)


From
£12.09
View Products
Need Help?
Contact Sales

A high-performance cutting tool designed for precision machining applications. With its 2-flute configuration and a 30-degree helix angle, this end mill offers exceptional cutting efficiency and improved chip evacuation, resulting in smoother and more accurate cuts. The square edge design provides sharp and clean edges, making it ideal for applications that require precise cornering and profiling. Made from high-quality carbide material, the ZE302P offers excellent durability and wear resistance, ensuring a long tool life even in demanding machining operations.


Product SKU Cutter Diameter Number of Flutes Flute Length Overall Length Shank Diameter Price Stock
ZE302010P 1 2 2.5 50 6 £12.09 0
ZE302015P 1.5 2 4 50 6 £12.09 0
ZE302020P 2 2 6 50 6 £12.09 0
ZE302025P 2.5 2 8 50 6 £12.09 0
ZE302030P 3 2 10 50 6 £12.63 0
ZE302035P 3.5 2 10 50 6 £12.63 0
ZE302040P 4 2 12 50 6 £12.63 0
ZE302045P 4.5 2 14 50 6 £12.63 0
ZE302050P 5 2 15 60 6 £14.83 0
ZE302055P 5.5 2 15 60 6 £14.83 0
ZE302060P 6 2 15 60 6 £14.83 0
ZE302065P 6.5 2 18 60 8 £20.09 0
ZE302070P 7 2 20 65 8 £20.09 0
ZE302075P 7.5 2 20 65 8 £20.09 0
ZE302080P 8 2 20 65 8 £20.09 0
ZE302085P 8.5 2 22 70 10 £27.35 0
ZE302090P 9 2 22 70 10 £27.35 0
ZE302095P 9.5 2 24 70 10 £27.35 0
ZE302100P 10 2 25 70 10 £27.35 0
ZE302105P 10.5 2 26 80 12 £34.00 0
ZE302110P 11 2 30 80 12 £34.00 0
ZE302115P 11.5 2 30 80 12 £34.00 0
ZE302120P 12 2 30 80 12 £34.00 0
ZE302130P 13 2 35 90 12 £57.15 0
ZE302140P 14 2 35 100 14 £65.30 0
ZE302150P 15 2 40 100 16 £87.39 0
ZE302160P 16 2 40 100 16 £87.39 0
ZE302180P 18 2 45 100 18 £109.50 0
ZE302200P 20 2 45 100 20 £125.41 0
