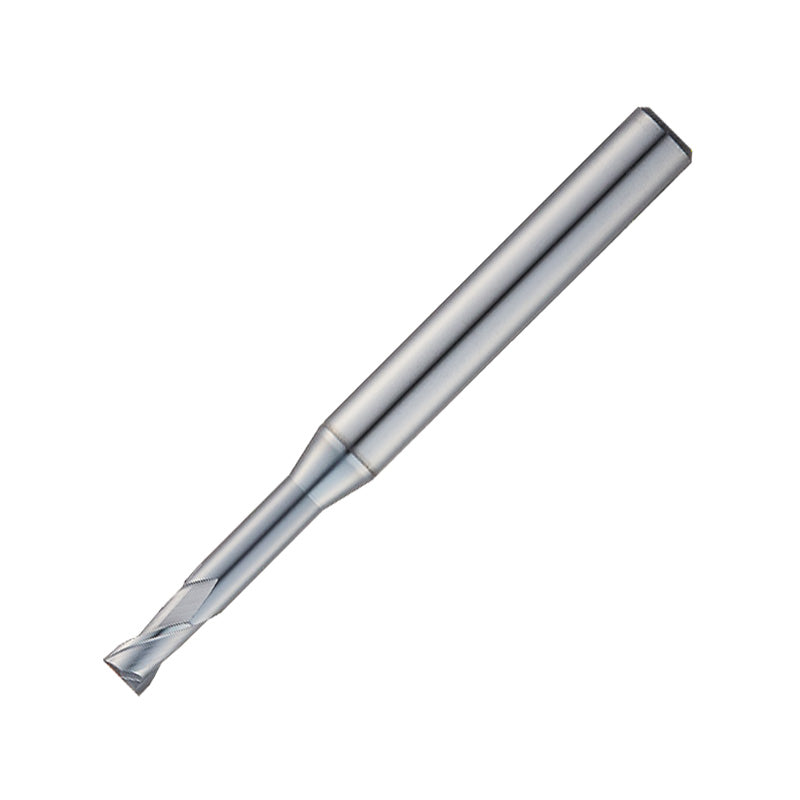

Widin End Mill 2 Flute Rib Processing Carbide Square Edge (ESRE712001003) - 0.1mmx 0.3mm

Widin End Mills 2 Flute Rib Processing Carbide Square Edge (ESRE)


From
£21.04
View Products
Need Help?
Contact Sales

A high-quality cutting tool designed for precise and efficient rib processing operations. With its two flutes and square edge design, this end mill offers exceptional cutting performance and accuracy. The carbide construction provides excellent durability and wear resistance, ensuring a long tool life and reduced downtime for tool changes. The rib processing feature makes it ideal for machining narrow and intricate ribs, allowing for precise and clean cuts. Whether you're working with aluminium, steel, or other materials, the ESRE delivers reliable and consistent results. Its high-performance design and sharp cutting edges enable efficient chip evacuation and minimize cutting forces, resulting in improved surface finish and reduced machining time.


Product SKU Cutter Diameter Number of Flutes Flute Length Overall Length Shank Diameter Reach Price Stock
ESRE712001003 0.1 2 0.15 40 4 0.3 £47.58 2
ESRE712001005 0.1 2 0.15 40 4 0.5 £47.58 2
ESRE71200101 0.1 2 0.15 40 4 1 £47.58 0
ESRE712002005 0.2 2 0.3 40 4 0.5 £33.41 0
ESRE71200202 0.2 2 0.3 40 4 2 £33.41 0
ESRE71200201 0.2 2 0.3 40 4 1 £33.41 0
ESRE712003015 0.3 2 0.5 40 4 1.5 £29.21 0
ESRE712002015 0.2 2 0.3 40 4 1.5 £33.41 1
ESRE71200301 0.3 2 0.5 40 4 1 £29.21 0
ESRE712003025 0.3 2 0.5 40 4 2.5 £29.21 1
ESRE71200302 0.3 2 0.5 40 4 2 £29.21 0
ESRE71200303 0.3 2 0.5 40 4 3 £29.21 16
ESRE71200304 0.3 2 0.5 40 4 4 £29.21 0
ESRE71200305 0.3 2 0.5 40 4 5 £29.21 0
ESRE712004015 0.4 2 0.6 40 4 1.5 £29.21 0
ESRE71200401 0.4 2 0.6 40 4 1 £29.21 0
ESRE712004025 0.4 2 0.6 40 4 2.5 £29.21 0
ESRE71200402 0.4 2 0.6 40 4 2 £29.21 0
ESRE71200404 0.4 2 0.6 40 4 4 £29.21 0
ESRE71200403 0.4 2 0.6 40 4 3 £29.21 0
ESRE71200405 0.4 2 0.6 40 4 5 £29.21 1
ESRE71200410 0.4 2 0.6 40 4 10 £32.92 2
ESRE71200408 0.4 2 0.6 40 4 8 £32.92 12
ESRE712005015 0.5 2 0.7 45 4 1.5 £21.42 0
ESRE71200501 0.5 2 0.7 45 4 1 £21.42 0
ESRE71200406 0.4 2 0.6 40 4 6 £32.92 5
ESRE712005025 0.5 2 0.7 45 4 2.5 £21.42 0
ESRE71200502 0.5 2 0.7 45 4 2 £21.42 0
ESRE71200503 0.5 2 0.7 45 4 3 £21.42 3
ESRE71200504 0.5 2 0.7 45 4 4 £21.42 8
ESRE71200505 0.5 2 0.7 45 4 5 £21.42 1
ESRE71200506 0.5 2 0.7 45 4 6 £24.23 0
ESRE71200510 0.5 2 0.7 45 4 10 £24.23 0
ESRE71200512 0.5 2 0.7 45 4 12 £24.23 2
ESRE71200508 0.5 2 0.7 45 4 8 £24.23 0
ESRE71200514 0.5 2 0.7 45 4 14 £24.23 3
ESRE71200603 0.6 2 0.9 45 4 3 £21.04 0
ESRE71200606 0.6 2 0.9 45 4 6 £24.23 5
ESRE71200516 0.5 2 0.7 45 4 16 £28.05 2
ESRE71200604 0.6 2 0.9 45 4 4 £21.04 0
ESRE71200602 0.6 2 0.9 45 4 2 £21.04 30
ESRE71200605 0.6 2 0.9 45 4 5 £21.04 6
ESRE71200608 0.6 2 0.9 45 4 8 £24.23 13
ESRE71200610 0.6 2 0.9 45 4 10 £24.23 11
ESRE71200612 0.6 2 0.9 45 4 12 £24.23 7
ESRE71200614 0.6 2 0.9 45 4 14 £24.23 2
ESRE71200702 0.7 2 1.2 45 4 2 £24.23 1
ESRE71200704 0.7 2 1.2 45 4 4 £24.23 0
ESRE71200616 0.6 2 0.9 45 4 16 £24.23 4
ESRE71200706 0.7 2 1.2 45 4 6 £24.23 8
ESRE71200708 0.7 2 1.2 45 4 8 £24.23 1
ESRE71200710 0.7 2 1.2 45 4 10 £24.23 10
ESRE71200712 0.7 2 1.2 45 4 12 £24.23 2
ESRE71200802 0.8 2 1.2 45 4 2 £24.23 0
ESRE71200803 0.8 2 1.2 45 4 3 £24.23 0
ESRE71200804 0.8 2 1.2 45 4 4 £24.23 0
ESRE71200805 0.8 2 1.2 45 4 5 £24.23 0
ESRE71200806 0.8 2 1.2 45 4 6 £24.23 1
ESRE71200808 0.8 2 1.2 45 4 8 £24.23 3
ESRE71200810 0.8 2 1.2 45 4 10 £24.23 2
ESRE71200812 0.8 2 1.2 45 4 12 £24.23 0
ESRE71200814 0.8 2 1.2 45 4 14 £24.23 0
ESRE71200816 0.8 2 1.2 45 4 16 £25.00 0
ESRE71200820 0.8 2 1.2 45 4 20 £25.00 2
ESRE71200906 0.9 2 1.3 45 4 6 £24.23 0
ESRE71200908 0.9 2 1.3 45 4 8 £24.23 0
ESRE71200910 0.9 2 1.3 45 4 10 £24.23 0
ESRE71201002 1 2 1.5 50 4 2 £18.62 0
ESRE71201003 1 2 1.5 50 4 3 £18.62 0
ESRE71201004 1 2 1.5 50 4 4 £18.62 0
ESRE71201005 1 2 1.5 50 4 5 £18.62 0
ESRE71201006 1 2 1.5 50 4 6 £18.62 4
ESRE71201007 1 2 1.5 50 4 7 £18.62 0
ESRE71201008 1 2 1.5 50 4 8 £18.62 3
ESRE71201012 1 2 1.5 50 4 12 £20.27 3
ESRE71201010 1 2 1.5 50 4 10 £18.62 5
ESRE71201014 1 2 1.5 50 4 14 £20.27 0
ESRE71201016 1 2 1.5 50 4 16 £20.27 0
ESRE71201020 1 2 1.5 50 4 20 £20.65 10
ESRE71201018 1 2 1.5 50 4 18 £20.27 5
ESRE71201022 1 2 1.5 60 4 22 £20.65 5
ESRE71201026 1 2 1.5 60 4 26 £20.65 1
ESRE71201030 1 2 1.5 70 4 30 £27.67 0
ESRE71201040 1 2 1.5 80 4 40 £30.22 2
ESRE71201050 1 2 1.5 100 4 50 £33.80 5
ESRE71201204 1.2 2 1.8 50 4 4 £21.31 0
ESRE71201206 1.2 2 1.8 50 4 6 £21.31 3
ESRE71201208 1.2 2 1.8 50 4 8 £21.31 0
ESRE71201210 1.2 2 1.8 50 4 10 £21.31 0
ESRE71201212 1.2 2 1.8 50 4 12 £21.31 2
ESRE71201214 1.2 2 1.8 50 4 14 £21.31 0
ESRE71201216 1.2 2 1.8 50 4 16 £21.31 0
ESRE71201226 1.2 2 1.8 60 4 26 £22.30 10
ESRE71201230 1.2 2 1.8 70 4 30 £22.30 0
ESRE71201220 1.2 2 1.8 50 4 20 £21.31 13
ESRE71201406 1.4 2 2.1 50 4 6 £21.31 0
ESRE71201408 1.4 2 2.1 50 4 8 £21.31 0
ESRE71201410 1.4 2 2.1 50 4 10 £21.31 0
ESRE71201414 1.4 2 2.1 50 4 14 £21.31 0
ESRE71201416 1.4 2 2.1 50 4 16 £21.31 4
ESRE71201420 1.4 2 2.1 50 4 20 £21.31 0
ESRE71201504 1.5 2 2.3 50 4 4 £20.27 0
ESRE71201505 1.5 2 2.3 50 4 5 £20.27 0
ESRE71201506 1.5 2 2.3 50 4 6 £20.27 0
ESRE71201508 1.5 2 2.3 50 4 8 £20.27 4
ESRE71201507 1.5 2 2.3 50 4 7 £20.27 1
ESRE71201510 1.5 2 2.3 50 4 10 £20.27 1
ESRE71201514 1.5 2 2.3 50 4 14 £20.27 0
ESRE71201518 1.5 2 2.3 50 4 18 £20.27 4
ESRE71201516 1.5 2 2.3 50 4 16 £20.27 0
ESRE71201512 1.5 2 2.3 50 4 12 £20.27 4
ESRE71201520 1.5 2 2.3 50 4 20 £23.21 2
ESRE71201522 1.5 2 2.3 60 4 22 £22.19 0
ESRE71201526 1.5 2 2.3 60 4 26 £22.19 3
ESRE71201530 1.5 2 2.3 70 4 30 £24.75 0
ESRE71201608 1.6 2 2.3 50 4 8 £21.31 0
ESRE71201610 1.6 2 2.3 50 4 10 £21.31 2
ESRE71201612 1.6 2 2.3 50 4 12 £21.31 0
ESRE71201616 1.6 2 2.3 50 4 16 £21.31 2
ESRE71201620 1.6 2 2.3 50 4 20 £21.31 0
ESRE71201808 1.8 2 2.7 50 4 8 £21.31 10
ESRE71201810 1.8 2 2.7 50 4 10 £21.31 0
ESRE71201812 1.8 2 2.7 50 4 12 £21.31 0
ESRE71201820 1.8 2 2.7 50 4 20 £21.31 0
ESRE71201816 1.8 2 2.7 50 4 16 £21.31 0
ESRE71202006 2 2 3 50 4 6 £18.62 2
ESRE71202008 2 2 3 50 4 8 £18.62 0
ESRE71202010 2 2 3 50 4 10 £18.62 0
ESRE71202012 2 2 3 50 4 12 £18.62 3
ESRE71202016 2 2 3 50 4 16 £18.62 2
ESRE71202014 2 2 3 50 4 14 £18.62 0
ESRE71202018 2 2 3 50 4 18 £18.62 1
ESRE71202020 2 2 3 50 4 20 £23.21 1
ESRE71202022 2 2 3 60 4 22 £22.19 0
ESRE71202030 2 2 3 70 4 30 £24.75 0
ESRE71202035 2 2 3 70 4 35 £24.75 0
ESRE71202026 2 2 3 60 4 26 £22.19 0
ESRE71202040 2 2 3 80 4 40 £27.56 0
ESRE71202045 2 2 3 90 4 45 £28.19 0
ESRE71202050 2 2 3 100 4 50 £32.01 2
ESRE71202060 2 2 3 110 4 60 £34.71 3
ESRE71202508 2.5 2 4 50 4 8 £21.31 0
ESRE71202510 2.5 2 4 50 4 10 £21.31 0
ESRE71202512 2.5 2 4 50 4 12 £21.31 0
ESRE71202514 2.5 2 4 50 4 14 £21.31 0
ESRE71202516 2.5 2 4 50 4 16 £21.31 0
ESRE71202518 2.5 2 4 50 4 18 £21.31 0
ESRE71202522 2.5 2 4 60 4 22 £22.19 0
ESRE71202526 2.5 2 4 60 4 26 £22.19 1
ESRE71202530 2.5 2 4 70 4 30 £24.75 0
ESRE71202535 2.5 2 4 70 4 35 £24.75 9
ESRE71202520 2.5 2 4 50 4 20 £21.31 0
ESRE71202540 2.5 2 4 80 4 40 £27.56 2
ESRE71202545 2.5 2 4 90 4 45 £28.19 4
ESRE71202550 2.5 2 4 100 4 50 £32.01 1
ESRE71203006 3 2 4.5 50 6 6 £22.30 4
ESRE71203008 3 2 4.5 50 6 8 £22.30 13
ESRE71203010 3 2 4.5 50 6 10 £22.30 2
ESRE71203012 3 2 4.5 50 6 12 £22.30 2
ESRE71203016 3 2 4.5 60 6 16 £23.21 0
ESRE71203014 3 2 4.5 60 6 14 £23.21 6
ESRE71203020 3 2 4.5 60 6 20 £23.21 1
ESRE71203030 3 2 4.5 70 6 30 £25.25 0
ESRE71203022 3 2 4.5 65 6 22 £23.21 0
ESRE71203026 3 2 4.5 65 6 26 £23.21 0
ESRE71203035 3 2 4.5 70 6 35 £25.25 0
ESRE71203018 3 2 4.5 60 6 18 £23.21 0
ESRE71203040 3 2 4.5 80 6 40 £29.21 0
ESRE71203045 3 2 4.5 90 6 45 £29.45 10
ESRE71203050 3 2 4.5 100 6 50 £35.97 13
ESRE71203060 3 2 4.5 100 6 60 £35.97 0
ESRE71204008 4 2 6 50 6 8 £22.30 1
ESRE71204010 4 2 6 50 6 10 £22.30 8
ESRE71204012 4 2 6 50 6 12 £22.30 0
ESRE71204014 4 2 6 60 6 14 £24.12 5
ESRE71204016 4 2 6 60 6 16 £24.12 1
ESRE71204018 4 2 6 60 6 18 £24.12 0
ESRE71204020 4 2 6 60 6 20 £24.12 0
ESRE71204022 4 2 6 65 6 22 £24.86 0
ESRE71204026 4 2 6 65 6 26 £24.86 0
ESRE71204035 4 2 6 70 6 35 £26.90 0
ESRE71204030 4 2 6 70 6 30 £26.90 0
ESRE71204040 4 2 6 80 6 40 £29.45 0
ESRE71204045 4 2 6 90 6 45 £33.17 0
ESRE71204050 4 2 6 100 6 50 £35.97 0
ESRE71205016 5 2 8 60 6 16 £24.86 6
ESRE71204060 4 2 6 100 6 60 £35.97 0
ESRE71205020 5 2 8 60 6 20 £24.86 2
ESRE71205026 5 2 8 65 6 26 £25.25 0
ESRE71205035 5 2 8 75 6 35 £26.90 0
ESRE71205030 5 2 8 70 6 30 £26.90 0
ESRE71205040 5 2 8 80 6 40 £29.45 0
ESRE71205060 5 2 8 100 6 60 £35.97 2
ESRE71205050 5 2 8 90 6 50 £33.17 0
ESRE71206020 6 2 9 60 6 20 £24.86 2
ESRE71206015 6 2 9 60 6 15 £24.86 0
ESRE71206030 6 2 9 70 6 30 £26.68 3
ESRE71206032 6 2 9 90 6 32 £30.33 0
ESRE71208025 8 2 12 70 8 25 £38.64 0
ESRE71208030 8 2 12 80 8 30 £40.29 0
ESRE71208042 8 2 12 100 8 42 £42.98 1
ESRE71210030 10 2 15 75 10 30 £50.38 2
ESRE71210035 10 2 15 80 10 35 £51.40 0
ESRE71212035 12 2 20 80 12 35 £67.98 2
ESRE71210045 10 2 15 100 10 45 £54.97 0
ESRE71212040 12 2 20 90 12 40 £71.67 2
ESRE71212050 12 2 20 110 12 50 £75.49 1
