Solid carbide micro drills
Axis Micro Drills Down to 0.015mm.
1,675 Axis solid carbide micro drills in UK stock, uncoated and Axicoat coated, in short, medium and long flute lengths. Diameters from 0.015 to 3.00mm in 0.01mm steps, all on a 3mm shank.
The Axis range
Shop Axis Micro Drills
Choose the coating for the material, then the flute length for the depth of the hole.
862INDrill: Uncoated
For low and unalloyed steels, stainless, cast iron, non-ferrous metals and plastics. Includes the smallest sizes, down to 0.015mm.
Shop uncoated drills
813INDrill+: Axicoat
Axicoat coated for tougher work: high-alloy steels, stainless, titanium and nickel alloys, as well as general materials.
Shop Axicoat drills

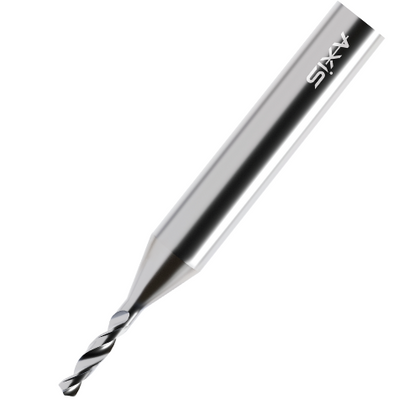

271Short Flute
The stiffest drill for shallow holes, and the best choice to start a hole before a longer drill.
Shop T3011

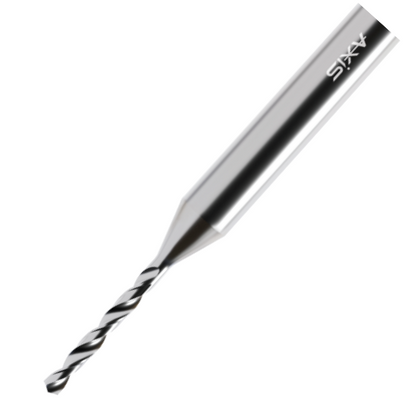

291Medium Flute
For holes deeper than a short drill can reach, from 0.10mm.
Shop T3021

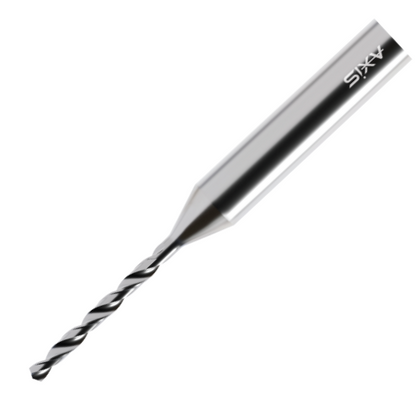

300Long Flute
For the deepest holes, and the smallest Axis drills of all.
Shop T3031

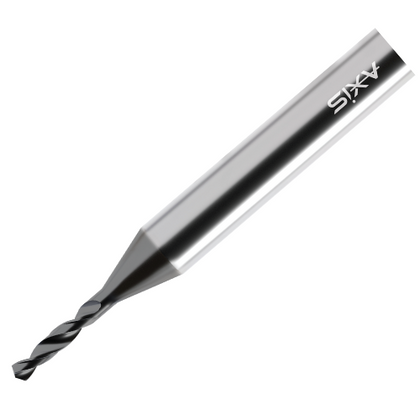

271Short Flute
Axicoat coated short drills for shallow holes in tougher materials.
Shop T3110

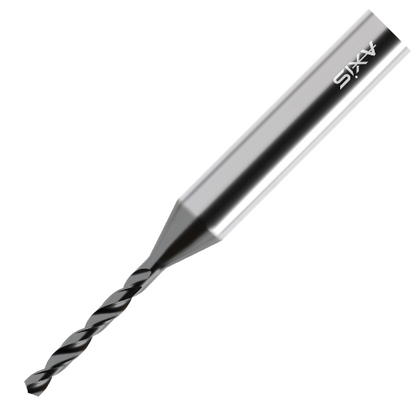

271Medium Flute
Axicoat coated medium length drills.
Shop T3120

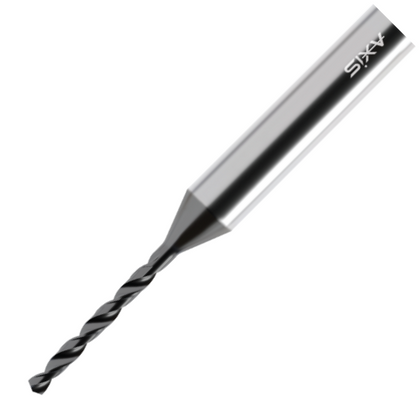

271Long Flute
Axicoat coated long drills for deep holes in tougher materials.
Shop T3130Compare the series
Axis Micro Drills by Series
Six series: two coatings, three flute lengths. Every drill has a 3mm shank, so one holder takes the whole range. Overall length steps up with diameter.
| Series | Coating | Flute length | Diameter | Overall length | Shop |
|---|---|---|---|---|---|
| T3011 | Uncoated | Short (3 – 5xD) | 0.30 – 3.00 mm | 38 mm | 271 sizes |
| T3021 | Uncoated | Medium (5 – 8xD) | 0.10 – 3.00 mm | 38 / 45 mm | 291 sizes |
| T3031 | Uncoated | Long (8 – 12xD) | 0.015 – 3.00 mm | 38 / 45 / 50 mm | 300 sizes |
| T3110 | Axicoat | Short (3 – 5xD) | 0.30 – 3.00 mm | 38 mm | 271 sizes |
| T3120 | Axicoat | Medium (5 – 8xD) | 0.30 – 3.00 mm | 38 / 45 mm | 271 sizes |
| T3130 | Axicoat | Long (8 – 12xD) | 0.30 – 3.00 mm | 38 / 45 / 50 mm | 271 sizes |
Below 0.30mm, choose the uncoated T3021 (from 0.10mm) or T3031 (from 0.015mm).
Choose the coating
Uncoated or Axicoat?
Both suit general materials. Choose Axicoat for high-alloy steels, titanium and nickel alloys.
| Material | Uncoated INDrill | Axicoat INDrill+ |
|---|---|---|
| Low and unalloyed steels | Yes | Yes |
| Stainless steel | Yes | Yes |
| Cast iron | Yes | Yes |
| Non-ferrous metals and plastics | Yes | Yes |
| High-alloy steels | – | Yes |
| Titanium and nickel alloys | – | Yes |
Choosing a micro drill
Choose an Axis Micro Drill in Four Steps
Use the shortest drill that reaches the depth: it is stiffer, so it holds size and position better.
- 1
Diameter
Every size from 0.30 to 3.00mm comes in 0.01mm steps. Below 0.30mm, use the uncoated medium or long series.
- 2
Depth
Divide the hole depth by the diameter. Up to about 5xD use a short drill; deeper holes need medium or long.
- 3
Material
Uncoated for steels, stainless, cast iron, non-ferrous and plastics. Axicoat for high-alloy steels, titanium and nickel alloys.
- 4
Start the Hole
For deep holes, start with a short drill of the same diameter, then follow with the longer drill.
Questions
Axis Micro Drills: Common Questions
What does 3 – 5xD mean?
It is the flute length as a multiple of the drill diameter. A 1mm drill in the 3 – 5xD short series has a flute about 3 to 5mm long, so it drills holes up to about that depth. Medium drills cover 5 – 8xD and long drills 8 – 12xD.
Uncoated or Axicoat: which should I choose?
Uncoated drills suit low and unalloyed steels, stainless steel, cast iron, non-ferrous metals and plastics. Axicoat drills cover the same materials and add high-alloy steels, titanium and nickel alloys, with less friction and better chip flow.
What is the smallest Axis drill?
The uncoated long series T3031 starts at 0.015mm, and the uncoated medium series T3021 at 0.10mm. All the other series start at 0.30mm. Every series goes up to 3.00mm.
What shank do Axis micro drills have?
Every Axis micro drill has a 3mm shank, whatever the cutting diameter, so one collet or holder takes the whole range.
How do I drill a deep micro hole?
Start the hole with a short drill of the same diameter, then follow with the medium or long drill. The short drill is stiffer, so it starts the hole in the right place and the longer drill follows it straight.
Not Sure Which Micro Drill You Need?
Send us the hole diameter, the depth and the material, and we will match the Axis series and size. Everything here ships from Kent.
