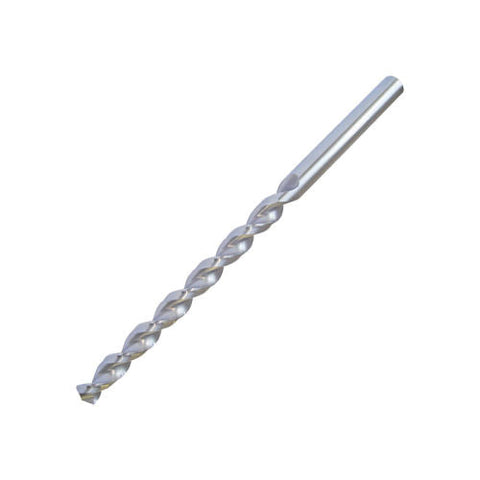

Somta Extra Long Series Drill - HSS-E Parabolic Flute - 5mm x 315mm
| Drill Diameter | 5.00 |
| Flute Length | 210 |
| Overall Length | 315 |
| Substrate | HSS-E |
| Type | Extra Long Series |
| Shank Diameter | 5 |
Learn more about Klarna
Designed for deep-hole drilling where reach and precision matter, the Somta Extra Long Series Drill - HSS-E Parabolic Flute (5 mm x 315 mm) is built to deliver dependable performance across demanding applications. The extended length lets you reach deep into thick workpieces in a single setup, while the HSS-E alloy provides robust wear resistance and heat tolerance for longer tool life.
The parabolic flute design is at the heart of this drill’s standout performance. It streamlines chip evacuation, reducing clogging and back-pressure so you can maintain a steady feed and consistent hole quality even as depth increases. The result is cleaner holes with tighter tolerances and fewer interruptions caused by chip buildup.
- Diameter and length: 5 mm cutting diameter with a 315 mm overall length for exceptional deep-hole reach
- Material: HSS-E (High-Speed Steel Enhanced) for superior hardness, heat resistance, and extended tool life
- Flute geometry: Parabolic flute optimizes chip evacuation and minimizes friction and heat buildup
- Cutting performance: Sharp cutting edges deliver clean, accurate holes with minimal wandering
- Intended use: Ideal for deep-hole drilling in thick workpieces and situations where standard-length drills can’t reach
- Operational tips: Pair with appropriate machine speeds and cutting fluids to maximize life and maintain hole quality; withdraw periodically to clear chips
Who benefits most: machinists and fabricators tackling deep-hole tasks in steel, stainless steel, aluminum, and other common metals. This drill reduces the need for multiple setups or tool changes, boosting efficiency in tool-and-die shops, automotive fabrication, and precision engineering environments.
Why choose this Somta drill over alternatives? Its extra-long reach combined with HSS-E durability and the parabolic flute’s efficient chip management work together to deliver reliable performance in challenging depths, maintaining hole straightness and finish without frequent tool changes or rework.
Equip your workshop with the Somta Extra Long Series Drill for deep-hole projects that demand reach, resilience, and consistently clean results.
| Drill Diameter | 5.00 |
| Flute Length | 210 |
| Overall Length | 315 |
| Substrate | HSS-E |
| Type | Extra Long Series |
| Shank Diameter | 5 |
| Coated | No |
| Standard | DIN 1869 |
| Helix Angle | 40° |
| Point Angle | 130° |
| Point Geometry | Split Point |
| Coating | Uncoated |
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: Somta Extra Long Series Drill - HSS-E Parabolic Flute (118 - 119 - 120)
View full collection →You are viewing 1200500. Click any other SKU to view its full details.
| Product SKU | Drill Diameter | Flute Length | Overall Length | Shank Diameter | Price | Stock | Order |
|---|---|---|---|---|---|---|---|
| 1180201 | 2.00 | 90 | 135 | 2 | £4.16 | In Stock | |
| 1180250 | 2.50 | 95 | 140 | 2.5 | £4.79 | In Stock | |
| 1180300 | 3.00 | 100 | 150 | 3 | £5.43 | In Stock | |
| 1180301 | 3.00 | 105 | 155 | 3 | £5.70 | In Stock | |
| 1180350 | 3.50 | 115 | 165 | 3.5 | £6.02 | In Stock | |
| 1180400 | 4.00 | 120 | 175 | 4 | £7.36 | 1-2 days | |
| 1180450 | 4.50 | 125 | 185 | 4.5 | £8.90 | In Stock | |
| 1180500 | 5.00 | 135 | 195 | 5 | £10.68 | In Stock | |
| 1180550 | 5.50 | 140 | 205 | 5.5 | £12.87 | In Stock | |
| 1180600 | 6.00 | 140 | 205 | 6 | £14.08 | 1-2 days | |
| 1180650 | 6.50 | 150 | 215 | 6.5 | £16.30 | In Stock | |
| 1180700 | 7.00 | 155 | 225 | 7 | £18.80 | In Stock | |
| 1180750 | 7.50 | 155 | 225 | 7.5 | £20.82 | In Stock | |
| 1180800 | 8.00 | 165 | 240 | 8 | £32.22 | In Stock | |
| 1180850 | 8.50 | 165 | 240 | 8.5 | £26.84 | In Stock | |
| 1180900 | 9.00 | 175 | 250 | 9 | £30.55 | 1-2 days | |
| 1180950 | 9.50 | 175 | 250 | 9.5 | £33.33 | In Stock | |
| 1181000 | 10.00 | 185 | 265 | 10 | £38.27 | In Stock | |
| 1181100 | 11.00 | 195 | 280 | 11 | £45.60 | In Stock | |
| 1181150 | 11.50 | 195 | 280 | 11.5 | £49.12 | In Stock | |
| 1181200 | 12.00 | 205 | 295 | 12 | £55.29 | In Stock | |
| 1181250 | 12.50 | 205 | 295 | 12.5 | £59.34 | 1-2 days | |
| 1181300 | 13.00 | 205 | 295 | 13 | £63.60 | 1-2 days | |
| 1181350 | 13.50 | 220 | 310 | 13.5 | £73.10 | In Stock | |
| 1181400 | 14.00 | 220 | 310 | 14 | £78.08 | In Stock | |
| 1181450 | 14.50 | 220 | 310 | 14.5 | £82.17 | 1-2 days | |
| 1181500 | 15.00 | 220 | 310 | 15 | £86.92 | In Stock | |
| 1181550 | 15.50 | 230 | 320 | 15.5 | £99.66 | In Stock | |
| 1181600 | 16.00 | 230 | 320 | 16 | £101.00 | In Stock | |
| 1190301 | 3.00 | 135 | 200 | 3 | £7.00 | In Stock | |
| 1190350 | 3.50 | 145 | 210 | 3.5 | £7.87 | In Stock | |
| 1190400 | 4.00 | 150 | 220 | 4 | £9.60 | 1-2 days | |
| 1190450 | 4.50 | 160 | 235 | 4.5 | £11.00 | 1-2 days | |
| 1190500 | 5.00 | 170 | 245 | 5 | £13.10 | 1-2 days | |
| 1190550 | 5.50 | 180 | 260 | 5.5 | £15.67 | In Stock | |
| 1190600 | 6.00 | 180 | 260 | 6 | £17.21 | In Stock | |
| 1190650 | 6.50 | 190 | 275 | 6.5 | £20.27 | In Stock | |
| 1190700 | 7.00 | 200 | 290 | 7 | £22.83 | 1-2 days | |
| 1190750 | 7.50 | 200 | 290 | 7.5 | £25.42 | In Stock | |
| 1190800 | 8.00 | 210 | 305 | 8 | £29.49 | 1-2 days | |
| 1190850 | 8.50 | 210 | 305 | 8.5 | £32.65 | In Stock | |
| 1190900 | 9.00 | 220 | 320 | 9 | £37.44 | In Stock | |
| 1190950 | 9.50 | 220 | 320 | 9.5 | £41.00 | In Stock | |
| 1191000 | 10.00 | 235 | 340 | 10 | £47.30 | 1-2 days | |
| 1191050 | 10.50 | 235 | 340 | 10.5 | £49.52 | In Stock | |
| 1191100 | 11.00 | 250 | 365 | 11 | £57.16 | 1-2 days | |
| 1191200 | 12.00 | 260 | 375 | 12 | £68.12 | In Stock | |
| 1191250 | 12.50 | 260 | 375 | 12.5 | £73.29 | In Stock | |
| 1191300 | 13.00 | 260 | 375 | 13 | £78.59 | In Stock | |
| 1191350 | 13.50 | 275 | 380 | 13.5 | £85.41 | In Stock | |
| 1191400 | 14.00 | 275 | 380 | 14 | £89.89 | In Stock | |
| 1191450 | 14.50 | 275 | 380 | 14.5 | £100.25 | In Stock | |
| 1191500 | 15.00 | 275 | 380 | 15 | £101.21 | In Stock | |
| 1191550 | 15.50 | 290 | 400 | 15.5 | £120.44 | In Stock | |
| 1191600 | 16.00 | 290 | 400 | 16 | £120.71 | In Stock | |
| 1200400 | 4.00 | 190 | 280 | 4 | £10.54 | In Stock | |
| 1200450 | 4.50 | 200 | 295 | 4.5 | £11.43 | In Stock | |
| 1200500 Viewing | 5.00 | 210 | 315 | 5 | £13.50 | In Stock | |
| 1200550 | 5.50 | 225 | 330 | 5.5 | £16.51 | In Stock | |
| 1200600 | 6.00 | 225 | 330 | 6 | £19.91 | 1-2 days | |
| 1200650 | 6.50 | 235 | 350 | 6.5 | £23.89 | 1-2 days | |
| 1200700 | 7.00 | 250 | 370 | 7 | £27.07 | In Stock | |
| 1200750 | 7.50 | 250 | 370 | 7.5 | £30.04 | In Stock | |
| 1200800 | 8.00 | 265 | 390 | 8 | £37.21 | In Stock | |
| 1200850 | 8.50 | 265 | 390 | 8.5 | £38.90 | In Stock | |
| 1200900 | 9.00 | 280 | 410 | 9 | £44.75 | In Stock | |
| 1200950 | 9.50 | 280 | 410 | 9.5 | £49.08 | In Stock | |
| 1201000 | 10.00 | 295 | 430 | 10 | £59.34 | In Stock | |
| 1201050 | 10.50 | 295 | 430 | 10.5 | £60.55 | In Stock | |
| 1201100 | 11.00 | 300 | 455 | 11 | £69.30 | In Stock | |
| 1201150 | 11.50 | 300 | 455 | 11.5 | £75.01 | In Stock | |
| 1201200 | 12.00 | 300 | 480 | 12 | £85.05 | In Stock | |
| 1201250 | 12.50 | 300 | 480 | 12.5 | £91.58 | In Stock | |
| 1201300 | 13.00 | 300 | 480 | 13 | £98.35 | In Stock |
