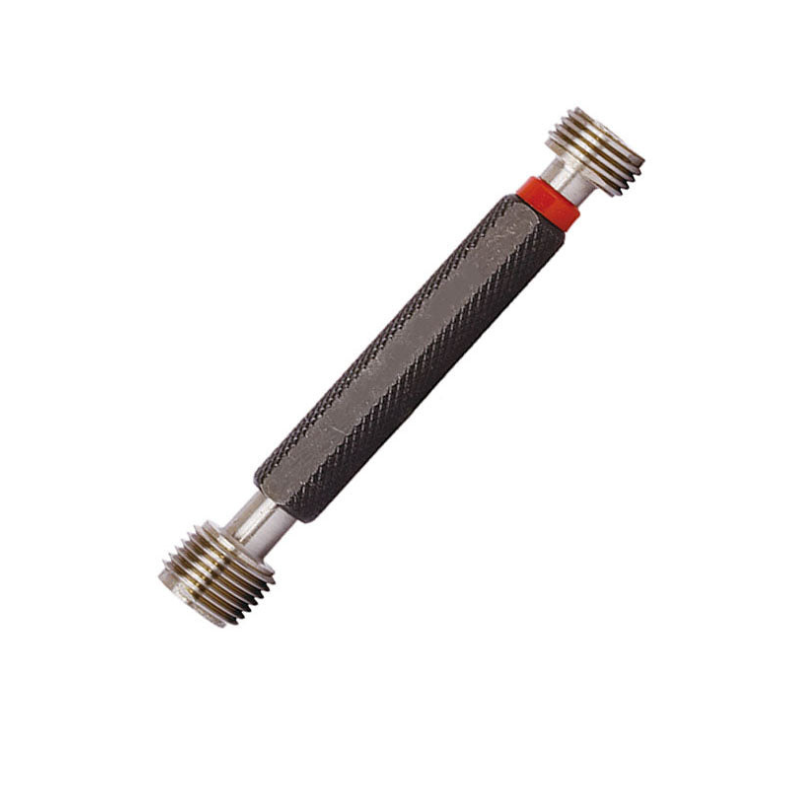

Asimeto Plug Thread Gauge (D/E) - Metric - Right Hand - 6H - M10 x 0.5
| Thread Form | Metric |
| Size | M10 |
| Pitch | 0.5 |
| Gauge Type | Plug Gauge (D/E) |
Learn more about Klarna
Compatible certification
The ones our customers buy most.
Description
The Asimeto Plug Thread Gauge (D/E) in metric, right-hand 6H with M10 x 0.5 threading is a precision instrument designed for fast, reliable verification of internal metric threads. Built for machinists, quality control teams, and maintenance technicians, it provides a confident check of thread fit before assembly or production runs.
- Thread Size: M10 x 0.5, right-hand thread for standard metric fasteners and common use on fine-pinish components.
- Tolerance Class: 6H, ensuring consistent pitch diameter measurements and dependable go/no-go checks.
- Series: 682 Series plug gauges, engineered for precise internal thread verification.
- Handedness: Right-hand configuration aligns with typical male-to-female thread mating in most assemblies.
- Construction: Cylindrical, knurled body with precisely machined ends to facilitate quick, repeatable insertions into internal threads.
- Material and Durability: Manufactured with high-quality materials to withstand regular workshop use and provide long service life.
- Purpose: Designed to measure and verify the pitch diameter of metric internal threads, helping ensure proper fit and reliable performance of fasteners.
Using the Asimeto 682 Series plug gauge helps you confirm thread compatibility at a glance. By validating the pitch diameter against the 6H tolerance, you can prevent misfits that cause assembly issues, thread binding, or premature wear. This gauge is ideal for incoming inspection, in-process quality checks on production lines, and routine maintenance where fastener integrity matters.
Part Numbers
- Protool Part Number
- 682-10-1
- Brand
- Asimeto
- Category
- Gauge
Need cutting data? Call 01732 887334 or email sales@protool-ltd.co.uk.
Delivery
Free UK mainland delivery on orders over £50 ex VAT. In-stock items ordered before 4:30pm are dispatched the same working day. Full delivery information.
Returns
14-day returns on unused stock items in original packaging. Special-order and bespoke tooling is non-returnable. Read our returns policy.
Technical Support
Over 30 years of machining experience behind the counter. Call 01732 887334, Mon–Thurs 8:30–17:30, Fri 8:30–16:30.
Trade Accounts
Credit accounts, contract pricing and scheduled call-off orders available for trade customers. Apply for an account.
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: Asimeto Plug Gauges - Metric Fine 6H - 682 Series
View full collection →You are viewing 682-10-1. Click any other SKU to view its full details.
| Product SKU | Size | Pitch | Price | Stock | Order |
|---|---|---|---|---|---|
| 682-08-3 | M8 | 1 | £41.85 | 4 weeks | |
| 682-20-5 | M20 | 1.5 | £47.75 | In Stock | |
| 682-25-3 | M25 | 1 | £52.83 | In Stock | |
| 682-40-5 | M40 | 1.5 | £77.49 | In Stock | |
| 682-08-2 | M8 | 0.75 | £48.51 | 4 weeks | |
| 682-12-5 | M12 | 1.5 | £43.43 | 4 weeks | |
| 682-28-3 | M28 | 1 | £52.83 | 4 weeks | |
| 682-14-3 | M14 | 1 | £48.15 | 4 weeks | |
| 682-06-2 | M6 | 0.75 | £50.49 | 4 weeks | |
| 682-42-6 | M42 | 2 | £82.58 | In Stock | |
| 682-26-5 | M26 | 1.5 | £52.43 | 4 weeks | |
| 682-25-5 | M25 | 1.5 | £52.43 | 4 weeks | |
| 682-10-4 | M10 | 1.25 | £46.17 | 4 weeks | |
| 682-08-1 | M8 | 0.5 | £54.77 | In Stock | |
| 682-02-9 | M2.5 | 0.35 | £63.41 | In Stock | |
| 682-38-6 | M38 | 2 | £68.49 | In Stock | |
| 682-34-6 | M34 | 2 | £59.49 | In Stock | |
| 682-33-6 | M33 | 2 | £55.17 | 4 weeks | |
| 682-30-6 | M30 | 2 | £52.83 | 4 weeks | |
| 682-24-6 | M24 | 2 | £52.43 | 4 weeks | |
| 682-38-5 | M38 | 1.5 | £75.15 | 4 weeks | |
| 682-18-5 | M18 | 1.5 | £46.94 | In Stock | |
| 682-16-5 | M16 | 1.5 | £45.77 | 4 weeks | |
| 682-14-5 | M14 | 1.5 | £43.83 | 4 weeks | |
| 682-45-3 | M45 | 1 | £103.32 | In Stock | |
| 682-42-3 | M42 | 1 | £103.32 | In Stock | |
| 682-34-3 | M34 | 1 | £61.43 | In Stock | |
| 682-24-3 | M24 | 1 | £52.83 | 4 weeks | |
| 682-10-2 | M10 | 0.75 | £50.49 | In Stock | |
| 682-12-1 | M12 | 0.5 | £58.68 | In Stock | |
| 682-10-1 Viewing | M10 | 0.5 | £50.85 | In Stock | |
| 682-05-1 | M5 | 0.5 | £48.15 | 4 weeks | |
| 682-42-7 | M42 | 3 | £102.92 | 4 weeks | |
| 682-39-7 | M39 | 3 | £75.92 | 4 weeks | |
| 682-40-6 | M40 | 2 | £83.75 | In Stock | |
| 682-32-6 | M32 | 2 | £53.60 | In Stock | |
| 682-28-6 | M28 | 2 | £57.92 | 4 weeks | |
| 682-26-6 | M26 | 2 | £57.92 | In Stock | |
| 682-22-6 | M22 | 2 | £50.09 | 4 weeks | |
| 682-18-6 | M18 | 2 | £46.17 | 4 weeks | |
| 682-48-5 | M48 | 1.5 | £93.92 | 4 weeks | |
| 682-45-5 | M45 | 1.5 | £89.24 | 4 weeks | |
| 682-36-5 | M36 | 1.5 | £72.00 | 4 weeks | |
| 682-34-5 | M34 | 1.5 | £70.07 | In Stock | |
| 682-33-5 | M33 | 1.5 | £61.43 | In Stock | |
| 682-24-5 | M24 | 1.5 | £52.43 | 4 weeks | |
| 682-14-4 | M14 | 1.25 | £48.92 | In Stock | |
| 682-50-3 | M50 | 1 | £135.77 | In Stock | |
| 682-40-3 | M40 | 1 | £99.00 | In Stock | |
| 682-35-3 | M35 | 1 | £71.24 | 4 weeks | |
| 682-33-3 | M33 | 1 | £63.77 | 4 weeks | |
| 682-32-3 | M32 | 1 | £61.07 | In Stock | |
| 682-30-3 | M30 | 1 | £52.43 | In Stock | |
| 682-23-3 | M23 | 1 | £58.32 | In Stock | |
| 682-22-3 | M22 | 1 | £49.68 | In Stock | |
| 682-21-3 | M21 | 1 | £50.09 | In Stock | |
| 682-20-3 | M20 | 1 | £49.68 | 4 weeks | |
| 682-12-2 | M12 | 0.75 | £56.34 | In Stock | |
| 682-07-2 | M7 | 0.75 | £48.15 | In Stock | |
| 682-06-0 | M6 | 0.35 | £50.85 | In Stock | |
| 682-05-0 | M5 | 0.35 | £50.85 | In Stock | |
| 682-04-9 | M4.5 | 0.35 | £56.75 | In Stock | |
| 682-04-0 | M4 | 0.35 | £50.85 | In Stock | |
| 682-03-0 | M3 | 0.35 | £58.68 | 4 weeks | |
| 682-60-7 | M60 | 3 | £153.41 | 4 weeks | |
| 682-58-7 | M58 | 3 | £138.92 | 4 weeks | |
| 682-56-7 | M56 | 3 | £129.92 | 4 weeks | |
| 682-55-7 | M55 | 3 | £112.68 | In Stock | |
| 682-52-7 | M52 | 3 | £120.51 | 4 weeks | |
| 682-50-7 | M50 | 3 | £105.66 | In Stock | |
| 682-48-7 | M48 | 3 | £102.92 | In Stock | |
| 682-45-7 | M45 | 3 | £95.85 | In Stock | |
| 682-40-7 | M40 | 3 | £83.75 | In Stock | |
| 682-36-7 | M36 | 3 | £83.34 | 4 weeks | |
| 682-33-7 | M33 | 3 | £61.07 | In Stock | |
| 682-30-7 | M30 | 3 | £59.85 | In Stock | |
| 682-60-6 | M60 | 2 | £144.77 | 4 weeks | |
| 682-58-6 | M58 | 2 | £137.75 | 4 weeks | |
| 682-56-6 | M56 | 2 | £137.75 | 4 weeks | |
| 682-55-6 | M55 | 2 | £127.17 | 4 weeks | |
| 682-52-6 | M52 | 2 | £99.00 | 4 weeks | |
| 682-50-6 | M50 | 2 | £93.51 | 4 weeks | |
| 682-48-6 | M48 | 2 | £84.92 | 4 weeks | |
| 682-45-6 | M45 | 2 | £82.58 | In Stock | |
| 682-39-6 | M39 | 2 | £75.92 | In Stock | |
| 682-36-6 | M36 | 2 | £66.15 | 4 weeks | |
| 682-35-6 | M35 | 2 | £71.24 | In Stock | |
| 682-27-6 | M27 | 2 | £57.92 | 4 weeks | |
| 682-20-6 | M20 | 2 | £51.26 | 4 weeks | |
| 682-60-5 | M60 | 1.5 | £153.00 | 4 weeks | |
| 682-58-5 | M58 | 1.5 | £145.17 | 4 weeks | |
| 682-56-5 | M56 | 1.5 | £125.24 | 4 weeks | |
| 682-55-5 | M55 | 1.5 | £118.58 | 4 weeks | |
| 682-52-5 | M52 | 1.5 | £97.83 | In Stock | |
| 682-50-5 | M50 | 1.5 | £95.09 | 4 weeks | |
| 682-42-5 | M42 | 1.5 | £82.17 | 4 weeks | |
| 682-35-5 | M35 | 1.5 | £71.24 | 4 weeks | |
| 682-32-5 | M32 | 1.5 | £65.75 | 4 weeks | |
| 682-30-5 | M30 | 1.5 | £59.49 | 4 weeks | |
| 682-28-5 | M28 | 1.5 | £65.75 | 4 weeks | |
| 682-27-5 | M27 | 1.5 | £55.94 | 4 weeks | |
| 682-22-5 | M22 | 1.5 | £48.92 | 4 weeks | |
| 682-12-4 | M12 | 1.25 | £47.75 | 4 weeks | |
| 682-58-3 | M58 | 1 | £164.75 | 4 weeks | |
| 682-56-3 | M56 | 1 | £164.75 | 4 weeks | |
| 682-55-3 | M55 | 1 | £164.75 | 4 weeks | |
| 682-52-3 | M52 | 1 | £122.49 | In Stock | |
| 682-48-3 | M48 | 1 | £123.26 | In Stock | |
| 682-39-3 | M39 | 1 | £87.66 | In Stock | |
| 682-38-3 | M38 | 1 | £87.66 | In Stock | |
| 682-36-3 | M36 | 1 | £93.15 | 4 weeks | |
| 682-27-3 | M27 | 1 | £58.32 | 4 weeks | |
| 682-26-3 | M26 | 1 | £58.32 | 4 weeks | |
| 682-18-3 | M18 | 1 | £46.94 | 4 weeks | |
| 682-16-3 | M16 | 1 | £46.94 | 4 weeks | |
| 682-12-3 | M12 | 1 | £48.15 | 4 weeks | |
| 682-11-3 | M11 | 1 | £41.85 | 4 weeks | |
| 682-10-3 | M10 | 1 | £41.85 | In Stock | |
| 682-09-3 | M9 | 1 | £50.85 | 4 weeks | |
| 682-06-1 | M6 | 0.5 | £52.07 | 4 weeks | |
| 682-04-1 | M4 | 0.5 | £43.43 | In Stock | |
| 682-03-9 | M3.5 | 0.35 | £63.41 | In Stock | |
| 682-02-8 | M2.2 | 0.35 | £63.41 | In Stock | |
| 682-02-0 | M2 | 0.35 | £58.68 | In Stock |
