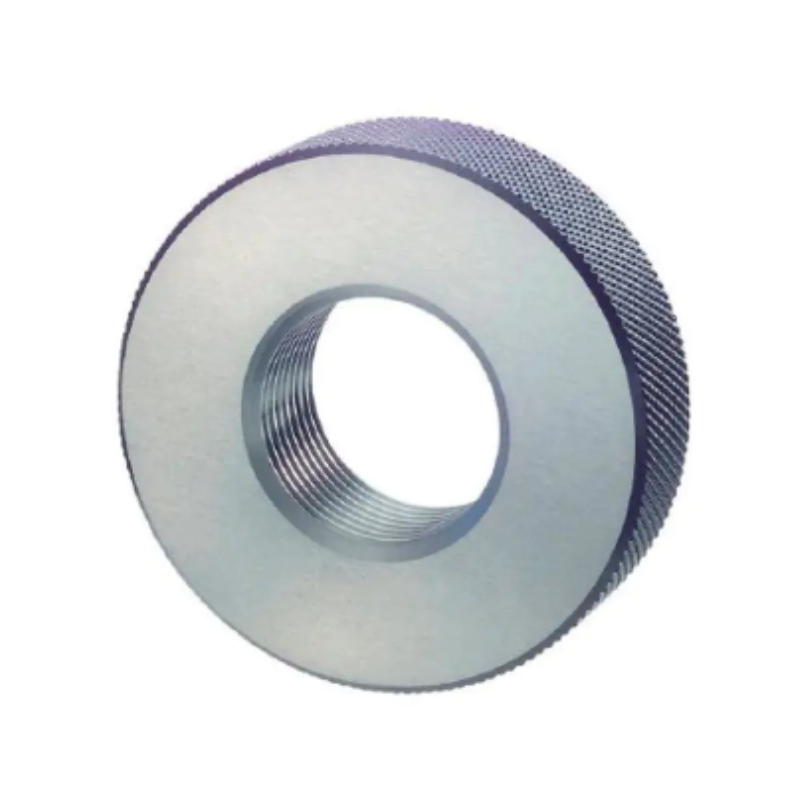

Asimeto Ring Thread Gauge (Go) - Metric - Right Hand - 6g - M22 x 1

Please log in here to access all benefits, including multibuy discounts and faster checkouts.

Asimeto Ring Thread Gauge (Go) - Metric - Right Hand - 6g - M22 x 1

SKU:685-22-3

Specification

Thread Form	Metric
Size	M22
Pitch	1
Gauge Type	Ring Gauge (GO)
Thread Direction	Right Hand
Tolerance	6g

£75.22

Prices shown ex. VAT

4 weeks estimated lead time — subject to availability

Free delivery over £50 ex VAT

Secure checkout

14-day returns

30+ years expertise

Pay in 3 interest-free instalments. No extra cost if paid on time. 18+ only.
Learn more about Klarna

Speak to our team

01732 887334

Mon – Thurs 8:30 – 17:30 · Fri 8:30 – 16:30

The Asimeto Ring Thread Gauge (Go) – Metric Fine 6g, Right Hand, M22 x 1 is a precision go gauge built for fast, reliable verification of cylindrical parts with metric threads. Designed for manufacturing and QA teams, it delivers consistent checks that help maintain tight tolerances in automotive, aerospace, and engineering environments.

Series: 685 Series Go ring gauge for Metric Fine 6g threads, specifically M22 x 1 with right-hand orientation
Material: High-quality steel engineered for durability and long service life in busy production settings
Thread compatibility: Precisely matched to Metric Fine 6g threads (M22 x 1, right-hand)
Gauge type: Go-side of a go/no-go gauging system to support quick acceptance checks
Orientation: Right-hand threading confirmed for correct assembly and measurement workflows
Finish and grip: Knurled outer surface for secure handling and improved control in workshop conditions

In practice, this gauge helps inspectors and machinists quickly determine whether cylindrical parts meet the Go limit for M22 x 1 threads, reducing rework and scrap while speeding up inline quality checks. The rugged steel construction stands up to daily use on the shop floor, and the precision design delivers repeatable results across operators. Ideal for incoming inspection, in-process verification, and final assembly, the Asimeto 685 Series Go ring gauge provides a dependable, exacting standard for metric thread measurement in demanding manufacturing settings.

Thread Form	Metric
Size	M22
Pitch	1
Gauge Type	Ring Gauge (GO)
Thread Direction	Right Hand
Tolerance	6g
