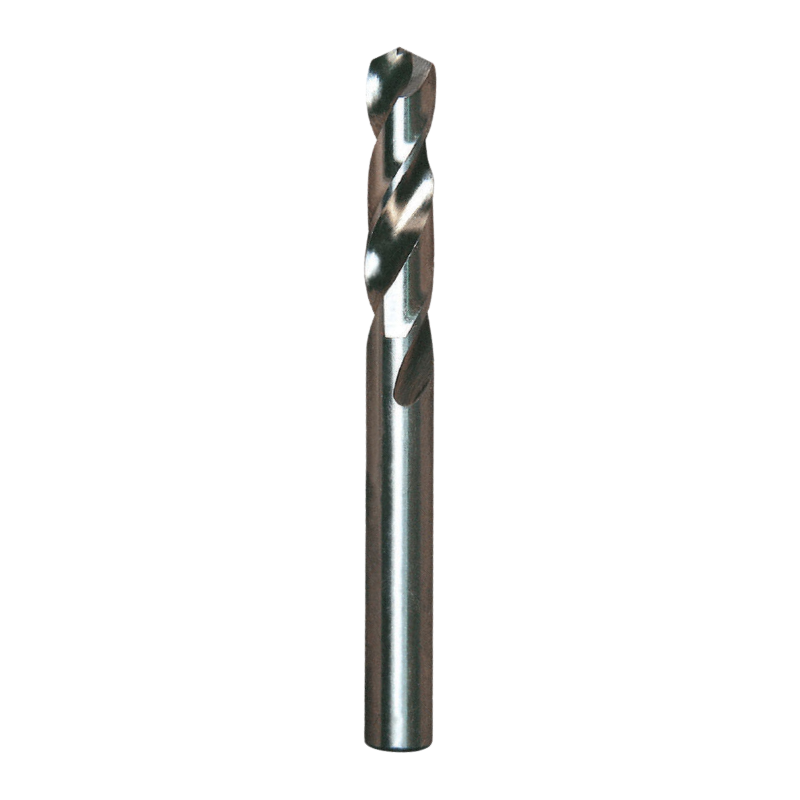

Europa Tools Stub Drill - HSS CO8 Cobalt - 4.65mm

Please log in here to access all benefits, including promotional discounts and faster checkouts.

Europa Tools Stub Drill - HSS CO8 Cobalt - 4.65mm

Name: Europa Tools Stub Drill - HSS CO8 Cobalt - 4.65mm
Brand: Europa
SKU: 8205020465
Price: 1.56 GBP
Availability: InStock

SKU:8205020465

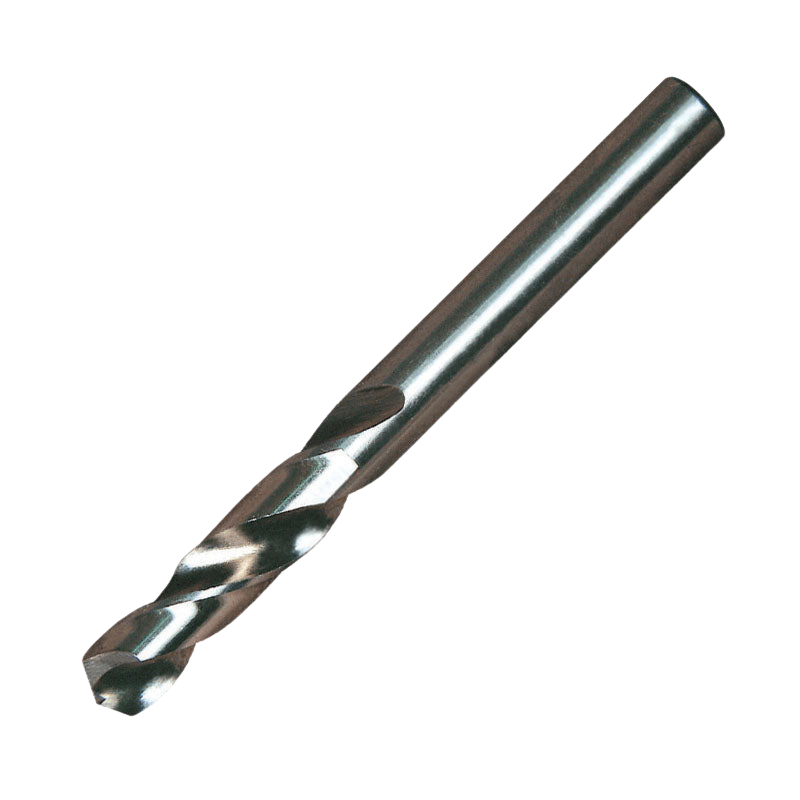

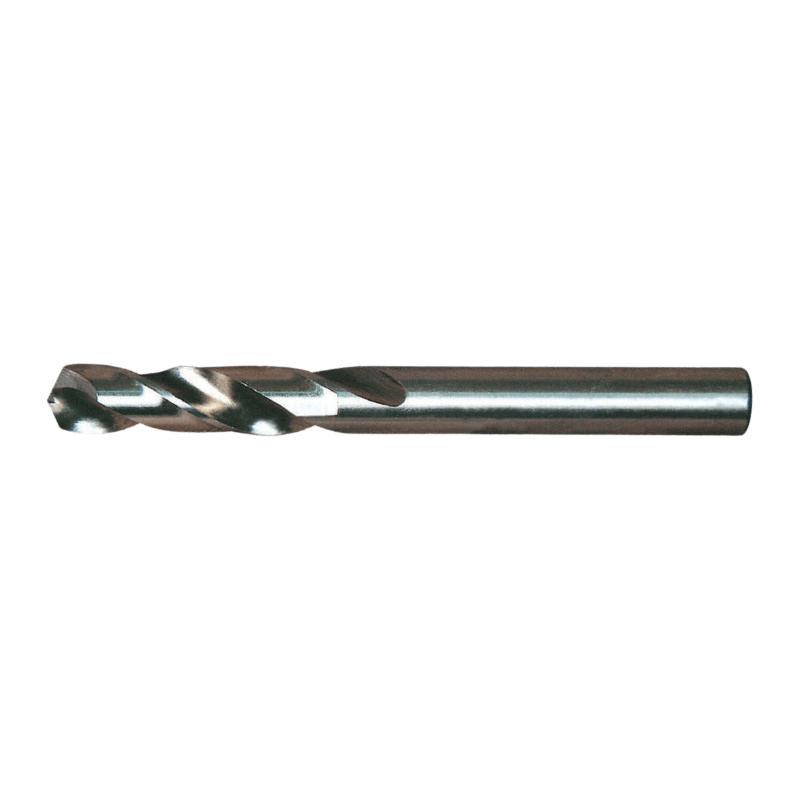

The Europa Tools Stub Drill (820502 series) is a precision drill bit designed for demanding metalworking tasks. At 4.65 mm in diameter, it delivers accurate, true holes in a range of tough materi... Read more ↓

Material Compatibility

Specifications at a glance

Drill Diameter	4.65
Flute Length	24
Overall Length	68
Substrate	HSSCo8

View all specifications ↓

Download Cutting Data

£1.56

Prices shown ex. VAT

1–2 days estimated lead time — subject to availability

View Other Sizes →

Free delivery over £50 ex VAT

Secure checkout

14-day returns

30+ years expertise

Pay in 3 interest-free instalments. No extra cost if paid on time. 18+ only.
Learn more about Klarna

Speak to our team

01732 887334

Mon – Thurs 8:30 – 17:30 · Fri 8:30 – 16:30

Specification

Drill Diameter	4.65
Flute Length	24
Overall Length	68
Substrate	HSSCo8
Type	Stub Drill
Shank Diameter	4.65
Coated	No

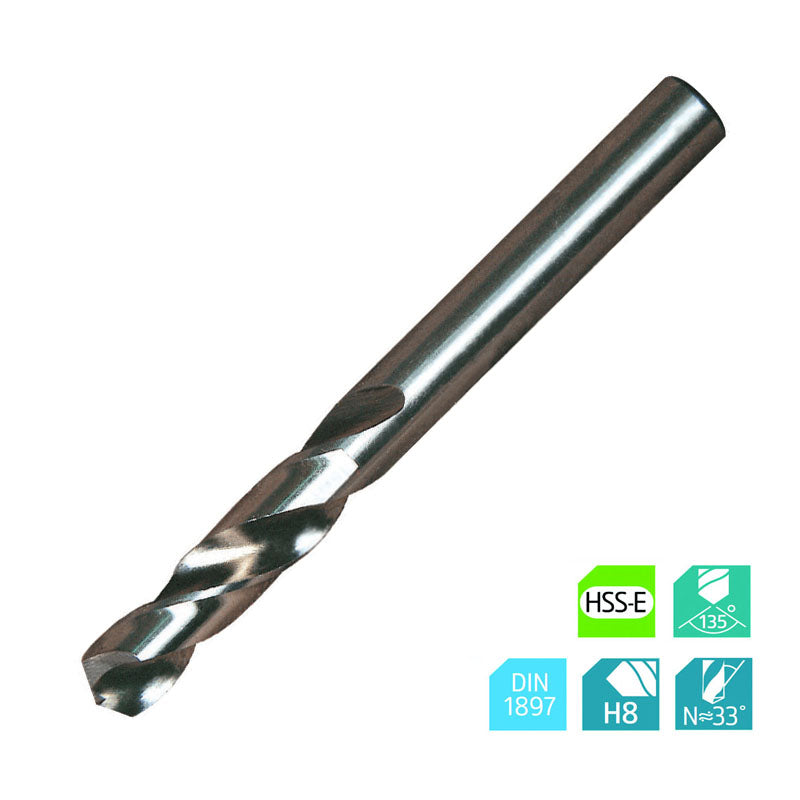

Standard	DIN 1897
Helix Angle	33°
Point Angle	135°
Point Geometry	Split Point
Coating	Straw

Description

Built from HSS CO8 cobalt, this drill maintains superior hardness and heat resistance for extended tool life when drilling through stainless steel, alloy steel, and cast iron. The stub-length geometry adds rigidity and stability, helping you keep your drill on center for clean, precise holes. Sharp cutting edges combined with an optimized flute design ensure efficient chip evacuation, reducing clogging and maintaining steady drilling speed.

HSS CO8 cobalt construction: Delivers enhanced hardness and heat resistance for reliable performance in tough metals, extending tool life and reducing the need for rework.
Stub-length geometry for rigidity: Provides improved straightness and stability, minimizing wander and ensuring consistent hole alignment in demanding materials.
Sharp cutting edges with optimized flute: Facilitates efficient chip evacuation for cleaner holes and faster drilling, even under high-speed or heavy-load conditions.

This drill bit is a dependable choice for engineers, fabricators, and hobbyists who require precise, repeatable results in stainless steel, alloy steel, and cast iron. Its robust cobalt construction and thoughtful geometry work together to reduce downtime, improve workflow, and deliver accurate holes project after project.

Part Numbers

Protool Part Number: 8205020465
Brand: Europa
Category: Drill

Cutting Data & Technical Datasheet

Delivery

Free UK mainland delivery on orders over £50 ex VAT. In-stock items ordered before 4:30pm are dispatched the same working day. Full delivery information.

Returns

14-day returns on unused stock items in original packaging. Special-order and bespoke tooling is non-returnable. Read our returns policy.

Technical Support

Over 30 years of machining experience behind the counter. Call 01732 887334, Mon–Thurs 8:30–17:30, Fri 8:30–16:30.

Trade Accounts

Credit accounts, contract pricing and scheduled call-off orders available for trade customers. Apply for an account.

What time are Protool open?

We are open Monday to Friday between 8:30am and 5pm.

Do you offer Free Next Day delivery?

Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.

We also offer the following:

Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.

For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.

*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.

Ask our technical team about this tool

Full Range: Europa Tools Stub Drill - HSS CO8 Cobalt (820502)

View full collection →

You are viewing 8205020465. Click any other SKU to view its full details.

Product SKU	Drill Diameter	Flute Length	Overall Length	Shank Diameter	Price	Stock

8205020100	1.00	6	26	1	£2.61	1-2 days
8205020110	1.10	7	28	1.1	£2.61	1-2 days
8205020120	1.20	8	30	1.2	£2.61	1-2 days
8205020125	1.25	8	30	1.25	£2.72	1-2 days
8205020130	1.30	8	30	1.3	£2.61	1-2 days
8205020140	1.40	9	32	1.4	£2.61	1-2 days
8205020150	1.50	9	32	1.5	£2.61	1-2 days
8205020160	1.60	10	34	1.6	£2.56	1-2 days
8205020170	1.70	10	34	1.7	£2.56	1-2 days
8205020175	1.75	10	34	1.75	£2.56	1-2 days
8205020180	1.80	11	36	1.8	£2.56	1-2 days
8205020190	1.90	11	36	1.9	£2.56	1-2 days
8205020200	2.00	12	44	2	£2.56	1-2 days
8205020210	2.10	12	44	2.1	£2.54	1-2 days
8205020220	2.20	13	45	2.2	£2.54	1-2 days
8205020225	2.25	13	45	2.25	£2.54	1-2 days
8205020230	2.30	13	45	2.3	£2.54	1-2 days
8205020240	2.40	14	46	2.4	£2.54	1-2 days
8205020250	2.50	14	46	2.5	£2.54	1-2 days
8205020260	2.60	14	46	2.6	£2.58	1-2 days
8205020270	2.70	16	48	2.7	£0.96	1-2 days
8205020275	2.75	16	48	2.75	£2.58	1-2 days
8205020280	2.80	16	48	2.8	£2.58	1-2 days
8205020290	2.90	16	48	2.9	£2.58	1-2 days
8205020300	3.00	16	48	3	£2.58	1-2 days
8205020310	3.10	16	50	3.1	£2.67	1-2 days
8205020320	3.20	18	50	3.2	£2.67	1-2 days
8205020325	3.25	18	50	3.25	£2.99	1-2 days
8205020330	3.30	18	52	3.3	£2.67	1-2 days
8205020340	3.40	20	52	3.4	£2.67	1-2 days
8205020350	3.50	20	52	3.5	£2.67	1-2 days
8205020360	3.60	20	52	3.6	£2.81	1-2 days
8205020370	3.70	20	52	3.7	£2.81	1-2 days
8205020375	3.75	20	52	3.75	£2.81	1-2 days
8205020380	3.80	22	54	3.8	£2.81	1-2 days
8205020390	3.90	22	54	3.9	£1.19	1-2 days
8205020400	4.00	22	54	4	£1.19	1-2 days
8205020410	4.10	22	66	4.1	£1.36	1-2 days
8205020420	4.20	22	66	4.2	£1.36	1-2 days
8205020425	4.25	22	66	4.25	£1.58	1-2 days
8205020430	4.30	24	68	4.3	£1.47	1-2 days
8205020440	4.40	24	68	4.4	£1.47	1-2 days
8205020450	4.50	24	68	4.5	£1.58	1-2 days
8205020460	4.60	24	68	4.6	£1.47	1-2 days
8205020465 Viewing	4.65	24	68	4.65	£1.56	1-2 days
8205020470	4.70	24	68	4.7	£1.56	1-2 days
8205020475	4.75	24	68	4.75	£1.32	1-2 days
8205020480	4.80	26	70	4.8	£1.56	1-2 days
8205020490	4.90	26	70	4.9	£1.56	1-2 days
8205020500	5.00	26	70	5	£1.56	1-2 days
8205020510	5.10	26	70	5.1	£1.71	1-2 days
8205020520	5.20	26	70	5.2	£1.71	1-2 days
8205020525	5.25	26	70	5.25	£1.83	1-2 days
8205020530	5.30	26	70	5.3	£2.24	1-2 days
8205020540	5.40	28	72	5.4	£2.24	1-2 days
8205020550	5.50	28	72	5.5	£2.24	1-2 days
8205020555	5.55	28	72	5.55	£2.05	1-2 days
8205020560	5.60	28	72	5.6	£2.32	1-2 days
8205020570	5.70	28	72	5.7	£2.32	1-2 days
8205020575	5.75	28	72	5.75	£2.28	1-2 days
8205020580	5.80	28	72	5.8	£2.32	1-2 days
8205020590	5.90	28	72	5.9	£2.32	1-2 days
8205020600	6.00	28	72	6	£2.32	1-2 days
8205020610	6.10	31	75	6.1	£2.62	1-2 days
8205020620	6.20	31	75	6.2	£2.61	1-2 days
8205020625	6.25	31	75	6.25	£2.08	1-2 days
8205020630	6.30	31	75	6.3	£2.62	1-2 days
8205020640	6.40	31	75	6.4	£2.61	1-2 days
8205020650	6.50	31	75	6.5	£2.61	1-2 days
8205020660	6.60	31	75	6.6	£2.62	1-2 days
8205020670	6.70	31	75	6.7	£2.61	1-2 days
8205020675	6.75	31	75	6.75	£2.39	1-2 days
8205020680	6.80	34	78	6.8	£2.91	1-2 days
8205020690	6.90	34	78	6.9	£2.91	1-2 days
8205020700	7.00	34	78	7	£2.91	1-2 days
8205020710	7.10	34	78	7.1	£2.84	1-2 days
8205020720	7.20	34	78	7.2	£2.84	1-2 days
8205020725	7.25	34	78	7.25	£3.14	1-2 days
8205020730	7.30	34	78	7.3	£2.80	1-2 days
8205020740	7.40	34	78	7.4	£2.84	1-2 days
8205020745	7.45	34	78	7.45	£2.84	1-2 days
8205020750	7.50	34	78	7.5	£3.27	1-2 days
8205020760	7.60	37	81	7.6	£2.99	1-2 days
8205020770	7.70	37	81	7.7	£3.59	1-2 days
8205020775	7.75	37	81	7.75	£2.99	1-2 days
8205020780	7.80	37	81	7.8	£3.59	1-2 days
8205020790	7.90	37	81	7.9	£3.59	1-2 days
8205020800	8.00	37	81	8	£3.60	1-2 days
8205020810	8.10	37	81	8.1	£3.59	1-2 days
8205020820	8.20	37	81	8.2	£3.59	1-2 days
8205020830	8.30	37	81	8.3	£3.41	1-2 days
8205020840	8.40	37	81	8.4	£3.41	1-2 days
8205020850	8.50	37	81	8.5	£3.59	1-2 days
8205020860	8.60	40	90	8.6	£4.98	1-2 days
8205020870	8.70	40	90	8.7	£4.98	In Stock
8205020875	8.75	40	90	8.75	£3.82	1-2 days
8205020880	8.80	40	90	8.8	£4.98	1-2 days
8205020890	8.90	40	90	8.9	£4.98	1-2 days
8205020900	9.00	40	90	9	£4.98	1-2 days
8205020910	9.10	40	90	9.1	£4.96	1-2 days
8205020920	9.20	40	90	9.2	£4.96	1-2 days
8205020925	9.25	40	90	9.25	£5.32	1-2 days
8205020930	9.30	40	90	9.3	£4.96	1-2 days
8205020935	9.35	40	90	9.35	£5.32	1-2 days
8205020940	9.40	40	90	9.4	£4.96	1-2 days
8205020950	9.50	43	93	9.5	£5.47	1-2 days
8205020960	9.60	43	93	9.6	£5.47	1-2 days
8205020970	9.70	43	93	9.7	£5.47	1-2 days
8205020975	9.75	43	93	9.75	£5.32	1-2 days
8205020980	9.80	43	93	9.8	£5.47	1-2 days
8205020990	9.90	43	93	9.9	£5.47	1-2 days
8205021000	10.00	43	93	10	£5.47	1-2 days
8205021020	10.20	43	93	10.2	£6.27	1-2 days
8205021025	10.25	43	93	10.25	£7.41	1-2 days
8205021050	10.50	43	93	10.5	£6.27	1-2 days
8205021075	10.75	43	104	10.75	£8.28	1-2 days
8205021100	11.00	47	104	11	£6.81	1-2 days
8205021125	11.25	47	104	11.25	£9.09	1-2 days
8205021150	11.50	47	104	11.5	£7.55	1-2 days
8205021175	11.75	47	104	11.75	£8.58	1-2 days
8205021180	11.80	47	104	11.8	£8.34	1-2 days
8205021200	12.00	51	108	12	£8.34	1-2 days
8205021225	12.25	51	108	12.25	£11.36	1-2 days
8205021250	12.50	51	108	12.5	£9.35	1-2 days
8205021275	12.75	51	108	12.75	£14.38	1-2 days
8205021300	13.00	51	108	13	£11.83	1-2 days
8205021325	13.25	51	108	13.25	£14.82	1-2 days
8205021350	13.50	54	108	13.5	£13.45	1-2 days
8205021375	13.75	54	108	13.75	£14.88	1-2 days
8205021380	13.80	54	108	13.8	£13.60	In Stock
8205021400	14.00	54	108	14	£14.09	1-2 days
8205021425	14.25	54	108	14.25	£15.53	1-2 days
8205021450	14.50	56	111	14.5	£14.20	1-2 days
8205021475	14.75	56	111	14.75	£15.71	1-2 days
8205021500	15.00	56	111	15	£14.35	1-2 days
8205021525	15.25	56	111	15.25	£17.84	1-2 days
8205021550	15.50	58	115	15.5	£16.29	1-2 days
8205021575	15.75	58	115	15.75	£16.72	1-2 days
8205021600	16.00	58	115	16	£16.72	1-2 days
8205021625	16.25	60	119	16.25	£20.18	1-2 days
8205021650	16.50	60	119	16.5	£18.36	1-2 days
8205021675	16.75	60	119	16.75	£20.18	1-2 days
8205021700	17.00	60	119	17	£18.36	1-2 days
8205021725	17.25	62	123	17.25	£22.82	1-2 days
8205021750	17.50	62	123	17.5	£20.81	1-2 days
8205021775	17.75	62	123	17.75	£22.82	1-2 days
8205021800	18.00	62	123	18	£20.81	1-2 days
8205021825	18.25	64	127	18.25	£26.50	1-2 days
8205021850	18.50	64	127	18.5	£24.08	1-2 days
8205021875	18.75	64	127	18.75	£26.50	1-2 days
8205021900	19.00	64	127	19	£24.08	1-2 days
8205021925	19.25	66	131	19.25	£24.50	1-2 days
8205021950	19.50	66	131	19.5	£26.32	1-2 days
8205021975	19.75	66	131	19.75	£31.47	1-2 days
8205022000	20.00	66	131	20	£28.61	1-2 days
8205022050	20.50	68	136	20.5	£33.72	1-2 days
8205022100	21.00	68	136	21	£33.72	1-2 days
8205022150	21.50	70	141	21.5	£35.49	1-2 days
8205022200	22.00	70	141	22	£35.98	1-2 days
8205022250	22.50	72	146	22.5	£43.61	1-2 days
8205022300	23.00	72	146	23	£43.61	1-2 days
8205022350	23.50	72	146	23.5	£48.87	1-2 days
8205022400	24.00	75	151	24	£48.87	1-2 days
8205022450	24.50	75	151	24.5	£52.25	1-2 days
8205022500	25.00	75	151	25	£52.25	1-2 days
8205022600	26.00	78	156	26	£55.36	1-2 days
8205022700	27.00	81	162	27	£65.25	1-2 days
8205022800	28.00	81	162	28	£65.25	1-2 days
8205022900	29.00	84	168	29	£71.19	1-2 days
8205023000	30.00	84	168	30	£71.19	1-2 days
8205023100	31.00	87	174	31	£94.53	1-2 days
