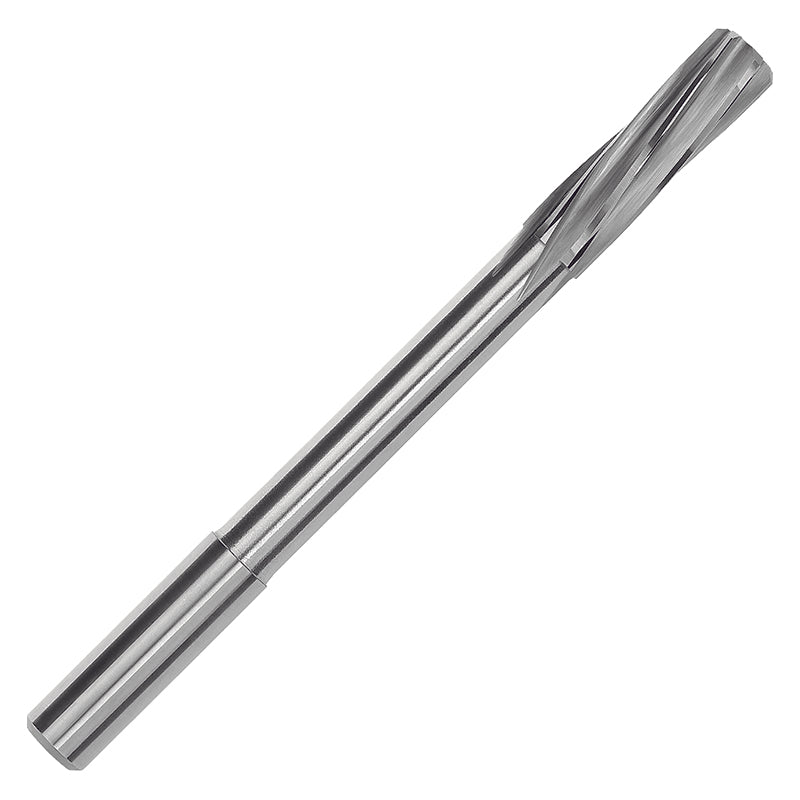

Toolex Reamer - Straight Shank - Spiral Flute - Carbide - H5 - 9.95mm

The Toolex Reamer - Straight Shank - Spiral Flute - Carbide - H5 - 9.95 mm is an intermediate-precision carbide straight shank reamer designed to finish holes to a precise 9.95 mm diameter. With a left-hand spiral flute and right-hand cutting, it follows a profile similar to DIN 212 B and is tolerance-matched to ISO H5, delivering consistent bore size across production runs. This tool is built for engineers, machinists, and hobbyists who need reliable, repeatable hole quality in a range of materials.

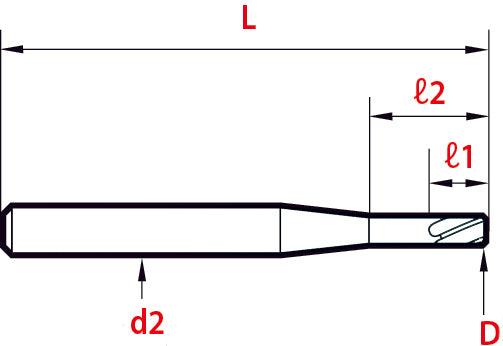

Manufactured to order by Toolex, it ships within 24–48 hours. Key geometry includes six flutes, a 9.95 mm nominal diameter, a 10 mm shank diameter, a flute length of 38 mm, reach of 97 mm, and an overall length of 133 mm—providing stable guidance and effective cutting in deeper holes.

• Six-flute carbide design for smooth, precise finishing: Six flutes deliver stable cutting and a smoother bore, while carbide construction provides wear resistance and longer tool life for consistent results.
• DIN 212 B–inspired geometry with ISO H5 tolerance: Left-hand spiral flute with right-hand cutting and ISO H5 sizing support reliable, repeatable hole sizes that fit standard components.
• Generous reach with a robust straight shank: 10 mm shank diameter, 38 mm flute length, 97 mm reach, and 133 mm overall length for stable guidance in deep holes and demanding setups.

Using this reamer helps you achieve repeatable, high-quality bore finishes with fewer passes, reducing rework and downtime. The carbide construction stands up to demanding materials, while the defined geometry and straight shank support reliable alignment in typical workshop tooling, delivering dependable performance when precision matters.
