1/4 x 20 TPI UN Internal Aluminium Chamfering Thread Mill – Carmex AMT 08048 C14 20 UN-C K20

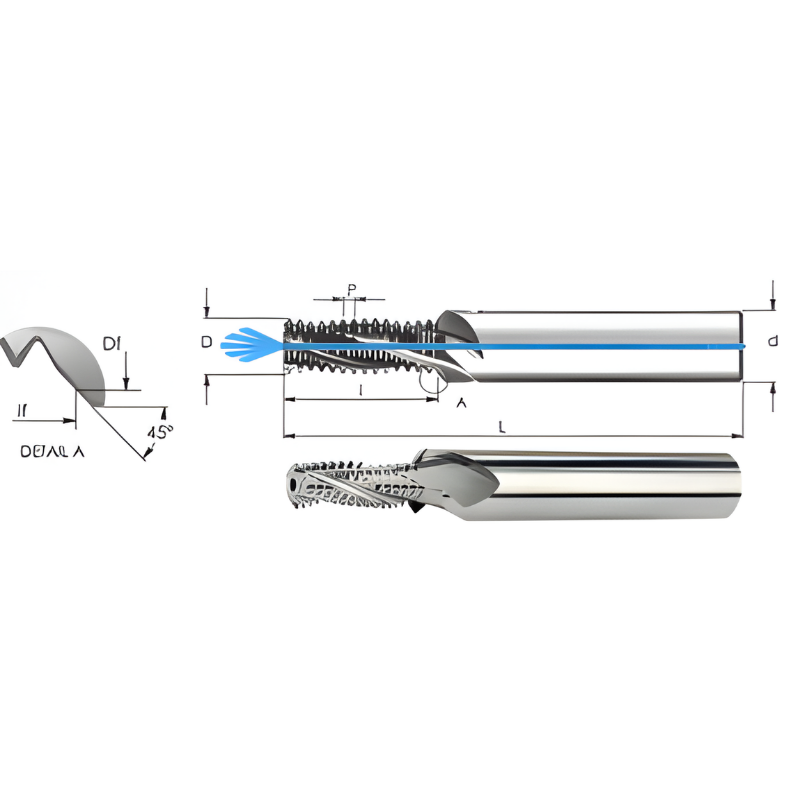

| Thread Form | UN (UNC UNF UNEF UNS) |
| Size | 1/4 |
| Pitch | 20 |
| Diameter (D) | 4.8 |
Learn more about Klarna
Description

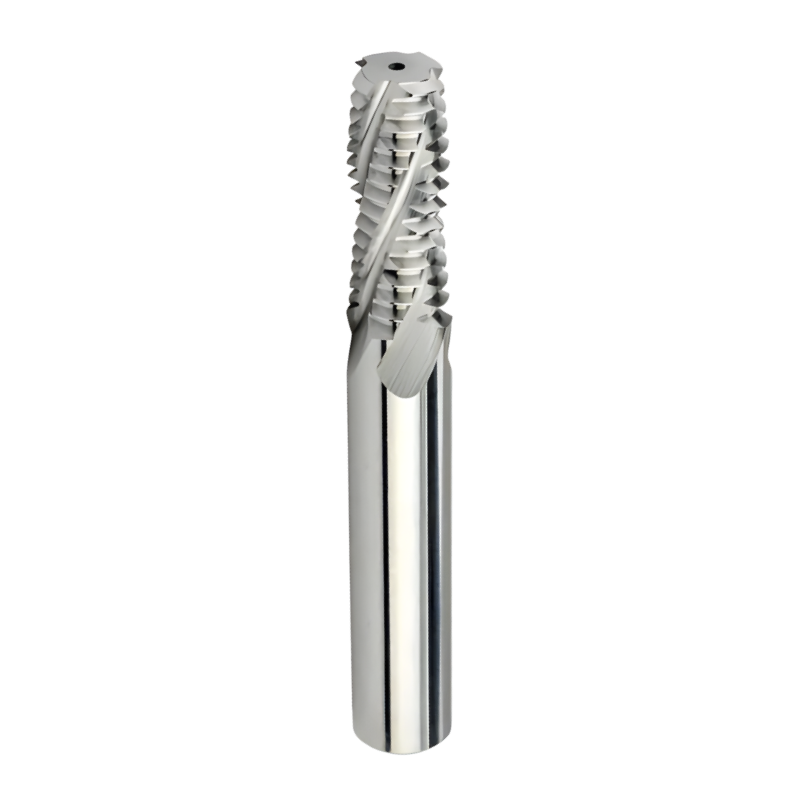

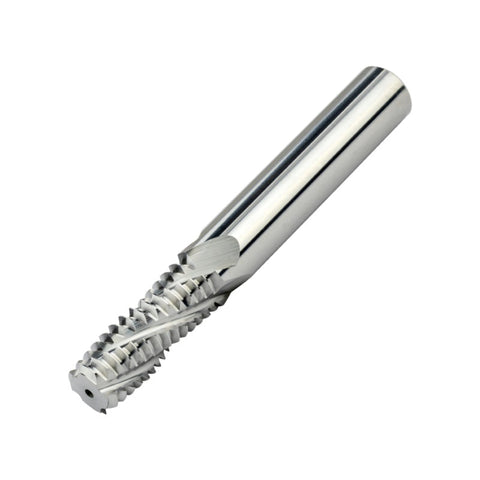

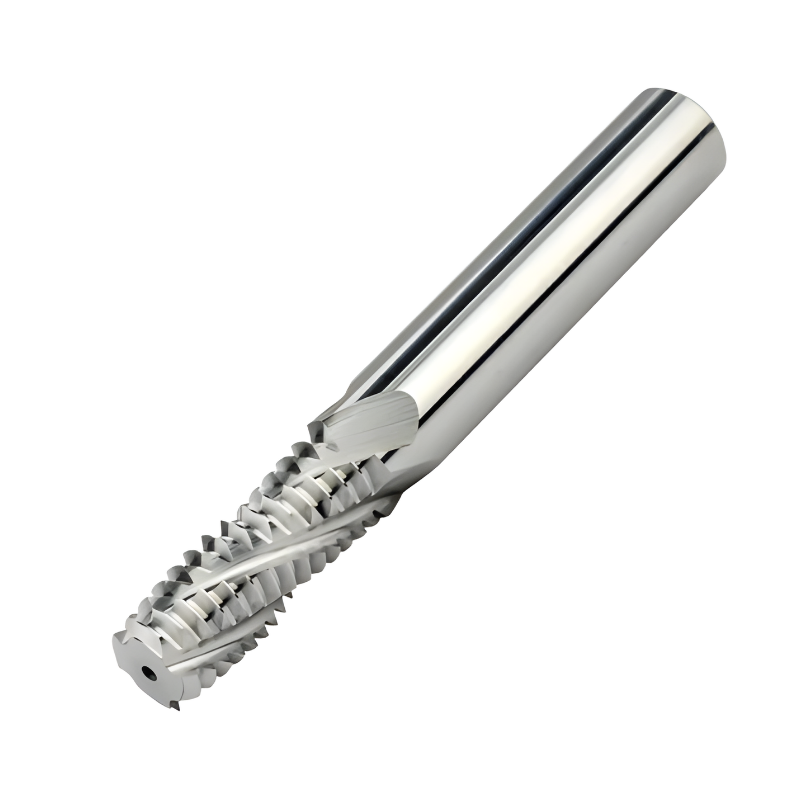

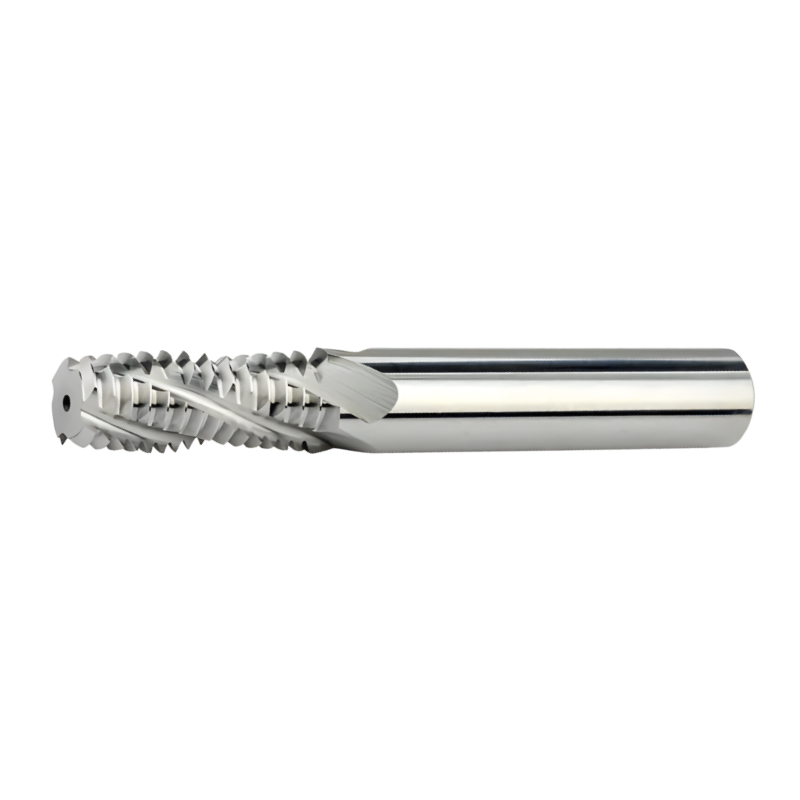

Solid carbide thread mill for internal 1/4 x 20 TPI UN threads. AMT is Carmex’s thread mill for high-speed aluminium. The uncoated edge is kept sharp and smooth so aluminium doesn’t build up on it, and it works on cast iron and stainless too. It has a plain cylindrical shank (Weldon on request). This version also has a chamfering edge, so the hole is chamfered in the same cycle.
This is an internal-only thread mill, and Carmex doesn’t list it for external threads – that’s what the separate EMT range is for. K20 is uncoated sub-micron carbide with a sharp edge, the right choice for aluminium and cast iron.
- Carmex code: AMT 08048 C14 20 UN-C K20
- Thread: 1/4 x 20 TPI, UN – UNC/UNF/UNEF/UNS
- Cutting diameter: Ø4.8 mm
- Flutes: 3
- Cutting length: 14.6 mm
- Overall length: 64 mm
- Shank: Ø8 mm
- Grade: K20 – uncoated sub-micron carbide
- Coolant: Internal coolant bore
Part Numbers
- Protool Part Number
- AMT08048C1420UN-CK20
- Brand
- Carmex
- Category
- Thread Mill
Delivery
Free UK mainland delivery on orders over £50 ex VAT. In-stock items ordered before 4:30pm are dispatched the same working day. Full delivery information.
Returns
14-day returns on unused stock items in original packaging. Special-order and bespoke tooling is non-returnable. Read our returns policy.
Technical Support
Over 30 years of machining experience behind the counter. Call 01732 887334, Mon–Thurs 8:30–17:30, Fri 8:30–16:30.
Trade Accounts
Credit accounts, contract pricing and scheduled call-off orders available for trade customers. Apply for an account.
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: Carmex Solid Carbide Thread Mills For Aluminium - UN (UNC,UNF,UNEF) - With Cutting Chamfer (AMT-C)
View full collection →You are viewing AMT08048C1420UN-CK20. Click any other SKU to view its full details.
| Product SKU | Size | Pitch | Flute Length | Reach | Overall Length | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|
| AMT08048C1420UN-CK20 Viewing | 1/4 | 20 | 14.6 | 14.6 | 64 | £137.30 | 5 days | |
| AMT1006C1718UN-CK20 | 5/16 | 18 | 17.6 | 17.6 | 73 | £158.40 | 5 days | |
| AMT12074C2116UN-CK20 | 3/8 | 16 | 21.4 | 21.4 | 84 | £198.16 | 5 days |
