Carmex Thread Mills Solid Carbide - For Aluminium - UN (UNC UNF UNEF UNS) - 7/16 x 20 - UnCoated
| Thread Form | UN (UNC UNF UNEF UNS) |
| Size | 7/16 |
| Pitch | 20 |
| Diameter (D) | 9.2 |
| Flute Length (l) | 23.5 |
| Shank Diameter (d) | 10 |
Learn more about Klarna

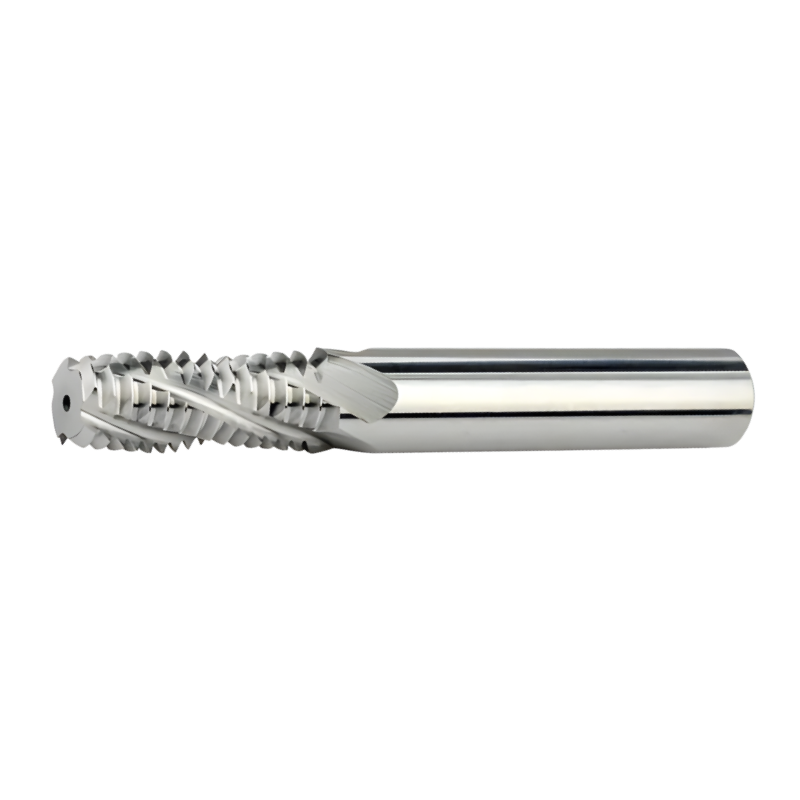

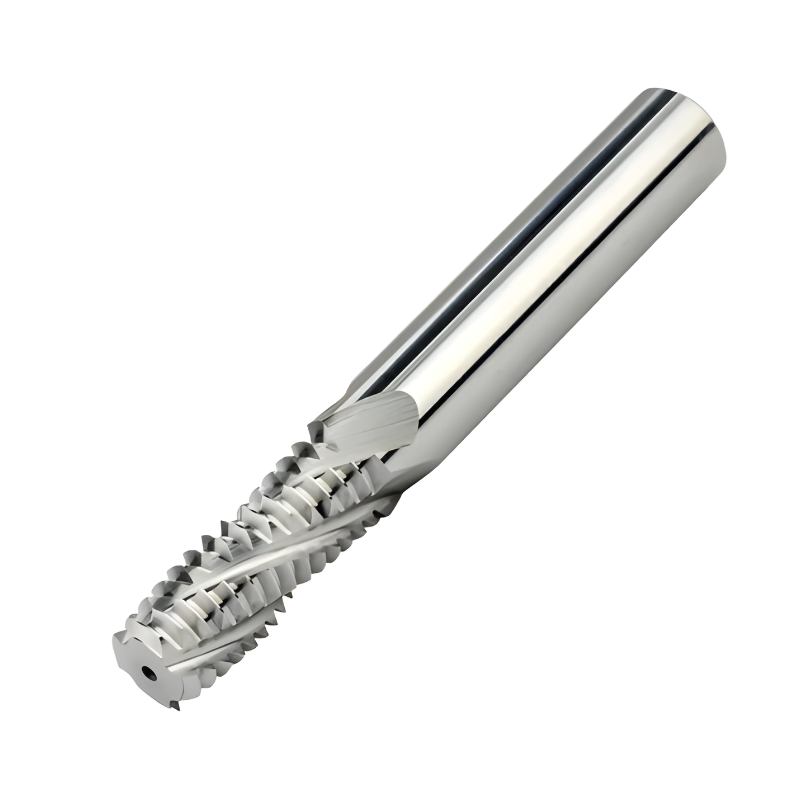

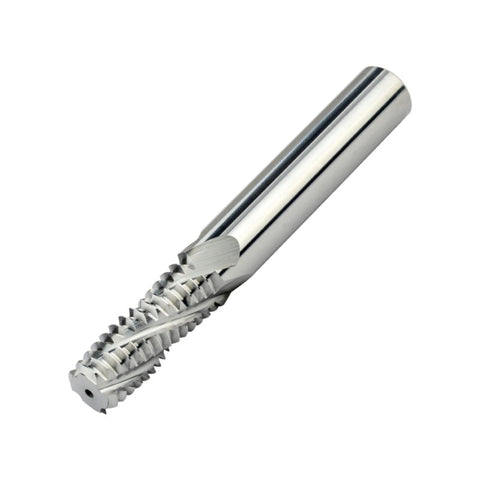

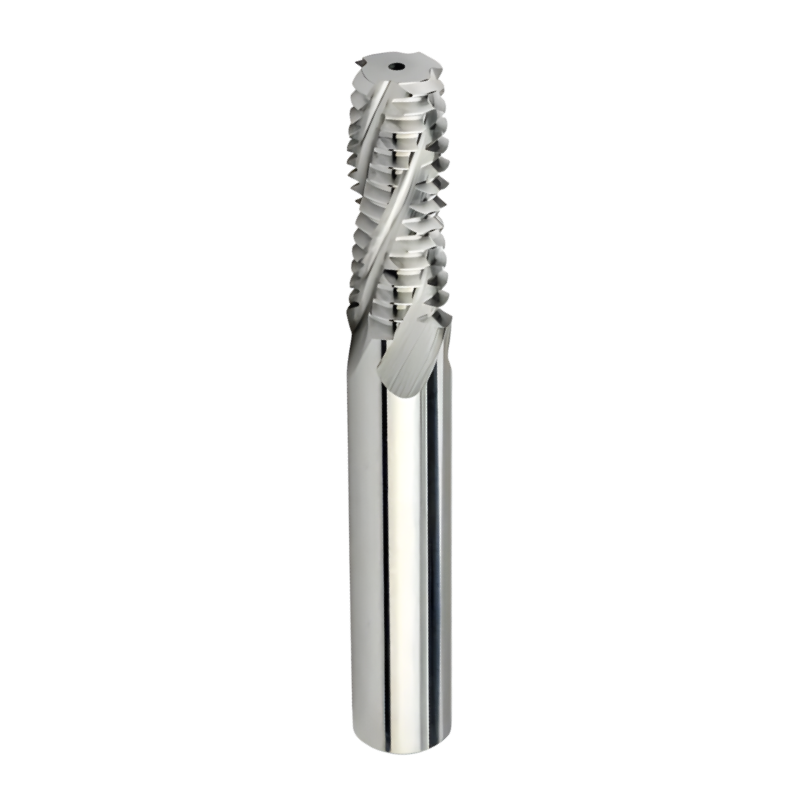

The Carmex AMT Solid Carbide Thread Mills are precision tools built for high-speed aluminum threading. Designed for machinists who need clean, accurate UNC/UNF/UNEf/UNS threads in aluminum, these mills deliver consistent surface finishes and reliable performance in demanding machining environments.
- Tool type: Solid carbide thread mills engineered specifically for aluminum operations
- Size and thread compatibility: 7/16 in diameter with 20 TPI; supports UN thread types including UNC, UNF, UNEF, UNS
- Shank: Cylindrical shank for straightforward mounting; Weldon shank available upon request
- Coating: Uncoated cutting edge to promote predictable engagement and controlled wear on aluminum
- Coolant and chip evacuation: Internal coolant bore provides effective cooling and efficient chip removal
- Material and build: Made from solid carbide for rigidity, heat resistance, and long tool life
When threading aluminum with this tool, you’ll achieve precise thread forms with minimal galling and clean surfaces. The internal coolant bore helps manage heat and keeps chips moving away from the cutting edge, reducing built-up edge and extending tool life. The cylindrical shank simplifies setup, and the Weldon option offers a secure, high‑rigidity hold for demanding applications. This thread mill is the ideal choice for high-speed aluminum threading tasks that demand accuracy, surface quality, and productivity.

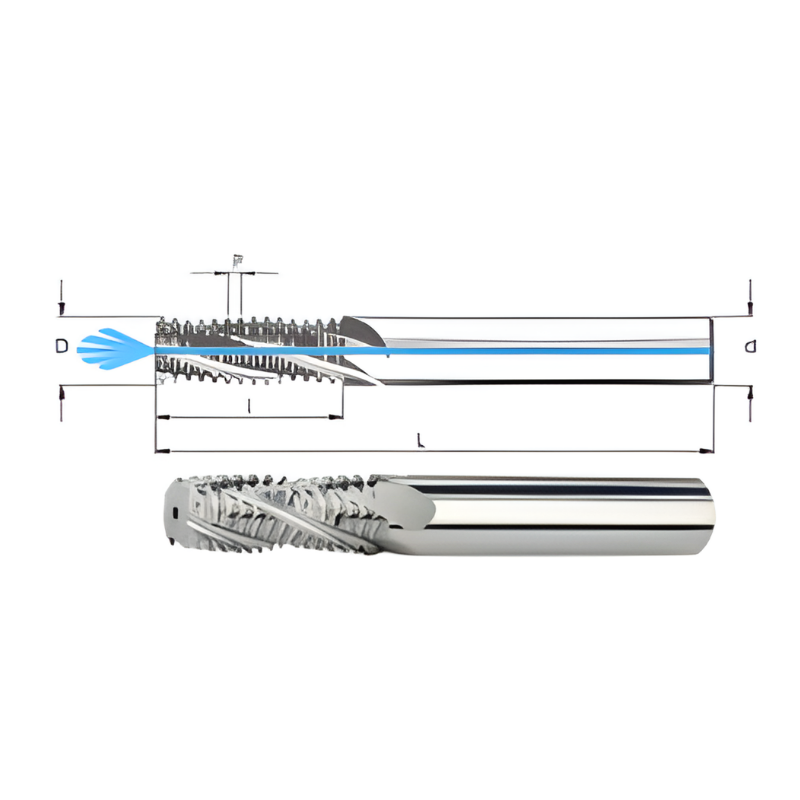

| Thread Form | UN (UNC UNF UNEF UNS) |
| Size | 7/16 |
| Pitch | 20 |
| Diameter (D) | 9.2 |
| Flute Length (l) | 23.5 |
| Shank Diameter (d) | 10 |
| No of Flutes | 3 |
| Overall Length (L) | 73 |
| Thread Mill Style | Standard + Coolant |
| Internal or External | Internal |
| Coating | K20 |
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: Carmex Solid Carbide Thread Mills For Aluminium - UN (UNC,UNF,UNEF) (AMT)
View full collection →You are viewing AMT10092C2320UNK20. Click any other SKU to view its full details.
| Product SKU | Size | Pitch | Flute Length | Reach | Overall Length | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|
| AMT06032C932UNK20 | No. 8 No. 10 No. 12 | 32 | 9.1 | 9.1 | 58 | £100.90 | 5 days | |
| AMT06048C1420UNK20 | 1/4 | 20 | 14.6 | 14.6 | 58 | £100.90 | 5 days | |
| AMT06052C1428UNK20 | 1/4 | 28 | 14 | 14 | 58 | £100.90 | 5 days | |
| AMT0606C1718UNK20 | 5/16 | 18 | 17.6 | 17.6 | 58 | £100.90 | In Stock | |
| AMT08074C2116UNK20 | 3/8 | 16 | 21.4 | 21.4 | 64 | £134.42 | 5 days | |
| AMT0808D2024UNK20 | 3/8 9/16 - 5/8 | 24 | 20.6 | 20.6 | 64 | £134.42 | 5 days | |
| AMT10092C2320UNK20 Viewing | 7/16 | 20 | 23.5 | 23.5 | 73 | £155.06 | 5 days | |
| AMT1212D3018UNK20 | 9/16 - 5/8 1 1/8 - 1 5/8 | 18 | 30.3 | 30.3 | 84 | £194.02 | 5 days | |
| AMT1616E3816UNK20 | 3/4 | 16 | 38.9 | 38.9 | 105 | £228.88 | 5 days |
