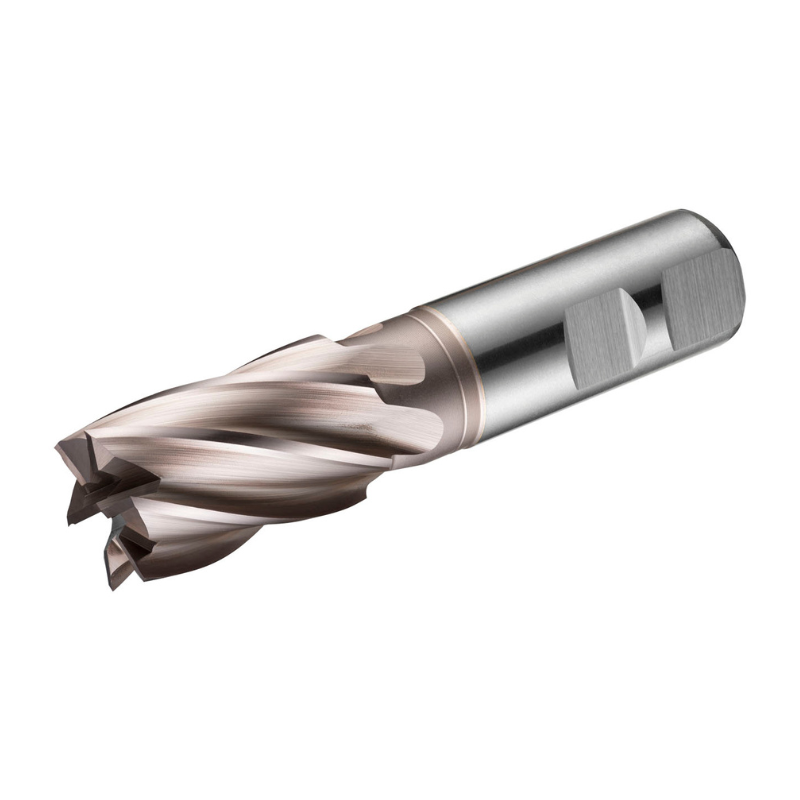

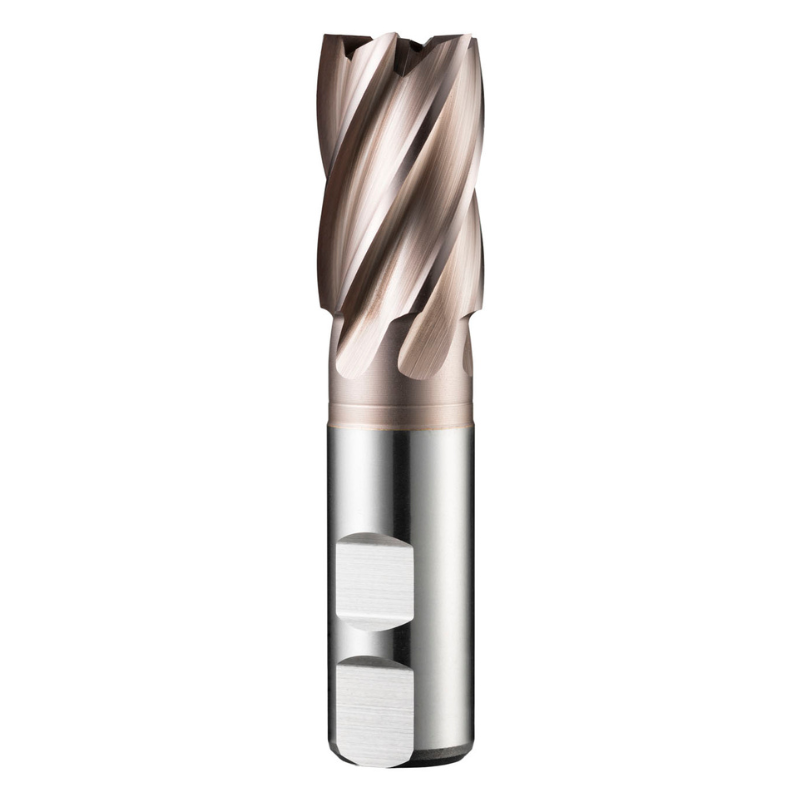

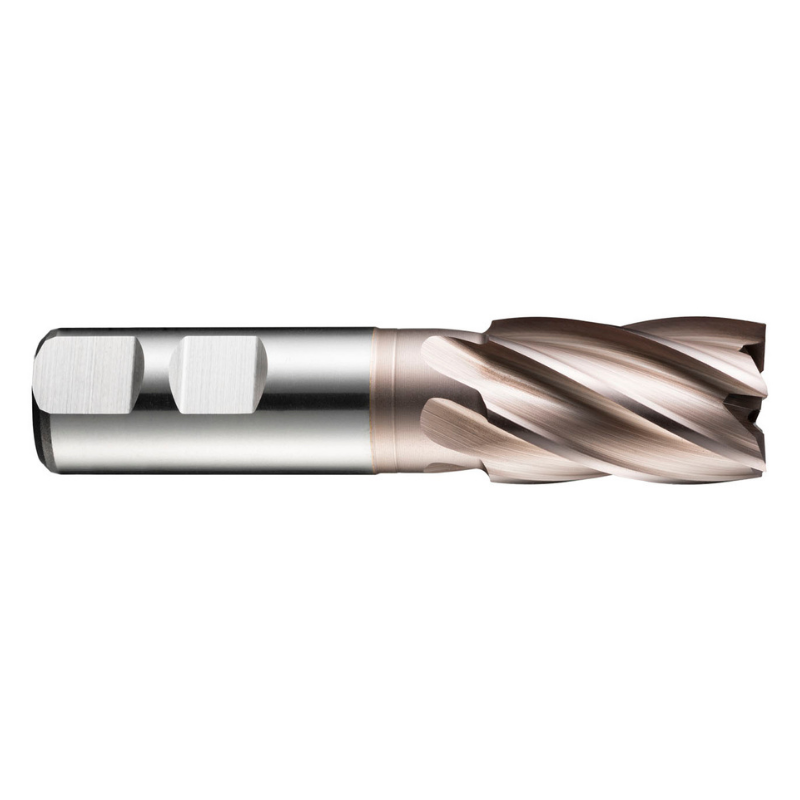

Dormer Pramet C246 10.0mm HSS-E-Powder Metal TICN Flatted Shank Multi-Flute Standard Length End Mill DIN 844 K

The Dormer Pramet C246 10.0 mm HSS‑E Powder Metallurgical TiCN end mill is a four‑flute, standard‑length cutter designed for shoulder milling, slot milling, and ramping in a wide range of materials. Built for reliability and versatility, it’s ideal for professional workshops that need precise milling performance in a single tool.

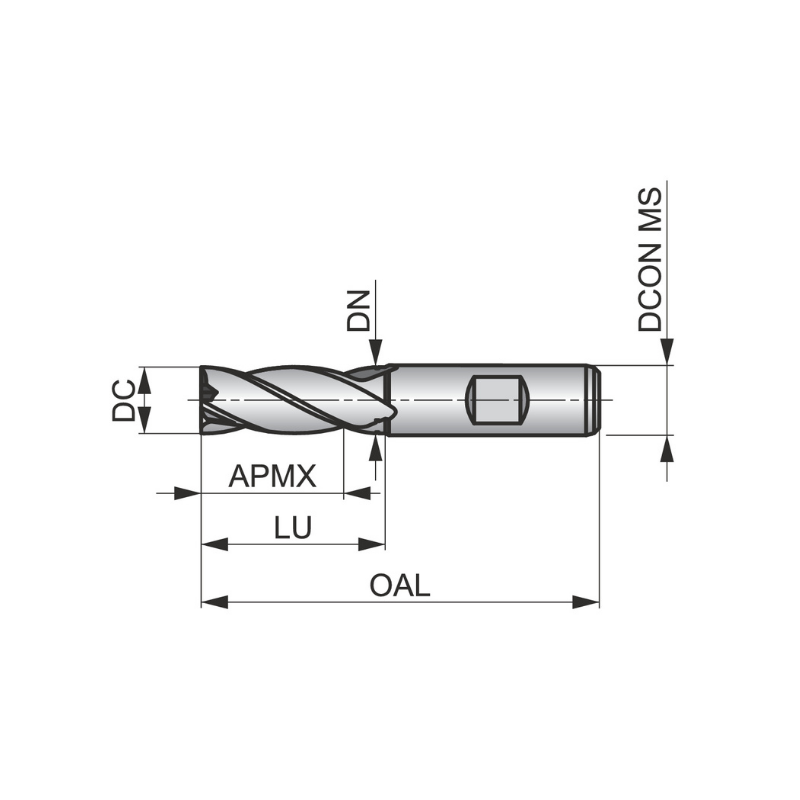

• Diameter: 10.0 mm
• Flutes: 4
• Length of cut: 22 mm
• Overall length: 72 mm
• Reach / neck relief: 31.5 mm
• Shank: 10 mm Weldon
• Material and coating: Powder‑metallurgical HSS‑E with TiCN coating
• Helix angle: 30°
• Rake angle: 12°
• DIN standard: DIN 844 K
• Applications: Shoulder milling, slot milling, and ramping
• Compatible workpiece materials: Free‑machining steel, plain carbon and alloy steel, cast iron, copper or copper alloys, titanium or titanium alloys

This end mill’s powder‑metallurgical HSS‑E core paired with a TiCN coating delivers enhanced wear resistance and edge retention at typical milling speeds. The four‑flute geometry offers efficient chip evacuation for clean shoulders and slots, while the 30° helix design helps reduce cutting forces and improve surface finish on a variety of materials. The 10 mm Weldon shank provides secure clamping in collets and end‑mill holders, supporting stable performance during ramping and other aggressive milling moves. DIN 844 K conformity ensures compatibility across compatible machines, making it a dependable choice for demanding milling tasks in steel, cast iron, copper alloys, and titanium alloys.
