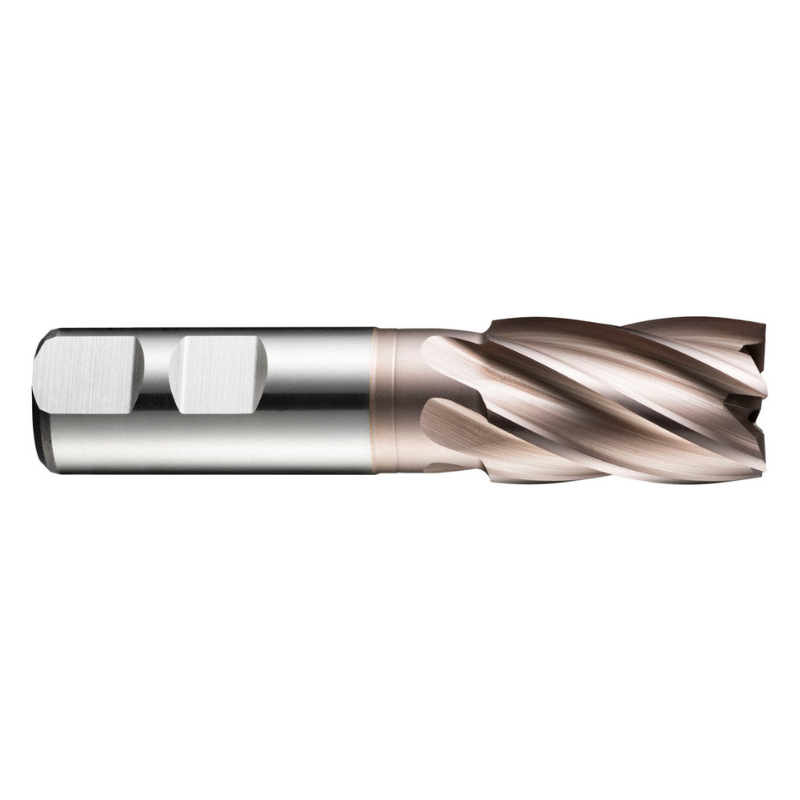

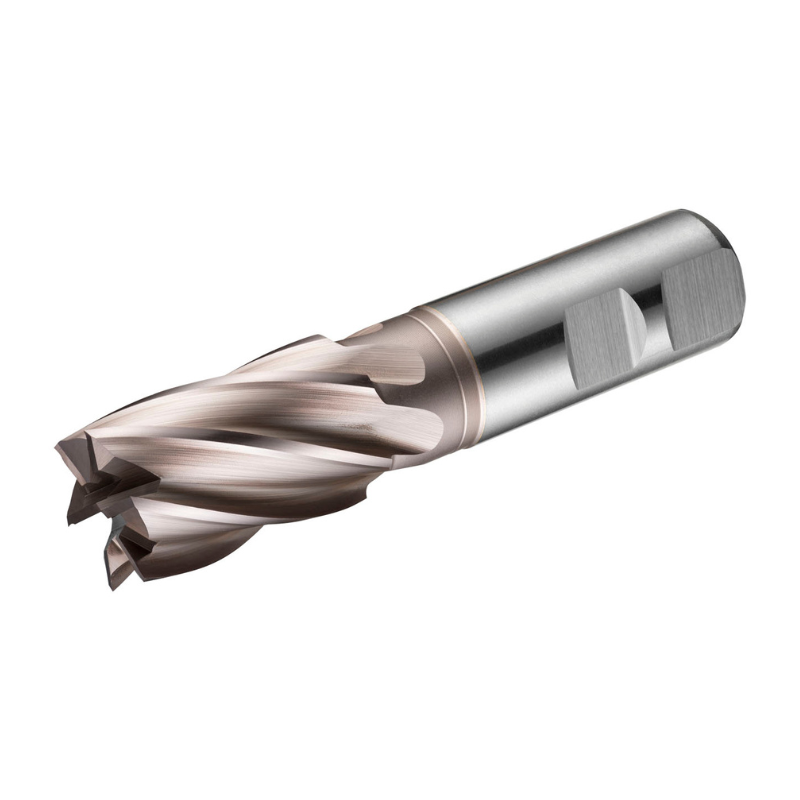

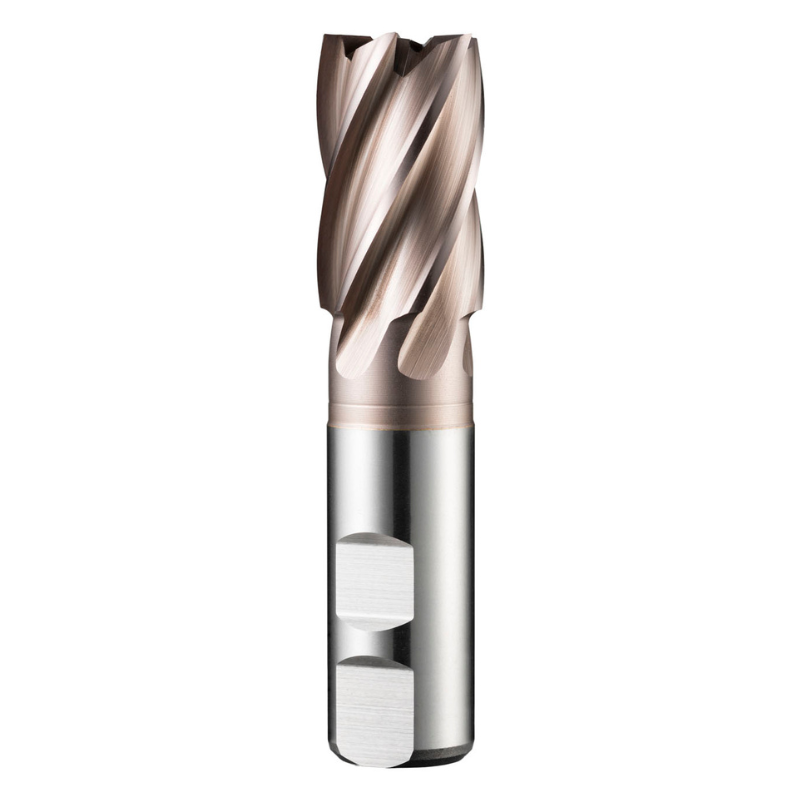

Dormer Pramet C246 8.0mm HSS-E-Powder Metal TICN Flatted Shank Multi-Flute Standard Length End Mill DIN 844 K

Meet the Dormer Pramet C246 8.0 mm HSS‑E powder‑metallurgical end mill—designed for short‑series precision work. Built to DIN 844 K with a 10 mm Weldon shank, it excels at shoulder milling, slot milling, and ramping tasks in free‑machining steels and related alloys.

• Diameter: 8.0 mm
• Flutes: 4‑flute design for stable cutting and efficient chip evacuation
• Length of Cut: 19 mm
• Overall Length: 69 mm
• Shank: 10 mm Weldon shank with flatted section for secure grip
• Coating: TiCN coating for enhanced wear resistance
• Material: Powder‑metallurgical HSS‑E core for toughness and reliability
• Helix Angle: 30° for smooth chip formation
• Rake Angle: 12° to improve cutting action and reduce built‑up edge
• Standards: DIN 844 K
• Applications: shoulder milling, slot milling, and ramping
• Recommended Materials: free‑machining plain carbon and alloy steels, cast‑iron, copper or copper alloys, and titanium or titanium alloys

The TiCN‑coated HSS‑E powder metallurgy core delivers a blend of hardness, wear resistance, and toughness that supports reliable performance across demanding milling tasks. The 4‑flute geometry paired with a 30° helix and 12° rake angle promotes efficient material removal and a clean, consistent finish, even at higher feed rates. With a 19 mm length of cut and a compact 69 mm overall length, this tool maintains rigidity in tight pockets and shallow cavities while reaching into moderate depths. Its 10 mm Weldon shank provides a secure, repeatable fit in collets and end mill holders, helping minimize runout and tool deflection. Ideal for workpieces in plain carbon and alloy steels, cast iron, copper alloys, and titanium alloys, this end mill is a versatile choice for general machining, fixture work, and small‑feature milling.
