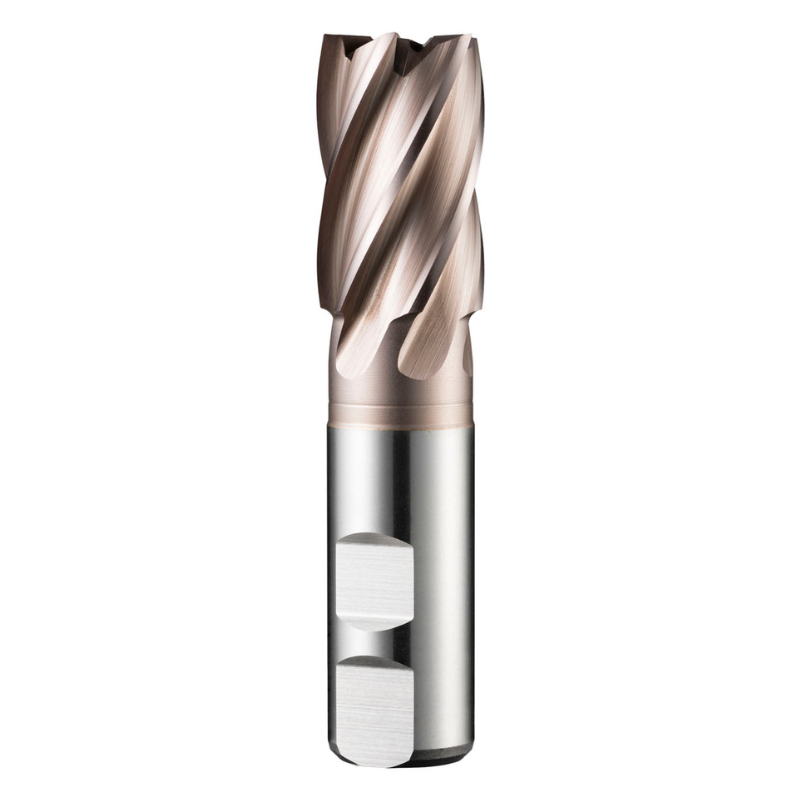

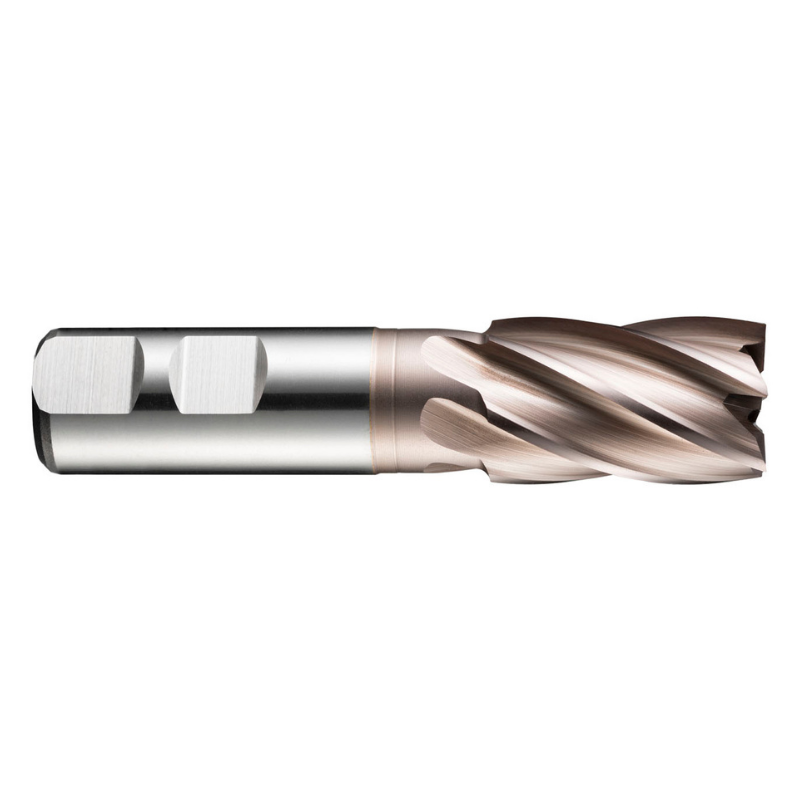

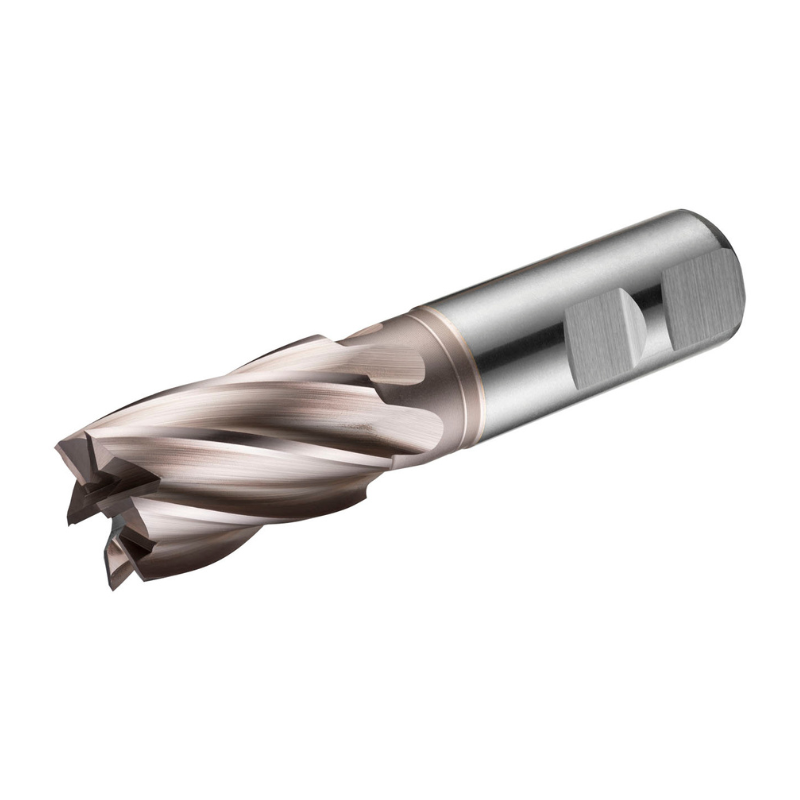

Dormer Pramet C246 7.0mm HSS-E-Powder Metal TICN Flatted Shank Multi-Flute Standard Length End Mill DIN 844 K

The Dormer Pramet C246 7.0 mm end mill is a versatile cutting tool designed for shoulder milling, slot milling, and ramping in free-machining steels and related alloys. It combines a TiCN-coated HSS-E powder-metallurgy core with a robust 10 mm Weldon shank for dependable performance in demanding tasks.

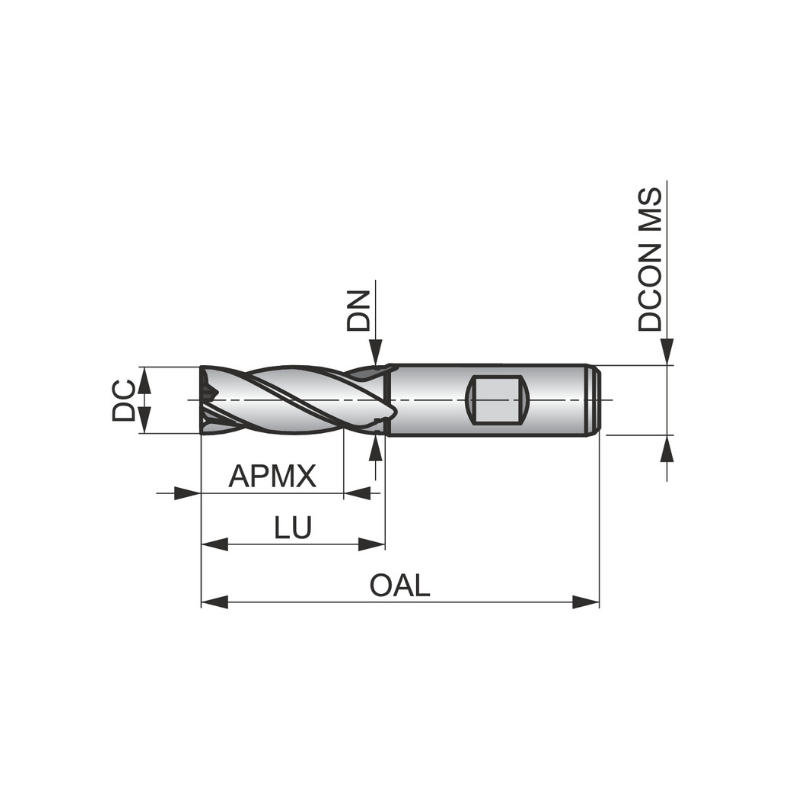

• Diameter: 7.0 mm
• Length of cut: 16 mm
• Overall length: 66 mm
• Shank: 10 mm Weldon shank (DIN 844 K)
• Material and coating: HSS-E powder metallurgy with TiCN coating
• Flutes: 4 flutes
• Helix angle: 30°
• Rake angle: 12° (for shoulder milling)
• Standards: DIN 844 K
• Applications: shoulder milling, slot milling, ramping
• Compatible materials: free-machining steels, plain carbon and alloy steels, cast iron, copper or copper alloys, titanium or titanium alloys

Equipped to handle a range of machining scenarios, this end mill delivers reliable pocketing, slotting, and ramping performance with a smooth cutting action. The TiCN coating reduces wear and heat buildup, helping extend tool life in busy shops, while the powder-metallurgical HSS-E core provides a durable edge for consistent results across common workpiece materials. The 30° helix and 12° rake angle enhance chip evacuation and cutting stability, making it well-suited for high-precision milling on both ferrous and non-ferrous substrates.
