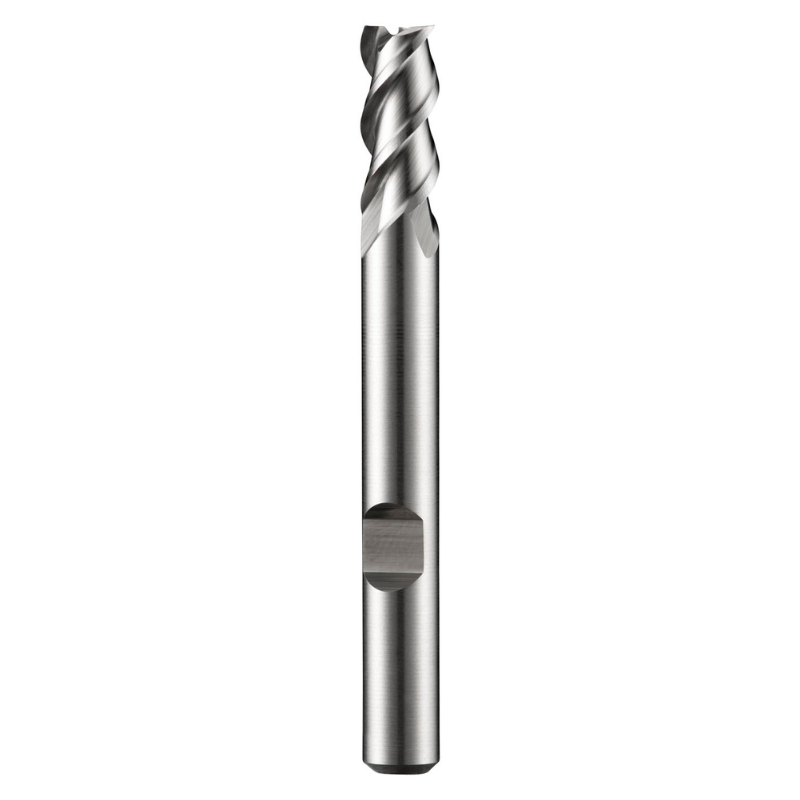

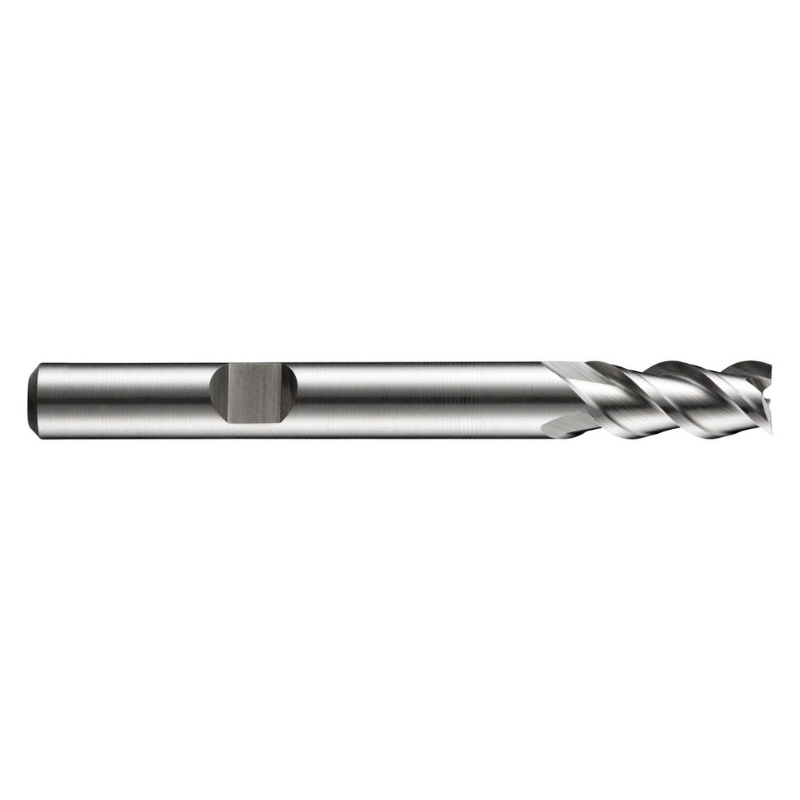

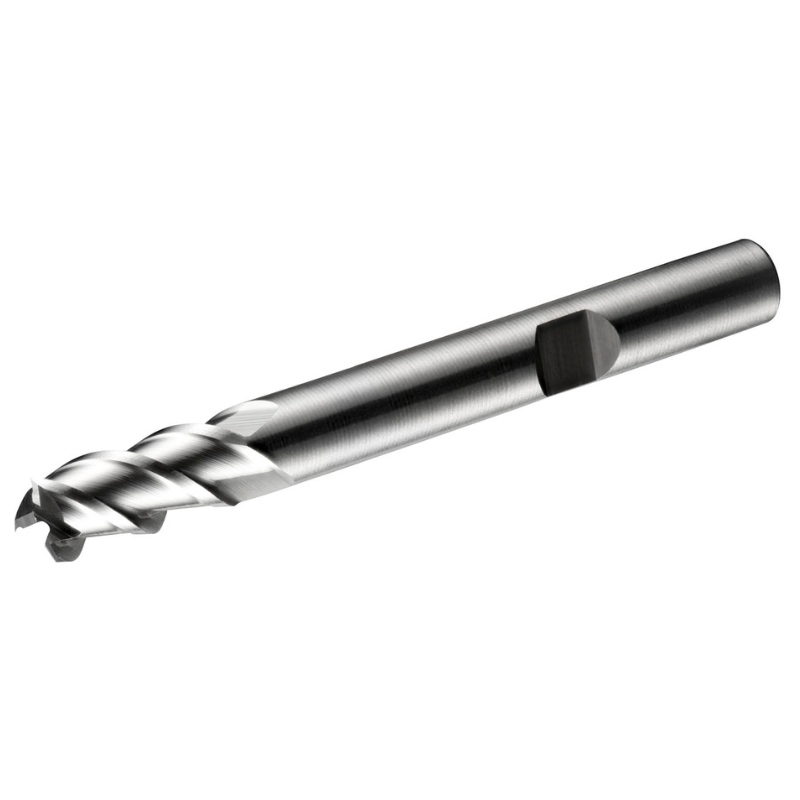

Dormer Pramet C299 12.0mm HSS-E-Powder Metal Flatted Shank End Mill Multi-Flute Standard Length End Mill DIN 844 K

The Dormer Pramet C299 12.0mm HSS-E Powder Metallurgical End Mill is a compact, four-flute tool designed for precise shoulder milling, slot milling, and ramping in a wide range of steels and alloys. Built to DIN 844 K standards with a Weldon 12 mm shank, it pairs robust construction with reliable performance in demanding shop environments.

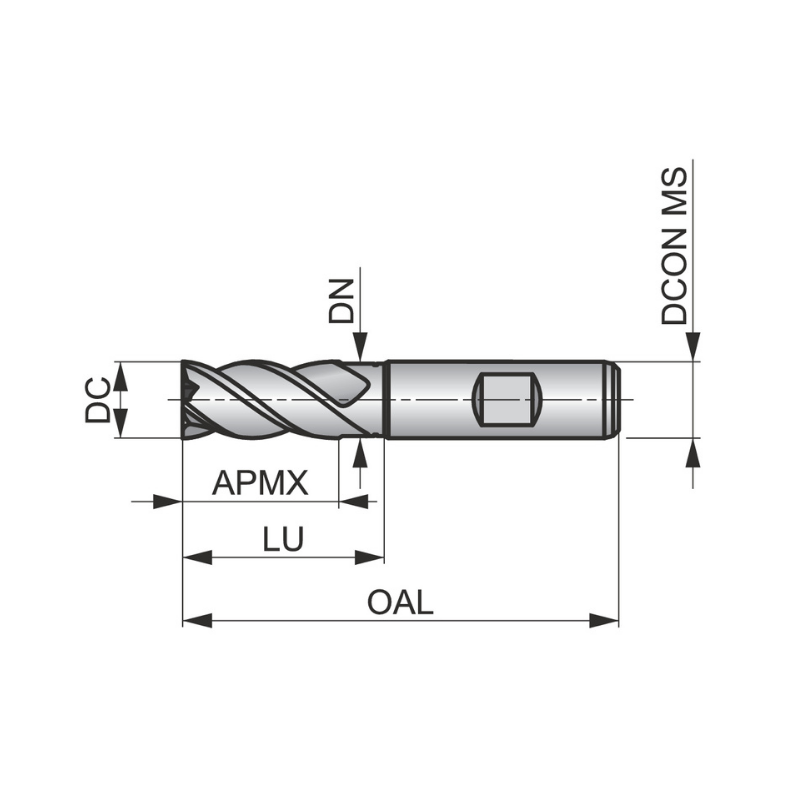

• Diameter: 12.0 mm
• Flutes: 4
• Length of Cut: 26 mm
• Overall Length: 83 mm
• Reach (Neck Relief): 37.5 mm
• Shank: Weldon, 12 mm
• Material & Finish: Powder-metallurgical HSS-E with bright finish
• Helix: 45°
• Rake Angle: 12°
• Standard: DIN 844 K
• Primary Uses: Shoulder milling, slot milling, and ramping in a variety of workpiece materials
• Compatible Materials: Plain carbon and alloy steels, tool steels; ferritic, martensitic and super-austenitic stainless steels; duplex or precipitation hardening stainless steels; cast iron; copper and copper alloys; high-temperature alloys

Designed for versatility and reliability, this end mill delivers efficient material removal with a stable cut across hard-to-machine materials. The four-flute geometry provides a good balance between chip evacuation and finish quality, while the 45° helix promotes smooth cutting action and effective chip control. The 12° rake angle supports shoulder milling and ramping tasks, helping to reduce cutting forces and improve surface finish. The Weldon shank ensures secure clamping in standard milling setups, contributing to consistent accuracy and longer tool life.
