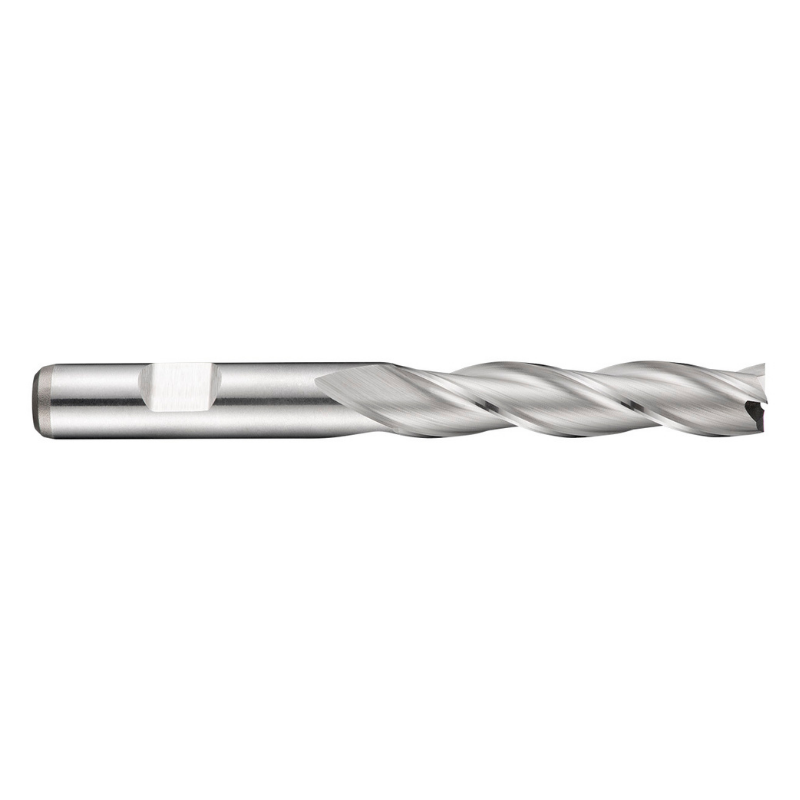

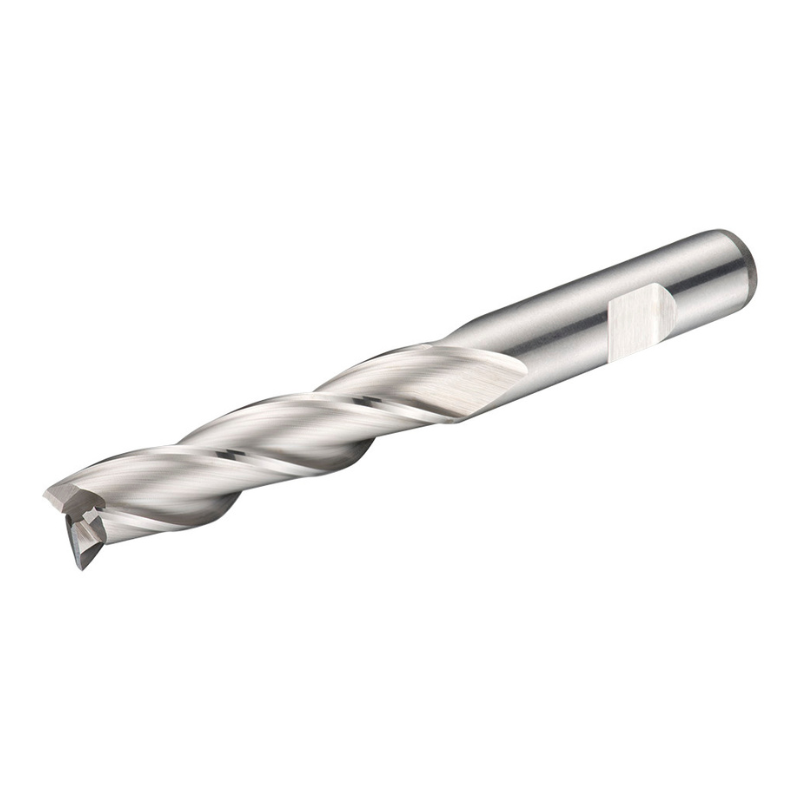

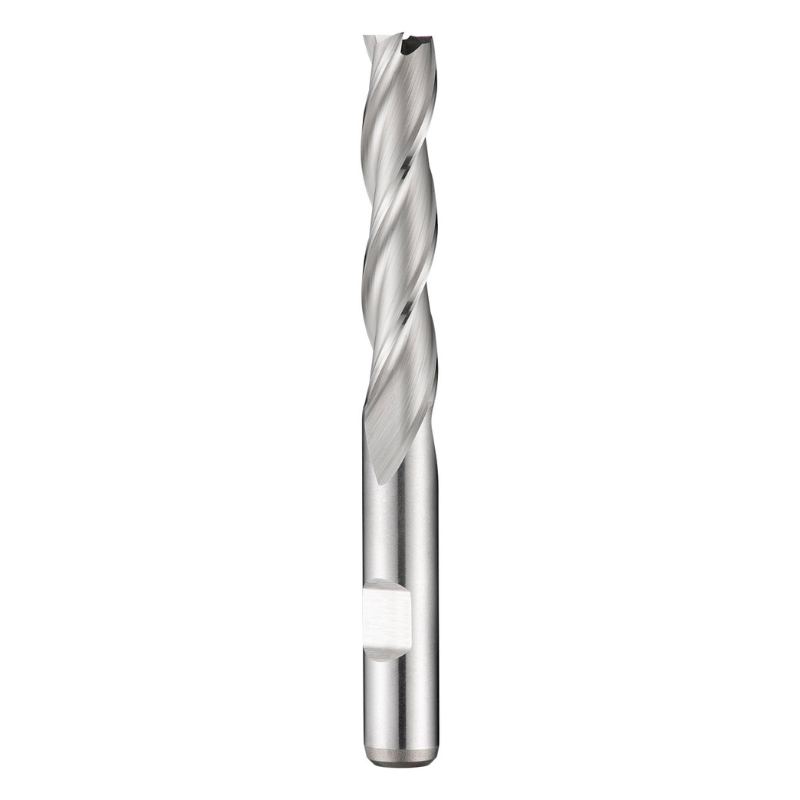

Dormer Pramet C346 9.0mm HSS-E Flatted Shank 3 Flute Long Series Slot Drill DIN 844 L
| Cutter Diameter | 9 |
| Flute Length | 88 |
| Number of Flutes | 3 |
| Overall Length | 88 |
| Shank Diameter | 10 |
Learn more about Klarna
The Dormer Pramet C346 9.0mm HSS-E flatted shank 3-flute long series slot drill is designed for shoulder milling and slot milling in free machining steels and copper alloys. With a 10 mm Weldon shank and a long body, it delivers reliable rigidity and reach for deep slots.
- Diameter: 9.0 mm
- Flutes: 3
- Length of Cut: 38 mm
- Overall Length: 88 mm
- Shank: Flatted Weldon, 10 mm
- Material: Cobalt-based HSS-E with bright finish
- Helix Angle: 30°
- Rake Angle: 12°
- Standard: DIN 844 L
- Applications: Shoulder milling and slot milling in free machining steel and copper alloys
Benefits: This long-series end mill excels at deep-slot work without sacrificing edge strength, thanks to its cobalt-based HSS-E composition. The 3-flute geometry balances material removal with surface finish, while the 30° helix promotes efficient chip evacuation in copper alloys and free machining steels. The 12° rake further improves cutting action on shoulder faces, and the DIN 844 L compatibility ensures smooth clamping in standard tool holders. Ideal for shops performing precise slotting and shoulder milling on parts with tight tolerances, it helps reduce cycle times and improve part quality.
| Cutter Diameter | 9 |
| Flute Length | 88 |
| Number of Flutes | 3 |
| Overall Length | 88 |
| Shank Diameter | 10 |
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: Dormer Pramet C346 HSS-E Flatted Shank 3 Flute Long Series Slot Drills DIN 844 L
View full collection →You are viewing DOR-C3469.0. Click any other SKU to view its full details.
| Product SKU | Cutter Diameter | Flute Length | Number of Flutes | Overall Length | Shank Diameter | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|
| DOR-C3463.0 | 3 | 56 | 3 | 56 | 6 | £25.63 | 2 days | |
| DOR-C3464.0 | 4 | 63 | 3 | 63 | 6 | £25.72 | 2 days | |
| DOR-C3465.0 | 5 | 68 | 3 | 68 | 6 | £25.40 | 2 days | |
| DOR-C3466.0 | 6 | 68 | 3 | 68 | 6 | £25.58 | 2 days | |
| DOR-C3467.0 | 7 | 80 | 3 | 80 | 10 | £36.15 | 2 days | |
| DOR-C3468.0 | 8 | 88 | 3 | 88 | 10 | £32.45 | 2 days | |
| DOR-C3469.0 Viewing | 9 | 88 | 3 | 88 | 10 | £39.41 | 2 days | |
| DOR-C34610.0 | 10 | 95 | 3 | 95 | 10 | £35.55 | 2 days | |
| DOR-C34611.0 | 11 | 102 | 3 | 102 | 12 | £46.60 | 2 days | |
| DOR-C34612.0 | 12 | 110 | 3 | 110 | 12 | £41.97 | 2 days | |
| DOR-C34613.0 | 13 | 110 | 3 | 110 | 12 | £55.95 | 2 days | |
| DOR-C34615.0 | 15 | 110 | 3 | 110 | 12 | £62.43 | 2 days | |
| DOR-C34616.0 | 16 | 123 | 3 | 123 | 16 | £62.94 | 2 days | |
| DOR-C34620.0 | 20 | 141 | 3 | 141 | 20 | £83.66 | 2 days |
