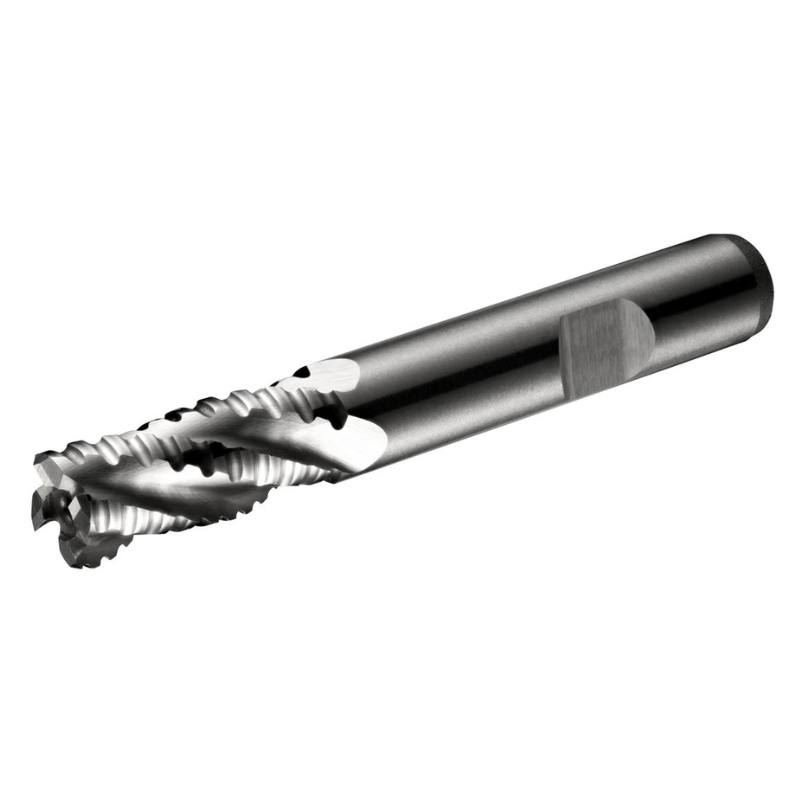

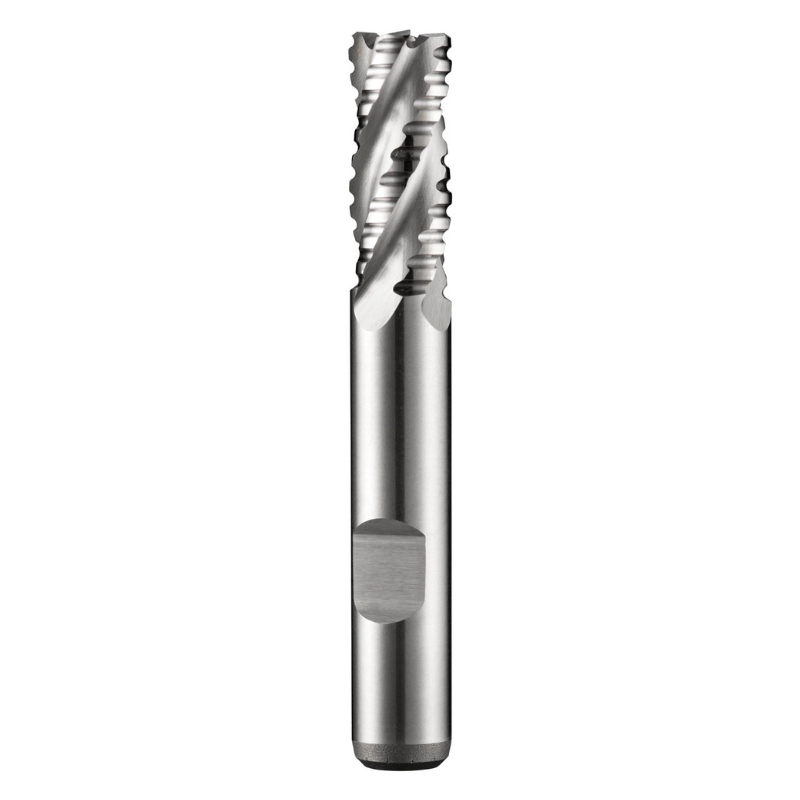

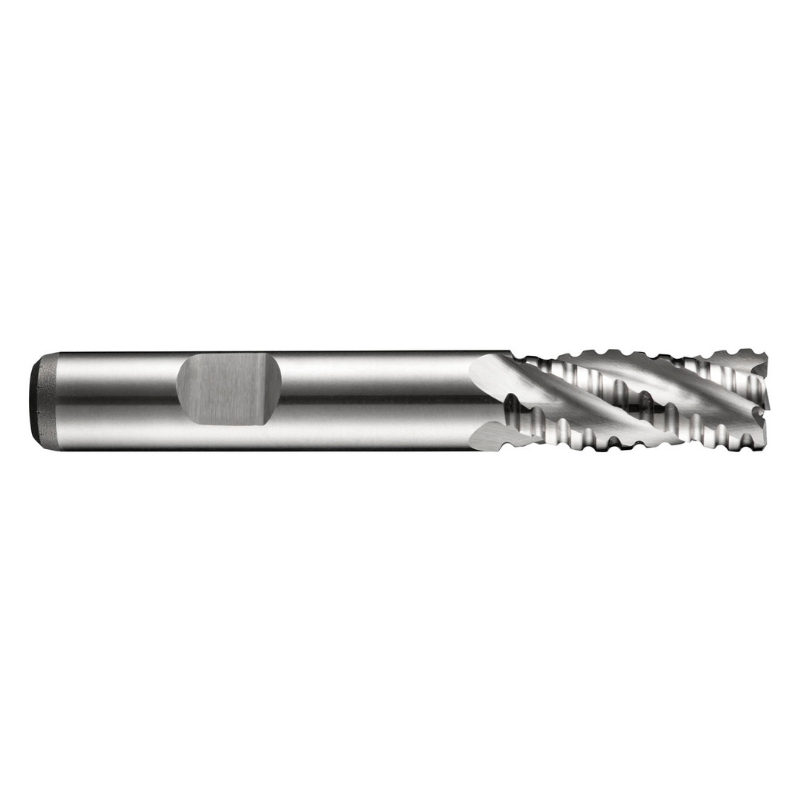

Dormer Pramet C40 6.0mm HSS-E Flatted Shank Multi-Flute Roughing (NF) Standard Length End Mill DIN 844 K

The Dormer Pramet C40 6.0 mm HSS-E Flatted Shank Multi-Flute Roughing End Mill is a purpose-built tool for efficient roughing in metalworking. Designed for shoulder milling, slot milling, and ramping, it delivers dependable performance on free-machining steels and copper alloys.

• Diameter: 6.0 mm
• Flutes: 4-flute geometry for robust material removal
• Shank: Weldon flat shank, 6 mm for secure tool retention
• Profile: NF flat coarse pitch for efficient chip evacuation
• Material: HSS-E cobalt-based with bright finish for increased wear resistance

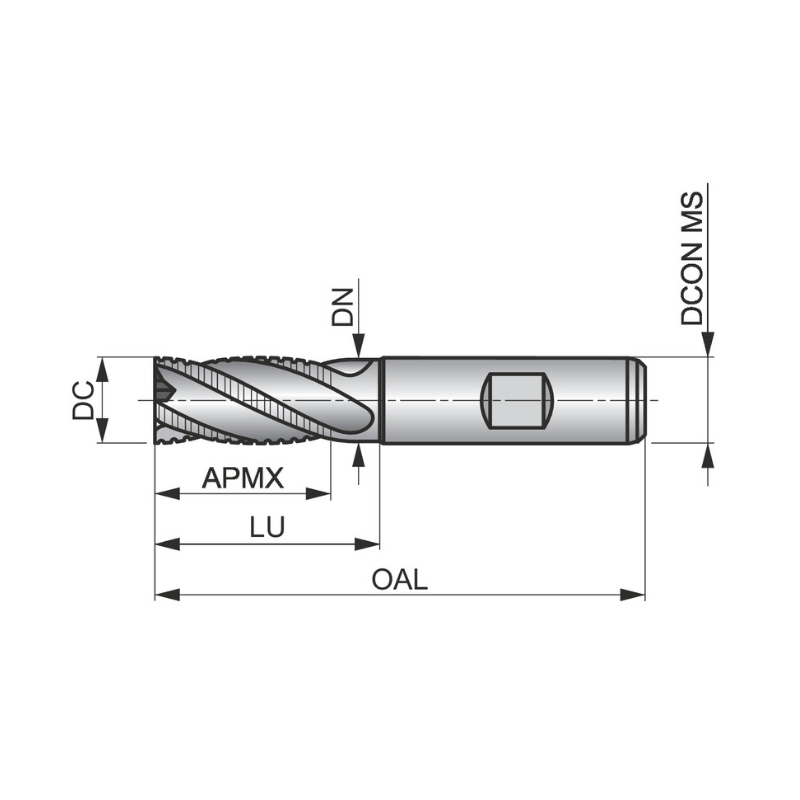

• Length of cut: 13 mm
• Overall length: 57 mm
• Helix angle: 30° to enhance cutting action and chip flow
• Rake angle: 12° to aid shoulder milling and ramping in hard materials
• DIN standard: DIN 844 K for reliable compatibility and fit
• Applications: shoulder milling, slot milling, ramping in free-machining and plain carbon steel, plus copper and copper alloys

With its cobalt-based HSS-E composition, this end mill delivers improved wear resistance and red hardness, enabling longer tool life under demanding roughing conditions. The 4-flute configuration optimizes metal removal rates while maintaining control and surface integrity. The Weldon shank provides secure clamping to minimize runout, supporting precise pockets and slots. Its 13 mm length of cut offers deeper reach for profiling and finishing in a single setup, while the 57 mm overall length gives versatility across small to mid-depth milling tasks. This end mill is a reliable, high-performance choice for shops seeking consistent, efficient roughing in steel and copper alloys.
