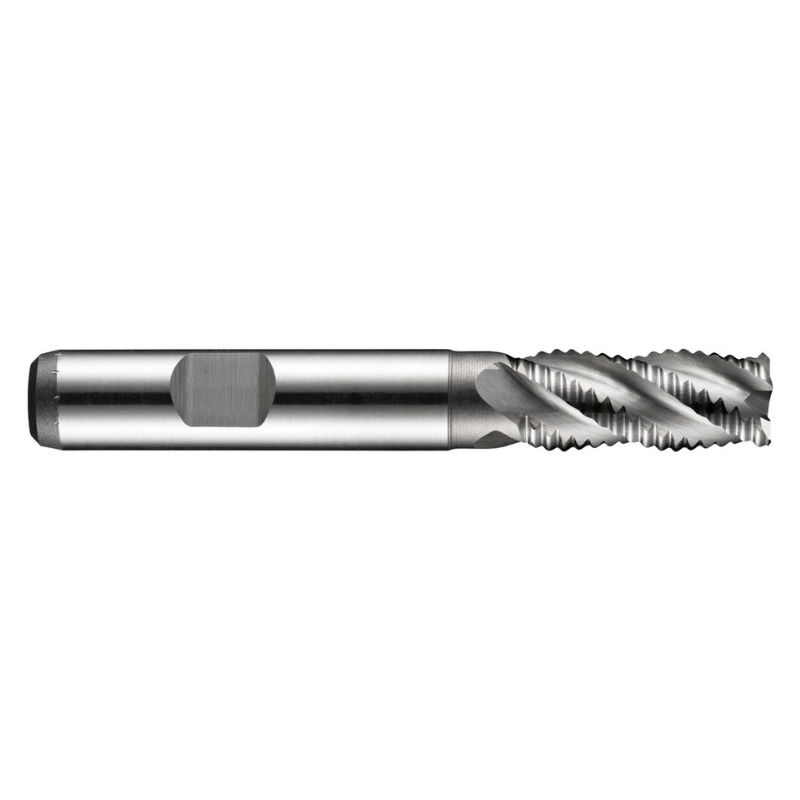

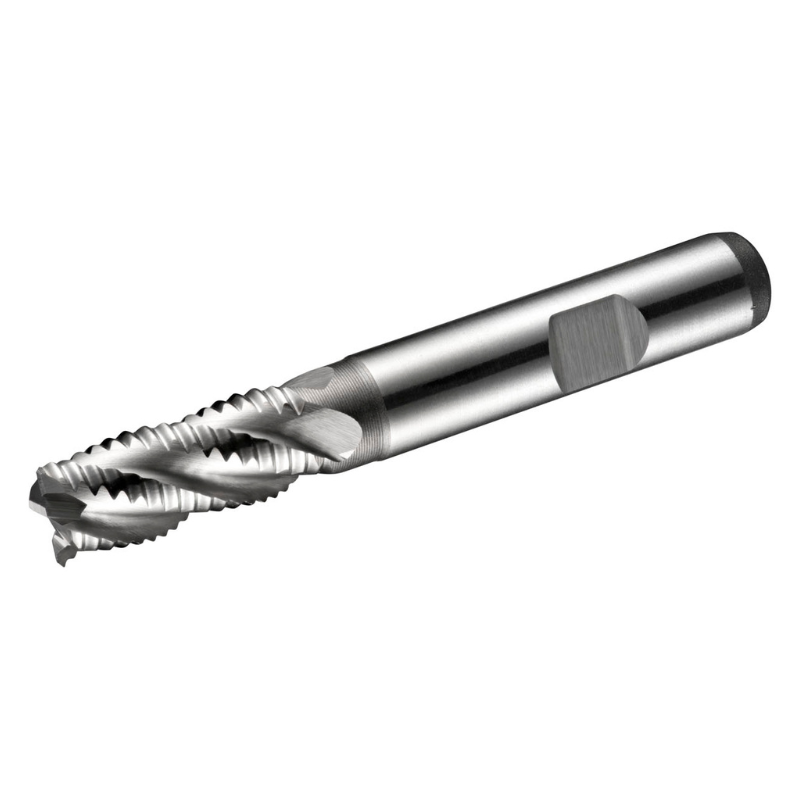

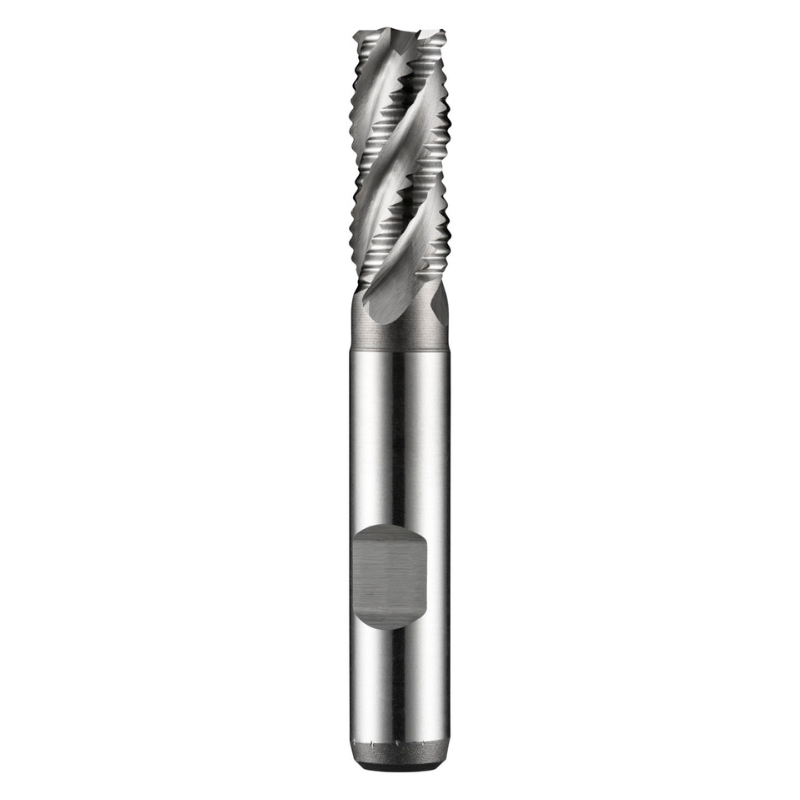

Dormer Pramet C407 16.0mm HSS-E-Powder Metal Primax Flatted Shank Multi-Flute Roughing (NRA) Standard Length End Mill DIN 844 K

The Dormer Pramet C407 16.0 mm HSS-E Powder Metallurgy Primax End Mill is a compact, high-performance roughing tool designed for shoulder milling, slot milling, and ramping in a wide range of metals. Built for reliability in demanding passes, it combines a sturdy Weldon shank with a precisely engineered 4-flute geometry to maximize material removal without compromising accuracy.

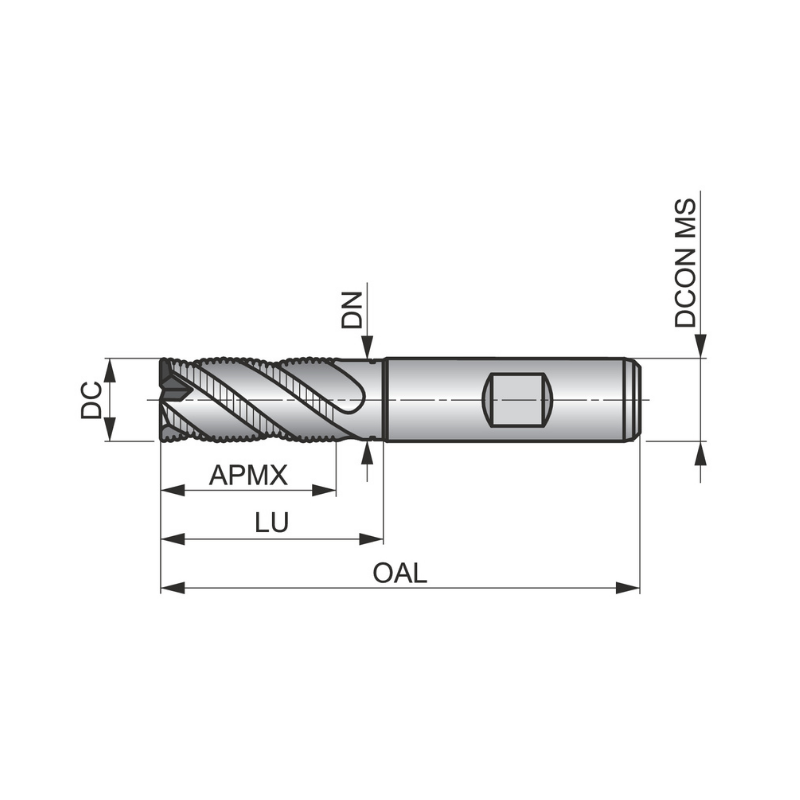

• Diameter: 16.0 mm
• Flutes: 4
• Length of Cut: 32 mm
• Overall Length: 92 mm
• Reach / Neck Relief: 43.5 mm
• Shank: Weldon, 16 mm
• Material: HSS-E, powder-metallurgical (Primax bright finish)
• Finish: Primax bright finish
• NRA Profile: Asymmetrical coarse pitch
• Helix Angle: 35°
• Rake Angle: 12°
• Standard: DIN 844 K
• Applications: Shoulder milling, slot milling, ramping
• Materials Suitable: Steel and cast steel, ferritic/martensitic and super‑austenitic stainless steels (including duplex or precipitation-hardening), cast iron, copper and copper alloys, and high‑temperature alloys

Designed for efficient stock removal on tough materials, this end mill delivers stable performance through a balanced combination of geometry and metallurgy. The 4-flute configuration provides a good balance between feed rate and surface finish, while the NRA asymmetrical coarse pitch supports effective chip control and reduced cutting forces. The powder-metallurgical HSS-E construction enhances wear resistance and hot hardness, helping extend tool life in demanding milling scenarios. A robust 16 mm Weldon shank ensures reliable clamping in standard holders, making it a dependable choice for precision roughing in steel, stainless steels, cast irons, and some high-temperature alloys.
