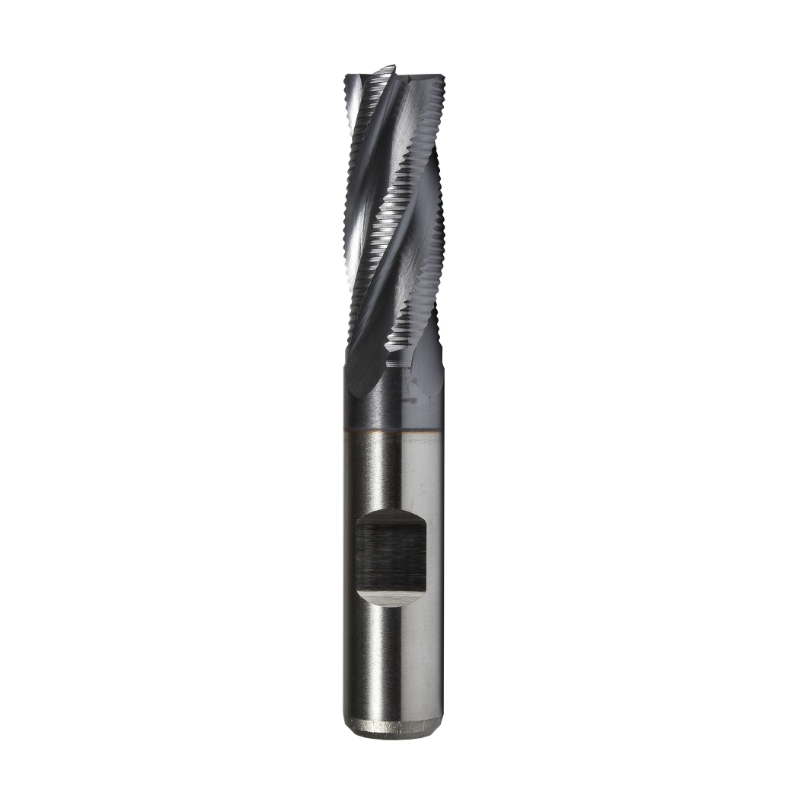

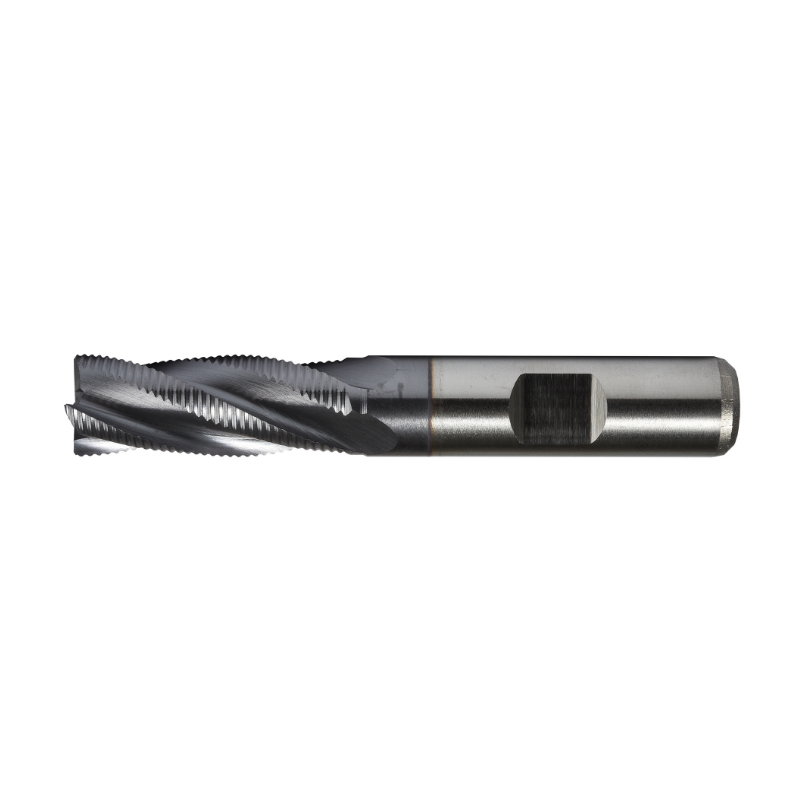

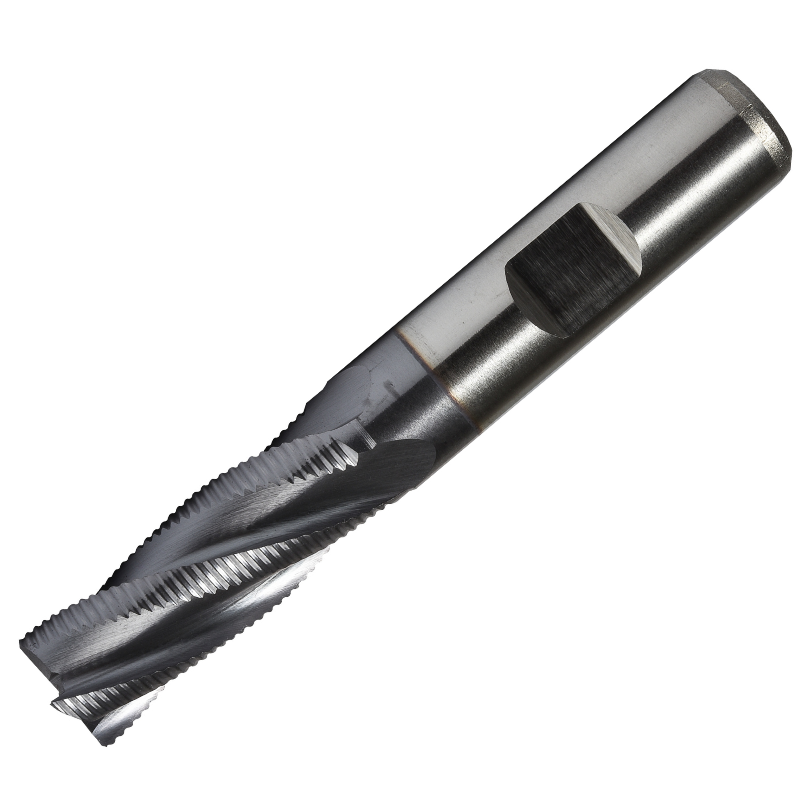

Dormer Pramet C609 3/4 Inch HSS-E TiCN Flatted Shank Fine Pitch Roughing End Mill Regular Length
| Cutter Diameter | 3/4 |
| Flute Length | 98.43 |
| Number of Flutes | 4 |
| Overall Length | 98.43 |
| Shank Diameter | 19.05 |
Learn more about Klarna
The Dormer Pramet C609 3/4" HSS-E TiCN Roughing End Mill (Regular Length) is built for robust material removal in steel and copper alloys. With a Weldon 3/4" shank and a 30° helix, this 4-flute tool excels at shoulder milling, slot milling, and ramping tasks.
- Diameter: 3/4" (19.05 mm)
- Flutes: 4
- Overall length: 3.875" (98.4 mm)
- Length of cut: 1.625" (41.3 mm)
- Shank: Weldon 3/4" (19.05 mm)
- Material & coating: HSS-E cobalt-based substrate with TiCN coating
- Helix: 30°
- Profile: HR regular fine pitch
- Applications: Shoulder milling, slot milling, ramping
- Material compatibility: Suitable for free machining and plain carbon steel and copper or copper alloys
- Standard: ANSI
The combination of a cobalt-based HSS-E core and TiCN coating delivers improved wear resistance and hotter-hardness performance, extending tool life in demanding roughing operations. The 30° helix enhances chip evacuation and reduces cutting forces, which helps maintain stability during aggressive material removal. With its 4-flute geometry, the tool achieves a balanced balance between high material removal rates and controlled chip control, making it a reliable first-pass option in pockets, slots, and shoulders. The Weldon shank provides a secure, true grip in collets and holders, minimizing runout and improving precision across multiple passes. Ideal for workpieces in free machining steels and copper alloys, this end mill supports efficient roughing workflows and sets the stage for subsequent finishing passes.
| Cutter Diameter | 3/4 |
| Flute Length | 98.43 |
| Number of Flutes | 4 |
| Overall Length | 98.43 |
| Shank Diameter | 19.05 |
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: Dormer Pramet C609 HSS-E TiCN Flatted Shank Fine Pitch Roughing End Mills Regular Length
View full collection →You are viewing DOR-C6093/4. Click any other SKU to view its full details.
| Product SKU | Cutter Diameter | Flute Length | Number of Flutes | Overall Length | Shank Diameter | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|
| DOR-C6091/4 | 1/4 | 61.91 | 4 | 61.91 | 9.53 | £57.85 | 2 days | |
| DOR-C6095/16 | 5/16 | 63.5 | 4 | 63.5 | 9.53 | £57.85 | 2 days | |
| DOR-C6093/8 | 3/8 | 63.5 | 4 | 63.5 | 9.53 | £57.85 | 2 days | |
| DOR-C6091/2 | 1/2 | 82.55 | 4 | 82.55 | 12.7 | £81.05 | 2 days | |
| DOR-C6095/8 | 5/8 | 95.25 | 4 | 95.25 | 15.88 | £96.08 | 2 days | |
| DOR-C6093/4 Viewing | 3/4 | 98.43 | 4 | 98.43 | 19.05 | £110.46 | 2 days | |
| DOR-C6091 | 25.4 | 114.3 | 5 | 114.3 | 25.4 | £173.20 | 2 days |
