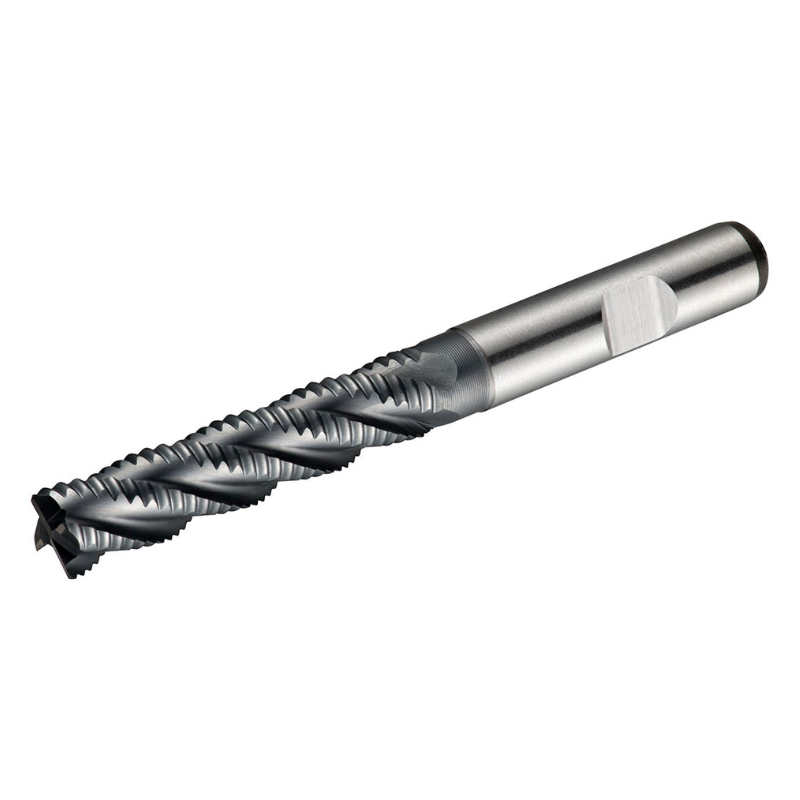

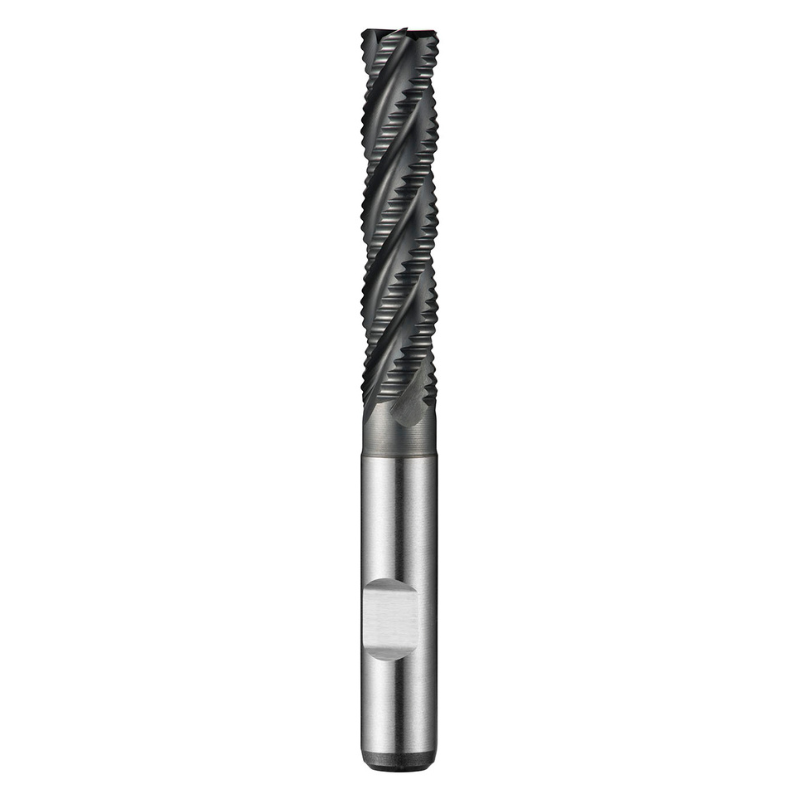

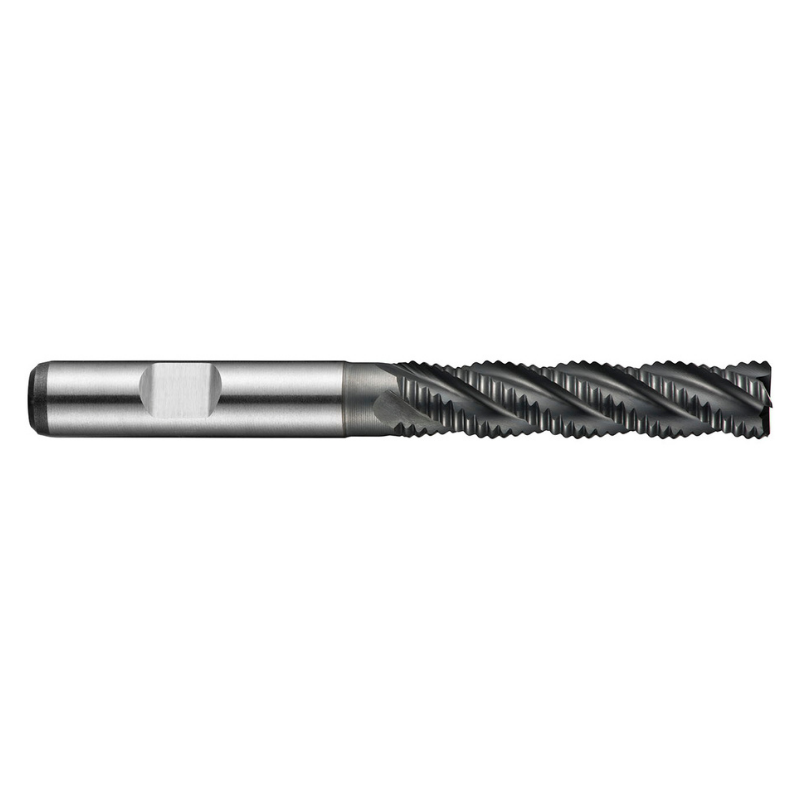

Dormer Pramet C948 12.0mm HSS-E-Powder Metal Alcrona Primax Flatted Shank Multi-Flute Roughing (NRA) Long Series End Mill DIN 844 L

Engineered for aggressive roughing and deep pockets, the Dormer Pramet C948 Long Series End Mill delivers dependable performance in carbon steel, alloy steel, stainless steel, cast iron, and high-temperature alloys. This 12 mm diameter tool pairs a long reach with robust HSS-E powder metallurgy and a specialized NRA geometry for shoulder and slot milling.

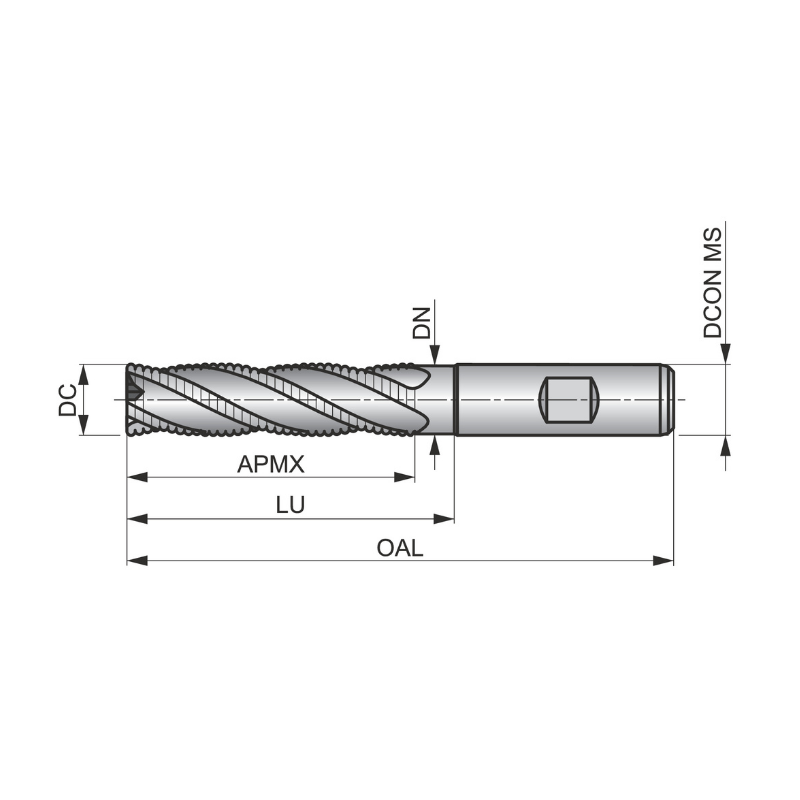

• Diameter: 12 mm
• Overall length: 110 mm
• Length of cut: 53 mm
• Reach with neck relief: 64.5 mm
• Shank: Weldon, 12 mm
• Flutes: 4
• Material: HSS-E powder-metallurgically enhanced steel
• Coating: Alcrona Primax
• Geometry: NRA asymmetrical coarse pitch profile; 35° helix; 12° rake angle
• Application: Shoulder milling and slot milling
• Standards: DIN 844 L
• Compatible materials: plain carbon steel, alloy steel, tool steel, stainless steel, cast iron, copper or copper alloys, and high-temperature alloys

Designed to handle long cutting runs with stability, this end mill minimizes deflection during deep pockets and tight shoulders. The four-flute configuration strikes a balance between rapid material removal and chip evacuation, helping to maintain consistent tool life and steady feeds during roughing passes. The Alcrona Primax coating reduces wear and heat buildup, enabling repeatable performance across challenging materials. Whether you’re profiling, slotting, or pocketing, the C948 Long Series is built to deliver reliable, high-coverage roughing with a clean breakout and durable performance in CAM workflows.
