Widin Carbide End Mill - 2 Flute Stub Cut Length - Ball Nose - 10mm x 100mm

Please log in here to access all benefits, including multibuy discounts and faster checkouts.

Widin Carbide End Mill - 2 Flute Stub Cut Length - Ball Nose - 10mm x 100mm

Name: Widin Carbide End Mill - 2 Flute Stub Cut Length - Ball Nose - 10mm x 100mm
Brand: Widin
SKU: ESB702101
Price: 80.72 GBP
Availability: InStock

SKU:ESB702101

Material Compatibility

Specification

Cutter Diameter	10
Number of Flutes	2
Flute Length	11
Overall Length	100
Shank Diameter	10
Reach	25

View all specifications ↓

Download Cutting Data

£80.72

Prices shown ex. VAT

5 days estimated lead time — subject to availability

View Other Sizes →

Free delivery over £50 ex VAT

Secure checkout

14-day returns

30+ years expertise

Pay in 3 interest-free instalments. No extra cost if paid on time. 18+ only.
Learn more about Klarna

Speak to our team

01732 887334

Mon – Thurs 8:30 – 17:30 · Fri 8:30 – 16:30

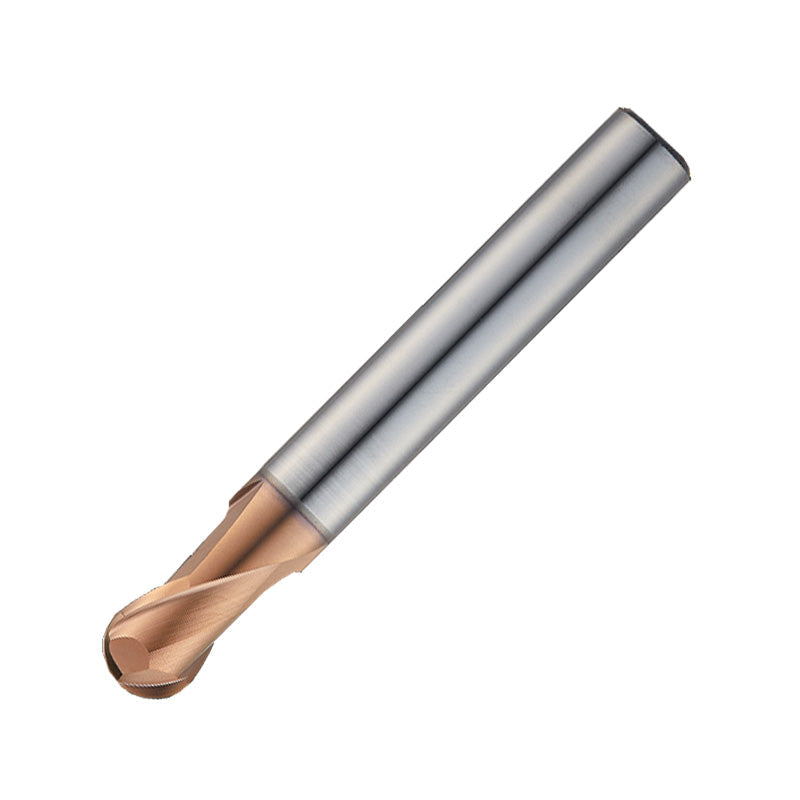

This high-performance end mill is designed with a stub cut length and an extended neck, providing increased reach and accessibility in machining operations. With its ALTiN+HH coating and newly developed raw-material, this end mill is specifically engineered for machining high hardened materials up to HRc70. It is well-suited for dry cutting and high-speed cutting applications, delivering exceptional performance and productivity. The end mill's two-flute design ensures efficient chip evacuation and reduced cutting forces, resulting in smoother cutting operations. It enables precise contouring, profiling, and machining of intricate features with excellent workpiece finish.

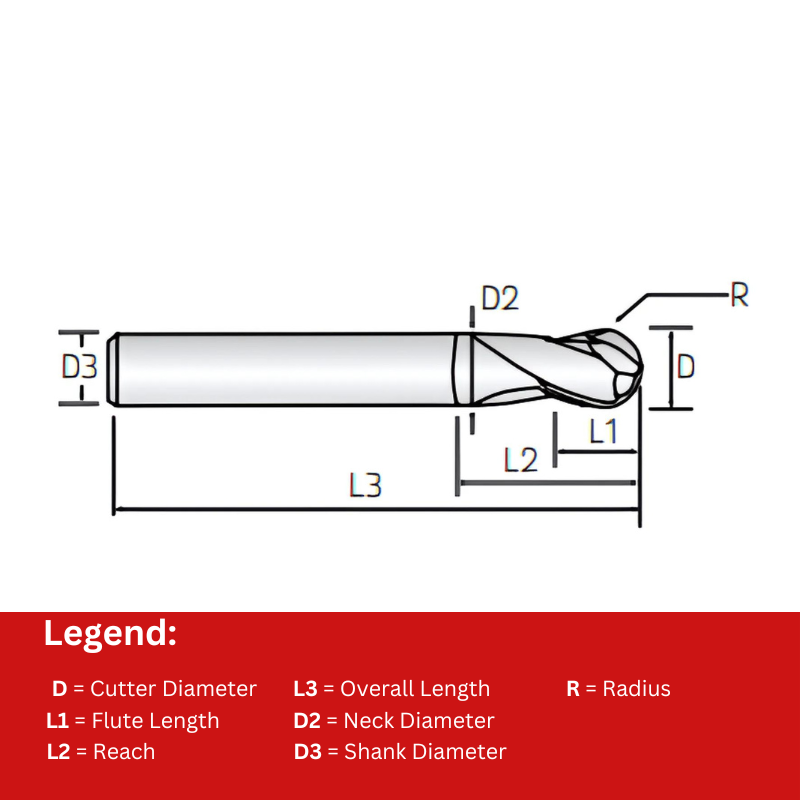

Cutter Diameter	10
Number of Flutes	2
Flute Length	11
Overall Length	100
Shank Diameter	10
Reach	25
Radius	5
Neck Diameter	9.9

What time are Protool open?

We are open Monday to Friday between 8:30am and 5pm.

Do you offer Free Next Day delivery?

Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.

We also offer the following:

Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.

For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.

*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.

★★★★★

Nice experience staff are very helpful and interested...

Staff are very helpful and interested in providing a good service making us the customer feel valued.

Bill

★★★★★

first place we look

honest about stock and prices are competitive.

Phil

★★★★★

Polite and helpful

Staff are very helpful and polite.Goods that were in stock were dispatched same day and back orders were quick in coming through .

Graham

★★★★★

Buying experience

Phone requests are handled quickly and without any fuss. The website is easy to use and straightforward to order from. It’s especially helpful that it shows real‑time availability, so we don’t need to call to confirm whether parts will arrive.

Jeremy

Full Range: Widin Carbide End Mill - 2 Flute Stub Cut Length - Ball Nose (DB702)

View full collection →

You are viewing ESB702101. Click any other SKU to view its full details.

Product SKU	Cutter Diameter	Number of Flutes	Flute Length	Overall Length	Shank Diameter	Reach	Radius	Neck Diameter	Price	Stock

ESB702001	0.1	2	0.15	40	4	N/A	0.05	N/A	£61.87	5 days
ESB702002	0.2	2	0.3	40	4	N/A	0.1	N/A	£56.35	5 days
ESB702003	0.3	2	0.5	40	4	N/A	0.15	N/A	£46.40	5 days
ESB702004	0.4	2	0.6	40	4	N/A	0.2	N/A	£46.40	5 days
ESB702005	0.5	2	0.7	40	4	N/A	0.25	N/A	£40.30	5 days
ESB702006	0.6	2	0.9	40	4	N/A	0.3	N/A	£40.30	5 days
ESB702007	0.7	2	1.1	40	4	N/A	0.35	N/A	£40.30	5 days
ESB702008	0.8	2	1.2	40	4	N/A	0.4	N/A	£40.30	5 days
ESB702009	0.9	2	1.4	40	4	N/A	0.45	N/A	£40.30	5 days
ESB702010	1	2	1.5	45	4	N/A	0.5	N/A	£37.33	5 days
ESB702010S4	1	2	1.5	50	6	3	0.5	0.95	£34.49	5 days
ESB702015S4	1.5	2	2	50	6	4	0.75	1.45	£34.49	5 days
ESB702015	1	2	2	45	4	N/A	0.75	N/A	£37.33	5 days
ESB702020S4	2	2	2.5	50	6	5	1	1.9	£34.49	5 days
ESB702025	2.5	2	3	50	6	7	1.25	2.45	£37.33	5 days
ESB702030	3	2	4	45	4	N/A	1.5	N/A	£40.63	5 days
ESB702030S	3	2	4	50	6	10	1.5	2.9	£37.33	5 days
ESB702030S4	3	2	4	60	6	10	1.5	2.9	£34.49	5 days
ESB702031	3	2	4	70	6	10	1.5	2.9	£42.45	5 days
ESB702040	4	2	5	45	4	N/A	2	N/A	£40.63	5 days
ESB702040S	4	2	5	50	6	10	2	3.7	£37.33	5 days
ESB702040S4	4	2	5	60	6	10	2	3.7	£34.49	5 days
ESB702041	4	2	5	70	6	10	2	3.7	£42.45	5 days
ESB702050	5	2	6	60	6	12	2.5	4.7	£41.45	5 days
ESB702060	6	2	7	60	6	12	3	5.6	£41.45	5 days
ESB702061	6	2	7	90	6	12	3	5.9	£50.43	5 days
ESB702080	8	2	9	70	8	15	4	7.4	£57.85	5 days
ESB702081	8	2	9	100	8	15	4	7.9	£61.72	5 days
ESB702100	10	2	11	75	10	25	5	9.4	£67.61	5 days
ESB702101 Viewing	10	2	11	100	10	25	5	9.9	£80.72	5 days
ESB702120	12	2	12	80	12	25	6	11.4	£91.52	5 days
ESB702121	12	2	12	110	12	25	6	11.9	£97.14	5 days
