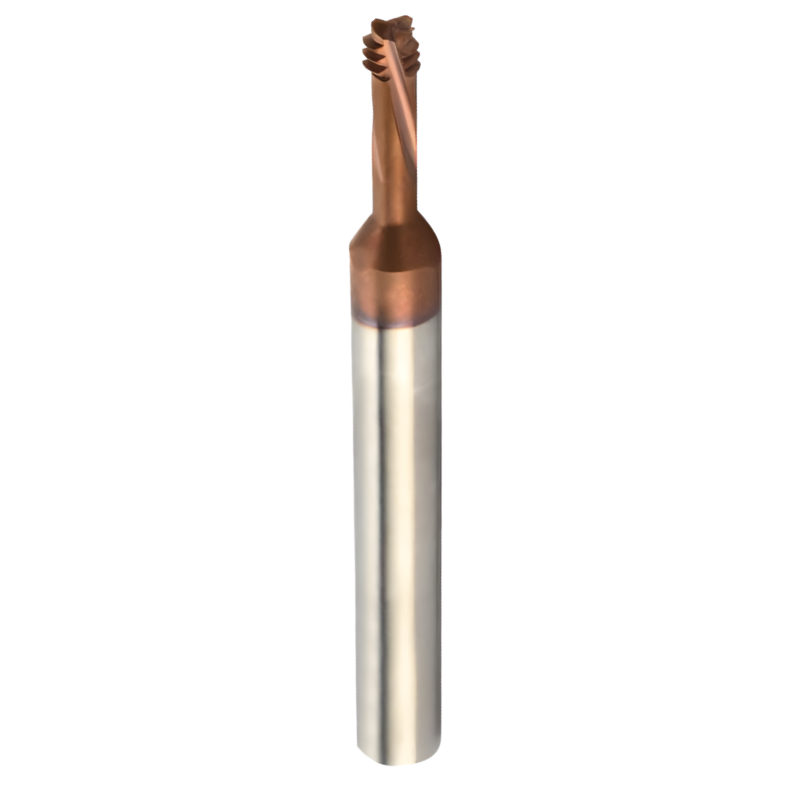

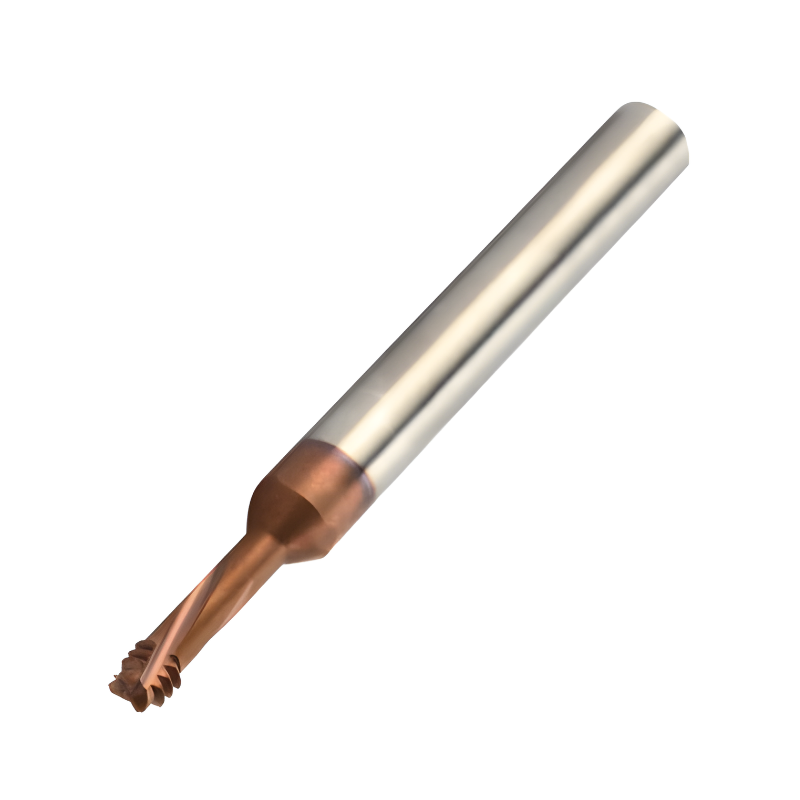

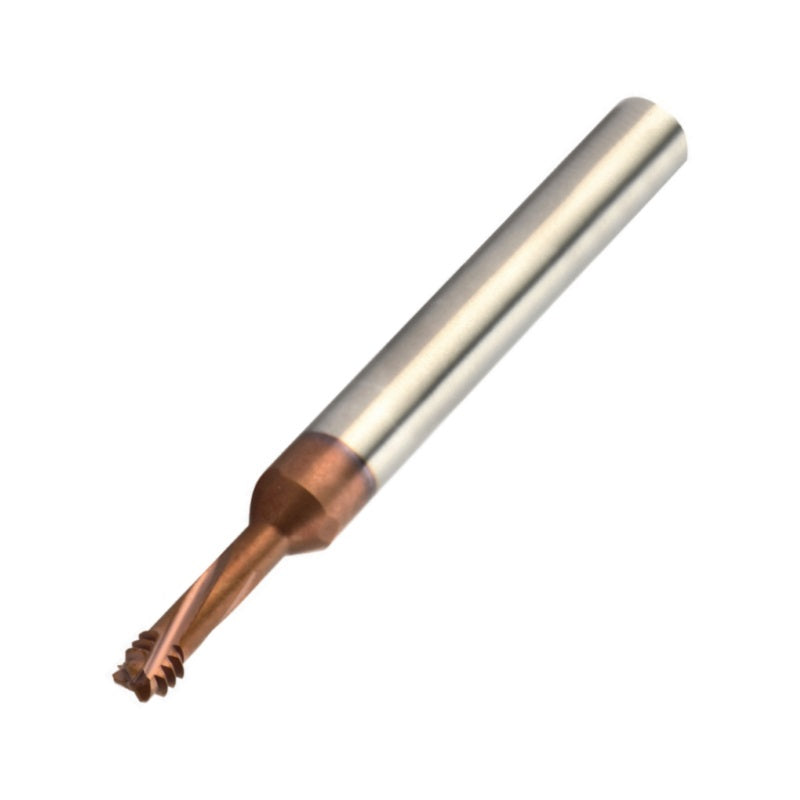

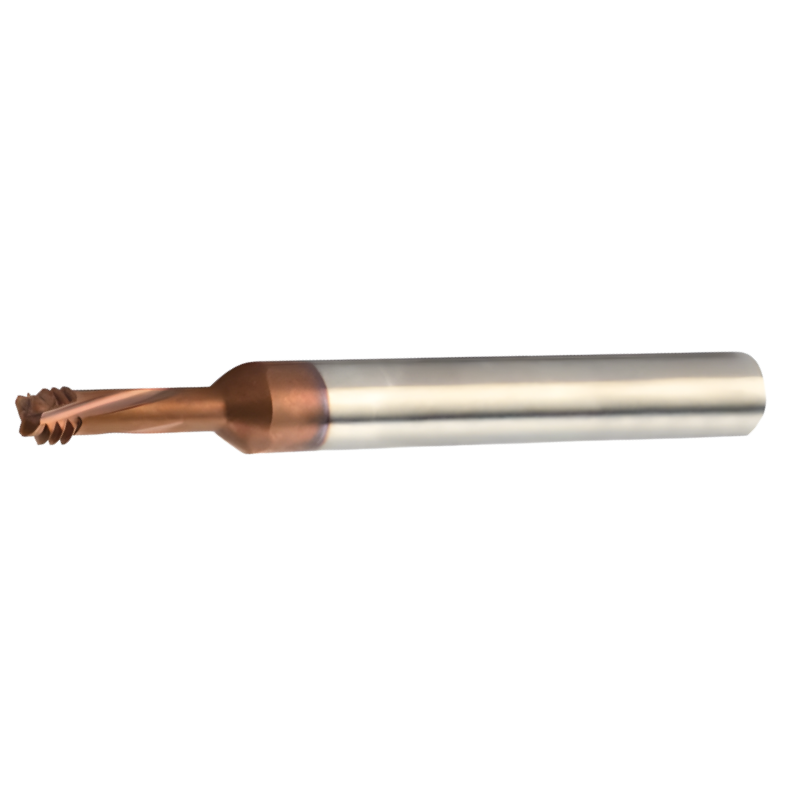

M4 x 0.7 Metric Internal 3-in-1 Drill Thread Mill 2.5xD – Carmex DMT 06032 C11 0.7 ISO-D MT7
| Thread Form | Metric |
| Size | M4 |
| Pitch | 0.7 |
| Diameter (D) | 3.15 |
Learn more about Klarna
Description

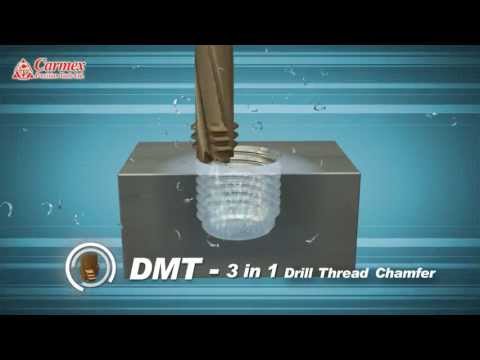

Solid carbide thread mill for internal M4 x 0.7 metric threads. DMT is a 3-in-1 tool that drills the hole, cuts the thread and chamfers the edge in one circular-interpolation cycle, so there’s no separate drill and no tool change. It has internal coolant and works in blind or through holes.
This is an internal-only thread mill, and Carmex doesn’t list it for external threads. MT7 is Carmex’s general-purpose grade: sub-micron carbide with a TiAlN multi-layer coating, meant to run at medium to high cutting speeds across all materials. It’s a left-hand cutting tool, so program the spindle in reverse (M04).

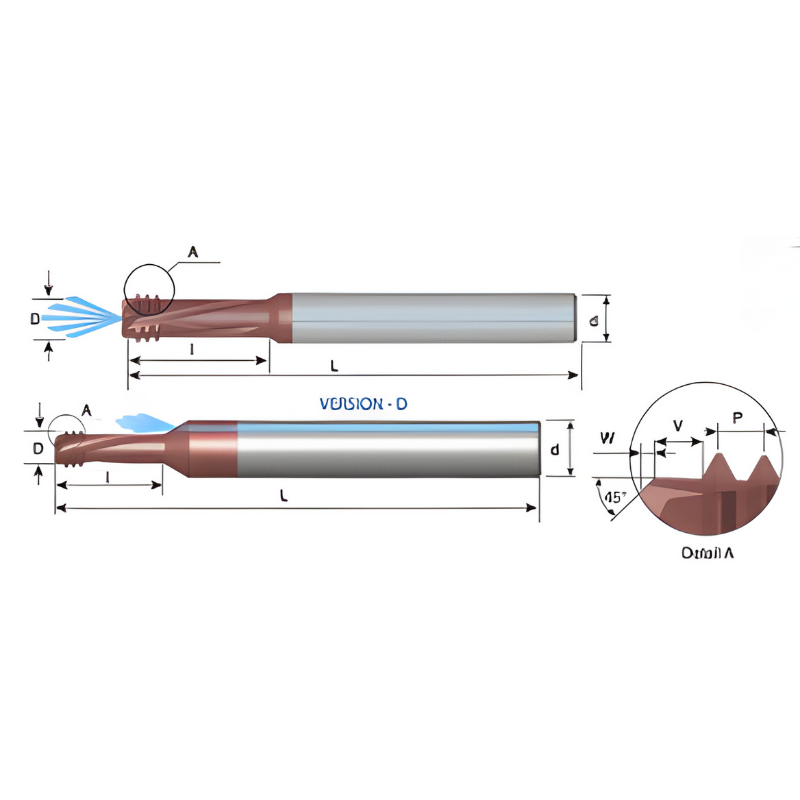

- Carmex code: DMT 06032 C11 0.7 ISO-D MT7
- Thread: M4 x 0.7, ISO metric
- Cutting diameter: Ø3.15 mm
- Flutes: 3
- Cutting length: 11.6 mm
- Overall length: 58 mm
- Shank: Ø6 mm
- Max thread depth: 2.5×D1 (× nominal diameter)
- Grade: MT7 – TiAlN-coated sub-micron carbide
- Coolant: Internal coolant
- Cutting direction: Left-hand cutting (M04)
Part Numbers
- Protool Part Number
- DMT06032C110.7ISO-DMT7
- Brand
- Carmex
- Category
- Thread Mill
Delivery
Free UK mainland delivery on orders over £50 ex VAT. In-stock items ordered before 4:30pm are dispatched the same working day. Full delivery information.
Returns
14-day returns on unused stock items in original packaging. Special-order and bespoke tooling is non-returnable. Read our returns policy.
Technical Support
Over 30 years of machining experience behind the counter. Call 01732 887334, Mon–Thurs 8:30–17:30, Fri 8:30–16:30.
Trade Accounts
Credit accounts, contract pricing and scheduled call-off orders available for trade customers. Apply for an account.
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: Carmex Carbide Thread Mills - ISO Without Coolant (DMT)
View full collection →You are viewing DMT06032C110.7ISO-DMT7. Click any other SKU to view its full details.
| Product SKU | Size | Pitch | Reach | Shank Diameter | Overall Length | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|
| DMT06032C110.7ISO-DMT7 Viewing | M4 | 0.7 | 11.6 | 6 | 58 | £108.44 | 5 days | |
| DMT0604C140.8ISO-DMT7 | M5 | 0.8 | 14.4 | 6 | 58 | £108.44 | 5 days |
