Carmex Thread Mills Multifunction - With Coolant - UN (UNC UNF UNEF UNS) - 3/8 - 1/2 x 16 - MT7
| Thread Form | UN (UNC UNF UNEF UNS) |
| Size | 3/8 - 1/2 |
| Pitch | 16 |
| Diameter (D) | 6.7 |
Learn more about Klarna
Description

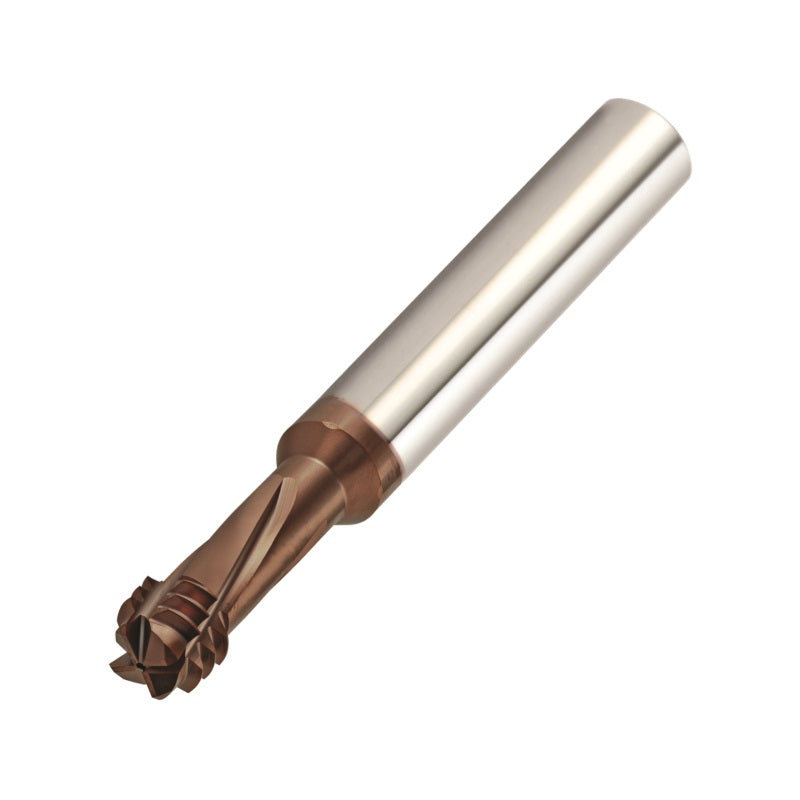

Carmex's Thread Mills Multifunction with coolant is an all-in-one threading solution designed for shops that need fast, accurate threaded holes. It combines drilling, chamfering, and thread milling in a single pass, cutting cycle times and reducing tool changes.
- All-in-one operation: Drills, chamfers, and mills threads in one pass, eliminating separate drilling steps.
- Thread standards supported: Compatible with UN, UNC, UNF, UNEF and UNS thread forms for common fasteners.
- Size range: Effective for 3/8" to 1/2" nominal thread diameters with 16 TPI.
- Left- and right-hand threads: The same cutter handles both directions, simplifying setup and inventory.
- Full profile thread milling: Delivers complete thread geometry for strength and accuracy.
- Coolant-through design: Internal cooling improves chip evacuation, tool life, and surface finish.
- MT7 shank: Stable Morse Taper 7 shank for secure, rigid mounting in compatible machines.
This tool minimizes machining costs by removing the need to drill the hole separately and shortening production cycles. It’s versatile for blind or through-hole applications and suitable for a wide range of materials, delivering consistent thread quality and dependable performance in every run.
Part Numbers
- Protool Part Number
- DMT08067C2216UNMT7
- Brand
- Carmex
- Category
- Thread Mill
Delivery
Free UK mainland delivery on orders over £50 ex VAT. In-stock items ordered before 4:30pm are dispatched the same working day. Full delivery information.
Returns
14-day returns on unused stock items in original packaging. Special-order and bespoke tooling is non-returnable. Read our returns policy.
Technical Support
Over 30 years of machining experience behind the counter. Call 01732 887334, Mon–Thurs 8:30–17:30, Fri 8:30–16:30.
Trade Accounts
Credit accounts, contract pricing and scheduled call-off orders available for trade customers. Apply for an account.
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: Carmex Carbide Thread Mills - UN With Coolant (DMT)
View full collection →You are viewing DMT08067C2216UNMT7. Click any other SKU to view its full details.
| Product SKU | Size | Pitch | Reach | Shank Diameter | Overall Length | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|
| DMT08048C1420UNMT7 | 1/4 - 3/8 | 20 | 14 | 8 | 64 | £144.56 | 5 days | |
| DMT0805C1428UNMT7 | 1/4 - 3/8 | 28 | 14.5 | 8 | 64 | £108.44 | 5 days | |
| DMT08065D1724UNMT7 | 5/16 - 1/2 | 24 | 17 | 8 | 64 | £108.44 | 5 days | |
| DMT08067C2216UNMT7 Viewing | 3/8 - 1/2 | 16 | 22 | 8 | 64 | £144.56 | 5 days | |
| DMT0806D1718UNMT7 | 5/16 - 7/16 | 18 | 17 | 8 | 64 | £144.56 | 5 days | |
| DMT1010D2913UNMT7 | 1/2 | 13 | 29.8 | 10 | 73 | £187.08 | 5 days |
