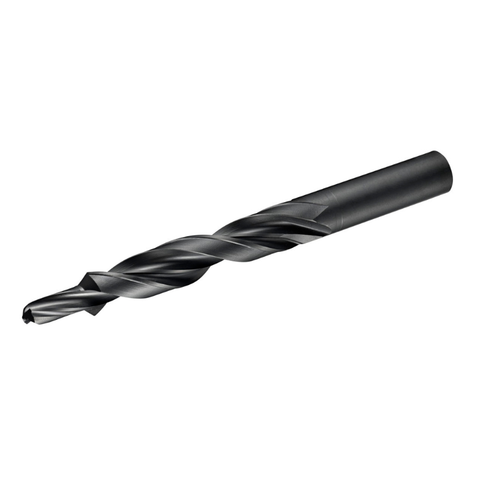

Dormer Pramet A400 M5 HSS ST STRAIGHT SHANK SUBLAND 90 DEG STANDARD LENGTH (X4D) DRILL DIN 8374
| Type | Long Series |
| Drill Diameter | 5.30 |
| Shank Diameter | 10 |
| Substrate | HSS |
Learn more about Klarna
Description
The Dormer Pramet A400 M5 HSS ST Straight Shank Subland 90° Drill, built to DIN 8374 standards, is your go-to tool for precise clearance holes tailored to standard metric threads. With an 118° pilot followed by a 90° chamfer, this drill guides a chamfered hole that ensures easy tapping and reliable thread engagement right from the first pass.
The steam oxide finish minimizes workpiece material sticking to the cutting edge, reducing built-up edge and helping maintain a clean, accurate hole through repeated cycles. This makes it especially effective for production environments where consistency matters as much as speed.
Precision is built into the geometry: a specifically chosen pilot diameter and length are designed to create the correct clearance drilling diameter and depth for standard threads. Expect consistent hole sizes across batches and fewer rework passes, even when drilling tougher materials.
Materials and versatility: crafted from premium high-speed steel (HSS), this drill performs across a broad range of materials, including steel, aluminium, and stainless steel. The straight shank design ensures reliable clamping and stability on both CNC machines and conventional drilling setups, offering flexibility on any shop floor.
Subland geometry and standard length (X4D) combine to deliver a clean entry, controlled chip evacuation, and a finished clearance hole with minimal burrs. This makes it ideal for applications where precise dimensional control and smooth hole finishing are critical—such as fixture fabrication, mechanical assemblies, and automotive fastener pockets.
Key advantages at a glance
- 118° pilot with 90° chamfer for accurate clearance holes for metric threads
- Steam oxide finish reduces material sticking and built-up edge
- Precise pilot diameter and length tuned for correct clearance drilling
- Premium HSS for versatile use across steel, aluminium, stainless steel
- Straight shank compatibility with CNC and conventional machines
- Subland geometry delivers clean entry and finished hole
- DIN 8374 compliant, standard length X4D
Part Numbers
- Protool Part Number
- DOR-A400M5
- Brand
- Dormer Pramet
- Category
- Drill
Need cutting data? Call 01732 887334 or email sales@protool-ltd.co.uk.
Delivery
Free UK mainland delivery on orders over £50 ex VAT. In-stock items ordered before 4:30pm are dispatched the same working day. Full delivery information.
Returns
14-day returns on unused stock items in original packaging. Special-order and bespoke tooling is non-returnable. Read our returns policy.
Technical Support
Over 30 years of machining experience behind the counter. Call 01732 887334, Mon–Thurs 8:30–17:30, Fri 8:30–16:30.
Trade Accounts
Credit accounts, contract pricing and scheduled call-off orders available for trade customers. Apply for an account.
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: Dormer Pramet A400 HSS ST STRAIGHT SHANK SUBLAND 90 DEG STANDARD LENGTH (X4D) DRILLS DIN 8374
View full collection →You are viewing DOR-A400M5. Click any other SKU to view its full details.
| Product SKU | Drill Diameter | Shank Diameter | Price | Stock | Order |
|---|---|---|---|---|---|
| DOR-A400M3 | 3.20 | 6 | £32.83 | 2 days | |
| DOR-A400M4 | 4.30 | 8 | £38.17 | 2 days | |
| DOR-A400M5 Viewing | 5.30 | 10 | £47.88 | 2 days | |
| DOR-A400M6 | 6.40 | 11.5 | £55.63 | 2 days | |
| DOR-A400M8 | 8.40 | 15 | £92.11 | 2 days |
