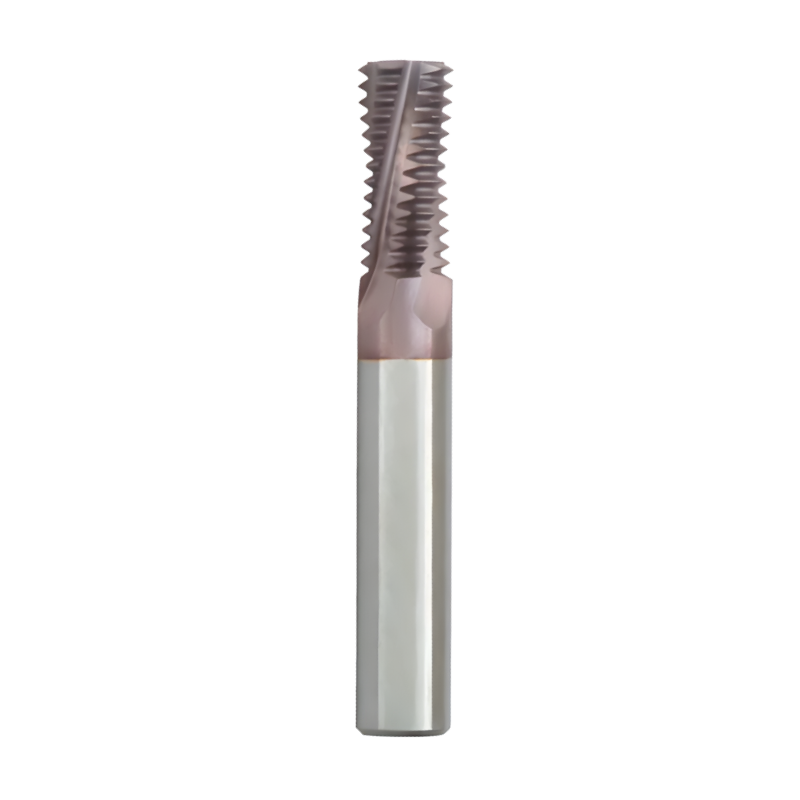

Carmex Thread Mills Solid Carbide - External - MJ - 10mm x 1 - MT7

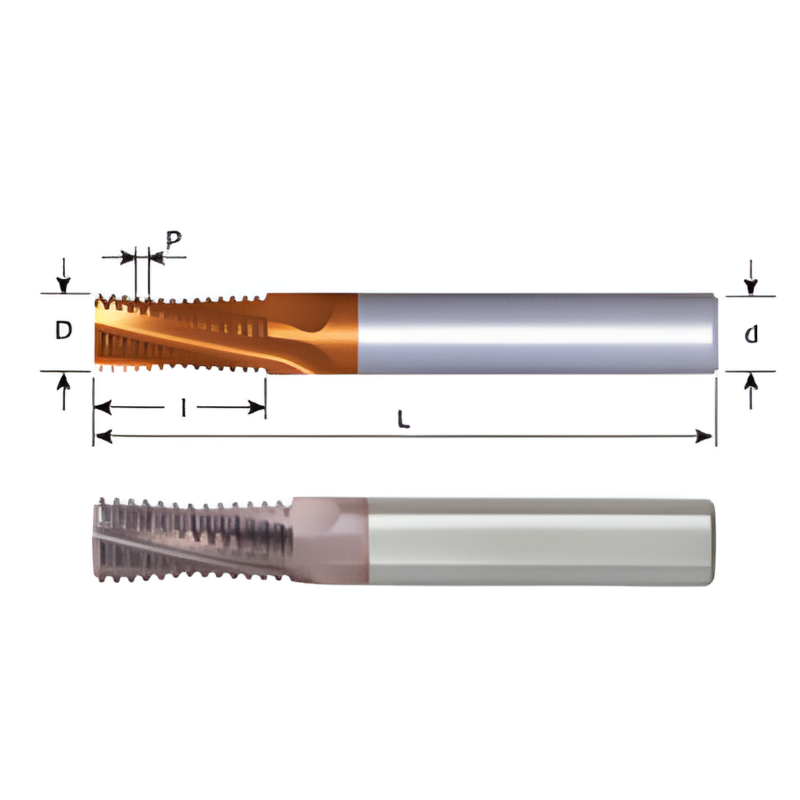

| Thread Form | MJ |
| Size | 10mm |
| Pitch | 1 |
| Diameter (D) | 10 |
| Flute Length (l) | 20.5 |
| Shank Diameter (d) | 10 |
Learn more about Klarna
Designed for CNC machinists and production shops, the Carmex Thread Mills Solid Carbide - External tool delivers precise external threading with a superior surface finish. Built for reliability in demanding environments, it’s the go-to choice when speed and quality matter.
- Diameter: 10 mm
- Shank: MT7 for a secure, high‑rigidity fit in compatible tool holders
- Material: Solid carbide for exceptional hardness, wear resistance, and long life
- Flute design: Spiral flutes that promote smooth chip evacuation and a cleaner finish
- Flute count: 3–5 flutes to maximize material removal while maintaining accuracy
- Function: External thread milling to create accurate external threads on shafts, studs, and related components
The combination of spiral flute geometry and a multi-flute arrangement enables fast, efficient material removal without sacrificing thread quality. The external thread milling capability helps you achieve consistent thread engagement and precise pitch across production runs, reducing rework and downtime. This tool is ideal for applications in automotive, machinery, and mechanical assemblies where reliable external threads are essential.
| Thread Form | MJ |
| Size | 10mm |
| Pitch | 1 |
| Diameter (D) | 10 |
| Flute Length (l) | 20.5 |
| Shank Diameter (d) | 10 |
| No of Flutes | 4 |
| Overall Length (L) | 72 |
| Thread Mill Style | Standard |
| Internal or External | External |
| Coating | MT7 |
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: Carmex Solid Carbide Thread Mills - MJ - For External Thread (MT)
View full collection →You are viewing EMT1010D201.0MJMT7. Click any other SKU to view its full details.
| Product SKU | Size | Pitch | Flute Length | Reach | Shank Diameter | Overall Length | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|---|
| EMT1010C212.0MJMT7 | 10mm | 2 | 21 | 21 | 10 | 72 | £196.16 | 5 days | |
| EMT1010D191.25MJMT7 | 10mm | 1.25 | 19.4 | 19.4 | 10 | 72 | £196.16 | 5 days | |
| EMT1010D201.0MJMT7 Viewing | 10mm | 1 | 20.5 | 20.5 | 10 | 72 | £196.16 | 5 days | |
| EMT1010D211.5MJMT7 | 10mm | 1.5 | 21.8 | 21.8 | 10 | 72 | £196.16 | 5 days | |
| EMT1212D261.5MJMT7 | 12mm | 1.5 | 26.3 | 26.3 | 12 | 83 | £245.38 | 5 days | |
| EMT1212D272.0MJMT7 | 12mm | 2 | 27 | 27 | 12 | 83 | £245.38 | 5 days | |
| EMT1212E241.0MJMT7 | 12mm | 1 | 24.5 | 24.5 | 12 | 83 | £245.38 | 5 days |
