18 TPI UN External Thread Mill Ø12mm – Carmex EMT 1212 D20 18 UN MT7

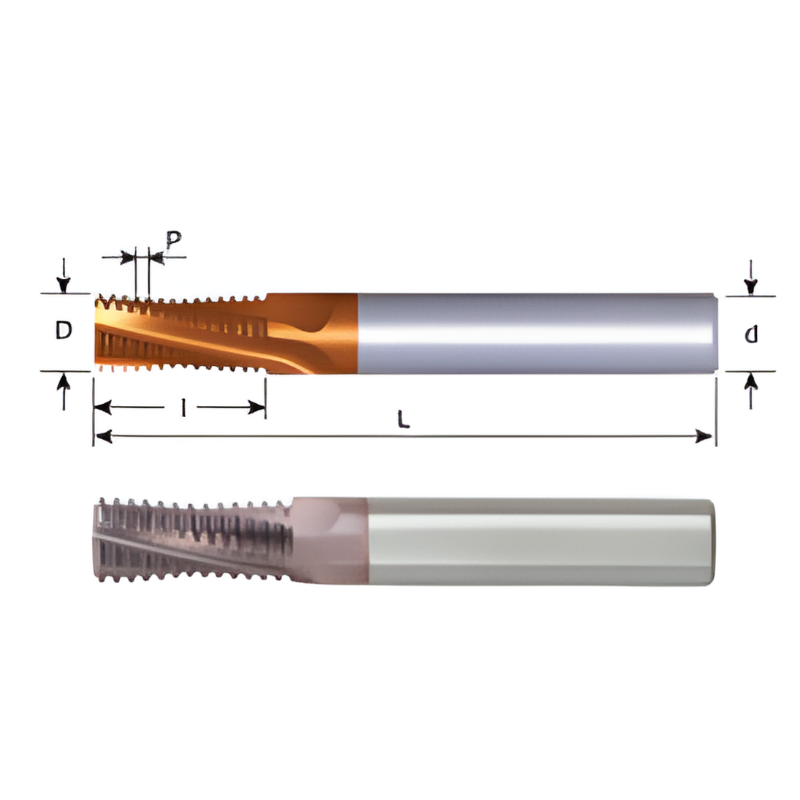

| Thread Form | UN (UNC UNF UNEF UNS) |
| Size | 12mm |
| Pitch | 18 |
| Diameter (D) | 12 |
Learn more about Klarna
Description

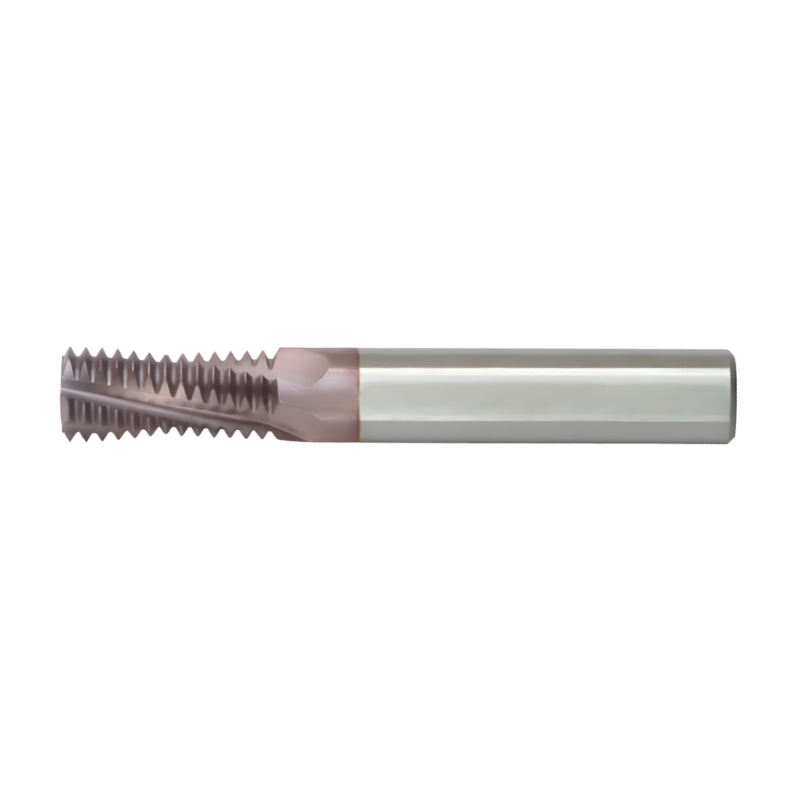

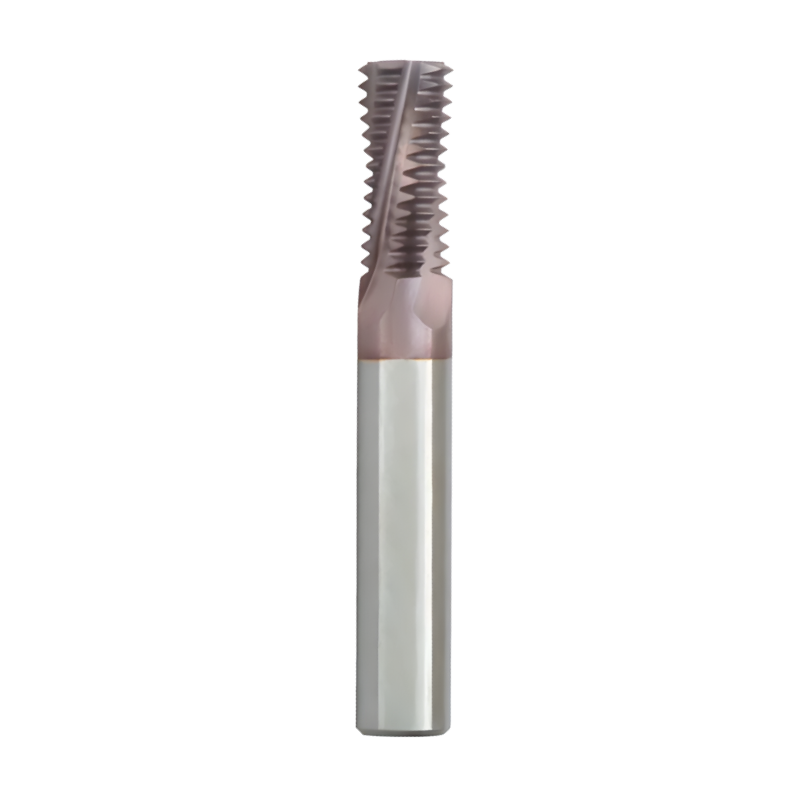

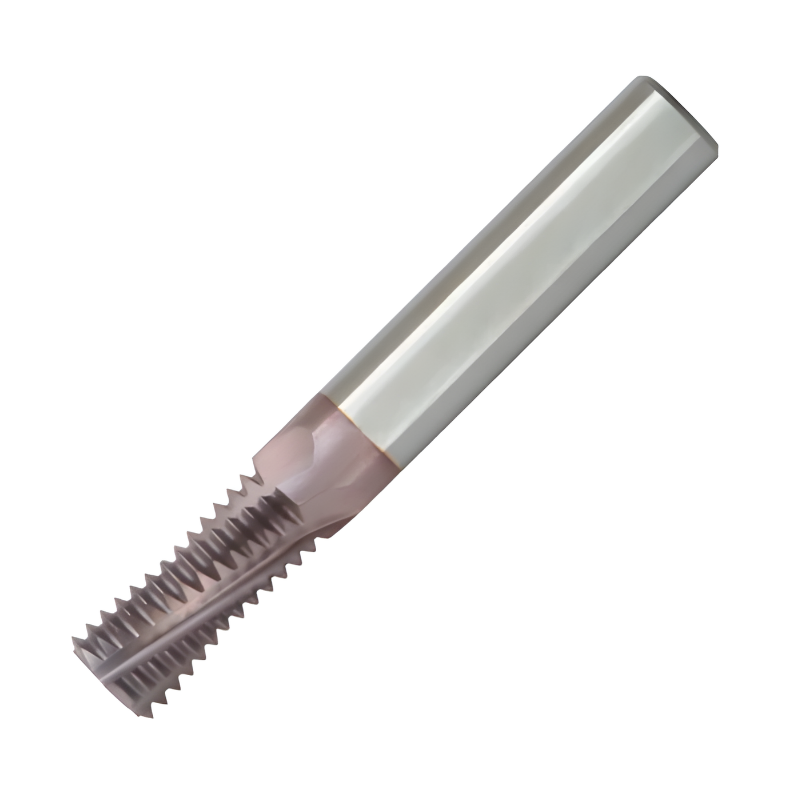

Solid carbide thread mill for external UN threads at 18 TPI. EMT tools are made for external threads: studs, spigots and shafts. Spiral flutes give a good finish, and with 3 to 5 flutes the cycle is short.
It cuts external threads only. For internal threads, use the Carmex MT, MTB or MTZ ranges. MT7 is Carmex’s general-purpose grade: sub-micron carbide with a TiAlN multi-layer coating, meant to run at medium to high cutting speeds across all materials. Carmex rates this tool for material up to 47 HRc.
- Carmex code: EMT 1212 D20 18 UN MT7
- Thread: 18 TPI UN – UNC/UNF/UNEF/UNS
- Cutting diameter: Ø12.0 mm
- Flutes: 4
- Cutting length: 20.5 mm
- Overall length: 84 mm
- Shank: Ø12 mm
- Grade: MT7 – TiAlN-coated sub-micron carbide
Part Numbers
- Protool Part Number
- EMT1212D2018UNMT7
- Brand
- Carmex
- Category
- Thread Mill
Delivery
Free UK mainland delivery on orders over £50 ex VAT. In-stock items ordered before 4:30pm are dispatched the same working day. Full delivery information.
Returns
14-day returns on unused stock items in original packaging. Special-order and bespoke tooling is non-returnable. Read our returns policy.
Technical Support
Over 30 years of machining experience behind the counter. Call 01732 887334, Mon–Thurs 8:30–17:30, Fri 8:30–16:30.
Trade Accounts
Credit accounts, contract pricing and scheduled call-off orders available for trade customers. Apply for an account.
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: Carmex Solid Carbide Thread Mills - UN (UNC/UNF/UNEF) - For External Thread (MT)
View full collection →You are viewing EMT1212D2018UNMT7. Click any other SKU to view its full details.
| Product SKU | Size | Pitch | Flute Length | Reach | Shank Diameter | Overall Length | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|---|
| EMT1010D1624UNMT7 | 10mm | 24 | 16.4 | 16.4 | 10 | 73 | £196.16 | 5 days | |
| EMT1212D2012UNMT7 | 12mm | 12 | 20.1 | 20.1 | 12 | 84 | £245.38 | 5 days | |
| EMT1212D2014UNMT7 | 12mm | 14 | 20.9 | 20.9 | 12 | 84 | £245.38 | 5 days | |
| EMT1212D2018UNMT7 Viewing | 12mm | 18 | 20.5 | 20.5 | 12 | 84 | £245.38 | 5 days | |
| EMT1212D2116UNMT7 | 12mm | 16 | 21.4 | 21.4 | 12 | 84 | £245.38 | 5 days | |
| EMT1212E2120UNMT7 | 12mm | 20 | 21 | 21 | 12 | 84 | £245.38 | 5 days |
