ER-EL Side Clamp Kit (Serrated Parallel Type) - 18mm T-Slot

ER-EL Side Clamp Kit (Serrated Wedge Type) - 16mm T-Slot

SKU:PRO2030-16
Side clamp set made from hardened steel, ideal for clamping large work pieces or plates that cannot be held in a vice. This set includes 2 x wedge clamps, 2 x fixed stops and 10 x t-nuts, 10 clampi... Read more ↓
Specification
T-Slot Width16
Clamp TypeSide Clamp Kit (Serrated)
C5
L90
b23
n47
View all specifications ↓
£283.91
Prices shown ex. VAT
2–3 days estimated lead time — subject to availability
View Other Sizes →
Free delivery over £50 ex VAT
Secure checkout
14-day returns
30+ years expertise
Klarna
Pay in 3 interest-free instalments. No extra cost if paid on time. 18+ only.
Learn more about Klarna
Speak to our team
01732 887334
Mon – Thurs 8:30 – 17:30 · Fri 8:30 – 16:30

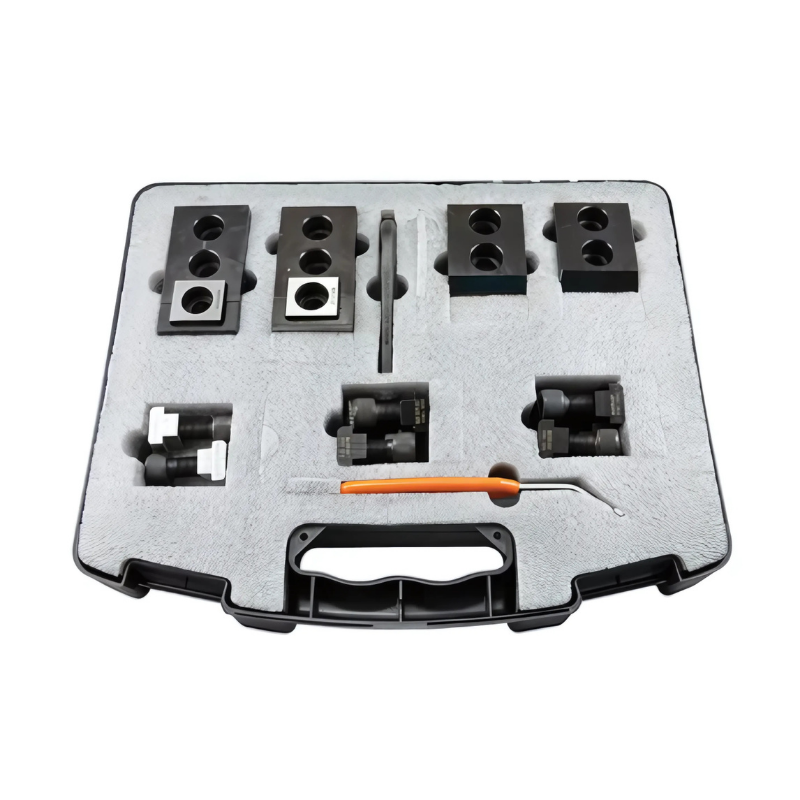

Side clamp set made from hardened steel, ideal for clamping large work pieces or plates that cannot be held in a vice. This set includes 2 x wedge clamps, 2 x fixed stops and 10 x t-nuts, 10 clamping bolts, allen key and t-slot scraper.

  • Side clamping allows lateral forces which does not change the state of the workpiece
  • Hardened steel
  • Black coating
  • Set comes in plastic presentation box

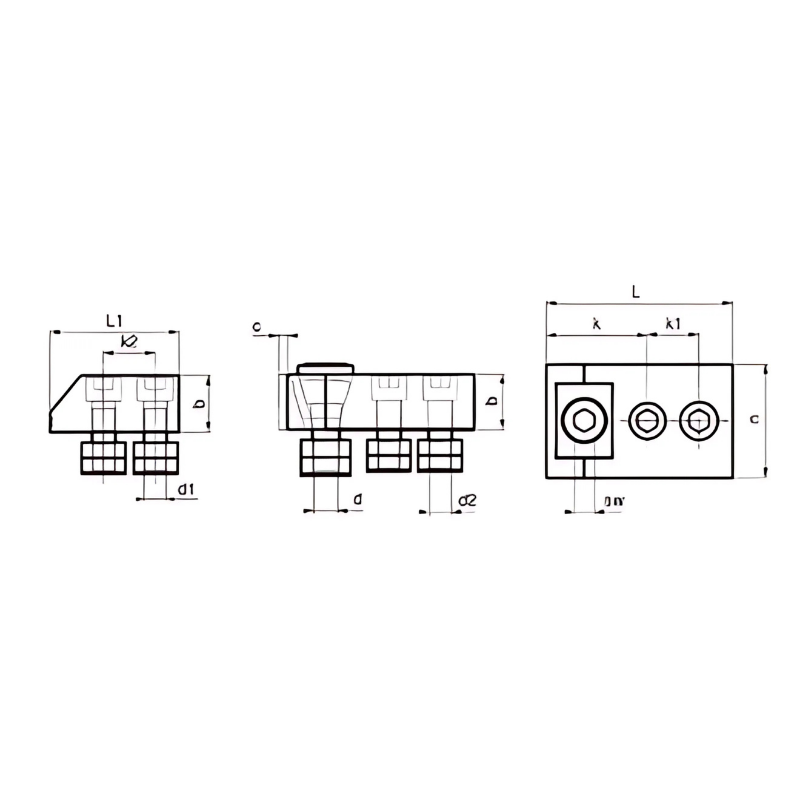

T-Slot Width 16
Clamp Type Side Clamp Kit (Serrated)
C 5
L 90
b 23
n 47
k 47
k1 26
k2 26
L1 65
d M12
d1 M12
d2 M12
sw 6
Clamping Force (Kgf) 2000
Allowable Screw Torque (N-m) 35
(g) 3670
