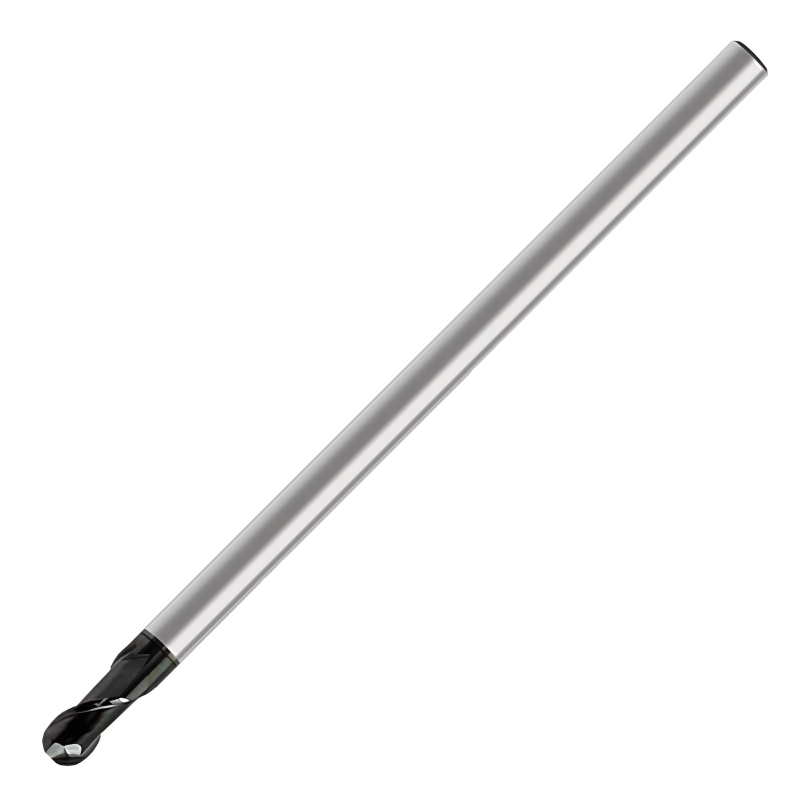

Europa Tools Carbide End Mill 2 Flute Ball Nose - Extended Neck - Pulsar DMX - 0.8mm x 40mm

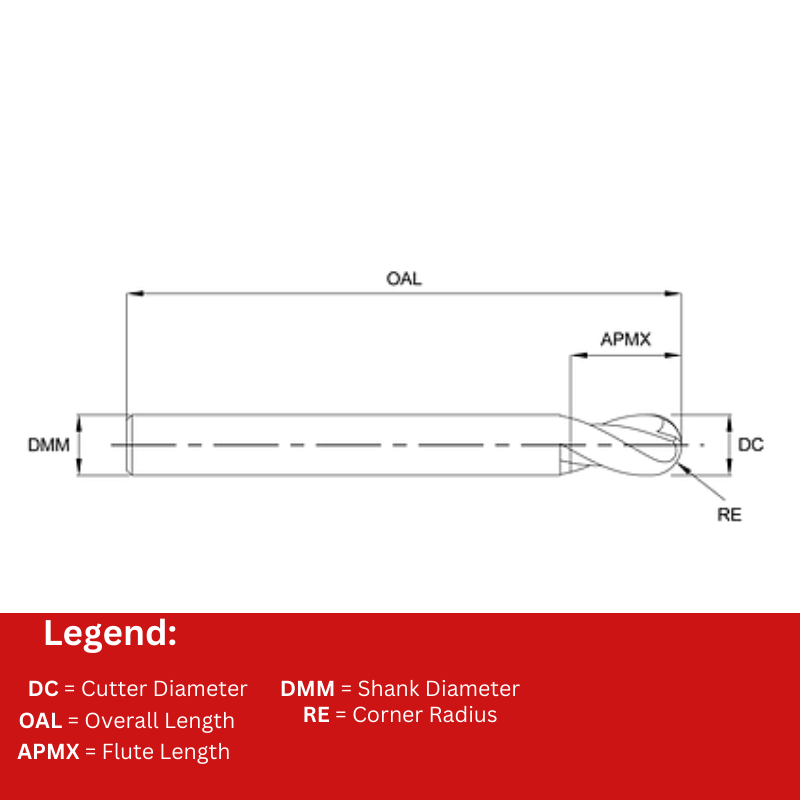

| Cutter Diameter (DC) | 0.8 |
| Number Of Flute | 2 |
| Flute Length (APMX) | 1.6 |
| Overall Length (OAL) | 40 |
| Shank Diameter (DMM) | 4 |
| Corner Radius (RE) | 0.4 |
Learn more about Klarna
The Europa Tools 0.8 mm x 40 mm Carbide End Mill is a 2-flute ball-nose cutter designed for precise 3D contouring and smooth surface profiling. Featuring an extended neck and Pulsar DMX coating, it delivers dependable performance in demanding materials and tight radii.
- Diameter: 0.8 mm
- Overall length: 40 mm
- Flutes: 2-flute configuration
- Geometry: Ball-nose cutting for smooth curved surfaces and intricate contours
- Neck design: Extended neck for improved reach and access in tight features
- Material: Solid carbide for exceptional hardness and wear resistance
- Coating: Pulsar DMX for dry cutting and high-speed machining of pre-hardened steels up to HRc55
Designed to empower engineers and machinists, this end mill enables precise finishes on complex geometries without sacrificing durability. The ball-nose geometry maintains accurate radii on curved surfaces, while the extended neck provides better clearance in deep pockets and tight spaces. Pulsar DMX coating reduces tool wear and supports efficient, coolant-free cutting, making it ideal for high-speed milling of pre-hardened steels up to HRc55. With its fine 0.8 mm diameter, this tool is well-suited for fine-detail work, mold and die applications, and prototypes that demand consistent finishes and reliable tool life.
| Cutter Diameter (DC) | 0.8 |
| Number Of Flute | 2 |
| Flute Length (APMX) | 1.6 |
| Overall Length (OAL) | 40 |
| Shank Diameter (DMM) | 4 |
| Corner Radius (RE) | 0.4 |
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: Europa Tools Carbide End Mill 2 Flute Ball Nose - Extended Neck - Pulsar DMX
View full collection →You are viewing EUR-1003650080. Click any other SKU to view its full details.
| Product SKU | Cutter Diameter (DC) | Flute Length (APMX) | Overall Length (OAL) | Shank Diameter (DMM) | Corner Radius (RE) | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|
| EUR-1003650010 | 0.1 | 0.2 | 40 | 4 | 0.05 | £72.96 | 1-2 days | |
| EUR-1003650020 | 0.2 | 0.4 | 40 | 4 | 0.1 | £56.61 | 1-2 days | |
| EUR-1003650030 | 0.3 | 0.6 | 40 | 4 | 0.15 | £47.62 | 1-2 days | |
| EUR-1003650040 | 0.4 | 0.8 | 40 | 4 | 0.2 | £39.88 | 1-2 days | |
| EUR-1003650050 | 0.5 | 1 | 40 | 4 | 0.25 | £37.19 | 1-2 days | |
| EUR-1003650060 | 0.6 | 1.2 | 40 | 4 | 0.3 | £37.19 | 1-2 days | |
| EUR-1003650080 Viewing | 0.8 | 1.6 | 40 | 4 | 0.4 | £32.66 | 1-2 days | |
| EUR-1003650100 | 1 | 2.5 | 50 | 6 | 0.5 | £33.99 | 1-2 days | |
| EUR-1003650150 | 1.5 | 4 | 50 | 6 | 0.75 | £33.99 | 1-2 days | |
| EUR-1003650200 | 2 | 5 | 50 | 6 | 1 | £33.26 | 1-2 days | |
| EUR-1003650250 | 2.5 | 6 | 60 | 6 | 1.25 | £33.26 | 1-2 days | |
| EUR-1003650300 | 3 | 4.5 | 40 | 6 | 1.5 | £33.26 | 1-2 days | |
| EUR-1003650301 | 3 | 6 | 60 | 6 | 1.5 | £33.26 | 1-2 days | |
| EUR-1003650400 | 4 | 8 | 70 | 6 | 2 | £34.89 | 1-2 days | |
| EUR-1003650401 | 4 | 8 | 100 | 6 | 2 | £43.47 | 1-2 days | |
| EUR-1003650500 | 5 | 7.5 | 60 | 6 | 2.5 | £33.26 | 1-2 days | |
| EUR-1003650501 | 5 | 10 | 80 | 6 | 2.5 | £37.43 | 1-2 days | |
| EUR-1003650600 | 6 | 9 | 50 | 6 | 3 | £33.26 | 1-2 days | |
| EUR-1003650601 | 6 | 12 | 90 | 6 | 3 | £48.76 | 1-2 days | |
| EUR-1003650602 | 6 | 12 | 130 | 6 | 3 | £54.30 | 1-2 days | |
| EUR-1003650800 | 8 | 12 | 50 | 8 | 4 | £48.43 | 1-2 days | |
| EUR-1003650801 | 8 | 12 | 90 | 8 | 4 | £58.92 | 1-2 days | |
| EUR-1003650802 | 8 | 14 | 100 | 8 | 4 | £58.92 | 1-2 days | |
| EUR-1003650803 | 8 | 14 | 150 | 8 | 4 | £84.12 | 1-2 days | |
| EUR-1003651000 | 10 | 15 | 60 | 10 | 5 | £75.22 | 1-2 days | |
| EUR-1003651001 | 10 | 15 | 90 | 10 | 5 | £94.45 | 1-2 days | |
| EUR-1003651002 | 10 | 18 | 100 | 10 | 5 | £94.45 | 1-2 days | |
| EUR-1003651003 | 10 | 18 | 130 | 10 | 5 | £125.56 | 1-2 days | |
| EUR-1003651004 | 10 | 18 | 150 | 10 | 5 | £141.14 | 1-2 days | |
| EUR-1003651005 | 10 | 18 | 180 | 10 | 5 | £155.22 | 1-2 days | |
| EUR-1003651200 | 12 | 18 | 80 | 12 | 6 | £115.78 | 1-2 days | |
| EUR-1003651201 | 12 | 18 | 100 | 12 | 6 | £115.78 | 1-2 days | |
| EUR-1003651202 | 12 | 22 | 110 | 12 | 6 | £126.86 | 1-2 days | |
| EUR-1003651203 | 12 | 22 | 200 | 12 | 6 | £202.57 | 1-2 days | |
| EUR-1003651600 | 16 | 30 | 150 | 16 | 8 | £258.42 | 1-2 days | |
| EUR-1003652000 | 20 | 38 | 150 | 20 | 10 | £415.45 | 1-2 days |
