Europa Tools Carbide End Mill 2 Flute Rib Processing - Pulsar Blue - Square Edge - 0.2mm x 0.5mm
SKU:EUR-1004500020
The Europa Tools Carbide End Mill is a precision 2-flute cutting tool designed specifically for rib and slot milling. With a square edge and Pulsar Blue coating, it delivers accurate, clean cuts o...
Read more ↓
Material Compatibility
P
N
H
Specification
View all specifications ↓
Download Cutting Data

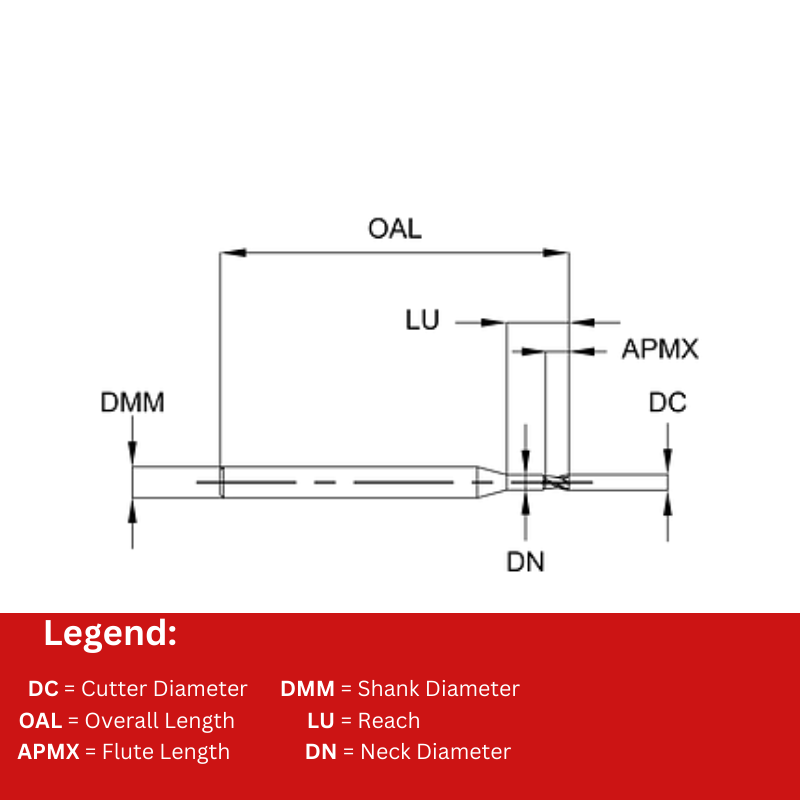

| Cutter Diameter (DC) | 0.2 |
| Number Of Flute | 2 |
| Flute Length (APMX) | 0.3 |
| Overall Length (OAL) | 45 |
| Shank Diameter (DMM) | 4 |
| Reach (LU) | 0.5 |
£59.85
Prices shown ex. VAT
1–2 days estimated lead time
— subject to availability
View Other Sizes →
Free delivery over £50 ex VAT
Secure checkout
14-day returns
30+ years expertise
Pay in 3 interest-free instalments. No extra cost if paid on time. 18+ only.
Learn more about Klarna
Learn more about Klarna

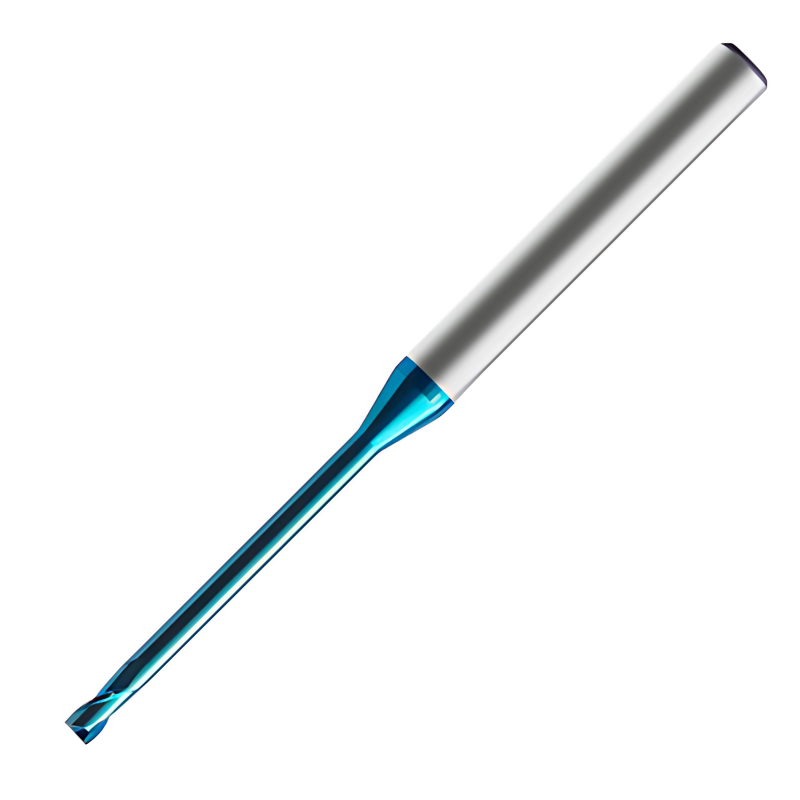

The Europa Tools Carbide End Mill is a precision 2-flute cutting tool designed specifically for rib and slot milling. With a square edge and Pulsar Blue coating, it delivers accurate, clean cuts on challenging materials for engineers who demand reliability in micro-milling.
- Cutting Diameter and Length: 0.2 mm cutting diameter with a 0.5 mm flute length for fine, precise milling in tight tolerances.
- Flute Configuration: 2-flute design optimized for rib and slot milling to promote efficient chip clearance and stable cutting.
- Edge Geometry: Square edge creates sharp corners and flat-bottom features for high-precision rib and slot finishes.
- Coating: Pulsar Blue coating enhances heat resistance and extends tool life during high-speed, demanding machining.
- Material: Solid carbide construction delivers rigidity, wear resistance, and consistent performance across multiple passes.
- Applications: Specifically suited for rib milling and precision slot milling in intricate or thin-walled parts.
The combination of a sharp square edge, a compact 2-flute geometry, and the Pulsar Blue coating means crisper finishes, reduced tool wear, and longer intervals between tool changes. This end mill excels at producing precise rib features and clean, flat-bottom slots in challenging materials, helping you achieve tighter tolerances, smoother surfaces, and more efficient production in micro-milling applications.
| Cutter Diameter (DC) | 0.2 |
| Number Of Flute | 2 |
| Flute Length (APMX) | 0.3 |
| Overall Length (OAL) | 45 |
| Shank Diameter (DMM) | 4 |
| Reach (LU) | 0.5 |
| Neck Diameter (DN) | 0.17 |
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
★★★★★
Nice experience staff are very helpful and interested...
Staff are very helpful and interested in providing a good service making us the customer feel valued.
★★★★★
first place we look
honest about stock and prices are competitive.
★★★★★
Polite and helpful
Staff are very helpful and polite.Goods that were in stock were dispatched same day and back orders were quick in coming through .
★★★★★
Buying experience
Phone requests are handled quickly and without any fuss. The website is easy to use and straightforward to order from. It’s especially helpful that it shows real‑time availability, so we don’t need to call to confirm whether parts will arrive.
Full Range: Europa Tools Carbide End Mills 2 Flute Rib Processing - Pulsar Blue - Square Edge
View full collection →You are viewing EUR-1004500020. Click any other SKU to view its full details.
| Product SKU | Cutter Diameter (DC) | Flute Length (APMX) | Overall Length (OAL) | Shank Diameter (DMM) | Reach (LU) | Neck Diameter (DN) | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|---|
| EUR-1004500010 | 0.1 | 0.15 | 45 | 4 | 0.3 | 0.085 | £77.09 | 1-2 days | |
| EUR-1004500011 | 0.1 | 0.15 | 45 | 4 | 0.5 | 0.085 | £77.09 | 1-2 days | |
| EUR-1004500020 Viewing | 0.2 | 0.3 | 45 | 4 | 0.5 | 0.17 | £59.85 | 1-2 days | |
| EUR-1004500022 | 0.2 | 0.3 | 45 | 4 | 1.5 | 0.17 | £59.85 | 1-2 days | |
| EUR-1004500021 | 0.2 | 0.3 | 45 | 4 | 1 | 0.17 | £59.85 | 1-2 days | |
| EUR-1004500031 | 0.3 | 0.45 | 45 | 4 | 1.5 | 0.27 | £50.47 | 1-2 days | |
| EUR-1004500030 | 0.3 | 0.45 | 45 | 4 | 1 | 0.27 | £50.47 | 1-2 days | |
| EUR-1004500032 | 0.3 | 0.45 | 45 | 4 | 2 | 0.27 | £50.47 | 1-2 days | |
| EUR-1004500033 | 0.3 | 0.45 | 45 | 4 | 3 | 0.27 | £50.77 | 1-2 days | |
| EUR-1004500034 | 0.3 | 0.45 | 45 | 4 | 4 | 0.27 | £50.47 | 1-2 days | |
| EUR-1004500040 | 0.4 | 0.6 | 45 | 4 | 1 | 0.37 | £42.06 | 1-2 days | |
| EUR-1004500041 | 0.4 | 0.6 | 45 | 4 | 2 | 0.37 | £42.06 | 1-2 days | |
| EUR-1004500042 | 0.4 | 0.6 | 45 | 4 | 3 | 0.37 | £42.06 | 1-2 days | |
| EUR-1004500043 | 0.4 | 0.6 | 45 | 4 | 4 | 0.37 | £42.06 | 1-2 days | |
| EUR-1004500044 | 0.4 | 0.6 | 45 | 4 | 5 | 0.37 | £48.85 | 1-2 days | |
| EUR-1004500051 | 0.5 | 0.7 | 45 | 4 | 2.5 | 0.45 | £38.47 | 1-2 days | |
| EUR-1004500050 | 0.5 | 0.7 | 45 | 4 | 2 | 0.45 | £38.47 | 1-2 days | |
| EUR-1004500052 | 0.5 | 0.7 | 45 | 4 | 4 | 0.45 | £38.47 | 1-2 days | |
| EUR-1004500053 | 0.5 | 0.7 | 45 | 4 | 6 | 0.45 | £38.68 | 1-2 days | |
| EUR-1004500054 | 0.5 | 0.7 | 45 | 4 | 8 | 0.45 | £44.57 | 1-2 days | |
| EUR-1004500065 | 0.6 | 0.9 | 45 | 4 | 10 | 0.55 | £44.57 | 1-2 days | |
| EUR-1004500060 | 0.6 | 0.9 | 45 | 4 | 2 | 0.55 | £38.47 | 1-2 days | |
| EUR-1004500061 | 0.6 | 0.9 | 45 | 4 | 3 | 0.55 | £42.44 | 1-2 days | |
| EUR-1004500062 | 0.6 | 0.9 | 45 | 4 | 4 | 0.55 | £38.47 | 1-2 days | |
| EUR-1004500063 | 0.6 | 0.9 | 45 | 4 | 6 | 0.55 | £38.47 | 1-2 days | |
| EUR-1004500064 | 0.6 | 0.9 | 45 | 4 | 8 | 0.55 | £44.40 | 1-2 days | |
| EUR-1004500084 | 0.8 | 1.2 | 45 | 4 | 10 | 0.75 | £40.51 | 1-2 days | |
| EUR-1004500085 | 0.8 | 1.2 | 45 | 4 | 12 | 0.75 | £44.57 | 1-2 days | |
| EUR-1004500080 | 0.8 | 1.2 | 45 | 4 | 2 | 0.75 | £34.92 | 1-2 days | |
| EUR-1004500081 | 0.8 | 1.2 | 45 | 4 | 4 | 0.75 | £34.92 | 1-2 days | |
| EUR-1004500082 | 0.8 | 1.2 | 45 | 4 | 6 | 0.75 | £34.92 | 1-2 days | |
| EUR-1004500083 | 0.8 | 1.2 | 45 | 4 | 8 | 0.75 | £34.92 | 1-2 days | |
| EUR-1004500122 | 1.2 | 1.8 | 45 | 4 | 10 | 1.15 | £31.39 | 1-2 days | |
| EUR-1004500123 | 1.2 | 1.8 | 45 | 4 | 12 | 1.15 | £33.23 | 1-2 days | |
| EUR-1004500124 | 1.2 | 1.8 | 50 | 4 | 16 | 1.15 | £35.09 | 1-2 days | |
| EUR-1004500120 | 1.2 | 1.8 | 45 | 4 | 6 | 1.15 | £31.17 | 1-2 days | |
| EUR-1004500121 | 1.2 | 1.8 | 45 | 4 | 8 | 1.15 | £31.39 | 1-2 days | |
| EUR-1004500152 | 1.5 | 2.3 | 45 | 4 | 10 | 1.45 | £31.39 | 1-2 days | |
| EUR-1004500153 | 1.5 | 2.3 | 45 | 4 | 12 | 1.45 | £33.23 | 1-2 days | |
| EUR-1004500154 | 1.5 | 2.3 | 50 | 4 | 14 | 1.45 | £33.23 | 1-2 days | |
| EUR-1004500155 | 1.5 | 2.3 | 50 | 4 | 16 | 1.45 | £35.09 | 1-2 days | |
| EUR-1004500156 | 1.5 | 2.3 | 55 | 4 | 18 | 1.45 | £35.09 | 1-2 days | |
| EUR-1004500157 | 1.5 | 2.3 | 55 | 4 | 20 | 1.45 | £35.09 | 1-2 days | |
| EUR-1004500150 | 1.5 | 2.3 | 45 | 4 | 6 | 1.45 | £31.17 | 1-2 days | |
| EUR-1004500151 | 1.5 | 2.3 | 45 | 4 | 8 | 1.45 | £31.17 | 1-2 days | |
| EUR-1004500103 | 1 | 1.5 | 45 | 4 | 10 | 0.95 | £31.17 | 1-2 days | |
| EUR-1004500104 | 1 | 1.5 | 45 | 4 | 12 | 0.95 | £33.07 | 1-2 days | |
| EUR-1004500105 | 1 | 1.5 | 50 | 4 | 16 | 0.95 | £35.09 | 1-2 days | |
| EUR-1004500106 | 1 | 1.5 | 55 | 4 | 20 | 0.95 | £36.15 | 1-2 days | |
| EUR-1004500100 | 1 | 1.5 | 45 | 4 | 4 | 0.95 | £31.17 | 1-2 days | |
| EUR-1004500101 | 1 | 1.5 | 45 | 4 | 6 | 0.95 | £31.17 | 1-2 days | |
| EUR-1004500102 | 1 | 1.5 | 45 | 4 | 8 | 0.95 | £31.17 | 1-2 days | |
| EUR-1004500202 | 2 | 3 | 45 | 4 | 10 | 1.95 | £29.81 | 1-2 days | |
| EUR-1004500203 | 2 | 3 | 45 | 4 | 12 | 1.95 | £29.81 | 1-2 days | |
| EUR-1004500204 | 2 | 3 | 50 | 4 | 14 | 1.95 | £29.81 | 1-2 days | |
| EUR-1004500205 | 2 | 3 | 50 | 4 | 16 | 1.95 | £32.36 | 1-2 days | |
| EUR-1004500206 | 2 | 3 | 55 | 4 | 18 | 1.95 | £32.36 | 1-2 days | |
| EUR-1004500207 | 2 | 3 | 55 | 4 | 20 | 1.95 | £32.36 | 1-2 days | |
| EUR-1004500208 | 2 | 3 | 60 | 4 | 25 | 1.95 | £34.37 | 1-2 days | |
| EUR-1004500209 | 2 | 3 | 70 | 4 | 30 | 1.95 | £34.37 | 1-2 days | |
| EUR-1004500200 | 2 | 3 | 45 | 4 | 6 | 1.95 | £29.69 | 1-2 days | |
| EUR-1004500201 | 2 | 3 | 45 | 4 | 8 | 1.95 | £29.81 | 1-2 days | |
| EUR-1004500300 | 3 | 4.5 | 45 | 6 | 10 | 2.85 | £45.01 | 1-2 days | |
| EUR-1004500301 | 3 | 4.5 | 45 | 6 | 12 | 2.85 | £45.01 | 1-2 days | |
| EUR-1004500302 | 3 | 4.5 | 50 | 6 | 14 | 2.85 | £45.01 | 1-2 days | |
| EUR-1004500303 | 3 | 4.5 | 55 | 6 | 16 | 2.85 | £45.96 | 1-2 days | |
| EUR-1004500304 | 3 | 4.5 | 55 | 6 | 18 | 2.85 | £45.96 | 1-2 days | |
| EUR-1004500305 | 3 | 4.5 | 60 | 6 | 20 | 2.85 | £45.96 | 1-2 days | |
| EUR-1004500306 | 3 | 4.5 | 65 | 6 | 25 | 2.85 | £45.96 | 1-2 days | |
| EUR-1004500307 | 3 | 4.5 | 70 | 6 | 30 | 2.85 | £55.32 | 1-2 days | |
| EUR-1004500308 | 3 | 4.5 | 80 | 6 | 35 | 2.85 | £55.32 | 1-2 days | |
| EUR-1004500309 | 3 | 4.5 | 90 | 6 | 40 | 2.85 | £59.87 | 1-2 days | |
| EUR-1004500400 | 4 | 6 | 50 | 6 | 12 | 3.85 | £45.01 | 1-2 days | |
| EUR-1004500401 | 4 | 6 | 60 | 6 | 16 | 3.85 | £45.96 | 1-2 days | |
| EUR-1004500402 | 4 | 6 | 60 | 6 | 20 | 3.85 | £45.96 | 1-2 days | |
| EUR-1004500403 | 4 | 6 | 70 | 6 | 25 | 3.85 | £45.96 | 1-2 days | |
| EUR-1004500404 | 4 | 6 | 70 | 6 | 30 | 3.85 | £55.32 | 1-2 days | |
| EUR-1004500405 | 4 | 6 | 80 | 6 | 35 | 3.85 | £59.87 | 1-2 days | |
| EUR-1004500406 | 4 | 6 | 90 | 6 | 40 | 3.85 | £59.87 | 1-2 days | |
| EUR-1004500407 | 4 | 6 | 90 | 6 | 45 | 3.85 | £65.82 | 1-2 days | |
| EUR-1004500408 | 4 | 6 | 90 | 6 | 50 | 3.85 | £79.05 | 1-2 days |
