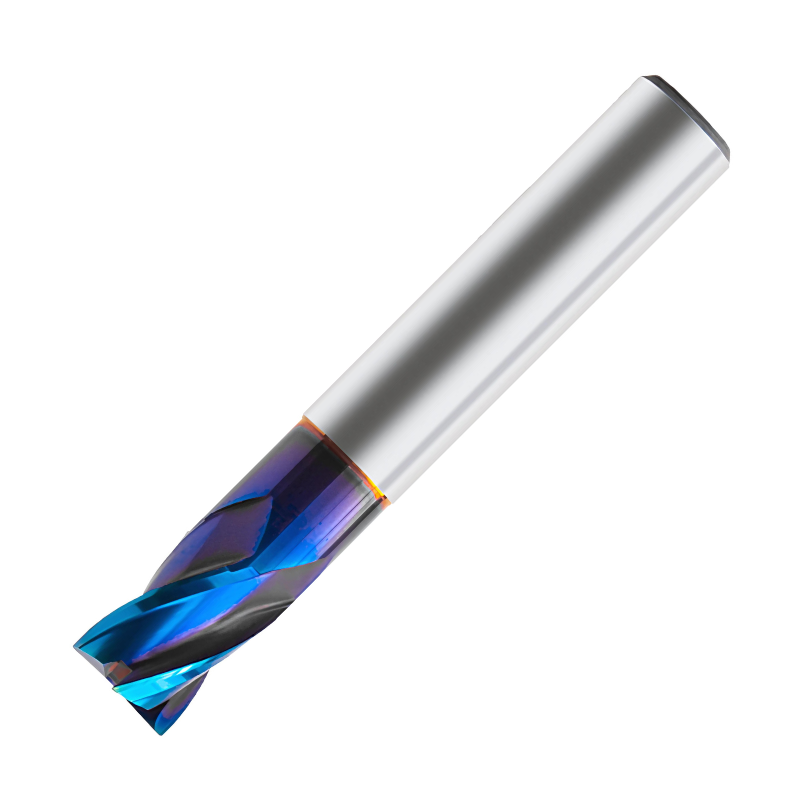

Europa Tools Carbide End Mill 4 Flute Extended Neck Stub Length - Corner Radius - Pulsar Blue - 5mm x R0.2 - 6mm Shank
| Cutter Diameter (DC) | 5 |
| Number Of Flute | 4 |
| Flute Length (APMX) | 6 |
| Overall Length (OAL) | 50 |
| Shank Diameter (DMM) | 6 |
| Reach (LU) | 11 |
Learn more about Klarna
The Europa Tools Carbide End Mill 4 Flute Extended Neck Stub Length - Corner Radius - Pulsar Blue is a precision milling tool built for tight spaces. Designed for engineers and machinists who need reliable reach and stable detail work in confined pockets and channels.
- Diameter: 5 mm
- Flute Count: 4-flute configuration for smooth cutting and efficient chip evacuation
- Neck Design: Extended neck to reach into deep pockets without sacrificing rigidity
- Overall Length/Stub: Stub-length body provides stability during fine-detail operations
- Corner Radius: R0.2 to reinforce cutting edges and reduce edge chipping
- Shank Diameter: 6 mm for secure mounting in standard toolholders
- Material: Solid carbide for exceptional hardness and wear resistance
- Coating: Pulsar Blue coating delivers improved heat resistance and longer tool life
- Application: Ideal for high-precision milling in restricted spaces, including pockets, slots, and intricate contours
The combination of an extended neck and stub-length design delivers precise control in hard-to-reach areas while maintaining rigidity necessary for delicate detailing. The 4-flute geometry balances material removal with a fine finish, making it suitable for tough materials where edge integrity matters. The corner radius strengthens the tool against chipping in aggressive cuts, and the Pulsar Blue coating further enhances heat resistance, helping maintain consistent performance over extended tool life. This end mill is a practical choice for engineers tackling compact assemblies, precision features, and intricate geometries where conventional tools struggle to reach.

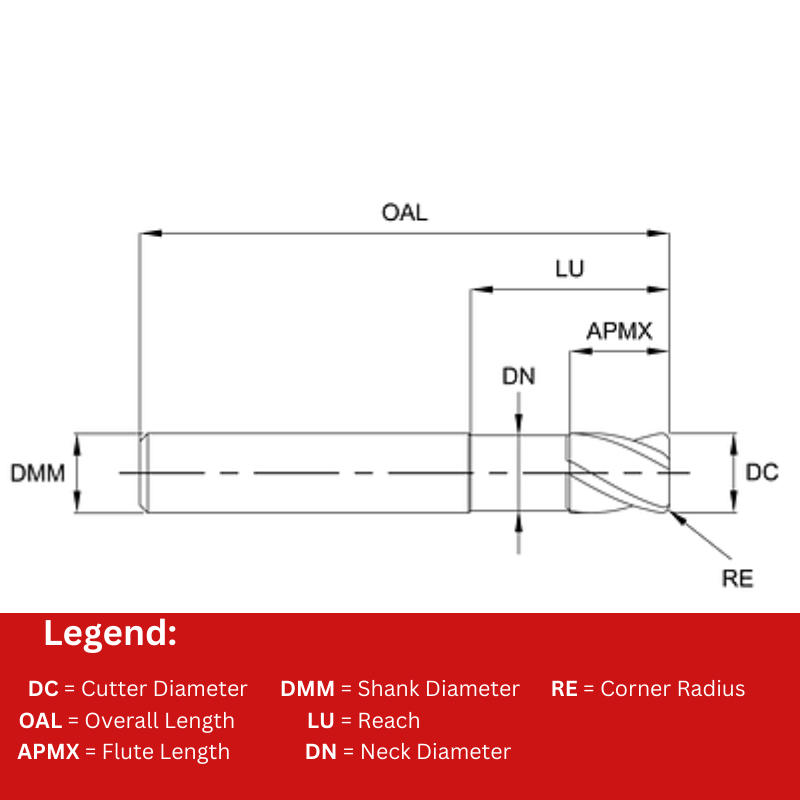

| Cutter Diameter (DC) | 5 |
| Number Of Flute | 4 |
| Flute Length (APMX) | 6 |
| Overall Length (OAL) | 50 |
| Shank Diameter (DMM) | 6 |
| Reach (LU) | 11 |
| Corner Radius (RE) | 0.2 |
| Neck Diameter (DN) | 4.8 |
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: Europa Tools Carbide End Mills 4 Flute Extended Neck Stub Length - Corner Radius - Pulsar Blue
View full collection →You are viewing EUR-1033500500. Click any other SKU to view its full details.
| Product SKU | Cutter Diameter (DC) | Flute Length (APMX) | Overall Length (OAL) | Shank Diameter (DMM) | Reach (LU) | Corner Radius (RE) | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|---|
| EUR-1033500100 | 1 | 1.5 | 40 | 3 | - | 0.1 | £27.27 | 1-2 days | |
| EUR-1033500901 | 1 | 1.5 | 40 | 6 | - | 0.1 | £39.83 | 1-2 days | |
| EUR-1033500150 | 1.5 | 2.2 | 40 | 3 | - | 0.1 | £27.27 | 1-2 days | |
| EUR-1033500902 | 1.5 | 2.2 | 40 | 6 | - | 0.1 | £38.25 | 1-2 days | |
| EUR-1033500200 | 2 | 3 | 40 | 3 | 6 | 0.1 | £24.71 | 1-2 days | |
| EUR-1033500903 | 2 | 3 | 40 | 6 | 6 | 0.1 | £36.21 | 1-2 days | |
| EUR-1033500250 | 2.5 | 4 | 40 | 3 | 6 | 0.1 | £24.71 | 1-2 days | |
| EUR-1033500904 | 2.5 | 4 | 40 | 6 | 6 | 0.1 | £36.20 | 1-2 days | |
| EUR-1033500300 | 3 | 4 | 45 | 6 | 7 | 0.1 | £36.21 | 1-2 days | |
| EUR-1033500350 | 3.5 | 5 | 45 | 6 | 9 | 0.1 | £36.21 | 1-2 days | |
| EUR-1033500400 | 4 | 5 | 45 | 6 | 9 | 0.1 | £36.21 | 1-2 days | |
| EUR-1033500450 | 4.5 | 6 | 45 | 6 | 10 | 0.1 | £36.21 | 1-2 days | |
| EUR-1033500500 Viewing | 5 | 6 | 50 | 6 | 11 | 0.2 | £36.21 | 1-2 days | |
| EUR-1033500600 | 6 | 7 | 50 | 6 | 14 | 0.2 | £36.21 | 1-2 days | |
| EUR-1033500800 | 8 | 9 | 60 | 8 | 18 | 0.2 | £45.87 | 1-2 days | |
| EUR-1033501000 | 10 | 12 | 75 | 10 | 25 | 0.2 | £68.68 | 1-2 days | |
| EUR-1033501200 | 12 | 15 | 75 | 12 | 30 | 0.3 | £94.82 | 1-2 days | |
| EUR-1033501600 | 16 | 18 | 90 | 16 | 38 | 0.3 | £189.87 | 1-2 days | |
| EUR-1033502000 | 20 | 24 | 100 | 20 | 45 | 0.3 | £327.22 | 1-2 days |
