Europa Tools Carbide End Mill 2 Flute - Corner Radius - Miniature Extended Neck For Graphex - 1mm x 12mm x R0.1
| Cutting Diameter | 1 |
| Flute Length (APMX) | 1.5 |
| Overall Length (OAL) | 40 |
| Shank Diameter (DMM) | 3 |
| Reach (LU) | 12 |
| Corner Radius (RE) | 0.1 |
Learn more about Klarna

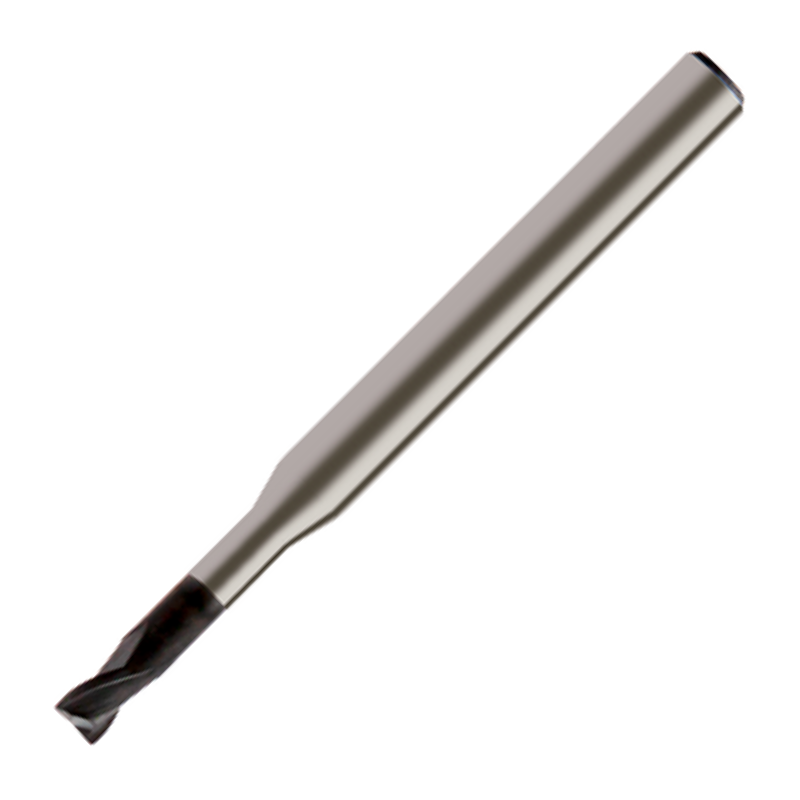

The Europa Tools Carbide End Mill with a 1 mm diameter is a precision cutting tool designed for graphite-based materials like Graphex. Its miniature extended neck and 2-flute geometry deliver delicate, detailed cuts in tight spaces without sacrificing accuracy.
- Diameter: 1 mm
- Length of cut: 12 mm
- Corner radius: R0.1
- Flutes: 2-flute design for smooth chip evacuation
- Material: Solid carbide for rigidity and long-wear performance
- Neck design: Miniature extended neck to reach into narrow pockets and intricate geometries
- Application: Specifically optimized for Graphex and graphite-like materials
The corner radius adds strength to the cutting edges, reducing chipping and enhancing tool life during precision graphite milling. The miniature extended neck provides access to recessed features and deep slots that standard end mills can’t reach, enabling more complete part geometry in a single setup. With its compact 1 mm diameter and robust carbide construction, this end mill supports clean, accurate finishes on fine-detail work and micro-features common in Graphex projects.

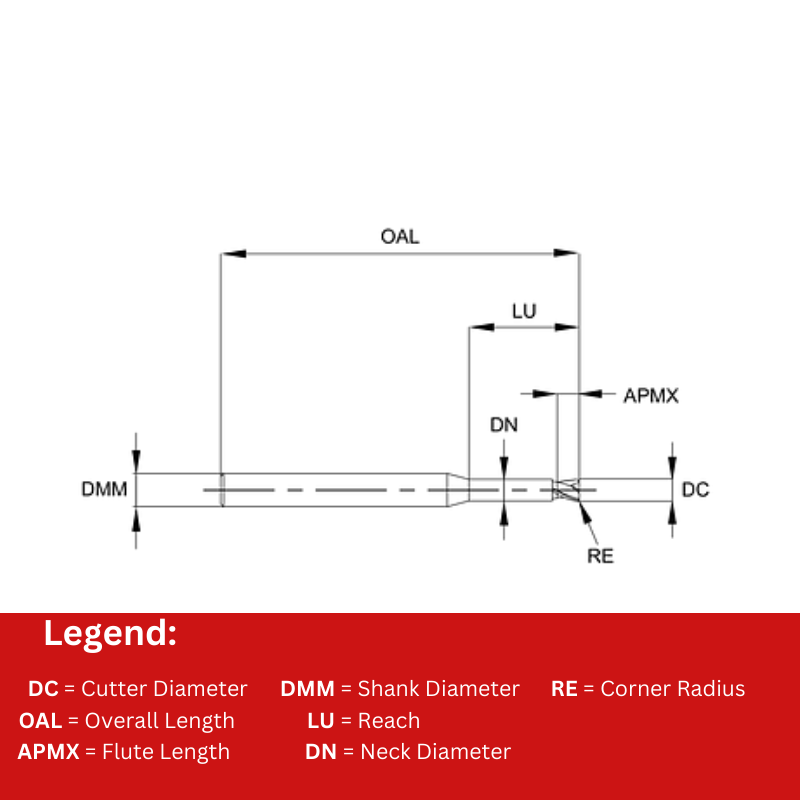

| Cutting Diameter | 1 |
| Flute Length (APMX) | 1.5 |
| Overall Length (OAL) | 40 |
| Shank Diameter (DMM) | 3 |
| Reach (LU) | 12 |
| Corner Radius (RE) | 0.1 |
| Neck Diameter (DN) | 0.95 |
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: Europa Tools Carbide End Mills 2 Flute - Corner Radius - Miniature Extended Neck For Graphex
View full collection →You are viewing EUR-1093339005. Click any other SKU to view its full details.
| Product SKU | Cutting Diameter | Flute Length (APMX) | Overall Length (OAL) | Shank Diameter (DMM) | Reach (LU) | Corner Radius (RE) | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|---|
| EUR-1093330020 | 0.2 | 0.3 | 40 | 3 | - | - | £69.41 | 1-2 days | |
| EUR-1093330030 | 0.3 | 0.5 | 40 | 3 | - | - | £59.91 | 1-2 days | |
| EUR-1093330040 | 0.4 | 0.6 | 40 | 3 | - | - | £55.41 | 1-2 days | |
| EUR-1093330050 | 0.5 | 0.7 | 40 | 3 | 2.5 | 0.05 | £55.41 | 1-2 days | |
| EUR-1083339001 | 0.5 | 0.7 | 40 | 3 | 4 | 0.05 | £76.36 | 1-2 days | |
| EUR-1093330060 | 0.6 | 0.9 | 40 | 3 | 3 | 0.05 | £55.41 | 1-2 days | |
| EUR-1083339002 | 0.6 | 0.9 | 40 | 3 | 5 | 0.05 | £88.56 | 1-2 days | |
| EUR-1093330080 | 0.8 | 1.2 | 40 | 3 | 4 | 0.05 | £52.96 | 1-2 days | |
| EUR-1083339003 | 0.8 | 1.2 | 40 | 3 | 7 | 0.05 | £73.20 | 1-2 days | |
| EUR-1093330100 | 1 | 1.5 | 40 | 3 | 5 | 0.1 | £49.50 | 1-2 days | |
| EUR-1093339004 | 1 | 1.5 | 40 | 3 | 8.5 | 0.1 | £49.50 | 1-2 days | |
| EUR-1093339005 Viewing | 1 | 1.5 | 40 | 3 | 12 | 0.1 | £49.50 | 1-2 days | |
| EUR-1093330120 | 1.2 | 1.8 | 50 | 3 | 6 | 0.1 | £49.68 | 1-2 days | |
| EUR-1083339006 | 1.2 | 1.8 | 50 | 3 | 10 | 0.1 | £101.67 | 1-2 days | |
| EUR-1093330150 | 1.5 | 2.2 | 50 | 3 | 7.5 | 0.15 | £49.68 | 1-2 days | |
| EUR-1093339007 | 1.5 | 2.2 | 50 | 3 | 12 | 0.15 | £51.43 | 1-2 days | |
| EUR-1093339008 | 1.5 | 2.2 | 50 | 3 | 18 | 0.15 | £51.43 | 1-2 days | |
| EUR-1093330200 | 2 | 2.2 | 60 | 3 | 10 | 0.15 | £48.43 | 1-2 days | |
| EUR-1093339009 | 2 | 2.2 | 60 | 3 | 16 | 0.15 | £50.47 | 1-2 days | |
| EUR-1093339010 | 2 | 2.2 | 60 | 3 | 25 | 0.15 | £50.47 | 1-2 days | |
| EUR-1093330300 | 3 | 3 | 65 | 4 | 10 | 0.2 | £62.33 | 1-2 days | |
| EUR-1093339011 | 3 | 3 | 65 | 4 | 15 | 0.2 | £62.33 | 1-2 days | |
| EUR-1093339012 | 3 | 3 | 65 | 4 | 20 | 0.2 | £62.33 | 1-2 days | |
| EUR-1093339013 | 3 | 3 | 75 | 4 | 25 | 0.2 | £62.33 | 1-2 days | |
| EUR-1093339014 | 3 | 3 | 75 | 4 | 30 | 0.2 | £62.33 | 1-2 days | |
| EUR-1093330400 | 4 | 4 | 65 | 6 | 20 | 0.2 | £76.85 | 1-2 days | |
| EUR-1093339015 | 4 | 4 | 75 | 6 | 30 | 0.2 | £76.85 | 1-2 days | |
| EUR-1093339016 | 4 | 4 | 90 | 6 | 40 | 0.2 | £82.37 | 1-2 days | |
| EUR-1093330500 | 5 | 5 | 75 | 6 | 20 | 0.3 | £76.85 | 1-2 days | |
| EUR-1093339017 | 5 | 5 | 75 | 6 | 30 | 0.3 | £76.85 | 1-2 days | |
| EUR-1093339018 | 5 | 5 | 90 | 6 | 40 | 0.3 | £82.37 | 1-2 days | |
| EUR-1093339019 | 5 | 5 | 90 | 6 | 50 | 0.3 | £93.27 | 1-2 days | |
| EUR-1093330600 | 6 | 6 | 75 | 6 | 30 | 0.3 | £82.37 | 1-2 days | |
| EUR-1093339020 | 6 | 6 | 90 | 6 | 40 | 0.3 | £82.37 | 1-2 days | |
| EUR-1093339021 | 6 | 6 | 90 | 6 | 50 | 0.3 | £93.27 | 1-2 days | |
| EUR-1093339022 | 6 | 6 | 100 | 6 | 60 | 0.3 | £95.43 | 1-2 days |
