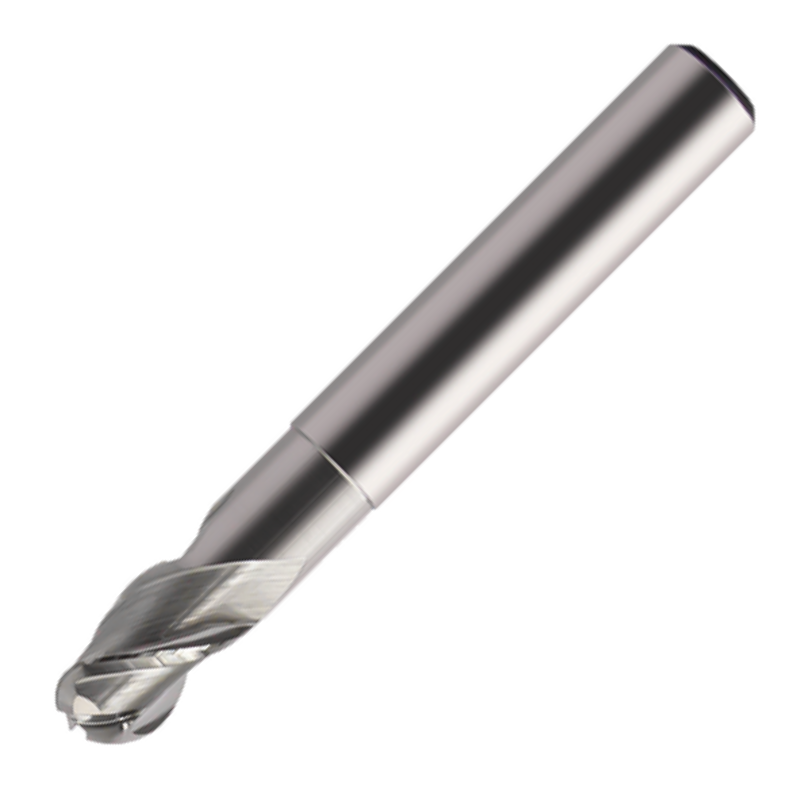

Europa Tools Carbide End Mill 3 Flute - Ball Nose Extended Neck - For Aluminium - ALU XP - 16mm

SKU:EUR-1163031600

The Europa Tools Carbide End Mill with 3 flutes and a ball-nose profile is engineered for aluminium machining, delivering precise contours and reliable performance. Its extended neck provides adde... Read more ↓
N
Cutting Diameter16
Flute Length (APMX)24
Overall Length (OAL)100
Shank Diameter (DMM)16
Reach (LU)40
Corner Radius (RE)8
View all specifications ↓
Download Cutting Data
£153.39
Prices shown ex. VAT
1–2 days estimated lead time — subject to availability
View Other Sizes →
Free delivery over £50 ex VAT
Secure checkout
14-day returns
30+ years expertise
Klarna
Pay in 3 interest-free instalments. No extra cost if paid on time. 18+ only.
Learn more about Klarna
Speak to our team
01732 887334
Mon – Thurs 8:30 – 17:30 · Fri 8:30 – 16:30

The Europa Tools Carbide End Mill with 3 flutes and a ball-nose profile is engineered for aluminium machining, delivering precise contours and reliable performance. Its extended neck provides added reach for deep cavities and intricate features, making it a versatile choice for detailed work.

  • Diameter: 16 mm
  • Flute Count: 3 flutes for efficient chip removal and smoother cutting
  • Profile: Ball Nose geometry ideal for intricate contours and complex shapes
  • Neck Type: Extended neck enables access to deep pockets and tight radii
  • Material & Coating: Solid carbide with ALU XP coating for high-speed cutting and enhanced wear resistance
  • Material Suitability: Optimized for aluminium and other non-ferrous materials
  • Applications: Suitable for both roughing and finishing to achieve superior aluminium surface finishes

Using this end mill translates to smoother finishes, longer tool life, and greater accessibility in tight pockets. The 3-flute design promotes efficient chip evacuation and reduces cutting forces, helping you maintain stable feeds and finishes even at higher speeds. The extended neck reaches deep features without sacrificing rigidity, while the ALU XP coating enhances wear resistance for longer tool life in demanding aluminium workflows. Whether you’re profiling complex contours or removing material in hard-to-reach areas, this end mill delivers consistent results and reliable performance across a range of aluminium machining tasks.

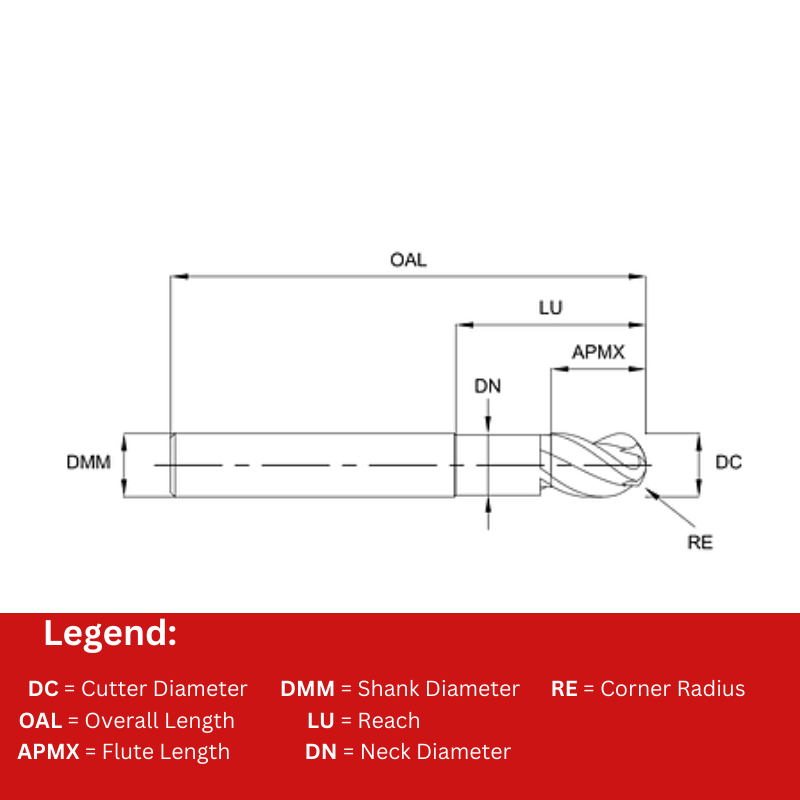

Cutting Diameter 16
Flute Length (APMX) 24
Overall Length (OAL) 100
Shank Diameter (DMM) 16
Reach (LU) 40
Corner Radius (RE) 8
Neck Diameter (DN) 15.4

What time are Protool open?

We are open Monday to Friday between 8:30am and 5pm.

Do you offer Free Next Day delivery?

Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.

We also offer the following:

  • Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
  • DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
  • Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
  • DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.

For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.

*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.

★★★★★
Nice experience staff are very helpful and interested...
Staff are very helpful and interested in providing a good service making us the customer feel valued.
Bill
★★★★★
first place we look
honest about stock and prices are competitive.
Phil
★★★★★
Polite and helpful
Staff are very helpful and polite.Goods that were in stock were dispatched same day and back orders were quick in coming through .
Graham
★★★★★
Buying experience
Phone requests are handled quickly and without any fuss. The website is easy to use and straightforward to order from. It’s especially helpful that it shows real‑time availability, so we don’t need to call to confirm whether parts will arrive.
Jeremy

Full Range: Europa Tools Carbide End Mills 3 Flute - Ball Nose Extended Neck - For Aluminium - ALU XP

View full collection →

You are viewing EUR-1163031600. Click any other SKU to view its full details.

Product SKUCutting DiameterFlute Length (APMX)Overall Length (OAL)Shank Diameter (DMM)Reach (LU)Corner Radius (RE)PriceStock Order
EUR-1163030200 2360651£26.91 1-2 days
EUR-1163030250 2.5460661.25£26.91 1-2 days
EUR-1163030300 34.56066.51.5£26.91 1-2 days
EUR-1163030350 3.5565671.75£27.07 1-2 days
EUR-1163030400 4665682£27.07 1-2 days
EUR-1163030500 57.5656102.5£27.07 1-2 days
EUR-1163030600 69756123£27.07 1-2 days
EUR-1163030800 812758254£40.38 1-2 days
EUR-1163031000 10158010305£61.45 1-2 days
EUR-1163031200 12189012366£86.76 1-2 days
EUR-1163031600 Viewing162410016408£153.39 1-2 days
