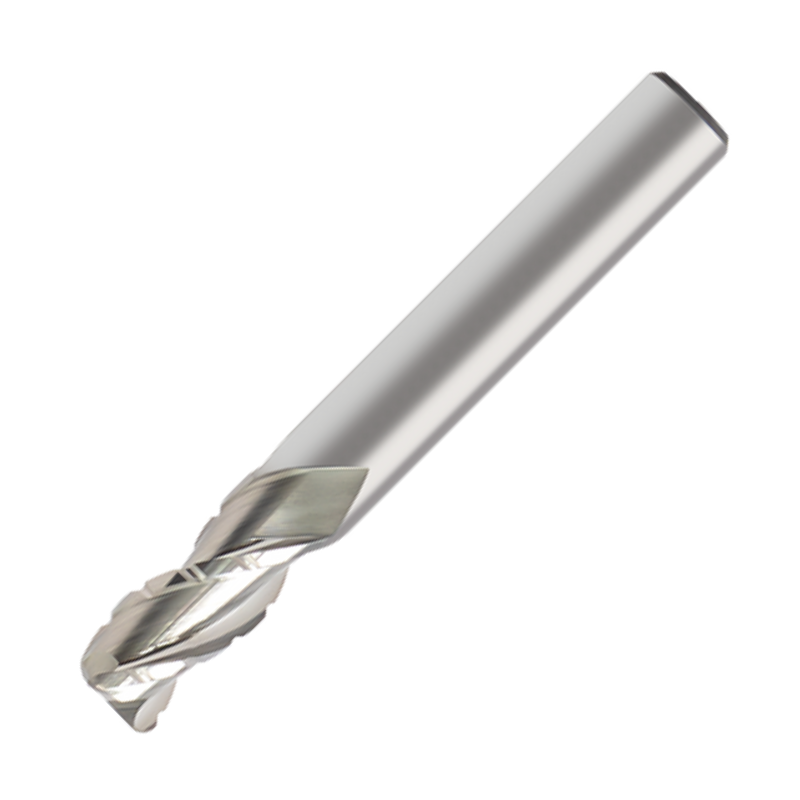

Europa Tools Carbide End Mill 3 Flute - Corner Radius With Chipbreaker For For Aluminium - Standard Length Mastermill AL-HPC - 20mm x R3

SKU:EUR-1253459023

Introducing the Europa Tools Mastermill AL-HPC 3-flute carbide end mill, engineered for efficient aluminum and non-ferrous machining. This standard-length tool combines a precise corner radius wi... Read more ↓
N

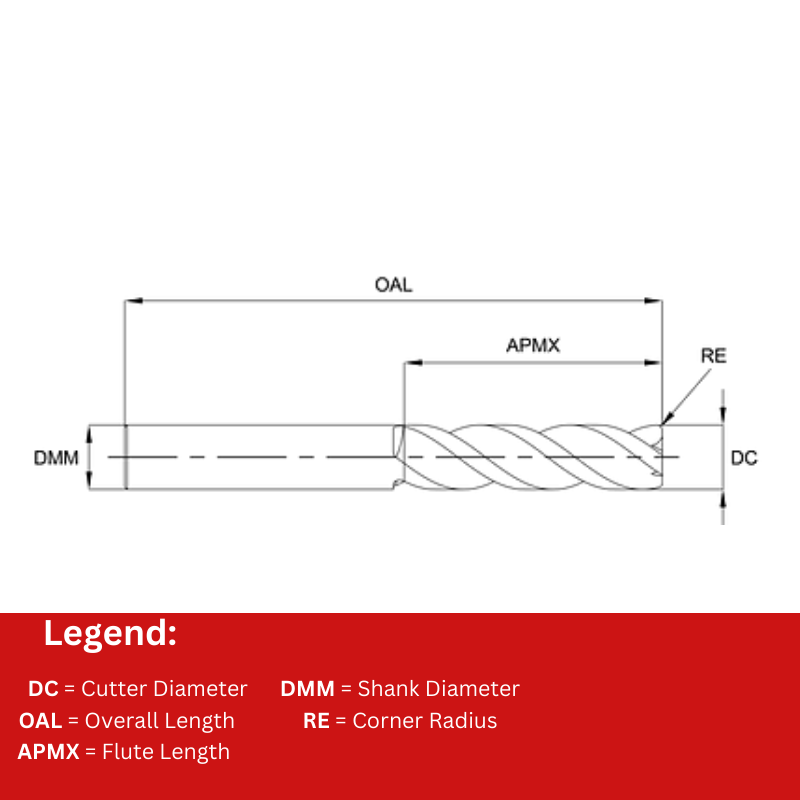

Cutter Diameter (DC)20
Number of Flutes3
Flute Length (APMX)38
Overall Length (OAL)104
Shank Diameter (DMM)20
Corner Radius (RE)3
Download Cutting Data
£549.51
Prices shown ex. VAT
1–2 days estimated lead time — subject to availability
View Other Sizes →
Free delivery over £50 ex VAT
Secure checkout
14-day returns
30+ years expertise
Klarna
Pay in 3 interest-free instalments. No extra cost if paid on time. 18+ only.
Learn more about Klarna
Speak to our team
01732 887334
Mon – Thurs 8:30 – 17:30 · Fri 8:30 – 16:30

Introducing the Europa Tools Mastermill AL-HPC 3-flute carbide end mill, engineered for efficient aluminum and non-ferrous machining. This standard-length tool combines a precise corner radius with a chipbreaker to deliver dependable performance in a range of aluminum applications.

  • Diameter: 20 mm
  • Flute Configuration: 3-flute design for balanced rigidity, chip evacuation, and smooth finishing
  • Corner Radius: R3 (3 mm) to strengthen edges and reduce chipping during demanding cuts
  • Chipbreaker: Integrated chipbreaker enhances chip control, minimizes clogging, and maintains consistent cutting action
  • Material: Solid carbide for high hardness, wear resistance, and stable performance at elevated speeds
  • Length: Standard length in the Mastermill AL-HPC line for reliable rigidity and stability
  • Series: Mastermill AL-HPC, designed specifically for aluminum and other non-ferrous materials
  • Applications: Optimized for high-efficiency aluminum milling, including pocketing, profiling, and finish passes

This end mill is built to boost productivity without sacrificing finish. The 3-flute geometry accelerates chip evacuation for higher feed rates, while the corner radius and chipbreaker work together to extend tool life and reduce surface defects. With its standard-length design, you get steady cutting performance and predictable results across a variety of aluminum machining tasks.

Cutter Diameter (DC) 20
Number of Flutes 3
Flute Length (APMX) 38
Overall Length (OAL) 104
Shank Diameter (DMM) 20
Corner Radius (RE) 3

What time are Protool open?

We are open Monday to Friday between 8:30am and 5pm.

Do you offer Free Next Day delivery?

Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.

We also offer the following:

  • Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
  • DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
  • Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
  • DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.

For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.

*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.

★★★★★
Nice experience staff are very helpful and interested...
Staff are very helpful and interested in providing a good service making us the customer feel valued.
Bill
★★★★★
first place we look
honest about stock and prices are competitive.
Phil
★★★★★
Polite and helpful
Staff are very helpful and polite.Goods that were in stock were dispatched same day and back orders were quick in coming through .
Graham
★★★★★
Buying experience
Phone requests are handled quickly and without any fuss. The website is easy to use and straightforward to order from. It’s especially helpful that it shows real‑time availability, so we don’t need to call to confirm whether parts will arrive.
Jeremy

Full Range: Europa Tools Carbide End Mills 3 Flute - Corner Radius With Chipbreaker For For Aluminium - Standard Length Mastermill AL-HPC

View full collection →

You are viewing EUR-1253459023. Click any other SKU to view its full details.

Product SKUCutter Diameter (DC)Flute Length (APMX)Overall Length (OAL)Shank Diameter (DMM)Corner Radius (RE)PriceStock Order
EUR-1253450600 6135760.25£55.07 1-2 days
EUR-1253459001 6135760.5£55.07 1-2 days
EUR-1253459002 6135761£55.07 1-2 days
EUR-1253459003 6135761.5£55.07 1-2 days
EUR-1253450800 819.26380.25£82.67 1-2 days
EUR-1253459004 819.26380.5£82.67 1-2 days
EUR-1253459005 819.26381£82.67 1-2 days
EUR-1253459006 819.26381.5£82.67 1-2 days
EUR-1253459007 819.26382£82.67 1-2 days
EUR-1253451000 102272100.5£113.41 1-2 days
EUR-1253459008 102272101£113.41 1-2 days
EUR-1253459009 102272101.5£113.41 1-2 days
EUR-1253459010 102272102£113.41 1-2 days
EUR-1253451200 122683120.5£169.74 1-2 days
EUR-1253459011 122683121£169.74 1-2 days
EUR-1253459012 122683121.5£169.74 1-2 days
EUR-1253459013 122683122£169.74 1-2 days
EUR-1253459014 122683122.5£169.74 1-2 days
EUR-1253459015 122683123£169.74 1-2 days
EUR-1253451600 163292161£291.34 1-2 days
EUR-1253459016 163292161.5£291.34 1-2 days
EUR-1253459017 163292162£291.34 1-2 days
EUR-1253459018 163292162.5£291.34 1-2 days
EUR-1253459019 163292163£291.34 1-2 days
EUR-1253459020 163292164£291.34 1-2 days
EUR-1253452000 2038104201£549.51 1-2 days
EUR-1253459021 2038104202£549.51 1-2 days
EUR-1253459022 2038104202.5£549.51 1-2 days
EUR-1253459023 Viewing2038104203£549.51 1-2 days
EUR-1253459024 2038104204£549.51 1-2 days
