Europa Tools Carbide End Mill 4 Flute Square Edge - Extended Neck - Pulsar DMX - 4mm x 12mm

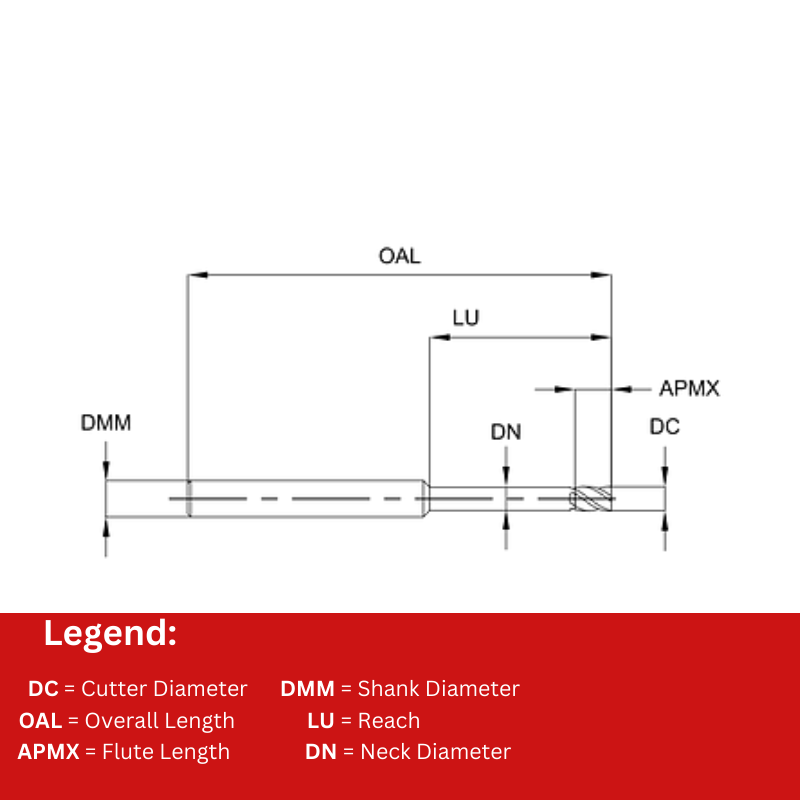

| Cutter Diameter (DC) | 4 |
| Number Of Flute | 4 |
| Flute Length (APMX) | 6 |
| Overall Length (OAL) | 50 |
| Shank Diameter (DMM) | 6 |
| Reach (LU) | 12 |
Learn more about Klarna

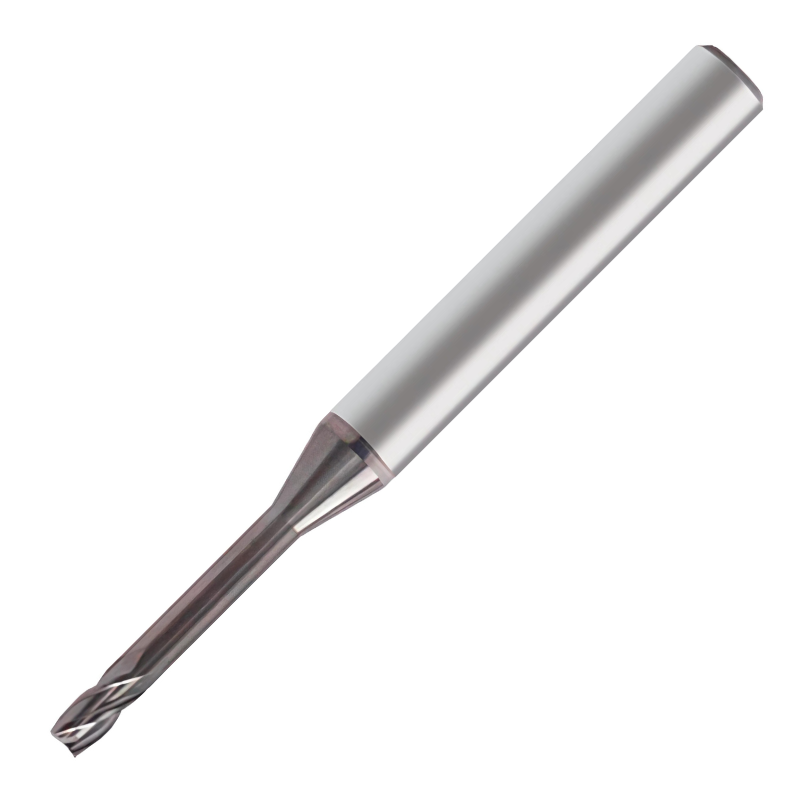

The Europa Tools Carbide End Mill 4 Flute Square Edge - Extended Neck - Pulsar DMX is a high-precision cutting tool designed for engineers and machinists tackling deep cavities and hard-to-reach features. With a 4 mm diameter and extended neck, it delivers both precision and reach for challenging geometries.
- Diameter: 4 mm
- Length of cut: 12 mm
- Flutes: 4-flute design for efficient chip evacuation and smoother finishes
- Edge geometry: Square edge for sharp, true-cut profiles
- Neck design: Extended neck provides extra reach for deep pockets and complex geometries
- Coating: Pulsar DMX coating enables dry cutting and supports high-speed machining
- Material: Solid carbide for rigidity, wear resistance, and long tool life
- Material compatibility: Optimized for pre-hardened steels up to HRc55, while performing well on other metals
Designed for reliability in demanding environments, this end mill maintains tight tolerances and delivers clean surface finishes even in challenging tasks. The four-flute configuration enhances chip removal, helping to reduce heat buildup and prolong tool life. The extended neck enables access to deep cavities and complex geometries without sacrificing rigidity. Pulsar DMX coating supports efficient dry cutting, pairing well with high-speed machining of pre-hardened steels up to HRc55. This combination makes it well-suited for molds, gears, automotive components, and other precision milling applications where reach and precision matter.
| Cutter Diameter (DC) | 4 |
| Number Of Flute | 4 |
| Flute Length (APMX) | 6 |
| Overall Length (OAL) | 50 |
| Shank Diameter (DMM) | 6 |
| Reach (LU) | 12 |
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: Europa Tools Carbide End Mills 4 Flute Square Edge - Extended Neck - Pulsar DMX
View full collection →You are viewing EUR-1263650400. Click any other SKU to view its full details.
| Product SKU | Cutter Diameter (DC) | Flute Length (APMX) | Overall Length (OAL) | Shank Diameter (DMM) | Reach (LU) | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|
| EUR-1263650100 | 1 | 1.5 | 50 | 4 | 4 | £27.33 | 1-2 days | |
| EUR-1263650101 | 1 | 1.5 | 50 | 4 | 5 | £27.33 | 1-2 days | |
| EUR-1263650102 | 1 | 1.5 | 50 | 4 | 6 | £27.33 | 1-2 days | |
| EUR-1263650103 | 1 | 1.5 | 50 | 4 | 8 | £27.33 | 1-2 days | |
| EUR-1263650150 | 1.5 | 2.3 | 50 | 4 | 6 | £27.33 | 1-2 days | |
| EUR-1263650151 | 1.5 | 2.3 | 50 | 4 | 8 | £27.33 | 1-2 days | |
| EUR-1263650152 | 1.5 | 2.3 | 50 | 4 | 10 | £27.33 | 1-2 days | |
| EUR-1263650153 | 1.5 | 2.3 | 50 | 4 | 12 | £28.88 | 1-2 days | |
| EUR-1263650200 | 2 | 3 | 50 | 4 | 8 | £26.07 | 1-2 days | |
| EUR-1263650201 | 2 | 3 | 50 | 4 | 10 | £26.07 | 1-2 days | |
| EUR-1263650202 | 2 | 3 | 50 | 4 | 12 | £26.07 | 1-2 days | |
| EUR-1263650300 | 3 | 4.5 | 50 | 6 | 10 | £39.06 | 1-2 days | |
| EUR-1263650301 | 3 | 4.5 | 50 | 6 | 12 | £39.06 | 1-2 days | |
| EUR-1263650302 | 3 | 4.5 | 60 | 6 | 16 | £39.37 | 1-2 days | |
| EUR-1263650303 | 3 | 4.5 | 60 | 6 | 20 | £39.37 | 1-2 days | |
| EUR-1263650400 Viewing | 4 | 6 | 50 | 6 | 12 | £39.06 | 1-2 days | |
| EUR-1263650401 | 4 | 6 | 60 | 6 | 16 | £39.37 | 1-2 days | |
| EUR-1263650402 | 4 | 6 | 60 | 6 | 20 | £39.37 | 1-2 days | |
| EUR-1263650500 | 5 | 8 | 60 | 6 | 20 | £39.37 | 1-2 days | |
| EUR-1263650600 | 6 | 9 | 60 | 6 | 15 | £39.37 | 1-2 days | |
| EUR-1263650800 | 8 | 12 | 70 | 8 | 25 | £49.23 | 1-2 days | |
| EUR-1263651000 | 10 | 15 | 75 | 10 | 30 | £72.89 | 1-2 days |
