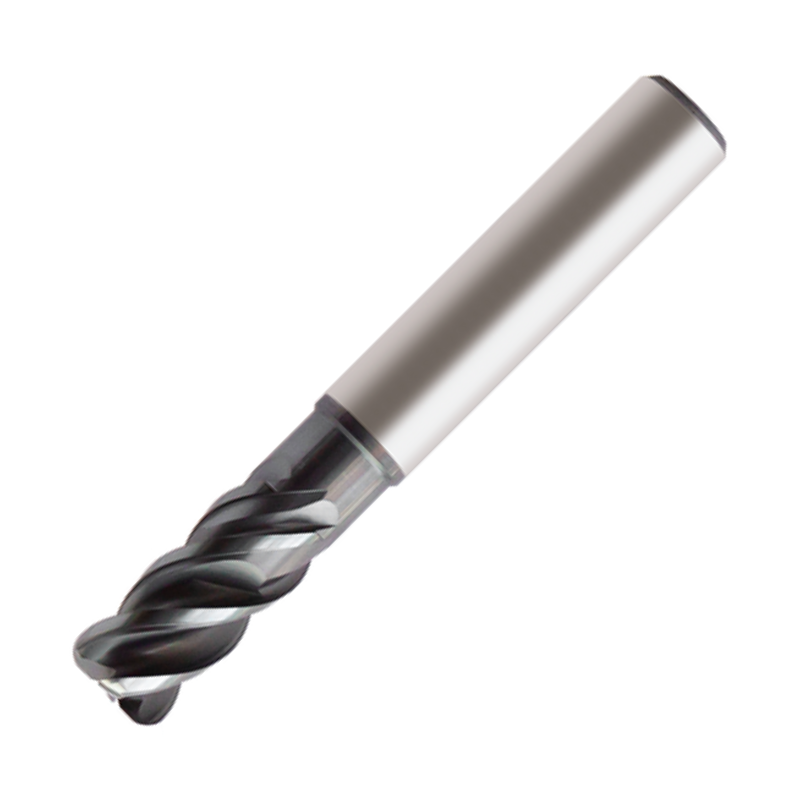

Europa Tools Carbide End Mill 4 Flute Corner Radius - Double Core - Mastermill VXD - 16mm x R4
| Cutter Diameter (DC) | 16 |
| Number of Flute | 4 |
| Flute Length (APMX) | 35 |
| Overall Length (OAL) | 92 |
| Shank Diameter (DMM) | 16 |
| Reach (LU) | 43 |
Learn more about Klarna
The Europa Tools Mastermill VXD 16 mm carbide end mill delivers dependable precision for demanding milling tasks. With a 4-flute geometry and a corner radius, this tool is designed to maintain stability and produce clean finishes in challenging materials.
- Size & Corner Radius: 16 mm diameter with a corner radius of R4 for strong edge support and versatile corner profiling
- Flutes: 4-flute design to enhance chip evacuation and deliver smoother surface finishes
- Core Construction: Double Core for added rigidity and reduced deflection during heavy cuts
- Coating: Mastermill VXD coating offers outstanding wear resistance and reliable performance at higher speeds
- Material: Solid carbide end mill built for durability and long tool life in tough machining environments
- Application: Ideal for high-precision operations in challenging applications where stability and consistent results matter
This end mill combines a robust corner radius with a double-core design to minimize chipping and maximize tool life, while the VXD coating supports high-speed machining and extended usage between tool changes. It’s well-suited for engineers and machinists seeking reliable performance in demanding cutting environments, delivering repeatable results and superior surface finishes across a range of materials.

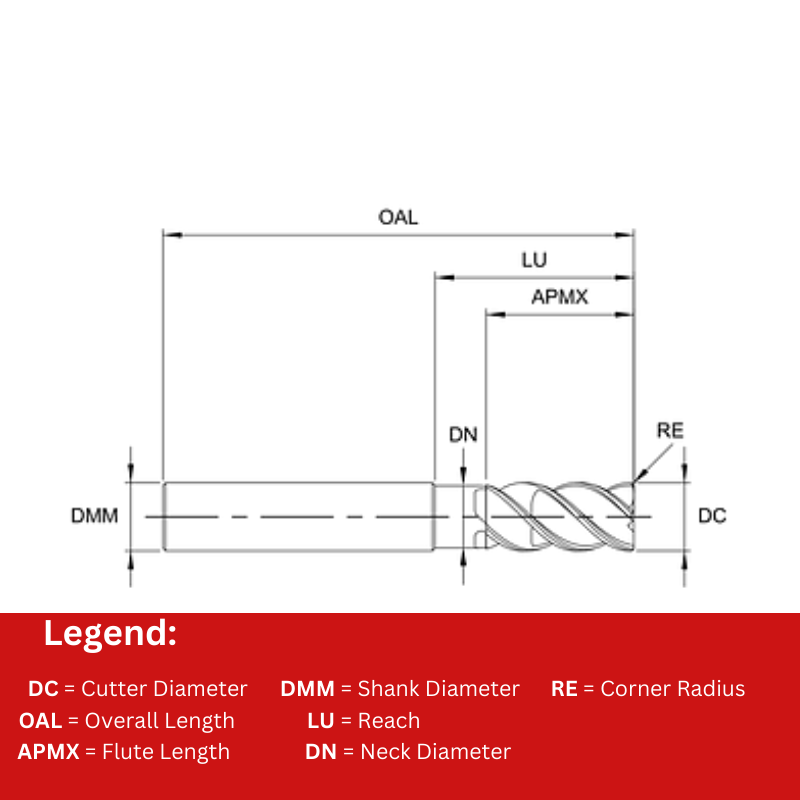

| Cutter Diameter (DC) | 16 |
| Number of Flute | 4 |
| Flute Length (APMX) | 35 |
| Overall Length (OAL) | 92 |
| Shank Diameter (DMM) | 16 |
| Reach (LU) | 43 |
| Corner Radius (RE) | 4 |
| Neck Diameter (DN) | 15 |
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: Europa Tools Carbide End Mills 4 Flute Corner Radius - Double Core - Mastermill VXD
View full collection →You are viewing EUR-1703239016. Click any other SKU to view its full details.
| Product SKU | Cutter Diameter (DC) | Flute Length (APMX) | Overall Length (OAL) | Shank Diameter (DMM) | Reach (LU) | Corner Radius (RE) | Neck Diameter (DN) | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|---|---|
| EUR-1703230600 | 6 | 13 | 57 | 6 | 20 | 0.5 | 5.5 | £48.24 | 1-2 days | |
| EUR-1703239001 | 6 | 13 | 57 | 6 | 20 | 1 | 5.5 | £48.24 | 1-2 days | |
| EUR-1703230800 | 8 | 19 | 63 | 8 | 25 | 0.5 | 7.5 | £67.00 | 1-2 days | |
| EUR-1703239002 | 8 | 19 | 63 | 8 | 25 | 1 | 7.5 | £67.00 | 1-2 days | |
| EUR-1703239003 | 8 | 19 | 63 | 8 | 25 | 1.5 | 7.5 | £67.00 | 1-2 days | |
| EUR-1703239004 | 8 | 19 | 63 | 8 | 25 | 2 | 7.5 | £67.00 | 1-2 days | |
| EUR-1703231000 | 10 | 22 | 72 | 10 | 30 | 0.5 | 9.2 | £105.75 | 1-2 days | |
| EUR-1703239005 | 10 | 22 | 72 | 10 | 30 | 1 | 9.2 | £105.75 | 1-2 days | |
| EUR-1703239006 | 10 | 22 | 72 | 10 | 30 | 1.5 | 9.2 | £105.75 | 1-2 days | |
| EUR-1703239007 | 10 | 22 | 72 | 10 | 30 | 2 | 9.2 | £105.75 | 1-2 days | |
| EUR-1703231200 | 12 | 26 | 83 | 12 | 35 | 0.5 | 11 | £144.14 | 1-2 days | |
| EUR-1703239008 | 12 | 26 | 83 | 12 | 35 | 1 | 11 | £144.14 | 1-2 days | |
| EUR-1703239009 | 12 | 26 | 83 | 12 | 35 | 1.5 | 11 | £144.14 | 1-2 days | |
| EUR-1703239010 | 12 | 26 | 83 | 12 | 35 | 2 | 11 | £144.14 | 1-2 days | |
| EUR-1703239011 | 12 | 26 | 83 | 12 | 35 | 3 | 11 | £144.14 | 1-2 days | |
| EUR-1703231400 | 14 | 26 | 83 | 14 | 35 | 1 | 13 | £198.21 | 1-2 days | |
| EUR-1703239012 | 14 | 26 | 83 | 14 | 35 | 2 | 13 | £198.21 | 1-2 days | |
| EUR-1703231600 | 16 | 35 | 92 | 16 | 43 | 1 | 15 | £249.58 | 1-2 days | |
| EUR-1703239013 | 16 | 35 | 92 | 16 | 43 | 1.5 | 15 | £249.58 | 1-2 days | |
| EUR-1703239014 | 16 | 35 | 92 | 16 | 43 | 2 | 15 | £249.58 | 1-2 days | |
| EUR-1703239015 | 16 | 35 | 92 | 16 | 43 | 3 | 15 | £249.58 | 1-2 days | |
| EUR-1703239016 Viewing | 16 | 35 | 92 | 16 | 43 | 4 | 15 | £249.58 | 1-2 days | |
| EUR-1703232000 | 20 | 44 | 110 | 20 | 56 | 1 | 19 | £469.33 | 1-2 days | |
| EUR-1703239017 | 20 | 44 | 110 | 20 | 56 | 1.5 | 19 | £469.33 | 1-2 days | |
| EUR-1703239018 | 20 | 44 | 110 | 20 | 56 | 2 | 19 | £469.33 | 1-2 days | |
| EUR-1703239019 | 20 | 44 | 110 | 20 | 56 | 3 | 19 | £469.33 | 1-2 days | |
| EUR-1703239020 | 20 | 44 | 110 | 20 | 56 | 3.5 | 19 | £469.33 | 1-2 days | |
| EUR-1703239021 | 20 | 44 | 110 | 20 | 56 | 4 | 19 | £469.33 | 1-2 days | |
| EUR-1703232500 | 25 | 55 | 130 | 25 | 70 | 1 | 24 | £660.41 | 1-2 days | |
| EUR-1703239022 | 25 | 55 | 130 | 25 | 70 | 1.5 | 24 | £660.41 | 1-2 days | |
| EUR-1703239023 | 25 | 55 | 130 | 25 | 70 | 2 | 24 | £660.41 | 1-2 days | |
| EUR-1703239024 | 25 | 55 | 130 | 25 | 70 | 3 | 24 | £660.41 | 1-2 days | |
| EUR-1703239025 | 25 | 55 | 130 | 25 | 70 | 4 | 24 | £660.41 | 1-2 days |
