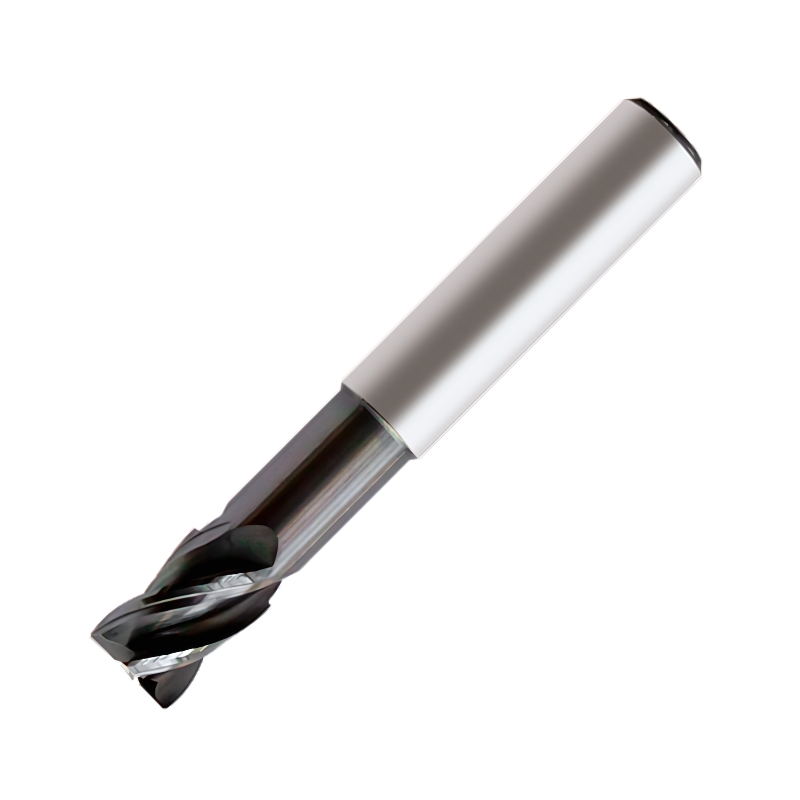

Europa Tools Carbide End Mill 4 Flute Chamfer Edge - Long Length Necked - Mastermill VX - 20mm x 75mm
| Cutter Diameter (DC) | 20 |
| Number of Flute | 4 |
| Flute Length (APMX) | 75 |
| Overall Length (OAL) | 125 |
| Shank Diameter (DMM) | 20 |
| Reach (LU) | 75 |
Learn more about Klarna
The Europa Tools Mastermill VX carbide end mill with a 4-flute chamfer edge is designed for precise beveling in deep or hard-to-reach areas. Built for engineers and machinists who demand reliability and accuracy in challenging applications, it delivers clean chamfers and consistent surface finish.
- Diameter x Length: 20 mm cutting diameter with a 75 mm overall length for extended reach
- Flute Count: 4-flute geometry enhances cutting efficiency and chip evacuation
- Chamfer Edge: precisely ground chamfer edge for clean, accurate bevels
- Long Length Neck: extended neck enables access to deep pockets and tight passageways
- Coating: Mastermill VX coating boosts wear resistance and supports high-speed cutting
- Material: solid carbide for rigidity, heat resistance, and long tool life
This end mill excels in delivering repeatable chamfers with minimal deflection, even in demanding materials. The long neck reduces the need for multiple setups, while the robust coating and carbide substrate help maintain cutting performance over many cycles. Ideal for precision beveling tasks in manufacturing, aerospace, and automotive components, it supports high-quality finishes and efficient production runs without compromising accuracy.

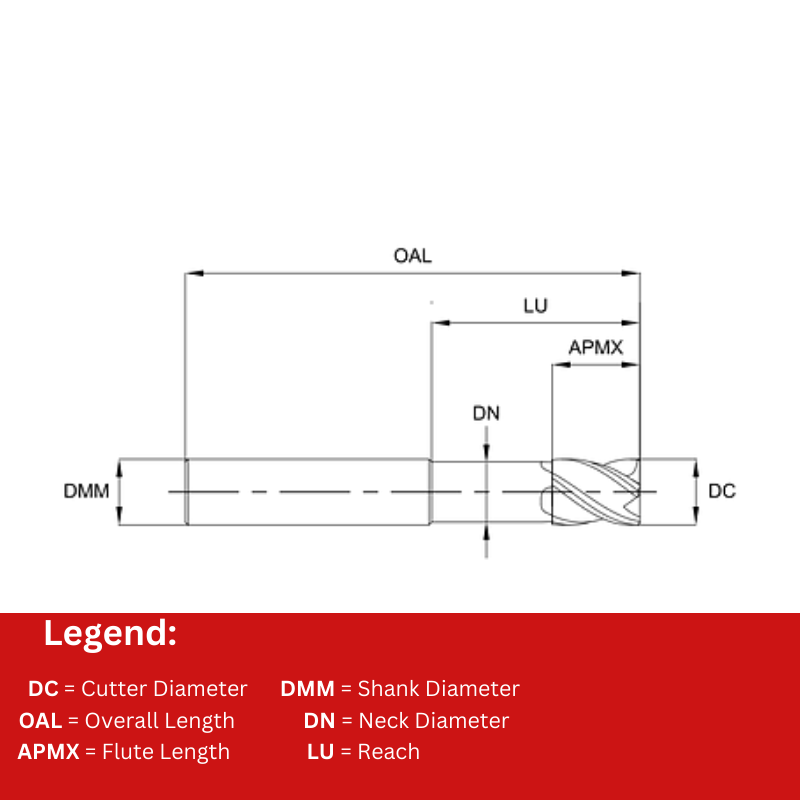

| Cutter Diameter (DC) | 20 |
| Number of Flute | 4 |
| Flute Length (APMX) | 75 |
| Overall Length (OAL) | 125 |
| Shank Diameter (DMM) | 20 |
| Reach (LU) | 75 |
| Neck Diameter (DN) | 19 |
| Chamfer | 0.5 |
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: Europa Tools Carbide End Mills 4 Flute Chamfer Edge - Long Length Necked - Mastermill VX
View full collection →You are viewing EUR-1773239005. Click any other SKU to view its full details.
| Product SKU | Cutter Diameter (DC) | Flute Length (APMX) | Overall Length (OAL) | Shank Diameter (DMM) | Reach (LU) | Neck Diameter (DN) | Chamfer | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|---|---|
| EUR-1773230300 | 3 | 17 | 57 | 6 | 17 | 2.7 | 0.1 | £36.92 | 1-2 days | |
| EUR-1773230400 | 4 | 22 | 62 | 6 | 22 | 3.7 | 0.15 | £36.92 | 1-2 days | |
| EUR-1773230500 | 5 | 27 | 65 | 6 | 27 | 4.7 | 0.15 | £36.92 | 1-2 days | |
| EUR-1773230600 | 6 | 32 | 68 | 6 | 32 | 5.5 | 0.2 | £36.92 | 1-2 days | |
| EUR-1773230800 | 8 | 46 | 82 | 8 | 46 | 7.5 | 0.2 | £56.32 | 1-2 days | |
| EUR-1773231000 | 10 | 32 | 72 | 10 | 32 | 9.2 | 0.3 | £82.03 | 1-2 days | |
| EUR-1773239001 | 10 | 55 | 100 | 10 | 55 | 9.2 | 0.3 | £86.08 | 1-2 days | |
| EUR-1773231200 | 12 | 38 | 83 | 12 | 38 | 11 | 0.35 | £103.98 | 1-2 days | |
| EUR-1773239002 | 12 | 64 | 108 | 12 | 64 | 11 | 0.35 | £134.29 | 1-2 days | |
| EUR-1773231600 | 16 | 44 | 92 | 16 | 44 | 15 | 0.4 | £162.00 | 1-2 days | |
| EUR-1773239003 | 16 | 60 | 108 | 16 | 60 | 15 | 0.4 | £208.36 | 1-2 days | |
| EUR-1773239004 | 16 | 87 | 135 | 16 | 87 | 15 | 0.4 | £223.68 | 1-2 days | |
| EUR-1773232000 | 20 | 54 | 104 | 20 | 54 | 19 | 0.5 | £245.80 | 1-2 days | |
| EUR-1773239005 Viewing | 20 | 75 | 125 | 20 | 75 | 19 | 0.5 | £317.28 | 1-2 days | |
| EUR-1773239006 | 20 | 110 | 160 | 20 | 110 | 19 | 0.5 | £355.41 | 1-2 days |
