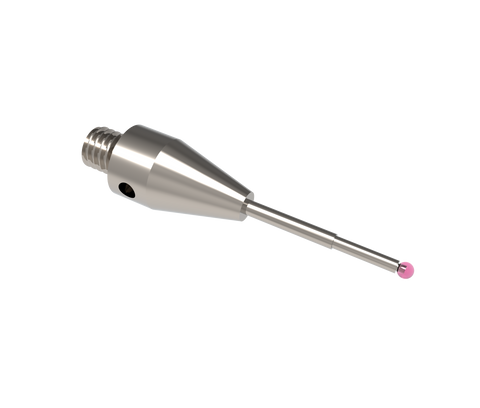

ITP Straight Styli - Type D - Ruby Ball - M5 Thread x 32mm Overall Length - FHM501011032
| Styli Type | Type D |
| Thread Size | M5 |
| Ball Diameter (DK) | 1 |
| Overall Length (L) | 32 |
Learn more about Klarna
Description

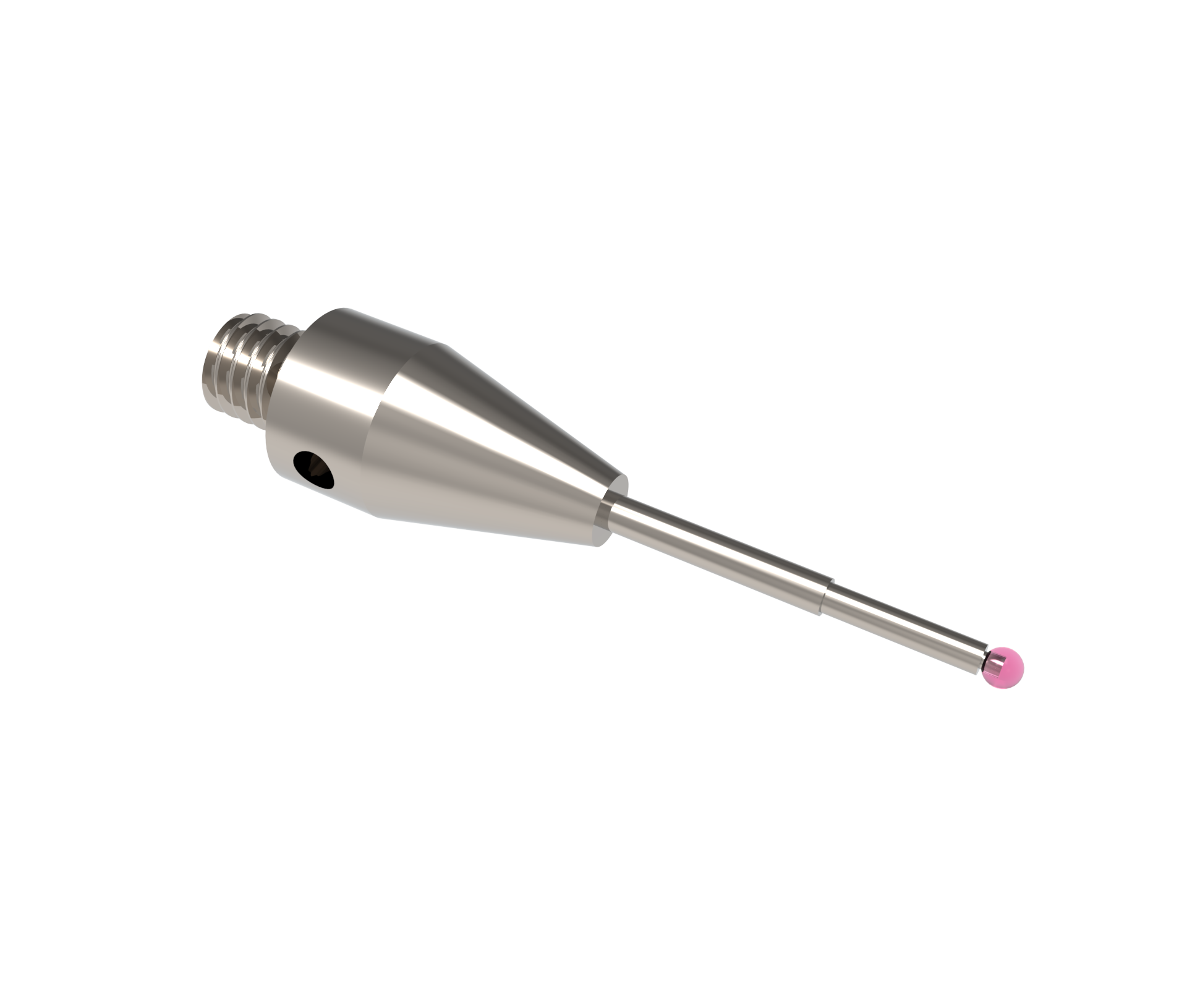

ITP Straight Styli – Type D with Ruby Ball offers a high-rigidity, precision probing solution designed for micro-feature measurement and tight spaces. Featuring a 32 mm overall length and M5 threading, it integrates smoothly with standard probe heads used in metrology labs and manufacturing environments.
- Type: Straight Stylus, Type D with ruby ball tip
- Thread: M5 mounting thread for compatibility with common probe heads
- Overall length: 32 mm
- Stem material: Tungsten carbide stem for maximum rigidity
- Stem design: Straight, reinforced body with options for single- or multi-stepped configurations
- Ball tip: Ruby ball diameters from Ø0.2 mm to Ø1.0 mm for precise contact
- Customization: Other dimensions can be requested via the configurator or by e‑mail
This design pair—rigid tungsten carbide and a wear-resistant ruby ball—delivers repeatable, accurate readings across multiple cycles. The straight, reinforced body minimizes deflection during probing, enabling reliable capture of tiny features and tight geometries. With a flexible 32 mm length and standard M5 thread, it fits a wide range of fixtures and probing setups. Ideal for precision tactile checks and feature verification, the Type D ruby ball stylus can be tailored to your measurement needs through configurable options or direct email requests.
Part Numbers
- Protool Part Number
- ITP-FHM501011032
- Brand
- ITP
- Category
- Styli
